ZRE152R-AEFDKQ (2007)
Toyota Corolla Sed
(0703-0812)6F

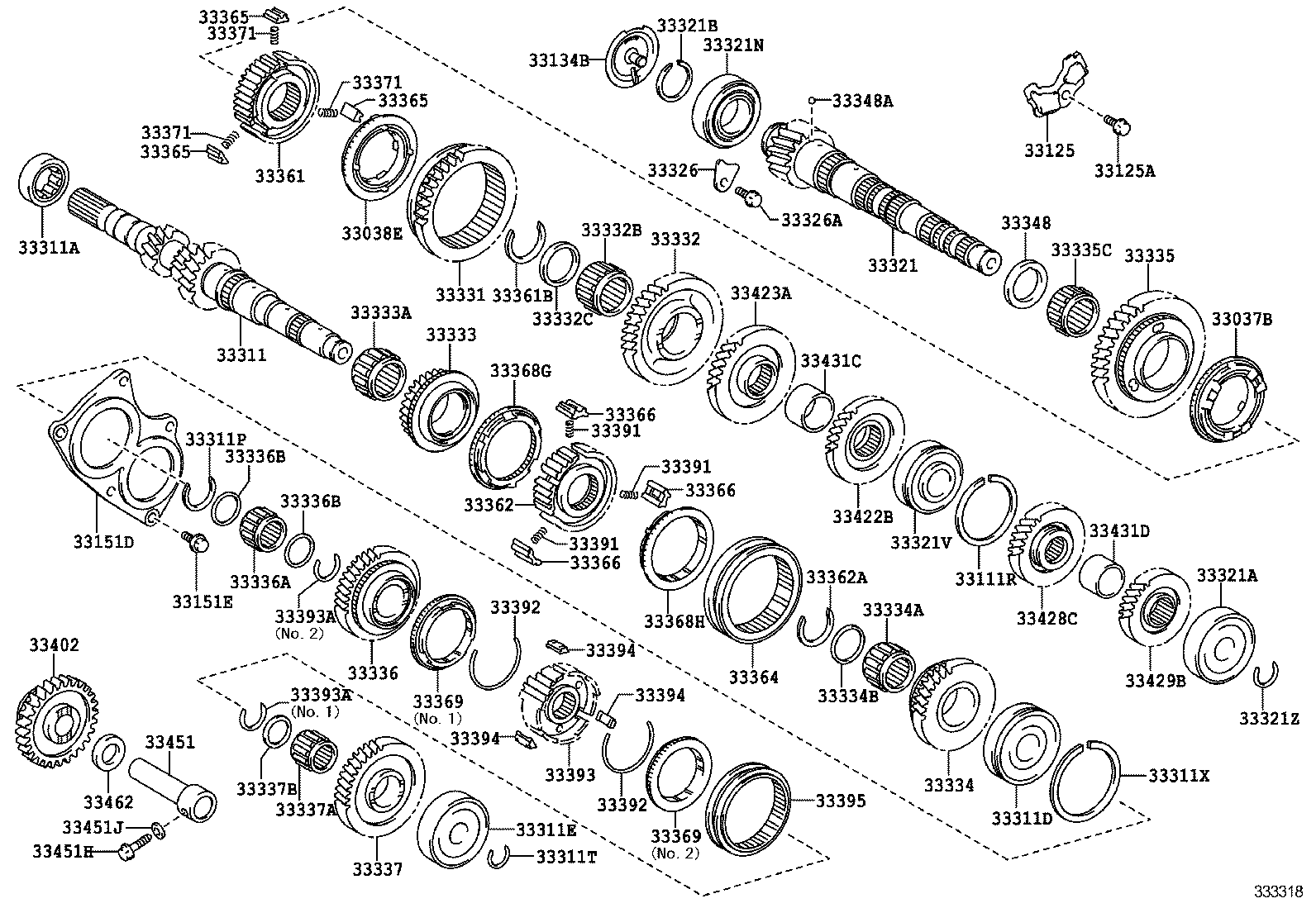

C66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-12040 |
ZRE152..6F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-12020 |
ZRE152..6F |
1 | ||
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90520-57002 |
ZRE152..6F |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-12011 |
ZRE152..6F |
1 | ||
| 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) | ||||
| 91611-B0812 |
ZRE152..6F |
1 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12022 |
ZRE152..6F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-52010 |
ZRE152..6F |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 90119-08944 |
ZRE152..6F |
5 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20201 |
ZRE152..6F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-25021 |
ZRE152..6F |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90363-25074 |
ZRE152..6F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-18013 |
ZRE152..6F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-22006 |
ZRE152..6F T=2.29-2.34,MARK A |
1 | ||
| 90520-22009 |
ZRE152..6F T=2.47-2.52,MARK D |
1 | ||
| 90520-22008 |
ZRE152..6F T=2.41-2.46,MARK C |
1 | ||
| 90520-22007 |
ZRE152..6F T=2.35-2.40,MARK B |
1 | ||
| 90520-22011 |
ZRE152..6F T=2.59-2.64,MARK F |
1 | ||
| 90520-22010 |
ZRE152..6F T=2.53-2.58,MARK E |
1 | ||
| 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) | ||||
| 90520-17010 |
ZRE152..6F T=1.90,MARK E |
1 | ||
| 90520-17007 |
ZRE152..6F T=1.75,MARK B |
1 | ||
| 90520-17015 |
ZRE152..6F T=2.15,MARK K |
1 | ||
| 90520-17014 |
ZRE152..6F T=2.10,MARK J |
1 | ||
| 90520-17006 |
ZRE152..6F T=1.70,MARK A |
1 | ||
| 90520-17012 |
ZRE152..6F T=2.00,MARK G |
1 | ||
| 90520-17008 |
ZRE152..6F T=1.80,MARK C |
1 | ||
| 90520-17016 |
ZRE152..6F T=2.20,MARK L |
1 | ||
| 90520-17009 |
ZRE152..6F T=1.85,MARK D |
1 | ||
| 90520-17011 |
ZRE152..6F T=1.95,MARK F |
1 | ||
| 90520-17017 |
ZRE152..6F T=2.25,MARK M |
1 | ||
| 90520-17013 |
ZRE152..6F T=2.05,MARK H |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-64002 |
ZRE152..6F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20180 |
ZRE152..6F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-21001 |
ZRE152..6F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-30003 |
ZRE152..6F T=2.00-2.04,MARK 2 |
1 | ||
| 90520-30004 |
ZRE152..6F T=2.05-2.09,MARK 3 |
1 | ||
| 90520-30032 |
ZRE152..6F T=1.85-1.89,MARK 7 |
1 | ||
| 90520-30006 |
ZRE152..6F T=2.15-2.19,MARK 5 |
1 | ||
| 90520-30007 |
ZRE152..6F T=2.20-2.24,MARK 6 |
1 | ||
| 90520-30002 |
ZRE152..6F T=1.95-1.99,MARK 1 |
1 | ||
| 90520-30005 |
ZRE152..6F T=2.10-2.14,MARK 4 |
1 | ||
| 90520-30033 |
ZRE152..6F T=1.90-1.94,MARK 8 |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-33006 |
ZRE152..6F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-25061 |
ZRE152..6F |
1 | ||
| 33321Z - RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT) | ||||
| 90520-18003 |
ZRE152..6F T=2.31-2.36,MARK B |
1 | ||
| 90520-18009 |
ZRE152..6F T=2.61-2.66,MARK G |
1 | ||
| 90520-18008 |
ZRE152..6F T=2.55-2.60,MARK F |
1 | ||
| 90520-18006 |
ZRE152..6F T=2.43-2.48,MARK D |
1 | ||
| 90520-18011 |
ZRE152..6F T=2.73-2.78,MARK J |
1 | ||
| 90520-18013 |
ZRE152..6F T=2.67-2.72,MARK H |
1 | ||
| 90520-18004 |
ZRE152..6F T=2.37-2.42,MARK C |
1 | ||
| 90520-18007 |
ZRE152..6F T=2.49-2.54,MARK E |
1 | ||
| 90520-18014 |
ZRE152..6F T=2.79-2.84,MARK K |
1 | ||
| 90520-18015 |
ZRE152..6F T=2.85-2.90,MARK L |
1 | ||
| 90520-18016 |
ZRE152..6F T=2.91-2.96,MARK M |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-12010 |
ZRE152..6F |
1 | ||
| 33326A - BOLT (FOR BEARING LOCK PLATE) | ||||
| 91611-B0812 |
ZRE152..6F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12070 |
ZRE152..6F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-12100 |
ZRE152..6F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32014 |
ZRE152..6F |
1 | ||
| 33332C - SPACER (FOR 2ND GEAR BEARING) | ||||
| 90560-32008 |
ZRE152..6F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-12150 |
ZRE152..6F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-31002 |
ZRE152..6F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-12140 |
ZRE152..6F |
1 | ||
| 33035-20161 |
ZRE152..6F |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-29002 |
ZRE152..6F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-29001 |
ZRE152..6F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-12130 |
ZRE152..6F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38007 |
ZRE152..6F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20070 |
ZRE152..6F |
1 | ||
| 33036-12130 |
ZRE152..6F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-24010 |
ZRE152..6F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-24007 |
ZRE152..6F |
2 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-24007 |
ZRE152..6F |
2 | ||
| 33337 - GEAR SUB-ASSY, 6TH | ||||
| 33037-20010 |
ZRE152..6F |
1 | ||
| 33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR) | ||||
| 90364-22008 |
ZRE152..6F |
1 | ||
| 33337B - SPACER (FOR 6TH GEAR) | ||||
| 90560-22002 |
ZRE152..6F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12010 |
ZRE152..6F |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90360-05012 |
ZRE152..6F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12080 |
ZRE152..6F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29023 |
ZRE152..6F T=2.80-2.85,MARK F |
1 | ||
| 90520-29018 |
ZRE152..6F T=2.50-2.55,MARK A |
1 | ||
| 90520-29019 |
ZRE152..6F T=2.56-2.61,MARK B |
1 | ||
| 90520-29022 |
ZRE152..6F T=2.74-2.79,MARK E |
1 | ||
| 90520-29021 |
ZRE152..6F T=2.68-2.73,MARK D |
1 | ||
| 90520-29020 |
ZRE152..6F T=2.62-2.67,MARK C |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12050 |
ZRE152..6F |
1 | ||
| 33362-12040 |
ZRE152..6F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-27046 |
ZRE152..6F T=2.30-2.35,MARK 0 |
1 | ||
| 90520-27048 |
ZRE152..6F T=2.42-2.47,MARK 2 |
1 | ||
| 90520-27051 |
ZRE152..6F T=2.60-2.65,MARK 5 |
1 | ||
| 90520-27049 |
ZRE152..6F T=2.48-2.53,MARK 3 |
1 | ||
| 90520-27047 |
ZRE152..6F T=2.36-2.41,MARK 1 |
1 | ||
| 90520-27050 |
ZRE152..6F T=2.54-2.59,MARK 4 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12050 |
ZRE152..6F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-52030 |
ZRE152..6F |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-52030 |
ZRE152..6F |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-52030 |
ZRE152..6F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-52030 |
ZRE152..6F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-52030 |
ZRE152..6F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-52030 |
ZRE152..6F |
3 | ||
| 33368G - RING, SYNCHRONIZER (FOR 3RD GEAR) | ||||
| 33368-20080 |
ZRE152..6F |
1 | ||
| 33368H - RING, SYNCHRONIZER (FOR 4TH GEAR) | ||||
| 33368-12210 |
ZRE152..6F |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20020 |
ZRE152..6F NO.1 |
1 | ||
| 33369-20030 |
ZRE152..6F NO.2 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20020 |
ZRE152..6F NO.1 |
1 | ||
| 33369-20030 |
ZRE152..6F NO.2 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-52030 |
ZRE152..6F |
3 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-52030 |
ZRE152..6F |
3 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-52030 |
ZRE152..6F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-52020 |
ZRE152..6F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-52020 |
ZRE152..6F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-52020 |
ZRE152..6F |
3 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
ZRE152..6F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
ZRE152..6F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12050 |
ZRE152..6F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-20076 |
ZRE152..6F T=1.85,MARK C,NO.1 |
1 | ||
| 90520-20074 |
ZRE152..6F T=1.75,MARK A,NO.1 |
1 | ||
| 90520-20078 |
ZRE152..6F T=1.95,MARK E,NO.1 |
1 | ||
| 90520-22023 |
ZRE152..6F T=2.30,NO MARK,NO.2 |
1 | ||
| 90520-20080 |
ZRE152..6F T=2.05,MARK G,NO.1 |
1 | ||
| 90520-20077 |
ZRE152..6F T=1.90,MARK D,NO.1 |
1 | ||
| 90520-20075 |
ZRE152..6F T=1.80,MARK B,NO.1 |
1 | ||
| 90520-20081 |
ZRE152..6F T=2.10,MARK H,NO.1 |
1 | ||
| 90520-20082 |
ZRE152..6F T=2.15,MARK J,NO.1 |
1 | ||
| 90520-20079 |
ZRE152..6F T=2.00,MARK F,NO.1 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-20076 |
ZRE152..6F T=1.85,MARK C,NO.1 |
1 | ||
| 90520-20074 |
ZRE152..6F T=1.75,MARK A,NO.1 |
1 | ||
| 90520-20078 |
ZRE152..6F T=1.95,MARK E,NO.1 |
1 | ||
| 90520-22023 |
ZRE152..6F T=2.30,NO MARK,NO.2 |
1 | ||
| 90520-20080 |
ZRE152..6F T=2.05,MARK G,NO.1 |
1 | ||
| 90520-20077 |
ZRE152..6F T=1.90,MARK D,NO.1 |
1 | ||
| 90520-20075 |
ZRE152..6F T=1.80,MARK B,NO.1 |
1 | ||
| 90520-20081 |
ZRE152..6F T=2.10,MARK H,NO.1 |
1 | ||
| 90520-20082 |
ZRE152..6F T=2.15,MARK J,NO.1 |
1 | ||
| 90520-20079 |
ZRE152..6F T=2.00,MARK F,NO.1 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12030 |
ZRE152..6F |
3 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12030 |
ZRE152..6F |
3 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12030 |
ZRE152..6F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20030 |
ZRE152..6F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20061 |
ZRE152..6F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12090 |
ZRE152..6F |
1 | ||
| 33422-12050 |
ZRE152..6F |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-12010 |
ZRE152..6F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12110 |
ZRE152..6F |
1 | ||
| 33428-12050 |
ZRE152..6F |
1 | ||
| 33429B - GEAR, 6TH DRIVEN | ||||
| 33429-12010 |
ZRE152..6F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12010 |
ZRE152..6F |
1 | ||
| 33431D - SPACER, OUTPUT GEAR | ||||
| 33431-12040 |
ZRE152..6F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-12021 |
ZRE152..6F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90109-08097 |
ZRE152..6F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
ZRE152..6F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-12010 |
ZRE152..6F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
