ZRE152R-AEFDKQ (2007)
Toyota Corolla Sed
Production
Mar 2007
-
Dec 2008
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0703-0812)2ZRFE..6F

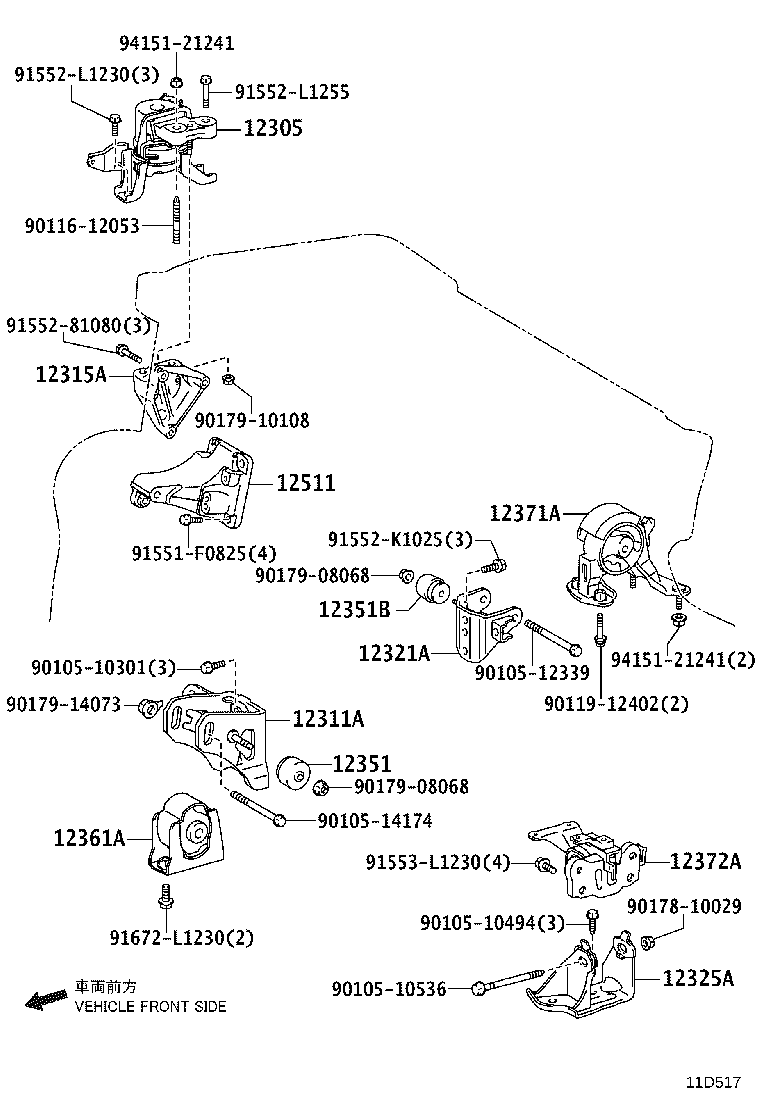

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-22360 |
2ZRFE..ZRE152 |
1 | ||
| 12305-22361 |
2ZRFE..ZRE152 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-22230 |
2ZRFE..ZRE152..6F |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
2ZRFE..ZRE152 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-22200 |
2ZRFE..ZRE152..6F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-22280 |
2ZRFE..ZRE152..6F |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-27050 |
2ZRFE..ZRE152..6F |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-26010 |
2ZRFE..ZRE152..6F |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28230 |
2ZRFE..ZRE152..6F |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-22220 |
2ZRFE..ZRE152..6F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-22150 |
2ZRFE..ZRE152..6F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-37010 |
2ZRFE..ZRE152 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10536 | ||||
| 90105-12339 | ||||
| 90105-14174 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90178-10029 | ||||
| 90179-08068 | ||||
| 90179-10108 | ||||
| 90179-14073 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
