Toyota Corolla sed/wg ZZE142 MANIFOLD

ZZE142R-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0708- )1ZZFE

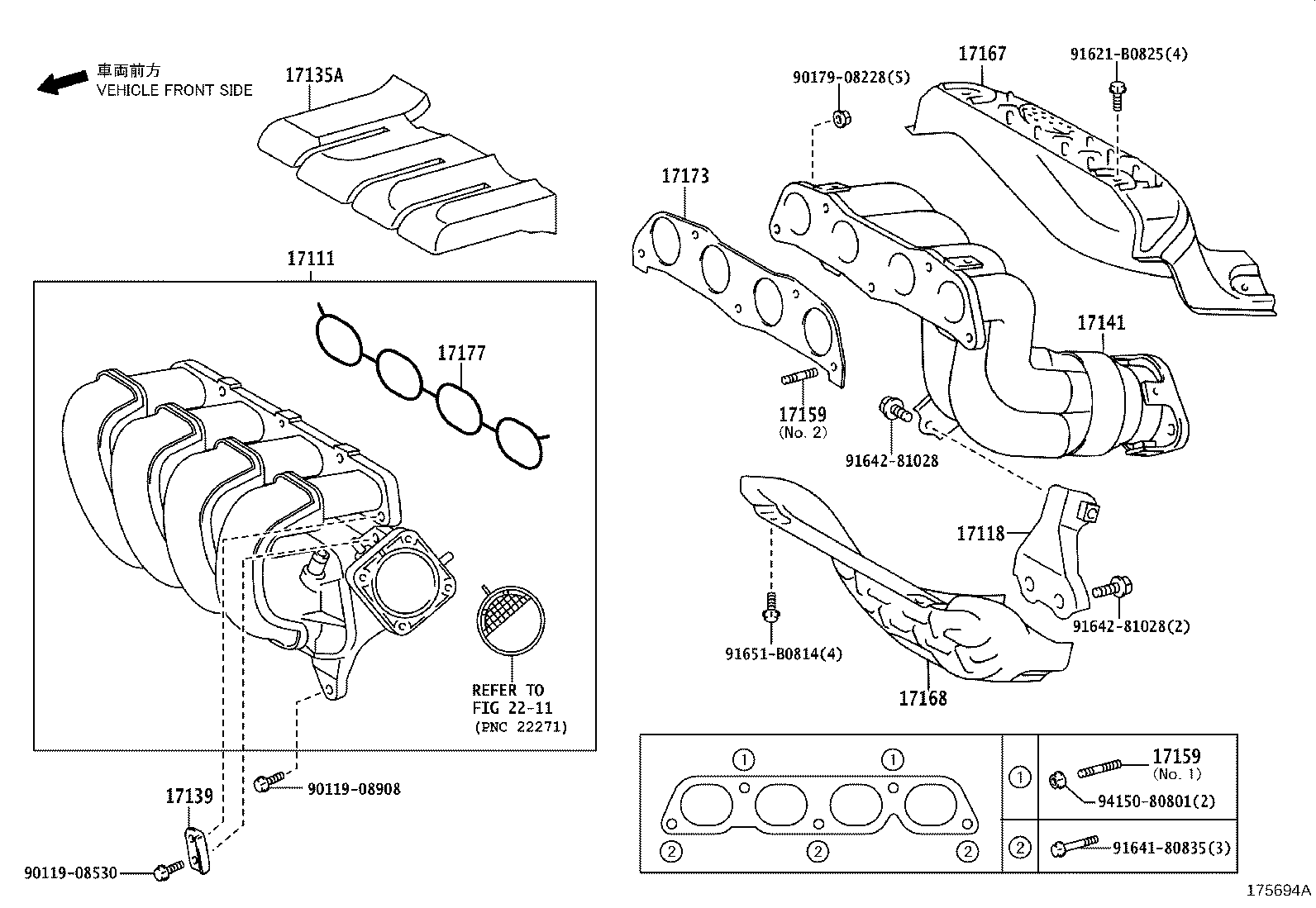

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-22070	1ZZFE..ZZE142	08/2007 - 07/2010	1
17118 - STAY, MANIFOLD
17118-22020	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-22010	1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17139 - STAY, MANIFOLD, NO.2
17139-22030	1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17104-22050	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17104-22100	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZZE14# NO.1	08/2007 - 07/2010	2
90126-08043	1ZZFE,3ZZFE..ZZE14# NO.2	08/2007 - 07/2010	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZZE14# NO.1	08/2007 - 07/2010	2
90126-08043	1ZZFE,3ZZFE..ZZE14# NO.2	08/2007 - 07/2010	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22041	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17167-22080	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22080	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17168-22040	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010	1ZZFE,3ZZFE..ZZE14#	08/2007 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030	1ZZFE..ZZE142	08/2007 - 12/2999	1
Common parts
90119-08530
90119-08908
90179-08228
91621-B0825
91641-80835
91642-81028
91651-B0814
94150-80801
Linked diagrams
2211

(0708- )1ZZFE

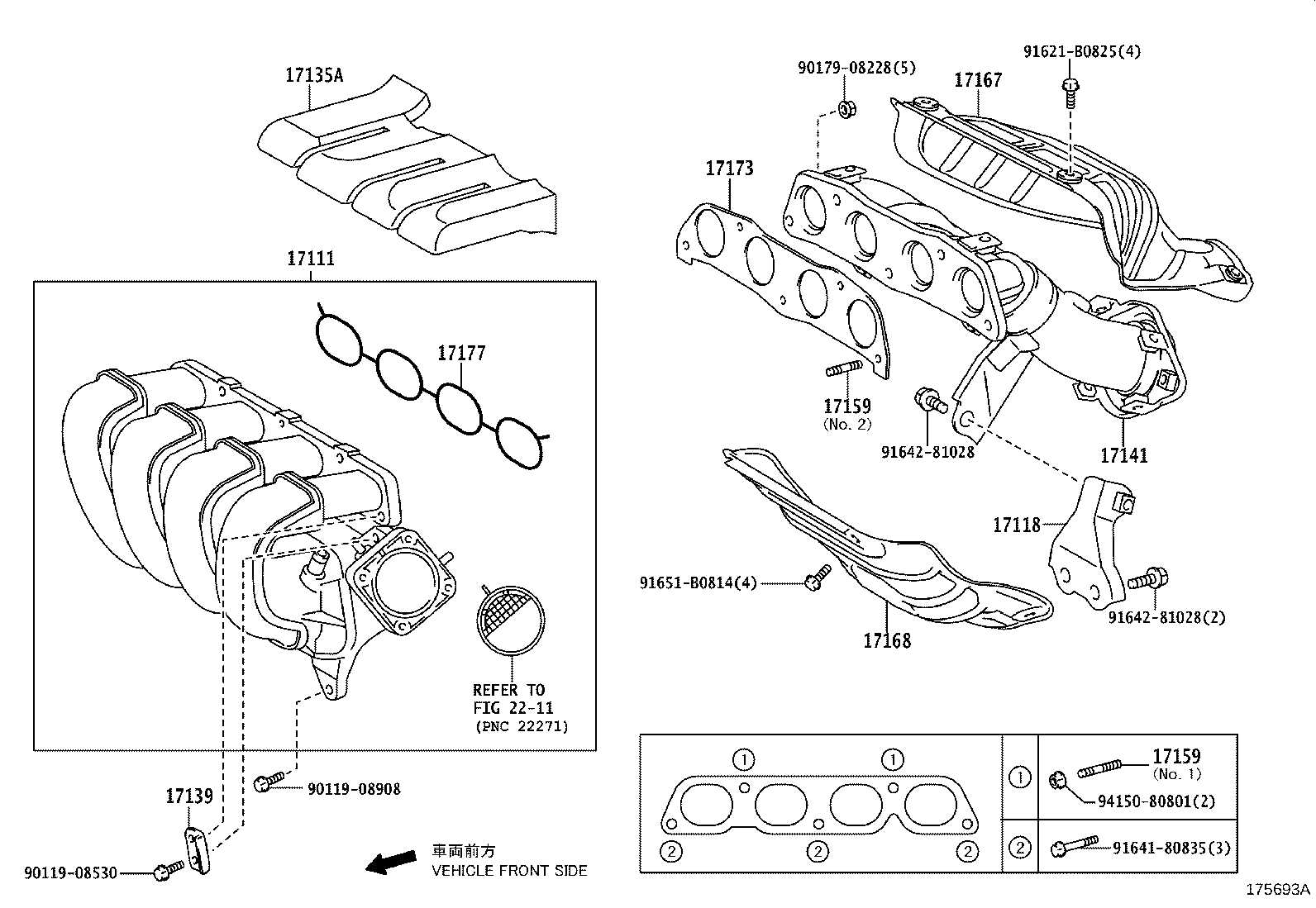

Click highlighted areas on diagram

LEADED GASOLINE

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17120-22070	1ZZFE..ZZE142	08/2007 - 07/2010	1
17118 - STAY, MANIFOLD
17118-22020	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-22010	1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17139 - STAY, MANIFOLD, NO.2
17139-22030	1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17141 - MANIFOLD, EXHAUST
17104-22050	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17104-22100	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZZE14# NO.1	08/2007 - 07/2010	2
90126-08043	1ZZFE,3ZZFE..ZZE14# NO.2	08/2007 - 07/2010	5
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026	1ZZFE,3ZZFE..ZZE14# NO.1	08/2007 - 07/2010	2
90126-08043	1ZZFE,3ZZFE..ZZE14# NO.2	08/2007 - 07/2010	5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22041	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17167-22080	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22080	3ZZFE..ZZE141;1ZZFE..ZZE142..GCC;1ZZFE..ZZE142..RHD	08/2007 - 12/2999	1
17168-22040	1ZZFE..ZZE142..RHD LEADED GASOLINE COUNTRY SPEC	08/2007 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-22010	1ZZFE,3ZZFE..ZZE14#	08/2007 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030	1ZZFE..ZZE142	08/2007 - 12/2999	1
Common parts
90119-08530
90119-08908
90179-08228
91621-B0825
91641-80835
91642-81028
91651-B0814
94150-80801
Linked diagrams
2211
