ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N

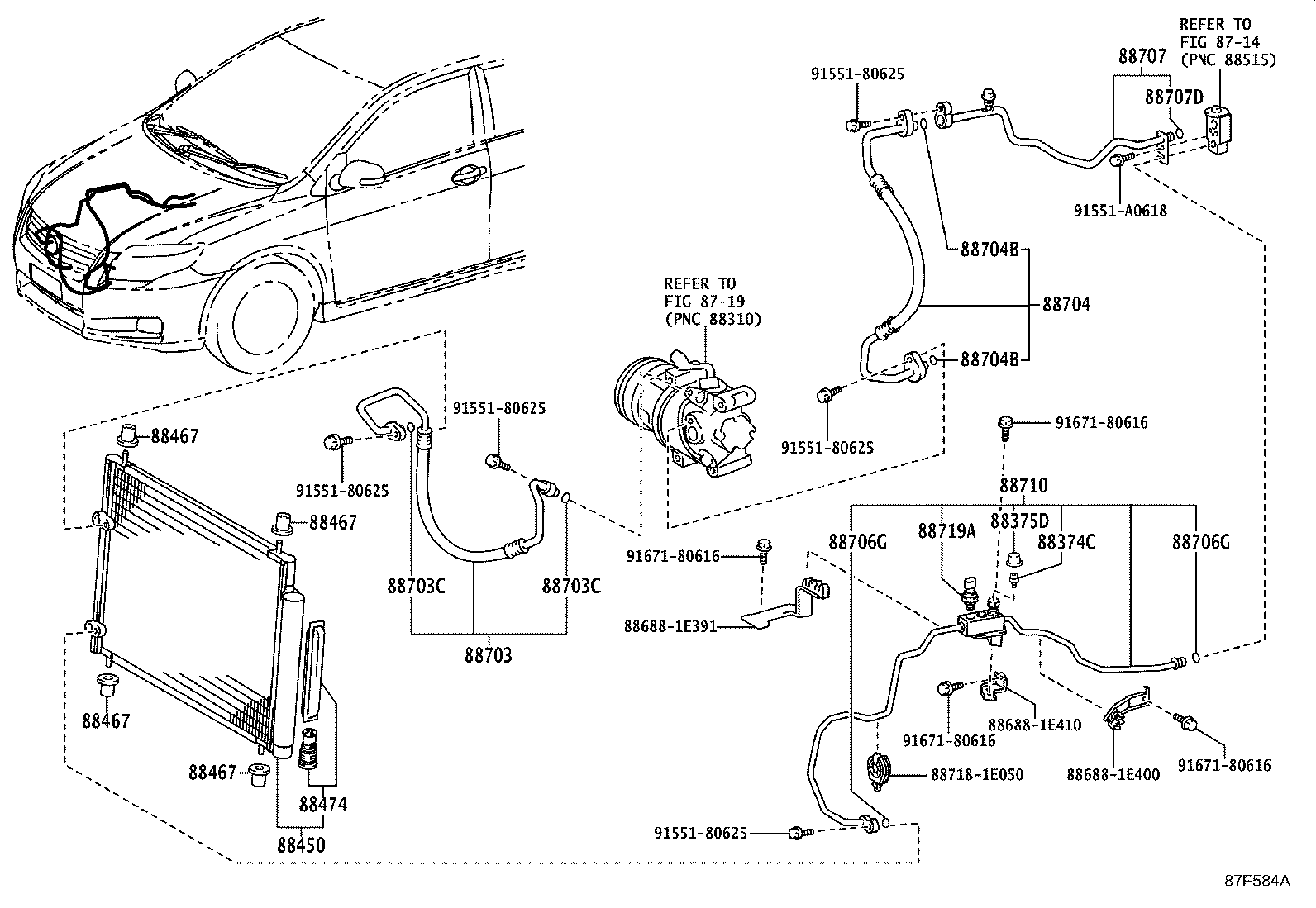

Click highlighted areas on diagram

diagram 8714 8719 88374C 88375D 88450 88467 88467 88467 88467 88474 886881E391 886881E400 886881E410 88703 88703C 88703C 88704 88704B 88704B 88706G 88706G 88707 88707D 88710 887181E050 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9167180616 9167180616 9167180616 9167180616
Part # Description Qty Price
88703 - HOSE SUB-ASSY, DISCHARGE
88703-1A031

ZZE142

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A270

ZZE142

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-12270

ZRE14#,ZZE142..LHD

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12890

ZRE14#,ZZE142..LHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NZE141,ZRE14#,ZZE142..SED

 1
Common parts
88688-1E391
88688-1E400
88688-1E410
88718-1E050
91551-80625
91551-A0618
91671-80616
Linked diagrams
8714
8719
