ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )

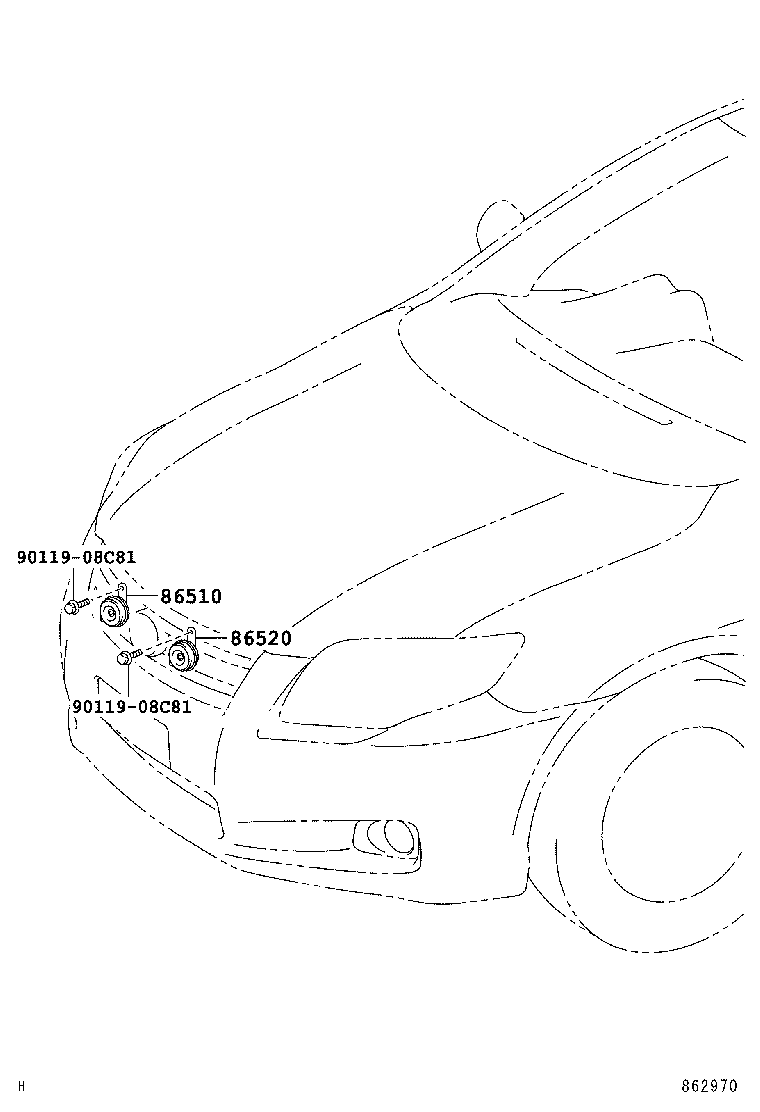

Click highlighted areas on diagram

diagram 86510 86520 9011908C81 9011908C81
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-12610

CE140,NZE141,ZRE14#,ZZE142..SED..GEN

HORN-FLAT DOUBLE HEAVY AREA

 1
86510-48070

CE140,NZE141,ZRE14#,ZZE142..SED

 1
86520 - HORN ASSY, LOW PITCHED
86520-12690

CE140,NZE141,ZRE14#,ZZE142..SED..GEN

HORN-FLAT DOUBLE HEAVY AREA

 1
86520-47010

CE140,NZE141,ZRE14#,ZZE142..SED

 1
Common parts
90119-08C81
