ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0704- )N

Click highlighted areas on diagram

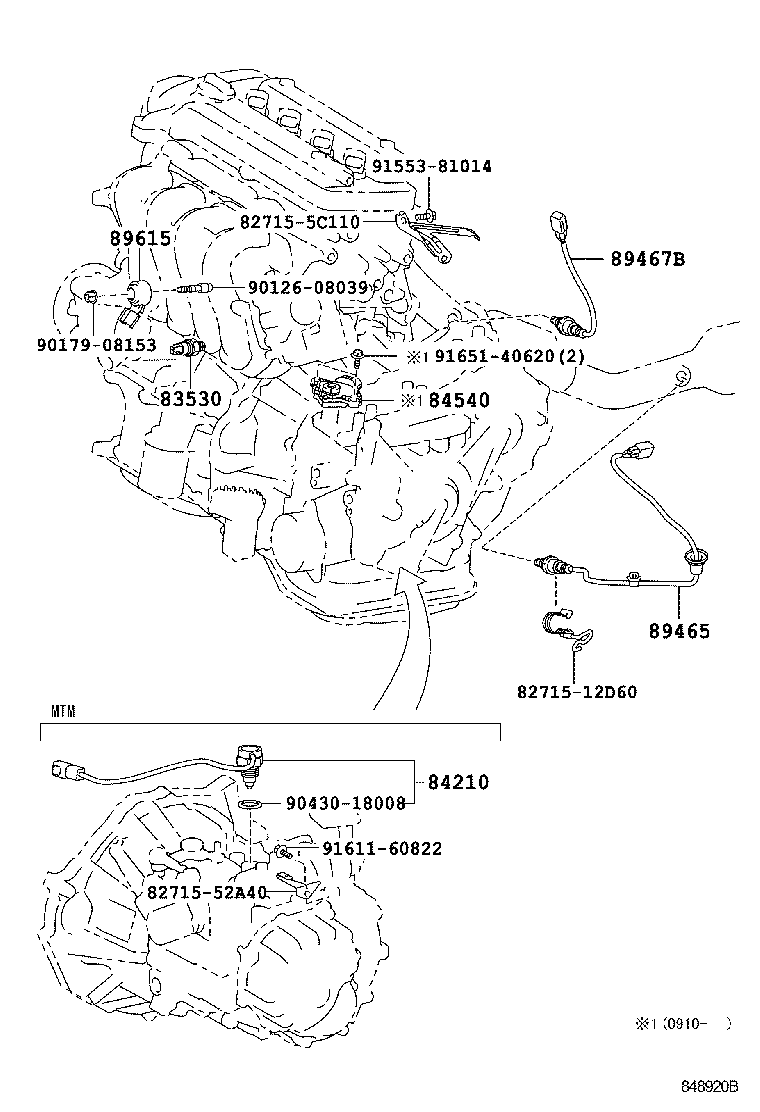

ENGINE & TRANSMISSION

diagram 8271512D60 8271552A40 827155C110 83530 84210 84540 89465 89467B 89615 9012608039 9017908153 9043018008 9155381014 9161160822 9165140620
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

ZRE142..6F..GLI..GCC;ZRE142..4FC..XLI..GEN;NZE141,ZRE141,ZZE142..SED

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

NZE141,ZRE14#,ZZE142..SED

 1
Common parts
82715-12D60
82715-52A40
82715-5C110
90126-08039
90179-08153
90430-18008
91553-81014
91611-60822
91651-40620

ILLUST NO. 2 OF 8(0704- )N

Click highlighted areas on diagram

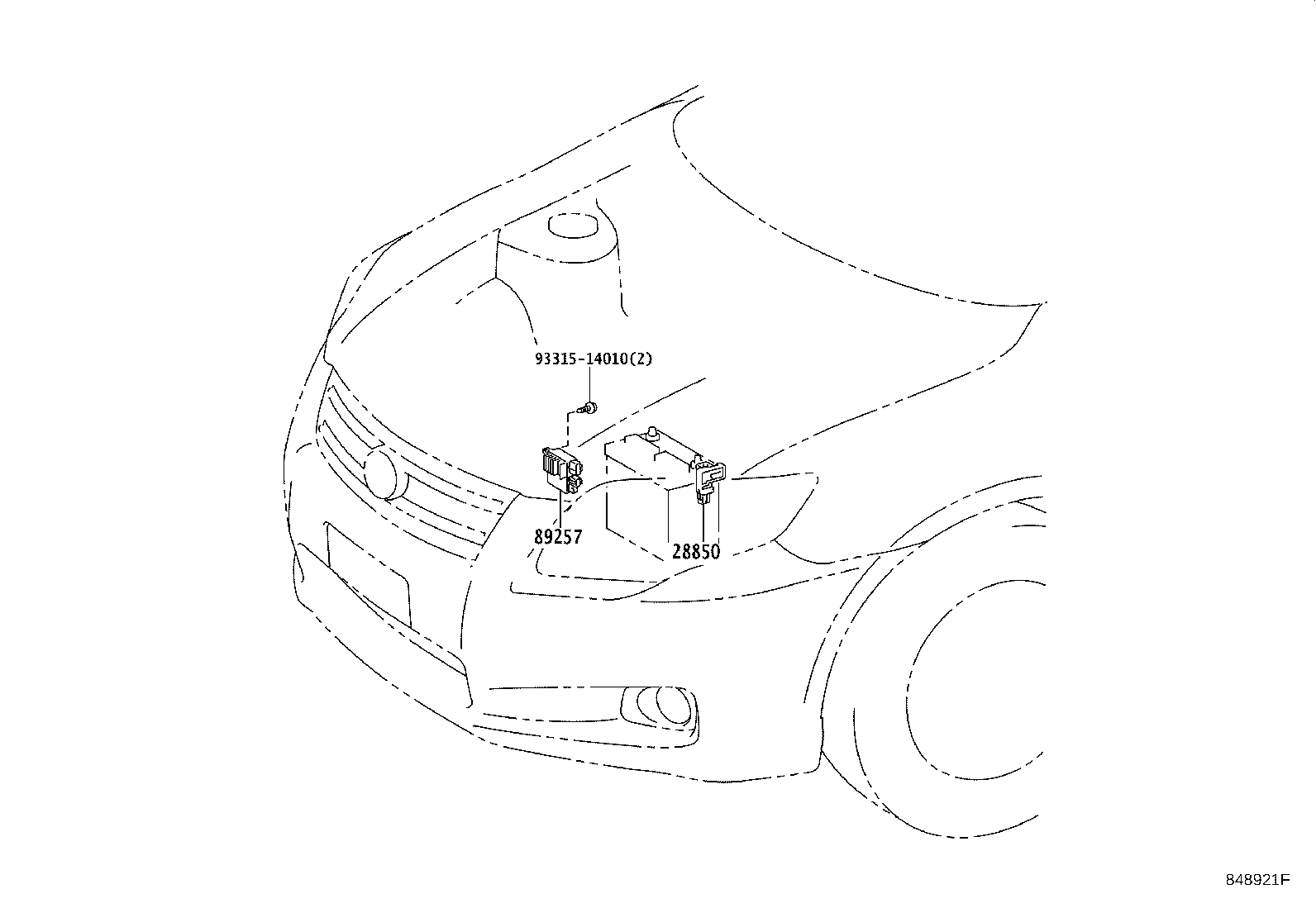

ENGINE ROOM

diagram 28850 89257 9331514010
Part # Description Qty Price
89257 - COMPUTER, COOLING FAN
89257-12020

ZZE142

HOT AREA SPEC

 1
Common parts
93315-14010

ILLUST NO. 4 OF 8(0704- )N

Click highlighted areas on diagram

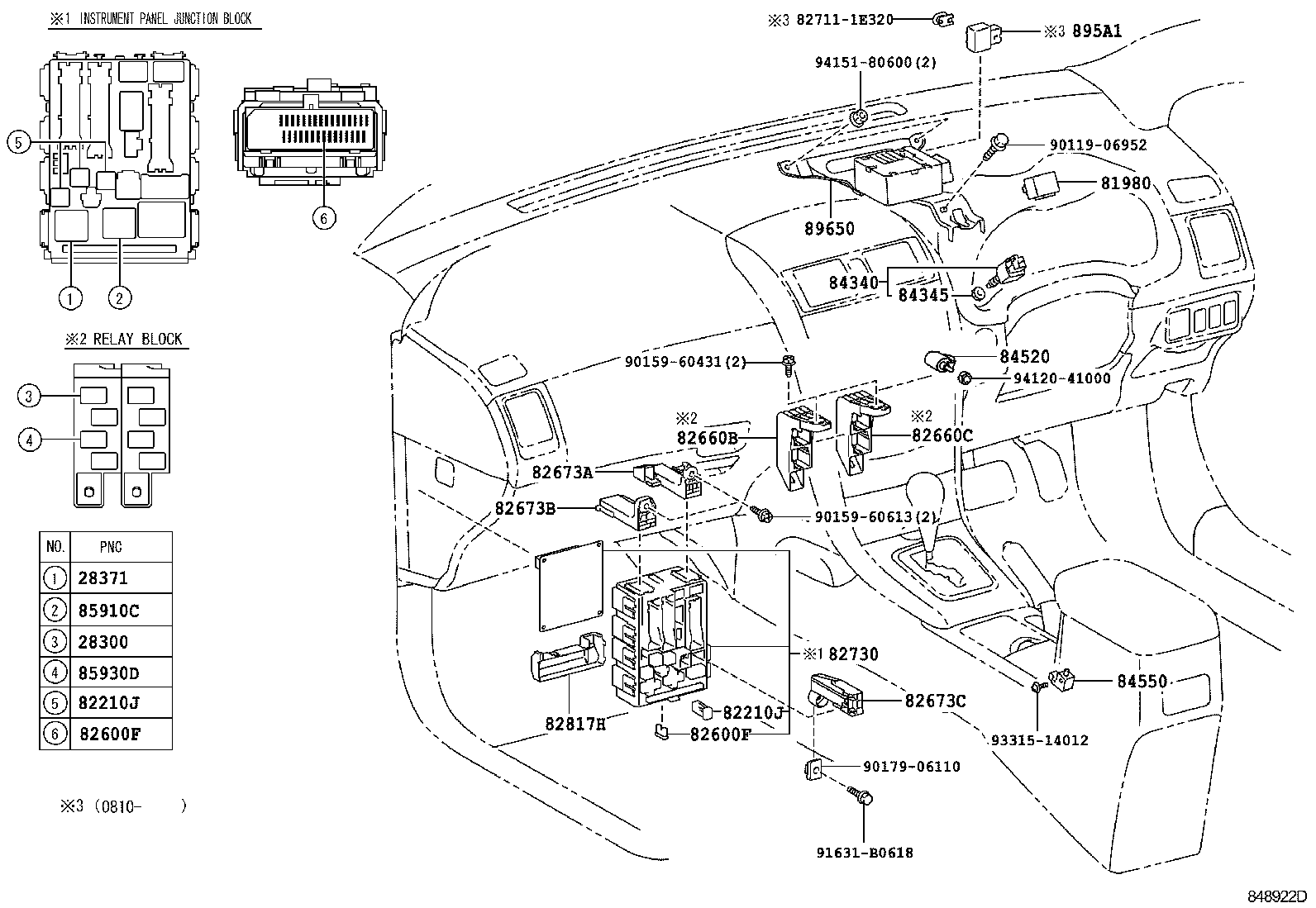

COWL

diagram 28300 28371 81980 82210J 82210J 82600F 82600F 82660B 82660C 82673A 82673B 82673C 827111E320 82730 82817H 84340 84345 84520 84550 85910C 85930D 895A1 89650 9011906952 9015960431 9015960613 9017906110 91631B0618 9331514012 9412041000 9415180600
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-28010

2C,1NZFE,1Z#,2ZRFE..CE140,NZE141,ZRE14#,ZZE142..SED

 1
28300-21020

2C,1NZFE,1Z#,2ZRFE..CE140,NZE141,ZRE14#,ZZE142

 1
28371 - RELAY, IGNITION, NO.1
90987-02030

2C,1NZFE,1Z#,2ZRFE..CE140,NZE141,ZRE14#,ZZE142..SED

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-46010

CE140,NZE141,ZRE14#,ZZE142..SED

 1
85930D - RELAY
90987-02027

CE140,NZE141,ZRE14#,ZZE142..SED

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-12B00

ZRE14#,ZZE142..LHD

 1
89650-12B10

ZRE14#,ZZE142..LHD..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

 1
89650-12B10

ZRE14#,ZZE142..LHD

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP)

 1
89650-12B11

ZRE14#,ZZE142..LHD

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP)

 1
89650-12B11

ZRE14#,ZZE142..LHD..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

 1
89650-12B01

ZRE14#,ZZE142..LHD

 1
Common parts
82711-1E320
90119-06952
90159-60431
90159-60613
90179-06110
91631-B0618
93315-14012
94120-41000
94151-80600

ILLUST NO. 6 OF 8(0704- )

Click highlighted areas on diagram

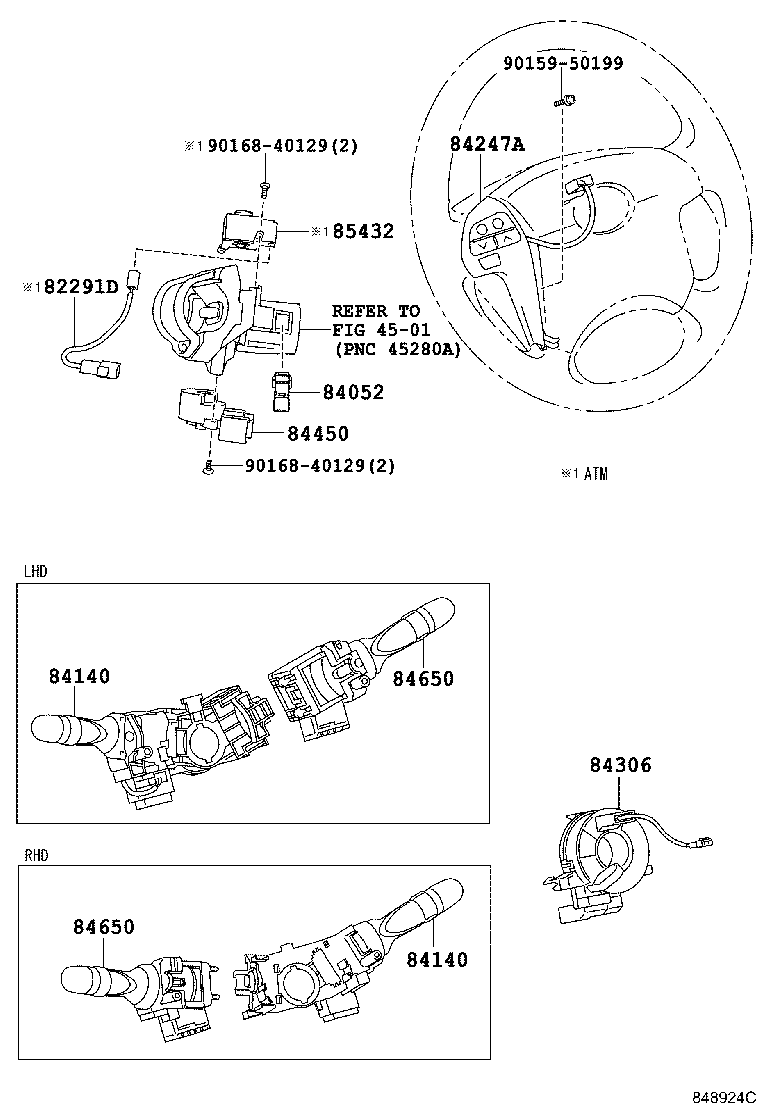

STEERING

diagram 4501 82291D 84052 84140 84140 84247A 84306 84450 84650 84650 85432 9015950199 9016840129 9016840129
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-12711

CE140,ZRE14#,ZZE142..LHD

FRONT FOG LAMP-WITH

 1
84140-12701

CE140,ZRE14#,ZZE142..LHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-12711

CE140,ZRE14#,ZZE142..LHD

FRONT FOG LAMP-WITH

 1
84140-12701

CE140,ZRE14#,ZZE142..LHD

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12110

NZE141,ZRE142,ZZE142..GLI..GEN

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-12A20

CE140,ZRE14#,ZZE142..LHD

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

 1
84652-12A30

ZRE142..XLI..GCC;ZRE14#,ZZE142..LHD..GLI

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-12A20

CE140,ZRE14#,ZZE142..LHD

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

 1
84652-12A30

ZRE142..XLI..GCC;ZRE14#,ZZE142..LHD..GLI

 1
Common parts
90159-50199
90168-40129
Linked diagrams
4501

ILLUST NO. 8 OF 8(0704- )N

Click highlighted areas on diagram

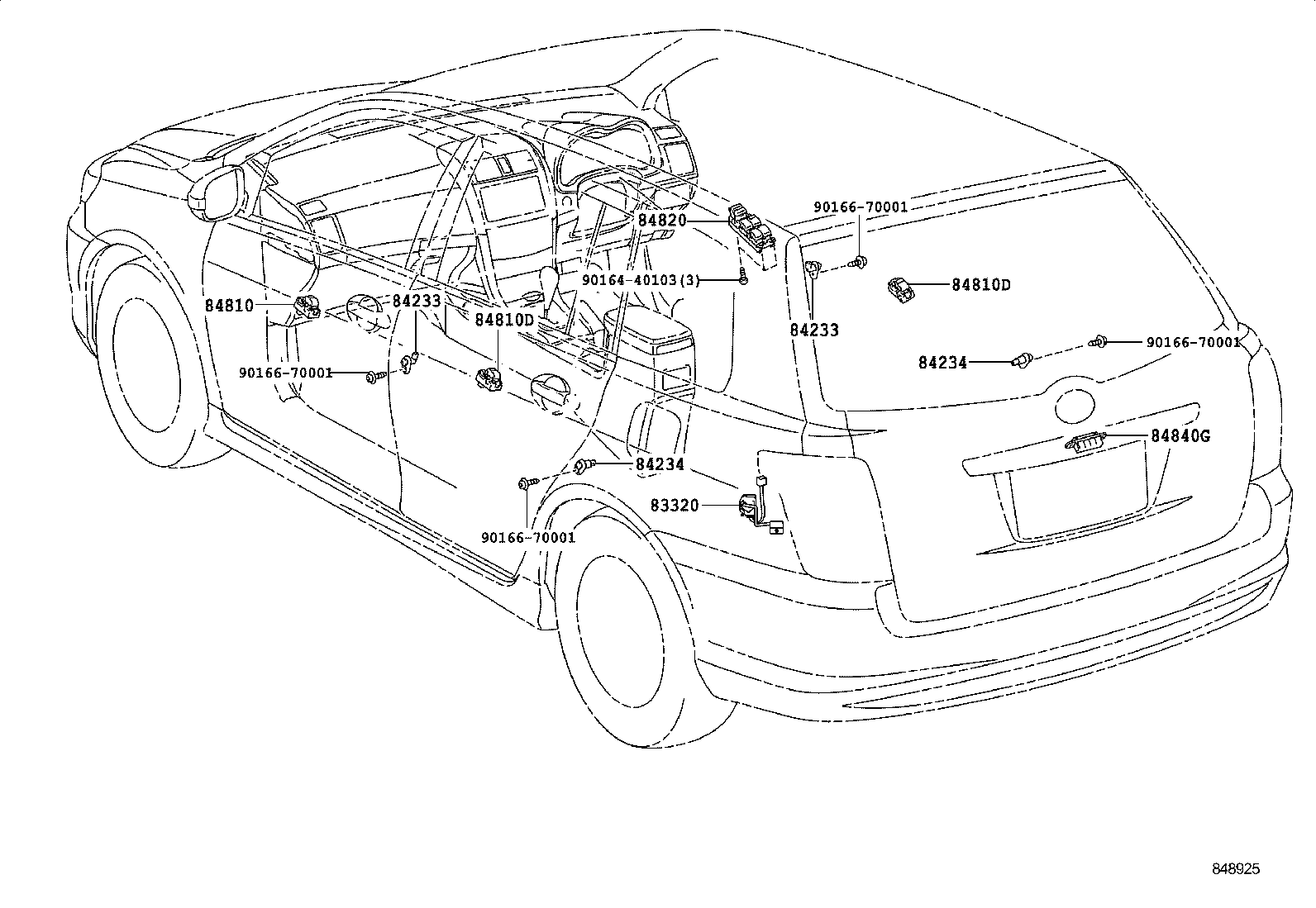

DOOR,ROOF,FLOOR & BACK DOOR

diagram 83320 84233 84233 84234 84234 84810 84810D 84810D 84820 84840G 9016440103 9016670001 9016670001 9016670001 9016670001
Part # Description Qty Price
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

CE140,NZE141,ZRE14#,ZZE142..SED

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070

CE140,NZE141,ZRE14#,ZZE142..SED

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070

CE140,NZE141,ZRE14#,ZZE142..SED

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-60070

CE140,NZE141,ZRE14#,ZZE142..SED

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-52030

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-52030

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-52030

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-12520

ZRE14#,ZZE142..LHD..GLI..GEN

 1
Common parts
90164-40103
90166-70001

ILLUST NO. 3 OF 8(0704- )N

Click highlighted areas on diagram

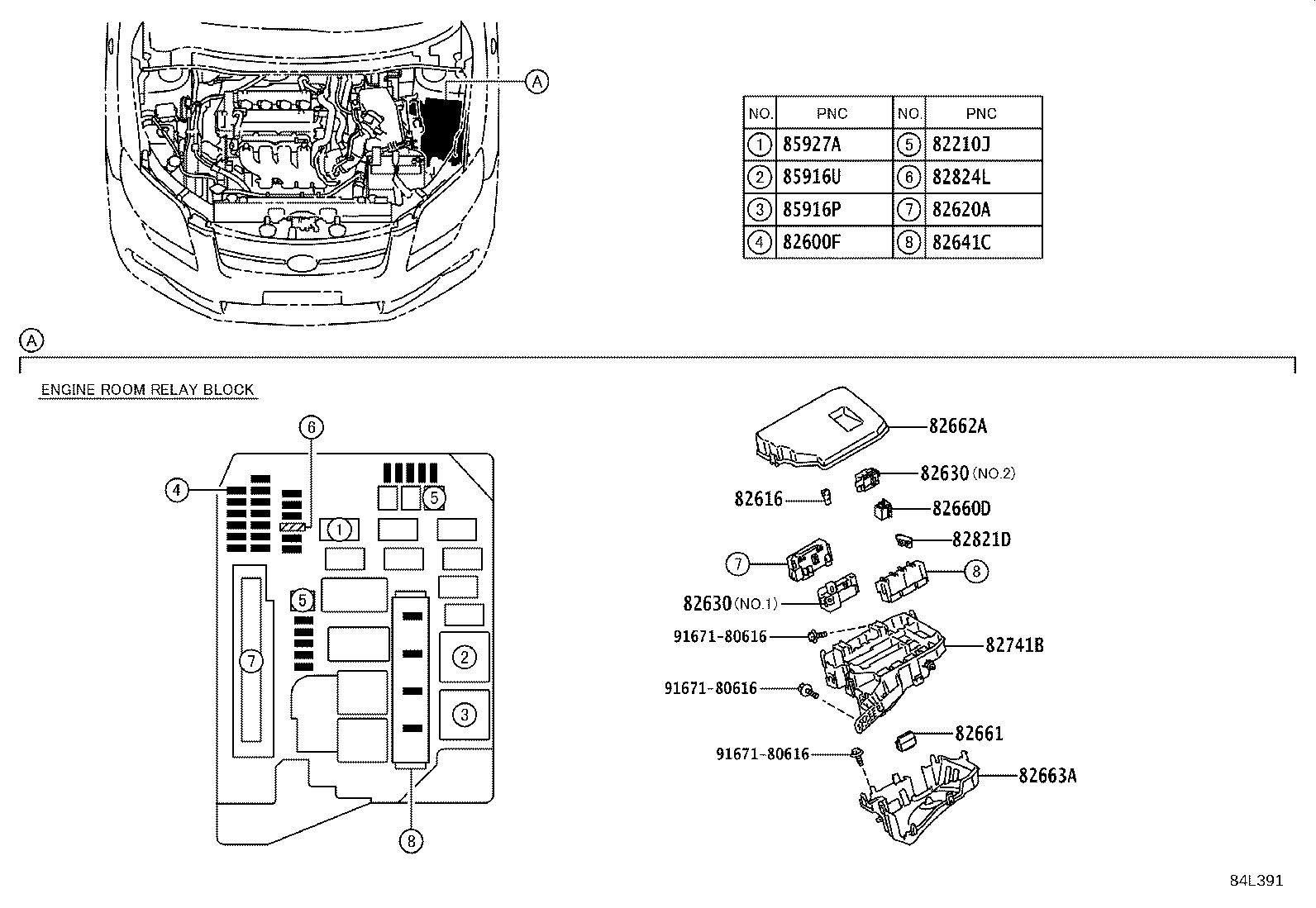

ENGINE ROOM RELAY BLOCK

diagram 82210J 82600F 82616 82620A 82630 82630 82641C 82660D 82661 82662A 82663A 82741B 82821D 82824L 85916P 85916U 85927A 9167180616 9167180616 9167180616
Part # Description Qty Price
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12370

ZRE14#,ZZE142;CE140,NZE141..LX,XLI

 1
85916P - RELAY, HEADLAMP
90987-02025

CE140,NZE141,ZRE14#,ZZE142..SED

 1
85916U - RELAY, HEADLAMP, NO.2
90987-02025

CE140,NZE141,ZRE14#,ZZE142..SED

 1
85927A - RELAY, COOLING FAN, NO.2
90987-02027

NZE141,ZRE14#,ZZE142..SED

 1
Common parts
91671-80616
