ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N

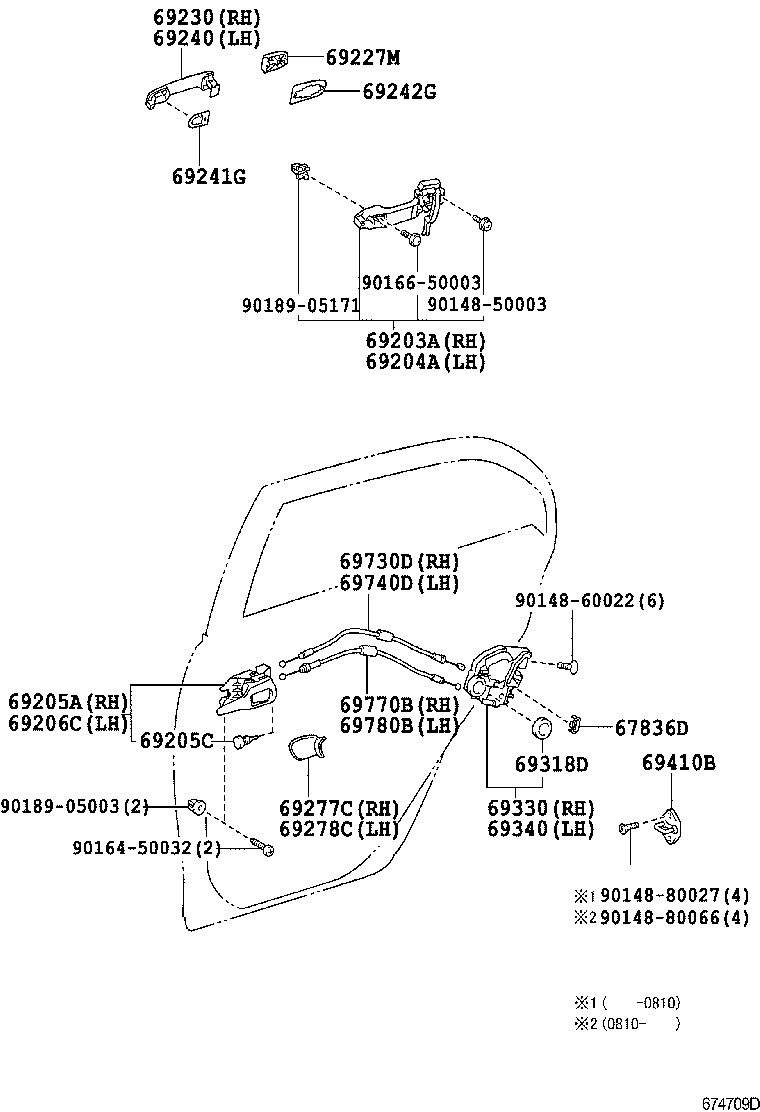

Click highlighted areas on diagram

diagram 67836D 69203A 69204A 69205A 69205C 69206C 69227M 69230 69240 69241G 69242G 69277C 69278C 69318D 69330 69340 69410B 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880027 9014880066 9016450032 9016650003 9018905003 9018905171
Part # Description Qty Price
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-12110

CE140,NZE141,ZRE14#,ZZE142..SED

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-12110

CE140,NZE141,ZRE14#,ZZE142..SED

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04027

CE140,NZE141,ZRE14#,ZZE142..SED

 2
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-48020

CE140,NZE141,ZRE14#,ZZE142..SED

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-52020

CE140,NZE141,ZRE14#,ZZE142..SED

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-42021

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-42021

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

CE140,NZE141,ZRE14#,ZZE142..SED

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-12100

CE140,NZE141,ZRE14#,ZZE142..SED

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-12100

CE140,NZE141,ZRE14#,ZZE142..SED

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-12210

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-12210

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
Common parts
90148-50003
90148-60022
90148-80027
90148-80066
90164-50032
90166-50003
90189-05003
90189-05171
