ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )

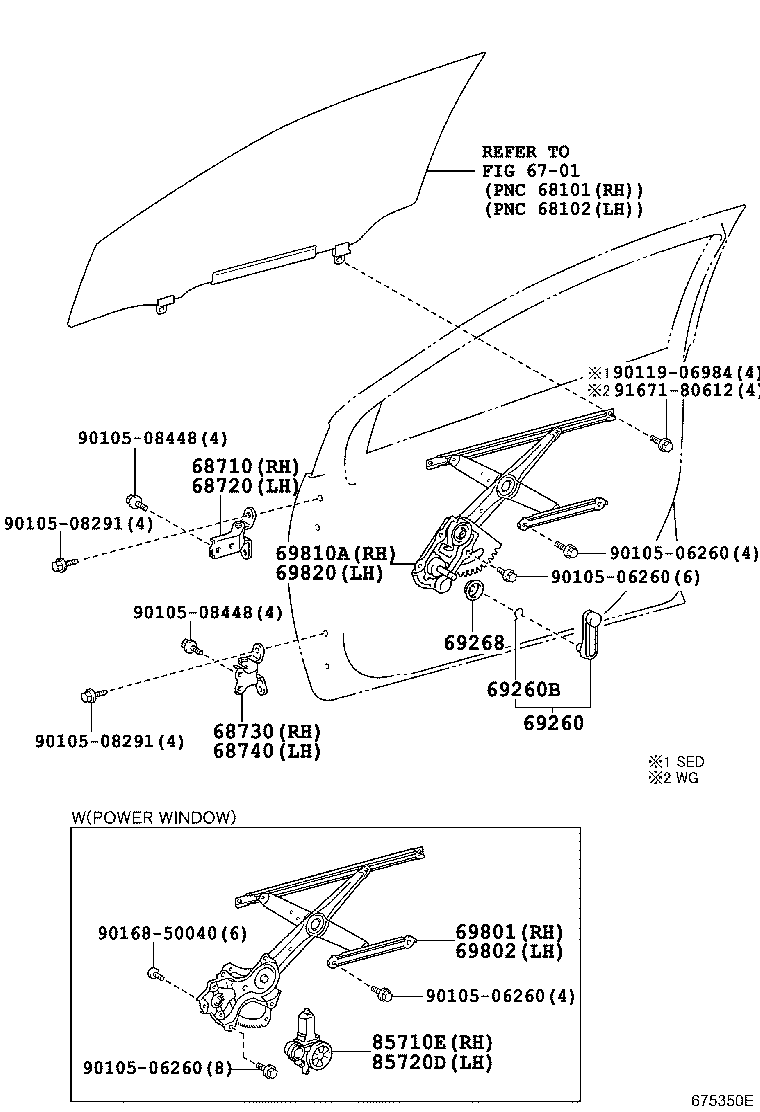

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69268 69801 69802 69810A 69820 85710E 85720D 9010506260 9010506260 9010506260 9010506260 9010508291 9010508291 9010508448 9010508448 9011906984 9016850040 9167180612
Part # Description Qty Price
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12151

CE140,NZE141,ZRE14#,ZZE142..SED

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12120

CE140,NZE141,ZRE14#,ZZE142..SED

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12120

CE140,NZE141,ZRE14#,ZZE142..SED

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12220

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12220

ZRE141..GLI,LX;NZE141,ZRE142,ZZE142..GLI..GEN

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35180

ZRE14#,ZZE142..LHD..GLI..GEN

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-12351

ZRE14#,ZZE142..LHD..GLI..GEN

 1
Common parts
90105-06260
90105-08291
90105-08448
90119-06984
90168-50040
91671-80612
Linked diagrams
6701
