ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N

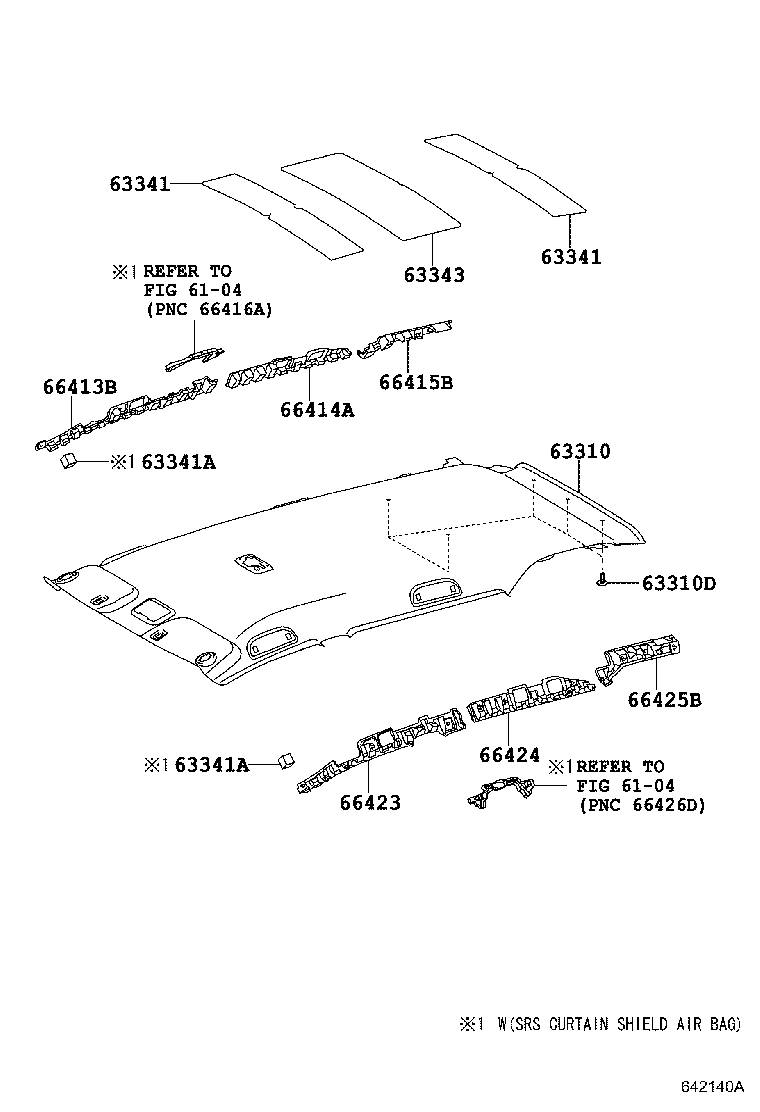

Click highlighted areas on diagram

diagram 6104 6104 63310 63310D 63341 63341 63341A 63341A 63343 66413B 66414A 66415B 66423 66424 66425B
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-12250

CE140,NZE141,ZRE14#,ZZE142..SED

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12250

CE140,NZE141,ZRE14#,ZZE142..SED

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-12040

CE140,NZE141,ZRE14#,ZZE142..SED

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-12050

CE140,NZE141,ZRE14#,ZZE142..SED

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-12040

CE140,NZE141,ZRE14#,ZZE142..SED

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-12050

CE140,NZE141,ZRE14#,ZZE142..SED

 1
Linked diagrams
6104
