ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N

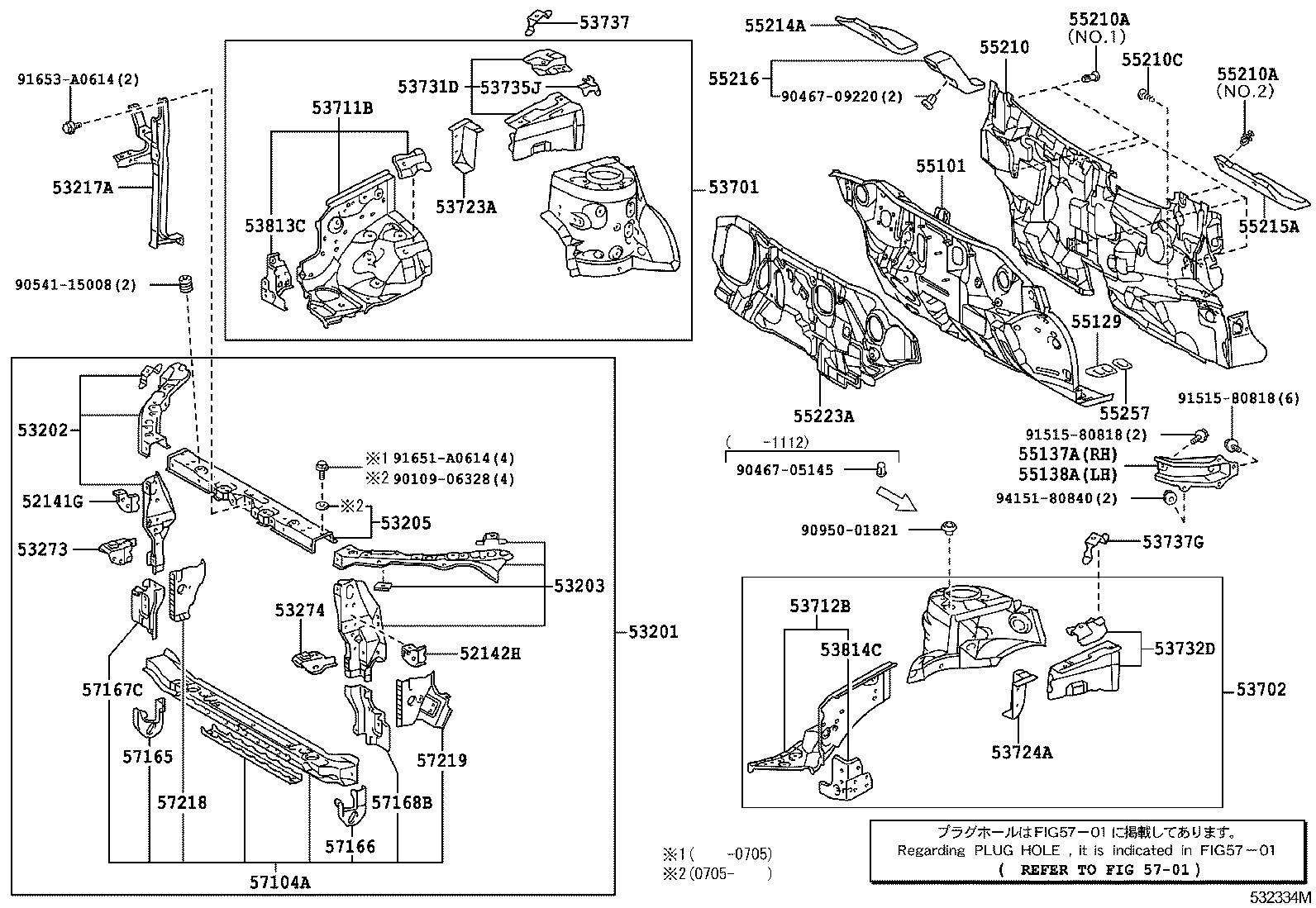

Click highlighted areas on diagram

diagram 52141G 52142H 53201 53202 53203 53205 53217A 53273 53274 53701 53702 53711B 53712B 53723A 53724A 53731D 53732D 53735J 53737 53737G 53813C 53814C 55101 55129 55137A 55138A 55210 55210A 55210A 55210C 55214A 55215A 55216 55223A 55257 5701 57104A 57165 57166 57167C 57168B 57218 57219 9010906328 9046705145 9046709220 9054115008 9095001821 9151580818 9151580818 91651A0614 91653A0614 9415180840
Part # Description Qty Price
52141G - STAY, FRONT BUMPER, RH
52141-12550

CE140,NZE141,ZRE14#,ZZE142..SED

 1
52142H - STAY, FRONT BUMPER, LH
52142-12470

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-12540

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-12470

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12291

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-12120

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-12120

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-12A30

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12280

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12230

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53735J - PATCH, FRONT FENDER APRON, NO.5
53735-12080

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-12110

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53813C - EXTENSION, FRONT FENDER, RH
53803-12060

CE140,NZE141,ZRE14#,ZZE142..SED

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-12090

CE140,NZE141,ZRE14#,ZZE142..SED

 1
55129 - COVER, DASH PANEL HOLE
55129-32030

CE140,NZE141,ZRE14#,ZZE142..SED

RH

 1
55139-32010

CE140,NZE141,ZRE14#,ZZE142..SED

LH

 1
55137A - BRACE, DASH TO FRAME, RH
55137-12060

CE140,NZE141,ZRE14#,ZZE142..SED

 1
55138A - BRACE, DASH TO FRAME, LH
55138-12030

CE140,NZE141,ZRE14#,ZZE142..SED

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12591

CE140,ZRE14#,ZZE142..LHD

 1
55210A - CLIP
90467-11127

CE140,NZE141,ZRE14#,ZZE142..SED

NO.2

 2
90467-11122

CE140,NZE141,ZRE14#,ZZE142..SED

NO.1

 6
55210A - CLIP
90467-11127

CE140,NZE141,ZRE14#,ZZE142..SED

NO.2

 2
90467-11122

CE140,NZE141,ZRE14#,ZZE142..SED

NO.1

 6
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-12100

CE140,ZRE14#,ZZE142..LHD

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-12130

CE140,ZRE14#,ZZE142..LHD

 1
55216 - PAD, DASH PANEL INSULATOR, NO.4
55216-12030

CE140,ZRE14#,ZZE142..LHD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-12190

CE140,ZRE14#,ZZE142..LHD

 1
55257 - COVER, DASH PANEL OPENING
55257-32010

CE140,NZE141,ZRE14#,ZZE142..SED

 2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12291

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57104-12301

ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

 1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-12070

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-12020

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12130

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12130

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-12030

CE140,NZE141,ZRE14#,ZZE142..SED

 1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-12030

CE140,NZE141,ZRE14#,ZZE142..SED

 1
Common parts
90109-06328
90467-05145
90467-09220
90541-15008
90950-01821
91515-80818
91651-A0614
91653-A0614
94151-80840
Linked diagrams
5701
