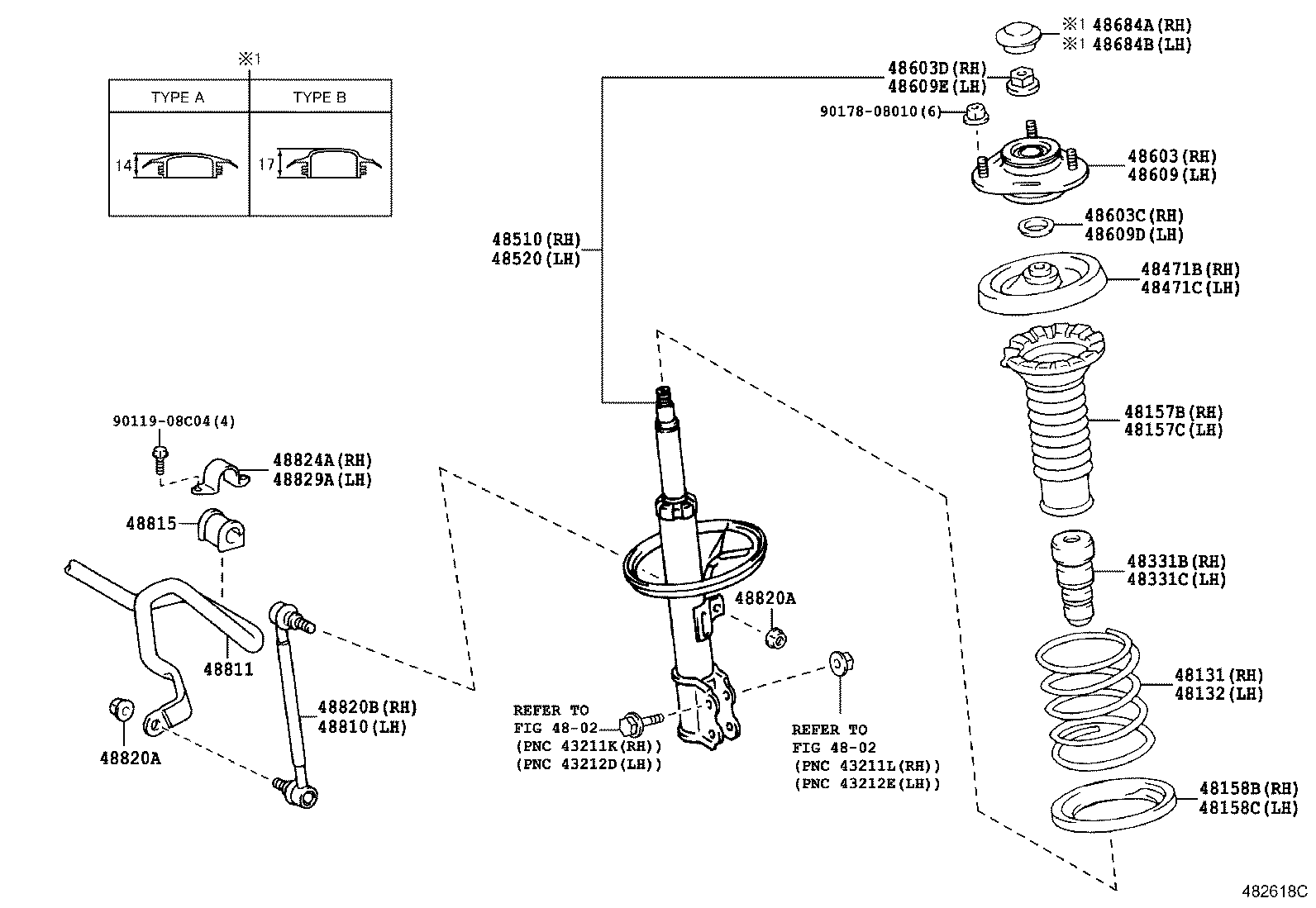

ZZE142L-AEPNK (2010)
Toyota Corolla Sed/Wg
(0704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-12C60 |
ZRE14#,ZZE142..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48131-12C30 |
ZRE14#,ZZE142..4FC |
1 | ||
| 48131-12C80 |
ZRE14#,ZZE142..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-12C30 |
ZRE14#,ZZE142..4FC |
1 | ||
| 48131-12C60 |
ZRE14#,ZZE142..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48131-12C80 |
ZRE14#,ZZE142..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-12080 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-12080 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12210 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12210 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-12110 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-12110 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80142 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI MARK 48520-12C30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48520-80141 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI MARK 48520-12C20,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48520-80140 |
CE140,NZE141,ZRE14#,ZZE142..SED MARK 48520-12C10 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12530 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48609-12530 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48609-12520 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12530 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48609-12530 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48609-12520 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
CE140,NZE141,ZRE14#,ZZE142..SED TYPE A:REFER ILLUST. |
1 | ||
| 48684-74010 |
CE140,NZE141,ZRE14#,ZZE142..SED TYPE B:REFER ILLUST. |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
CE140,NZE141,ZRE14#,ZZE142..SED TYPE A:REFER ILLUST. |
1 | ||
| 48684-74010 |
CE140,NZE141,ZRE14#,ZZE142..SED TYPE B:REFER ILLUST. |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12A70 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48811-12A70 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48811-12A30 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48811-12A60 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 48811-12A60 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-12360 |
ZRE14#,ZZE142;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
2 | ||
| 48815-12360 |
ZRE14#,ZZE142..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
2 | ||
| 48815-12340 |
CE140,NZE141,ZRE14#,ZZE142..SED |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
CE140,NZE141,ZRE14#,ZZE142..SED |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
CE140,NZE141,ZRE14#,ZZE142..SED |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-26210 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-26210 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-08010 | ||||
| Linked diagrams | ||||
| 4802 | ||||
