ZZE142L-AEPNK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Nov 2013
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )

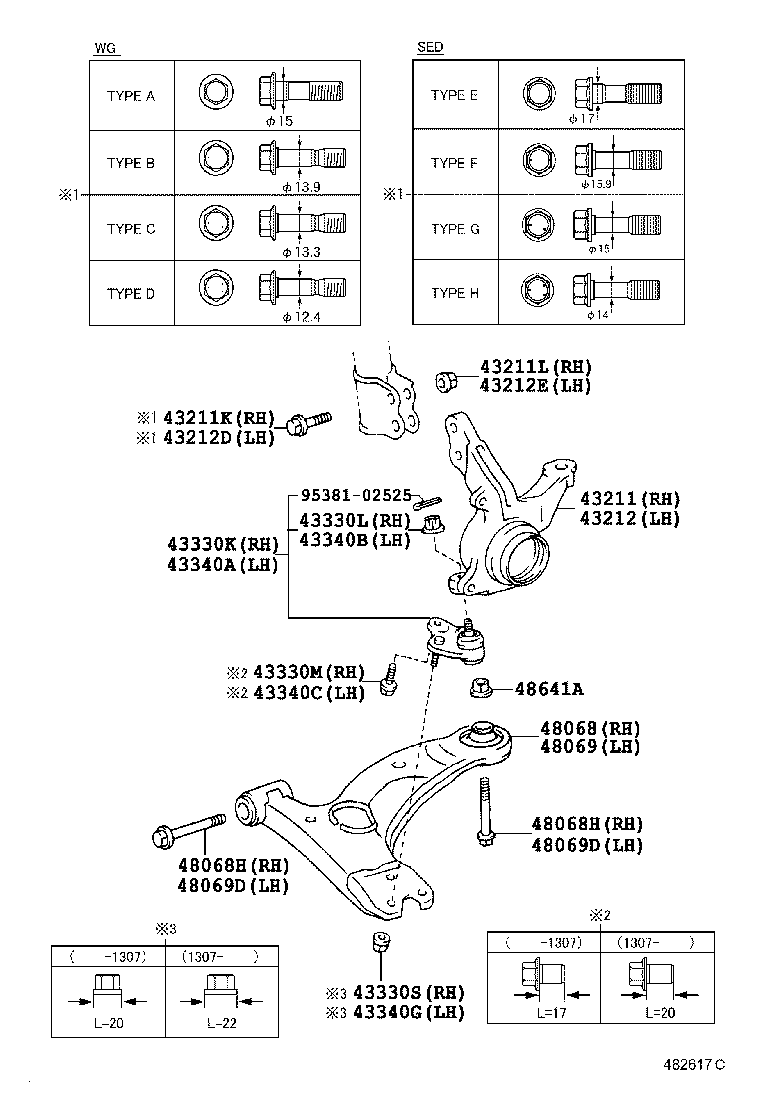

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48069 48069D 48069D 48641A 9538102525
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-12490

ZRE141..LX;NZE141,ZRE142,ZZE142..GLI,XLI

 1
43212 - KNUCKLE, STEERING, LH
43212-12440

ZRE141..LX;NZE141,ZRE142,ZZE142..GLI,XLI

 1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29425

CE140,NZE141,ZRE14#,ZZE142..SED

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

CE140,NZE141,ZRE14#,ZZE142..SED

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346

CE140,NZE141,ZRE14#,ZZE142

 1
90105-12336

CE140,NZE141,ZRE14#,ZZE142..SED

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12015

CE140,NZE141,ZRE14#,ZZE142..SED

 2
90178-12019

CE140,NZE141,ZRE14#,ZZE142

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29425

CE140,NZE141,ZRE14#,ZZE142..SED

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

CE140,NZE141,ZRE14#,ZZE142..SED

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12336

CE140,NZE141,ZRE14#,ZZE142..SED

 1
90105-12346

CE140,NZE141,ZRE14#,ZZE142

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12015

CE140,NZE141,ZRE14#,ZZE142..SED

 2
90178-12019

CE140,NZE141,ZRE14#,ZZE142

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-13010

CE140,NZE141,ZRE14#,ZZE142..SED

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

CE140,NZE141,ZRE14#,ZZE142..SED

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14086

CE140,NZE141,ZRE14#,ZZE142..SED

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-13010

CE140,NZE141,ZRE14#,ZZE142..SED

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

CE140,NZE141,ZRE14#,ZZE142..SED

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14086

CE140,NZE141,ZRE14#,ZZE142..SED

 2
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068

CE140,NZE141,ZRE14#,ZZE142..SED

 2
Common parts
95381-02525
