ZZE142L-AEPNK (2010)
Toyota Corolla Sed/Wg
Production
Jul 2010
-
Nov 2013
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0704- )

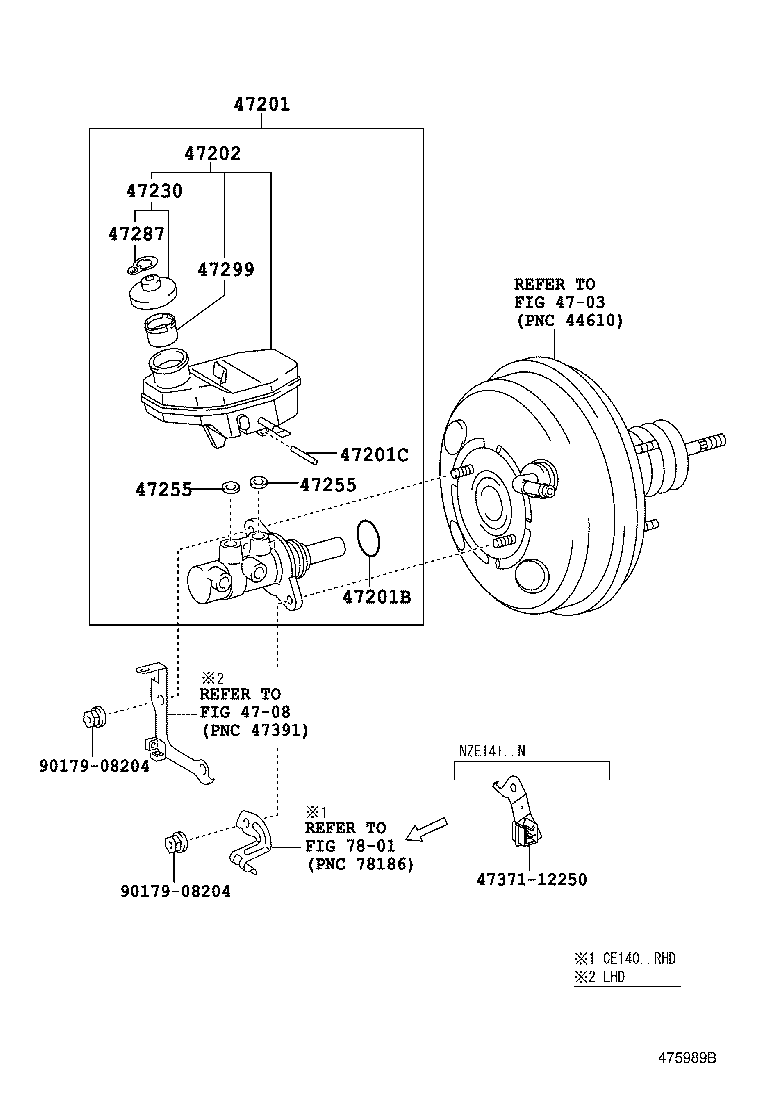

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
CE140,NZE141,ZRE14#,ZZE142..SED |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
CE140,NZE141,ZRE14#,ZZE142..SED |
2 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
CE140,NZE141,ZRE14#,ZZE142..SED |
1 | ||
| Common parts | ||||
| 47371-12250 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 4708 | ||||
| 7801 | ||||
