ZZE141R-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )ZZE14#

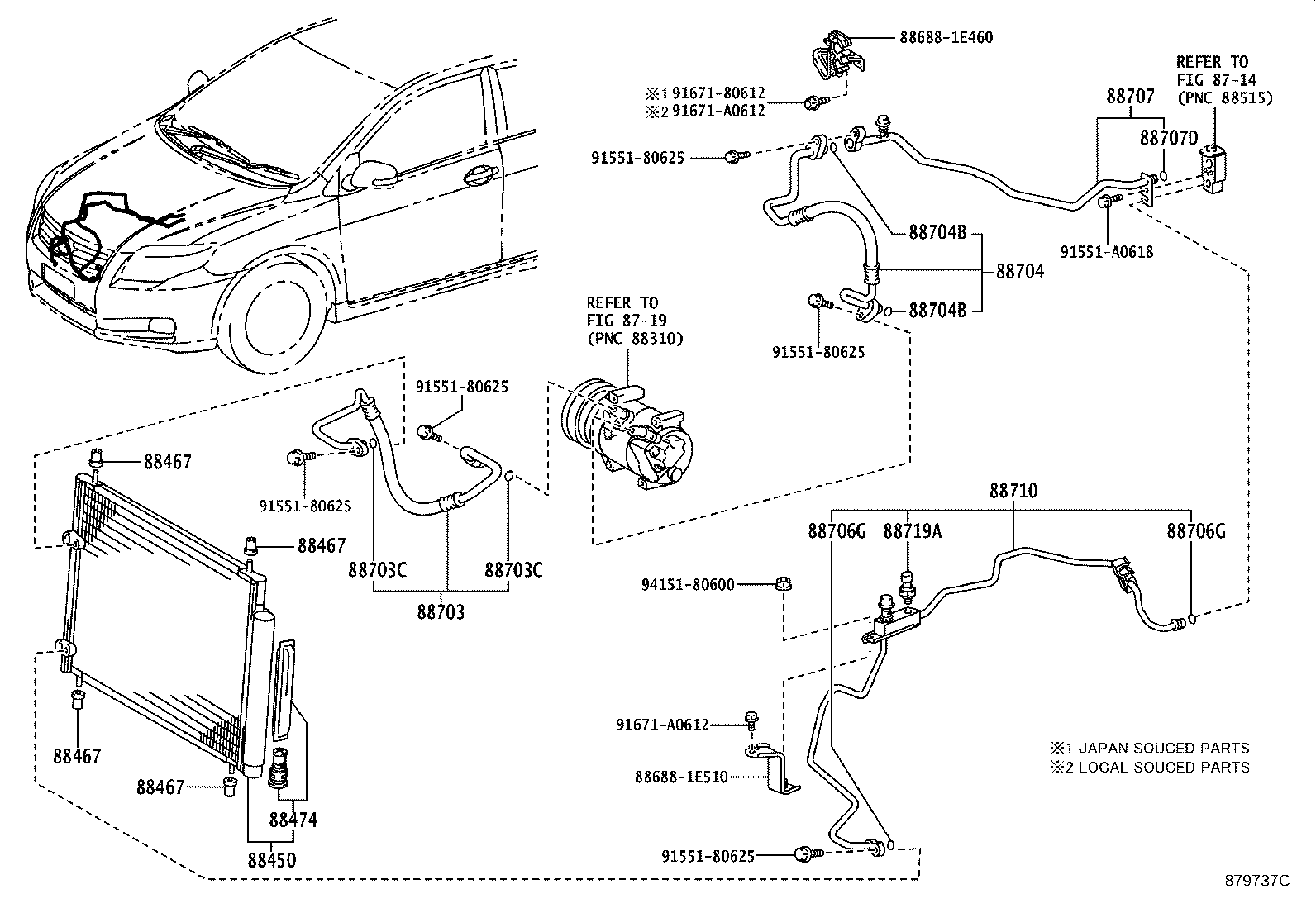

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88467 88467 88467 88474 886881E460 886881E510 88703 88703C 88703C 88704 88704B 88704B 88706G 88706G 88707 88707D 88710 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 9167180612 91671A0612 91671A0612 9415180600
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 1
88450-12280

CE140,NZE141,ZZE14#..SED

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 4
16716-28010

CE140,NZE141,ZZE14#..SED

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 4
16716-28010

CE140,NZE141,ZZE14#..SED

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 4
16716-28010

CE140,NZE141,ZZE14#..SED

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 4
16716-28010

CE140,NZE141,ZZE14#..SED

 4
88474 - DRYER, COOLER
88474-12030

CE140,NZE141,ZZE14#..SED

AIR CONDITIONER-WITH OUT

 1
88474-12030

CE140,NZE141,ZZE14#..SED

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-1A030

ZZE141;ZZE142..GCC;ZZE142..RHD

AIR CONDITIONER-WITH OUT

 1
88703-1A030

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

CE140,NZE141,ZZE14#..SED

ID=10.8,OD=15.6,AIR CONDITIONER-WITH OUT

 2
90099-14120

CE140,NZE141,ZZE14#..SED

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

CE140,NZE141,ZZE14#..SED

ID=10.8,OD=15.6,AIR CONDITIONER-WITH OUT

 2
90099-14120

CE140,NZE141,ZZE14#..SED

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-1A270

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
88704-1A270

ZZE141;ZZE142..GCC;ZZE142..RHD

AIR CONDITIONER-WITH OUT

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2

 2
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2,AIR CONDITIONER-WITH OUT

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2

 2
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2,AIR CONDITIONER-WITH OUT

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

CE140,NZE141,ZZE14#..SED

ID=6.7,OD=10.3

 2
90099-14119

CE140,NZE141,ZZE14#..SED

ID=6.7,OD=10.3,AIR CONDITIONER-WITH OUT

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

CE140,NZE141,ZZE14#..SED

ID=6.7,OD=10.3

 2
90099-14119

CE140,NZE141,ZZE14#..SED

ID=6.7,OD=10.3,AIR CONDITIONER-WITH OUT

 2
88707 - PIPE SUB-ASSY, SUCTION
88707-12280

ZZE14#..RHD

 1
88707-12280

ZZE14#..RHD

AIR CONDITIONER-WITH OUT

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2

 1
90099-14121

CE140,NZE141,ZZE14#..SED

ID=13.4,OD=18.2,AIR CONDITIONER-WITH OUT

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12870

ZZE14#..RHD

AIR CONDITIONER-WITH OUT

 1
88710-12870

ZZE14#..RHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZZE141;ZZE142..GCC;ZZE142..RHD

AIR CONDITIONER-WITH OUT

 1
88719-33020

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
Common parts
88688-1E460
88688-1E510
91551-80625
91551-A0618
91671-80612
91671-A0612
94151-80600
Linked diagrams
8714
8719

(0704- )N
