ZZE141R-AEPNK (2007)
Toyota Corolla Sed/Wg
ILLUST NO. 1 OF 3(0704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12B60 |
CE140,NZE141,ZZE14#..SED FUJITSU TEN,ID=12863,AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-52560 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER |
1 | ||
| 86120-12B70 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..SED FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-12B61 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=12863,AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-52710 |
ZZE141;ZZE142..GCC;ZZE142..RHD PIONEER,ID=P7859,AUDIO-AM/FM CASSETTE CD 4SPEAKER |
1 | ||
| 86120-12B71 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-12B70 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..SED FUJITSU TEN,ID=12864,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B60 |
CE140,NZE141,ZZE14#..SED FUJITSU TEN,ID=12863,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-52560 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=17421,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-52710 |
ZZE141;ZZE142..GCC;ZZE142..RHD PIONEER,ID=P7859,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B71 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI FUJITSU TEN,ID=12864,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B61 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=12863,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24124 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 90010-24123 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24124 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 90010-24123 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-12400 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-12380 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-52050 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CASSETTE 4SPEAKER |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CASSETTE 4SPEAKER |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 91671-80616 | ||||

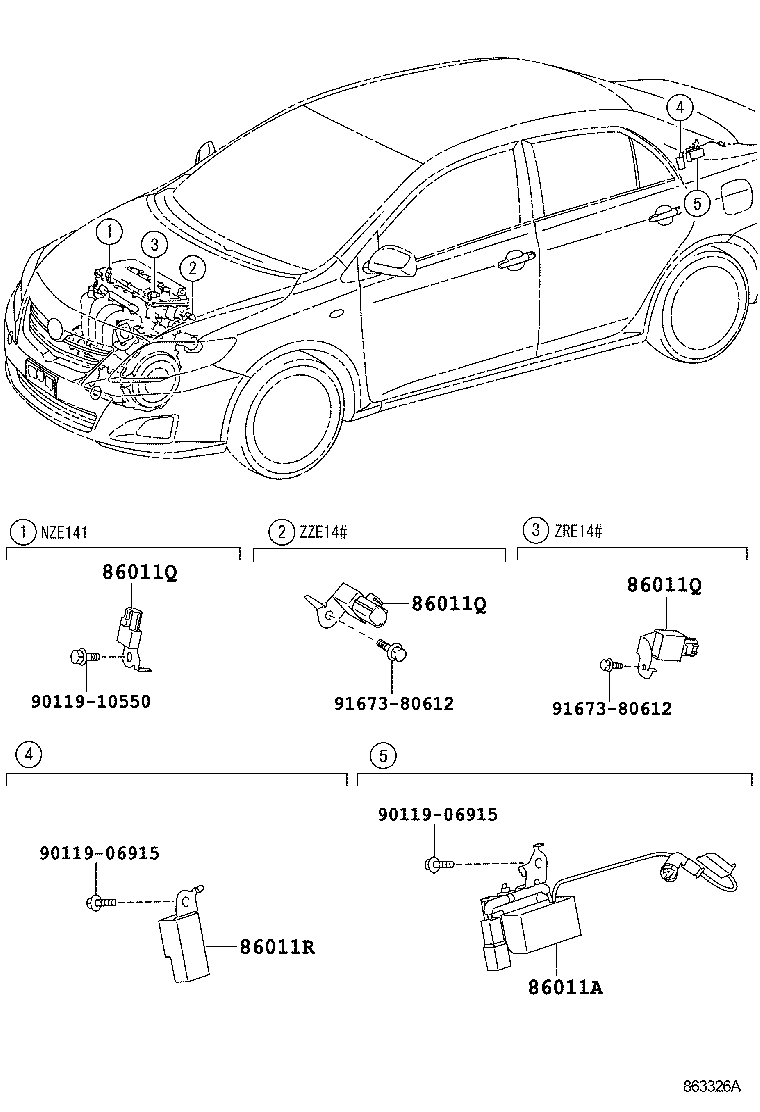

ILLUST NO. 3 OF 3(0704- )N
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04154 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04179 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10550 | ||||
ILLUST NO. 2 OF 3(0704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-12B60 |
CE140,NZE141,ZZE14#..SED FUJITSU TEN,ID=12863,AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-52560 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=17421,AUDIO-AM/FM CASSETTE 4SPEAKER |
1 | ||
| 86120-12B70 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..SED FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-12B61 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=12863,AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-52710 |
ZZE141;ZZE142..GCC;ZZE142..RHD PIONEER,ID=P7859,AUDIO-AM/FM CASSETTE CD 4SPEAKER |
1 | ||
| 86120-12B71 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI FUJITSU TEN,ID=12864,INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
1 | ||
| 86120-12B70 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..SED FUJITSU TEN,ID=12864,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B60 |
CE140,NZE141,ZZE14#..SED FUJITSU TEN,ID=12863,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-52560 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=17421,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-52710 |
ZZE141;ZZE142..GCC;ZZE142..RHD PIONEER,ID=P7859,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B71 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI FUJITSU TEN,ID=12864,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-12B61 |
ZZE141;ZZE142..GCC;ZZE142..RHD FUJITSU TEN,ID=12863,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24124 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 90010-24123 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-24124 |
ZZE141;ZZE142..GCC;ZZE142..RHD AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
| 90010-24123 |
ZZE14#..GCC;ZZE141..GLI,LX;ZZE142..RHD..GLI INSTRUMENT PANEL CENTER CLUSTER-SILVER & DARK SILVER&AUDIO-AM/FM CD CHANGER 6SPEAKER |
2 | ||
ILLUST NO. 3 OF 3(0708- )SED
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04199 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04154 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04154 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04154 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04179 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10550 | ||||
| 91673-80612 | ||||
