ZZE141R-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )RHD

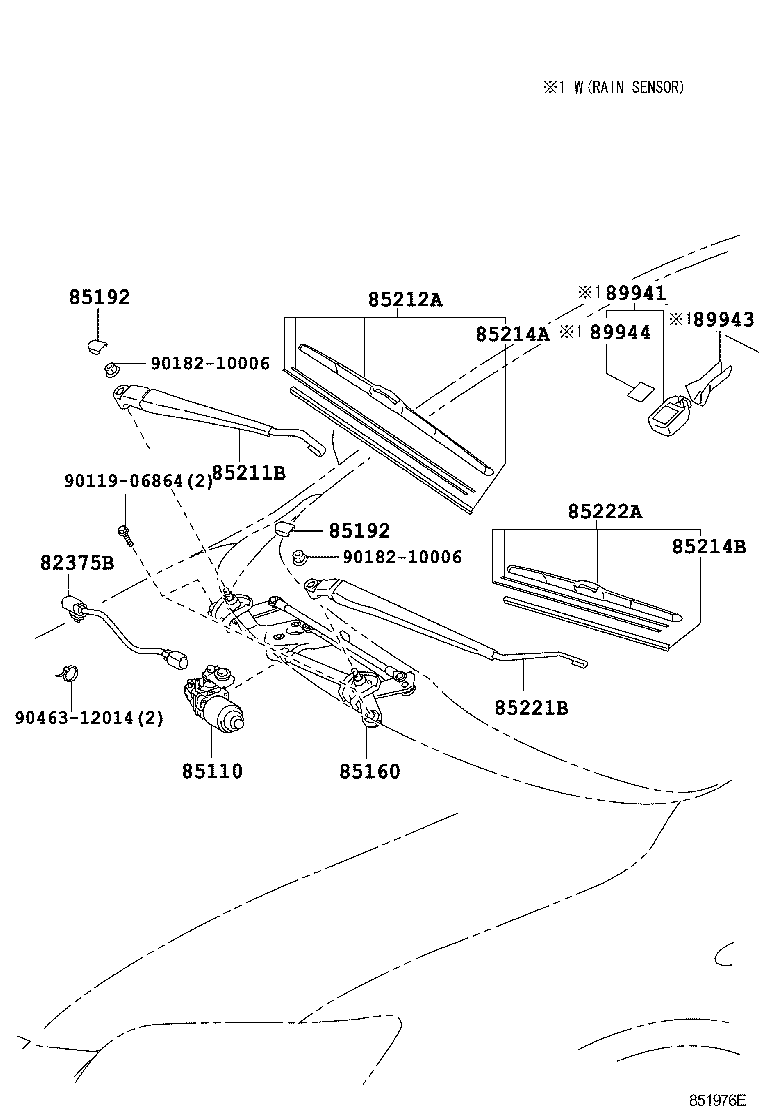

Click highlighted areas on diagram

diagram 82375B 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 89941 89943 89944 9011906864 9018210006 9018210006 9046312014
Part # Description Qty Price
82375B - WIRE, WIPER MOTOR
82375-12311

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
82375-12310

CE140,NZE141,ZZE14#..SED

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-12A40

ZZE14#..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-12A50

ZZE14#..RHD

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
85211B - ARM, FRONT WIPER, RH
85211-12540

ZZE14#..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-12480

ZZE14#..RHD

 1
85214A - RUBBER, WIPER, RH
85214-68020

ZZE14#..RHD

 1
85214B - RUBBER, WIPER, LH
85214-68030

ZZE14#..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-12470

ZZE14#..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-12860

ZZE14#..RHD

 1
Common parts
90119-06864
90182-10006
90463-12014
