ZZE141R-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )

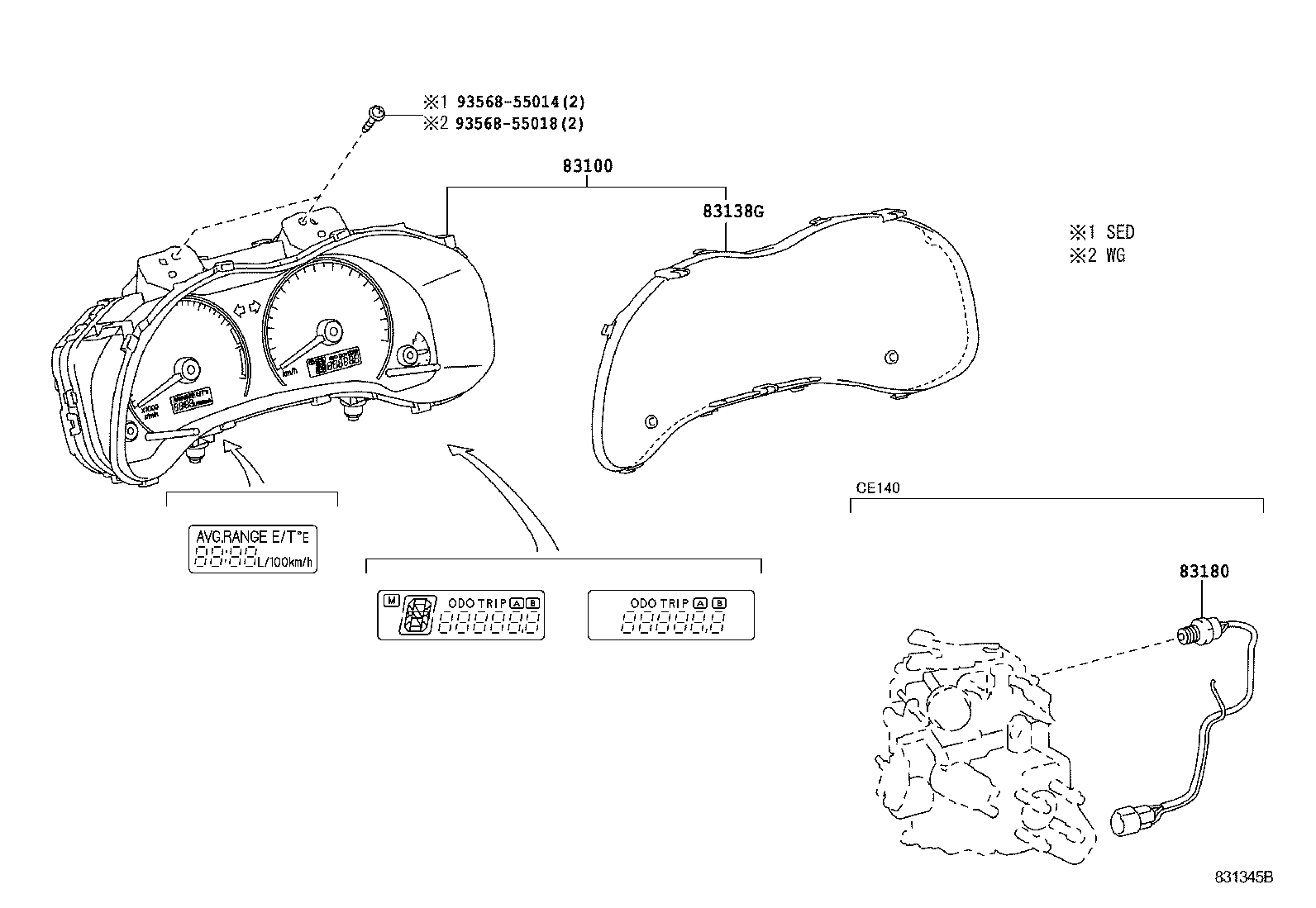

Click highlighted areas on diagram

diagram 83100 83138G 83180 9356855014 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-12J70

NZE141,ZZE14#..4FC..GEN

 1
83800-12G60

NZE141,ZZE141..4FC..(LX,XLI)..GEN

SPEEDOMETER-ANALOGUE KM/H

 1
83800-12G61

ZZE141..4FC..(LX,XLI)..GEN

SPEEDOMETER-ANALOGUE KM/H

 1
83800-12J71

ZZE141..4FC..GEN;ZZE142..RHD..4FC

 1
83138G - GLASS, COMBINATION METER
83852-12F50

ZZE141..GEN;ZZE142..RHD

 1
83852-12F60

ZZE141..(LX,XLI)..GEN

SPEEDOMETER-ANALOGUE KM/H

 1
Common parts
93568-55014
93568-55018
