ZZE141R-AEPNK (2007)
Toyota Corolla Sed/Wg
(0704- )N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-12060 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-12060 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06006 | ||||
| 90189-06226 | ||||

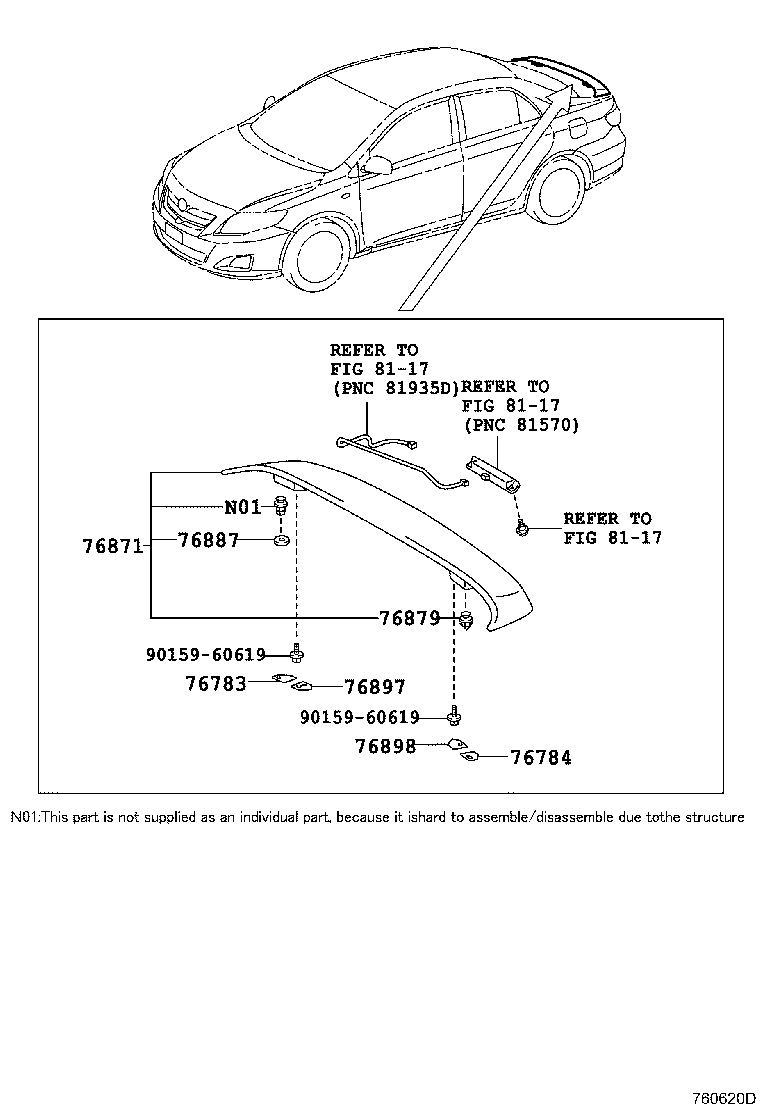

ILLUST NO. 2 OF 2(0708- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76783 - TAPE, REAR SPOILER, LOWER RH | ||||
| 76783-12090 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
1 | ||
| 76784 - TAPE, REAR SPOILER, LOWER LH | ||||
| 76784-12090 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-12380C0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,BLACK MC.,209 |
1 | ||
| 76871-12380H0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,TURQUOISE M.M.,779 |
1 | ||
| 76871-12380B1 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,GRAY ME.,1G3 |
1 | ||
| 76871-12380B0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,SILVER ME.,1F7 |
1 | ||
| 76871-12380D0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,RED M.M.,3R3 |
1 | ||
| 76871-12380A0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,SUPER WHITE 2,040 |
1 | ||
| 76871-12380J3 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,BLUE ME.,8T7 |
1 | ||
| 76871-12380J0 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH,LT.BLUE M.M.,8S1 |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-12060 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-12040 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
2 | ||
| 76897 - PROTECTOR, REAR SPOILER, SIDE RH | ||||
| 76897-12170 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
1 | ||
| 76898 - PROTECTOR, REAR SPOILER, SIDE LH | ||||
| 76898-12170 |
CE140,NZE141,ZZE14#..SED REAR SPOILER-WITH |
1 | ||
| Common parts | ||||
| 90159-60619 | ||||
| Linked diagrams | ||||
| 8117 | ||||

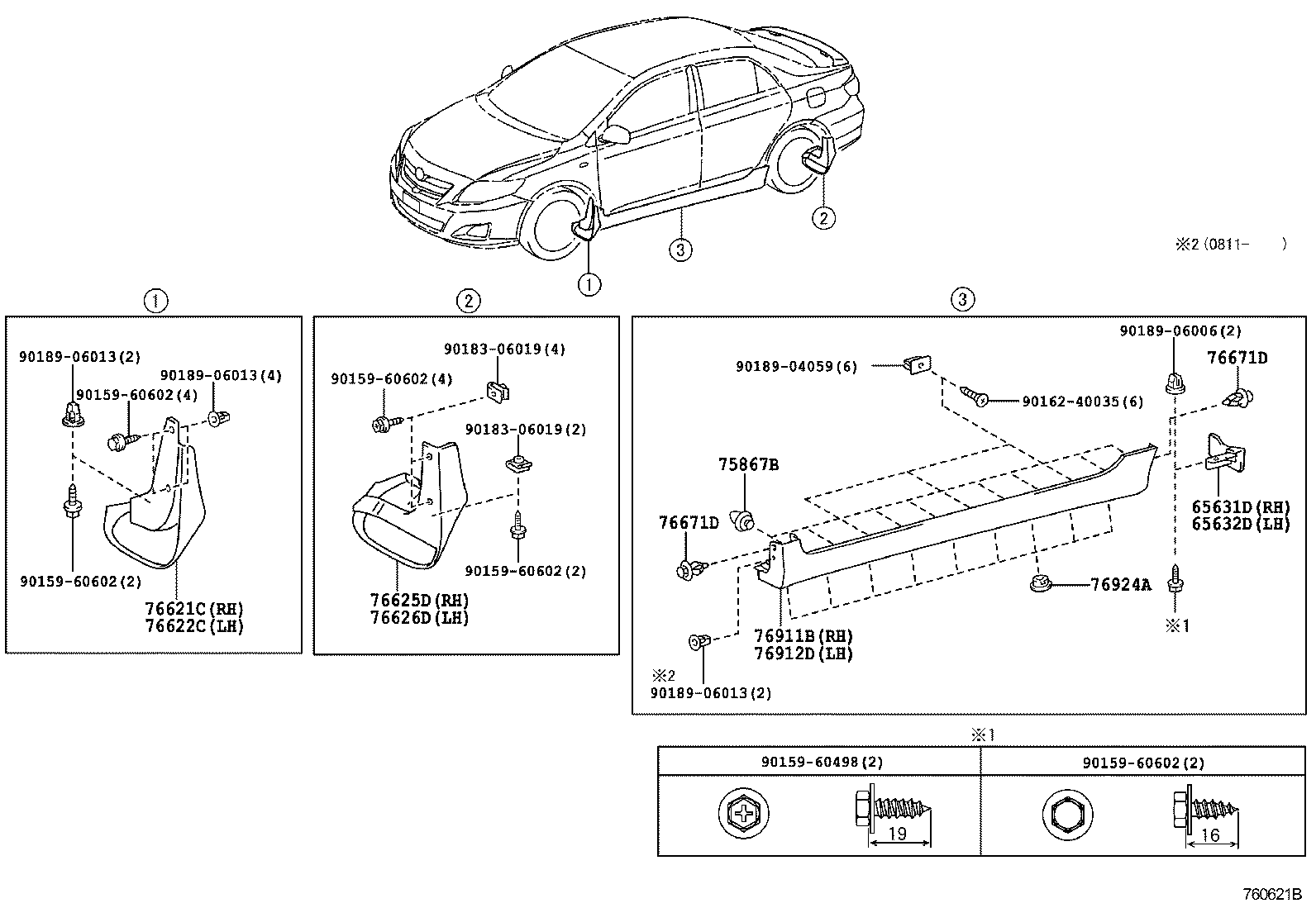

ILLUST NO. 1 OF 2(0708- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-12060 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-12060 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-12040 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
16 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-12300B1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),GRAY ME.,1G3 |
1 | ||
| 76621-12300A0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SUPER WHITE 2,040 |
1 | ||
| 76621-12300J1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),LT.BLUE M.M.,8S1 |
1 | ||
| 76621-12300D0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),RED M.M.,3R3 |
1 | ||
| 76621-12300H0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),TURQUOISE M.M.,779 |
1 | ||
| 76621-12300C0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLACK MC.,209 |
1 | ||
| 76621-12300J0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLUE ME.,8T7 |
1 | ||
| 76621-12300B0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SILVER ME.,1F7 |
1 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-12300B1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),GRAY ME.,1G3 |
1 | ||
| 76622-12300B0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SILVER ME.,1F7 |
1 | ||
| 76622-12300D0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),RED M.M.,3R3 |
1 | ||
| 76622-12300A0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SUPER WHITE 2,040 |
1 | ||
| 76622-12300H0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),TURQUOISE M.M.,779 |
1 | ||
| 76622-12300C0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLACK MC.,209 |
1 | ||
| 76622-12300J1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),LT.BLUE M.M.,8S1 |
1 | ||
| 76622-12300J0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLUE ME.,8T7 |
1 | ||
| 76625D - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-12550B0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SILVER ME.,1F7 |
1 | ||
| 76625-12550C0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLACK MC.,209 |
1 | ||
| 76625-12550D0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),RED M.M.,3R3 |
1 | ||
| 76625-12550J0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),LT.BLUE M.M.,8S1 |
1 | ||
| 76625-12550A0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SUPER WHITE 2,040 |
1 | ||
| 76625-12550H0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),TURQUOISE M.M.,779 |
1 | ||
| 76625-12550J3 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLUE ME.,8T7 |
1 | ||
| 76625-12550B1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),GRAY ME.,1G3 |
1 | ||
| 76626D - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-12550B1 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),GRAY ME.,1G3 |
1 | ||
| 76626-12550B0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SILVER ME.,1F7 |
1 | ||
| 76626-12550D0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),RED M.M.,3R3 |
1 | ||
| 76626-12550A0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),SUPER WHITE 2,040 |
1 | ||
| 76626-12550J0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),LT.BLUE M.M.,8S1 |
1 | ||
| 76626-12550H0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),TURQUOISE M.M.,779 |
1 | ||
| 76626-12550J3 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLUE ME.,8T7 |
1 | ||
| 76626-12550C0 |
ZZE14#..GLI,LX;ZZE14#..XLI..GCC;CE140,NZE141..GLI,XLI MUD GUARD-WITH(COLORED),BLACK MC.,209 |
1 | ||
| 76671D - CLIP, SIDE MUDGUARD | ||||
| 90467-06165C0 |
CE140,NZE141,ZZE14#..SED BLACK |
4 | ||
| 90467-06165 |
CE140,NZE141,ZZE14#..SED |
4 | ||
| 76671D - CLIP, SIDE MUDGUARD | ||||
| 90467-06165C0 |
CE140,NZE141,ZZE14#..SED BLACK |
4 | ||
| 90467-06165 |
CE140,NZE141,ZZE14#..SED |
4 | ||
| 76911B - MUDGUARD, SIDE, RH | ||||
| 76911-12904 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 76911-12905 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 76912D - MUDGUARD, SIDE, LH | ||||
| 76912-12904 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 76912-12903 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 76924A - RETAINER, SIDE MUDGUARD, NO.2 | ||||
| 76924-12040 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
18 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90159-60602 | ||||
| 90162-40035 | ||||
| 90183-06019 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
