ZZE141R-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0704- )N

Click highlighted areas on diagram

ROOF PANEL

diagram 61247F 63103A 63105A 63111 63132 63143B 63144A 63148A 63149D 66416A 66426D 9011906802
Part # Description Qty Price
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-12080

CE140,NZE141,ZZE14#..SED

RH

 1
61248-12060

CE140,NZE141,ZZE14#..SED

LH

 1
63111 - PANEL, ROOF
63111-12880

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63111-12870

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12240

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63102-12230

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12130

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12110

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
Common parts
90119-06802

ILLUST NO. 2 OF 2(0704- )N

Click highlighted areas on diagram

ROOF RAIL

diagram 63185A 63186A 63187C 63188B 63189A 63460B 63470B 63484A 63485A 63486A 63487A 63488 63489 63491 63492 63493 63494 63495B 63496 9011006026 9011906787 9015250024 91511B0610 91511B0610 91511B0610
Part # Description Qty Price
Common parts
90110-06026
90119-06787
90152-50024
91511-B0610

ILLUST NO. 1 OF 2(0708- )SED

Click highlighted areas on diagram

ROOF PANEL

diagram 56115B 56116D 5701 6105 61247F 63105D 63105D 63111 63111 63118 63119 63127 63128 63132 63132 63141H 63142 63143B 63144A 64101 64811 64813D 7104 7104 75571G 9011906802 9017906274 91511B0610
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-12080

CE140,NZE141,ZZE14#..SED

RH

 1
61248-12060

CE140,NZE141,ZZE14#..SED

LH

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-12290

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-12290

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63111 - PANEL, ROOF
63111-12880

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63111-12870

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63111 - PANEL, ROOF
63111-12880

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63111-12870

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63118 - SUPPORT, ROOF PANEL, RH
63118-12120

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63119 - SUPPORT, ROOF PANEL, LH
63118-12120

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-12010

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-12020

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12240

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63102-12230

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12240

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63102-12230

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-12330

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12140

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12130

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-12110

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12840

ZZE142..XLI..GCC;ZZE14#..(GLI,LX)..GEN

REAR SEAT-6:4 FOLDING

 1
64101-12830

ZZE141;ZZE142..GEN;ZZE142..XLI..GCC;CE140,NZE141..LX,XLI

 1
64811 - GLASS, BACK WINDOW
64811-12A30

ZZE141;ZZE142..GCC;ZZE142..RHD

*UVCEHT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-12180

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
75571-12A10

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
Common parts
90119-06802
90179-06274
91511-B0610
Linked diagrams
5701
6105
7104

ILLUST NO. 2 OF 2(0708- )SED

Click highlighted areas on diagram

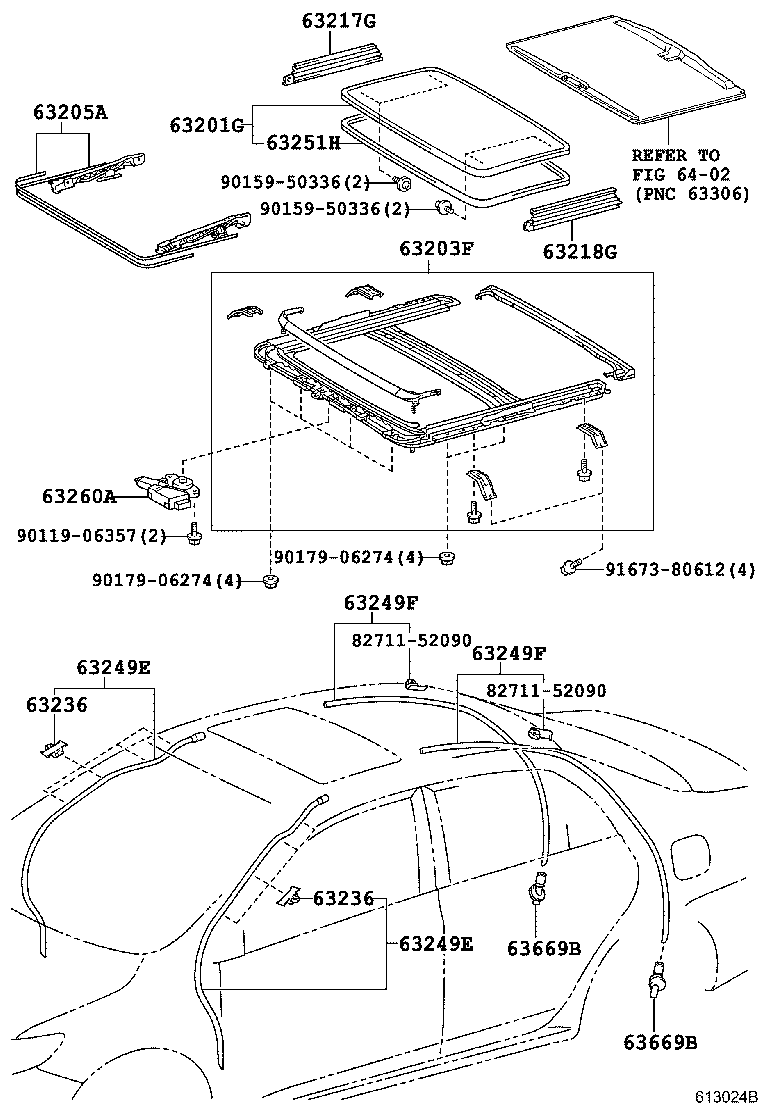

MOON ROOF

diagram 63201G 63203F 63205A 63217G 63218G 63236 63236 63249E 63249E 63249F 63249F 63251H 63260A 63669B 63669B 6402 8271152090 8271152090 9011906357 9015950336 9015950336 9017906274 9017906274 9167380612
Part # Description Qty Price
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-13050

ZZE141;ZZE142..GCC;ZZE142..RHD

*TEM,T=4.0,DARK GRAY,MOON ROOF-WITH

 1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-12170

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-48010

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-48030

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63218-48030

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-12010

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 8
63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
63236-12010

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 8
63249E - HOSE, SLIDING ROOF DRAIN
63249-12410

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH,LH

 1
63249-12400

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH,RH

 1
63249E - HOSE, SLIDING ROOF DRAIN
63249-12410

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH,LH

 1
63249-12400

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH,RH

 1
63249F - HOSE, SLIDING ROOF DRAIN
63249-12430

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-12430

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-63010

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-12140

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 1
63669B - GROMMET, SLIDING ROOF DRAIN
90480-26026

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 2
63669B - GROMMET, SLIDING ROOF DRAIN
90480-26026

ZZE141;ZZE142..GCC;ZZE142..RHD

MOON ROOF-WITH

 2
Common parts
82711-52090
90119-06357
90159-50336
90179-06274
91673-80612
Linked diagrams
6402
