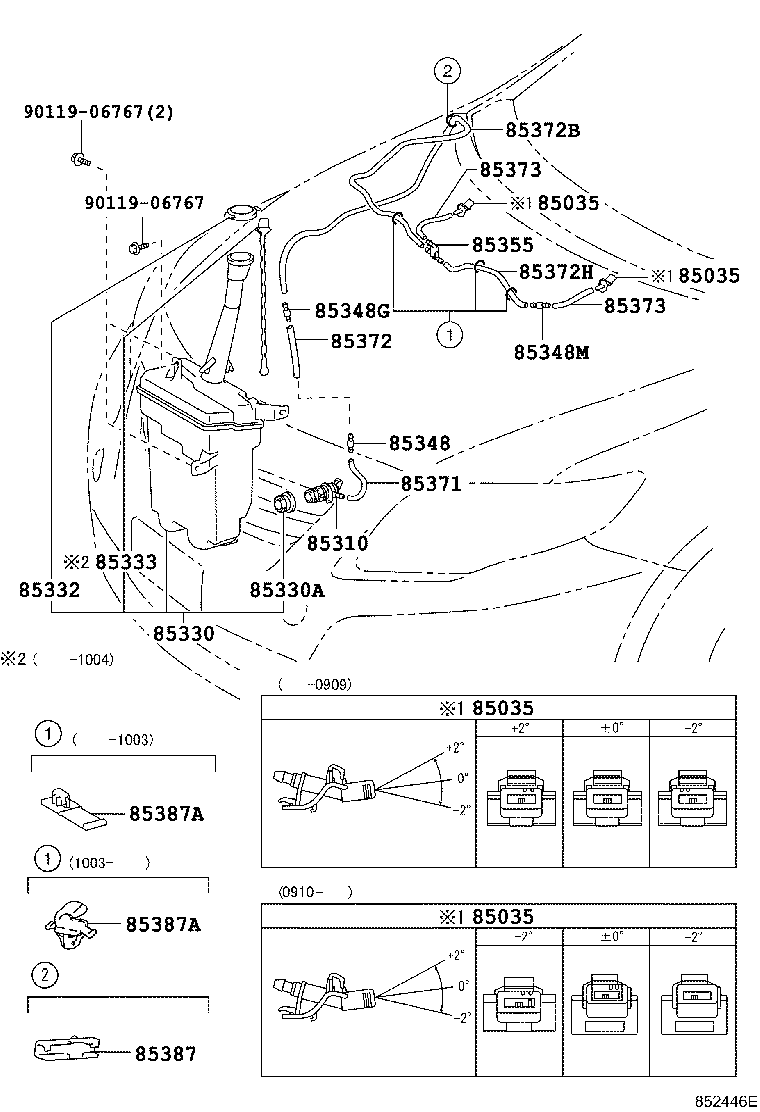

ZZE141R-AEMNK (2007)
Toyota Corolla Sed/Wg
(0704- )N
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12640 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85315-12600 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85386-60050 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-48010 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=80 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=80 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59347 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=510 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=190 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=190 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-12840 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 82711-3A540 |
CE140,NZE141,ZZE14#..SED |
3 | ||
| 85371-12040 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
3 | ||
| Common parts | ||||
| 85387-13320 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||

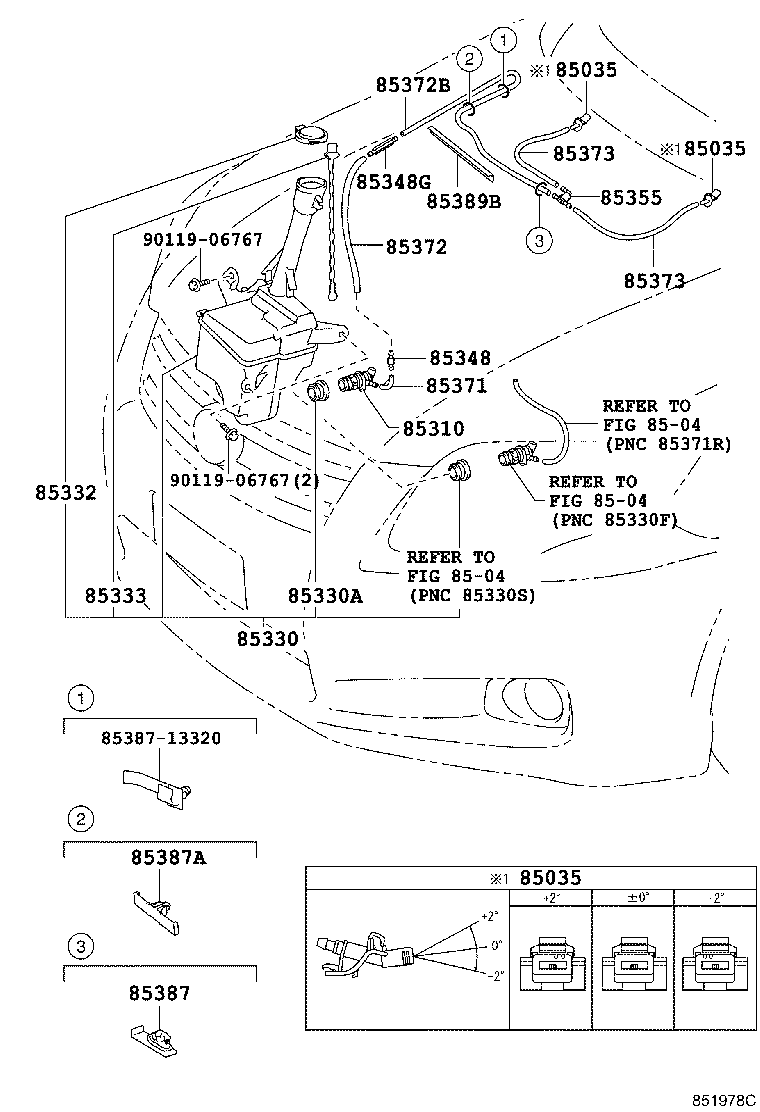

(0708- )ZRE14#,ZZE14# ; (0708- )CE140,NZE141..LX,N,XLI
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12310 |
CE140,NZE141,ZZE14#..SED ANGLE -2 |
2 | ||
| 85381-12300 |
CE140,NZE141,ZZE14#..SED ANGLE 0 |
2 | ||
| 85381-30150 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE 0 |
2 | ||
| 85381-12350 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE +2 |
2 | ||
| 85381-30110 |
ZZE141;ZZE142..GCC;ZZE142..RHD ANGLE -2 |
2 | ||
| 85381-12320 |
CE140,NZE141,ZZE14#..SED ANGLE +2 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12640 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85315-12600 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85386-60050 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-48010 |
ZZE14#;CE140,NZE141..LX,XLI |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=80 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=80 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59347 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=510 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90446-07001 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=510 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=190 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZZE141;ZZE142..GCC;ZZE142..RHD *H,L=190 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-12840 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 82711-3A540 |
CE140,NZE141,ZZE14#..SED |
3 | ||
| 85371-12040 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
3 | ||
| 85387A - CLAMP, WASHER, NO.2 | ||||
| 82711-3A540 |
CE140,NZE141,ZZE14#..SED |
3 | ||
| 85371-12040 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
3 | ||
| Common parts | ||||
| 90119-06767 | ||||
