ZZE141R-AEMNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

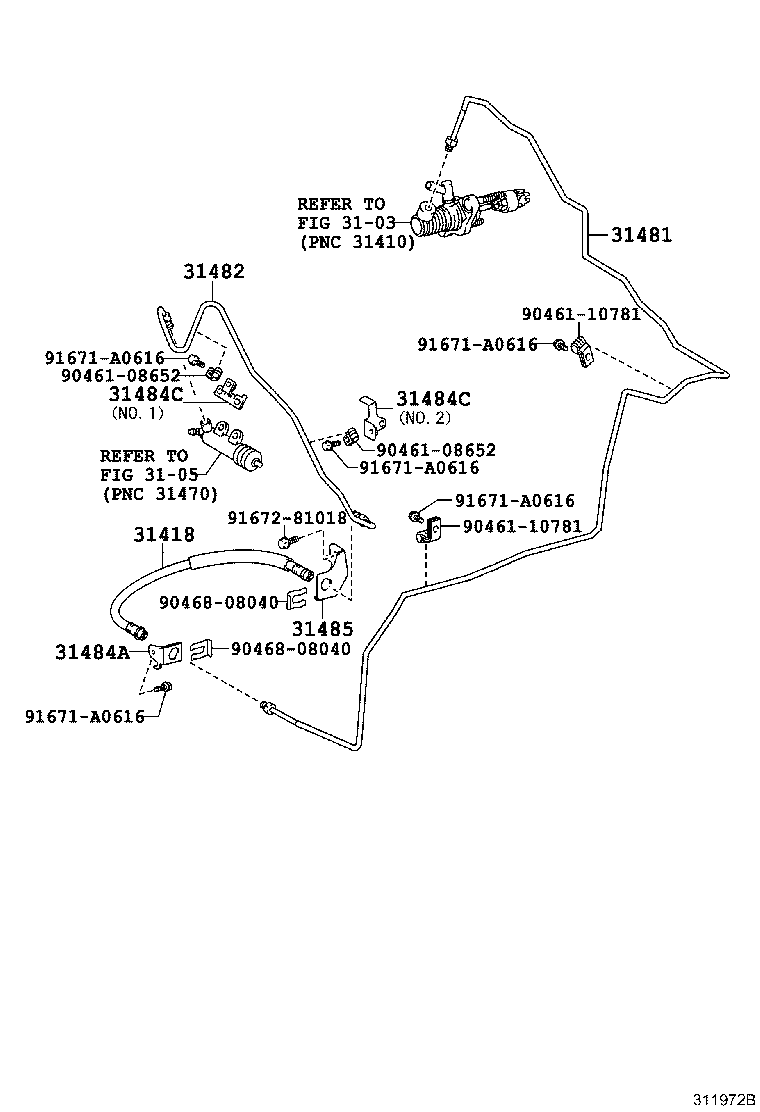

ILLUST NO. 2 OF 2(0708- )ZZE14#..RHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484A 31484C 31484C 31485 9046108652 9046108652 9046110781 9046110781 9046808040 9046808040 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 9167281018
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E57

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12410

ZZE14#..RHD..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12340

ZZE14#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150

ZZE14#..5F

NO.2

 1
31484-20460

ZZE14#..5F

NO.1

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150

ZZE14#..5F

NO.2

 1
31484-20460

ZZE14#..5F

NO.1

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12540

ZZE14#..5F

 1
Common parts
90461-08652
90461-10781
90468-08040
91671-A0616
91672-81018
Linked diagrams
3103
3105

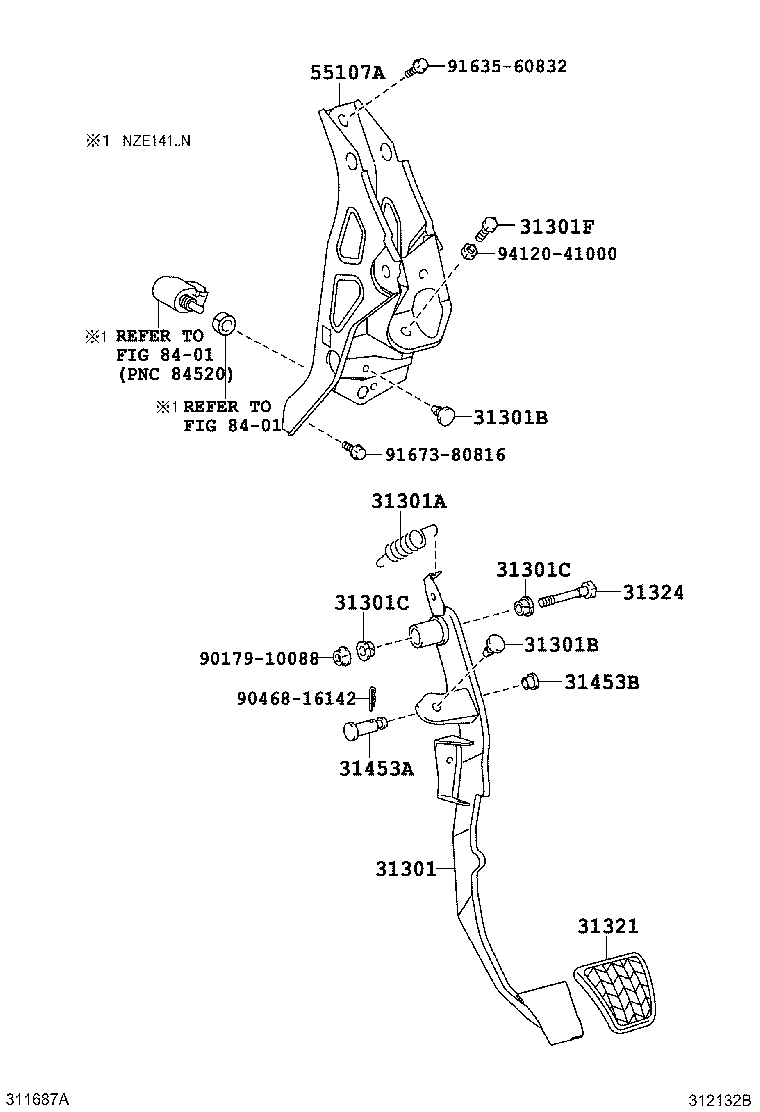

ILLUST NO. 1 OF 2(0704- )CE140,NZE141,ZZE141..RHD..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31453A 31453B 55107A 8401 8401 9017910088 9046816142 9163560832 9167380816 9412041000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12530

ZZE141..5F..LX

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14047

ZZE141..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ZZE14#..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-42010

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10174

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ZZE141..5F;ZZE142..RHD..5F;ZZE142..5F..GCC

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12310

ZZE141..5F..LX

 1
Common parts
90179-10088
90468-16142
91635-60832
91673-80816
94120-41000
Linked diagrams
8401
