ZZE141L-AEPNK (2007)
Toyota Corolla Sed/Wg
(0708- )LHD

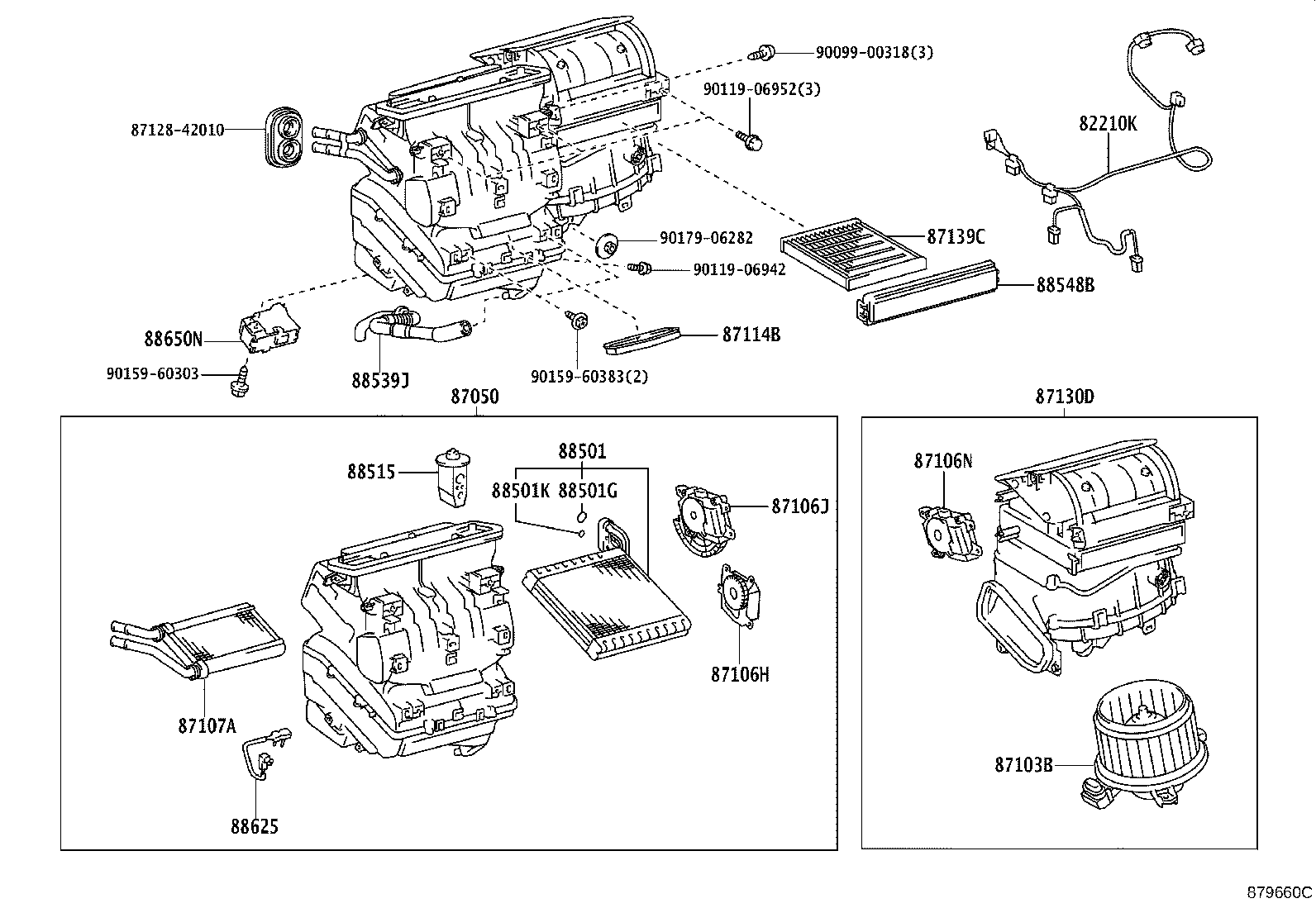

AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-12010 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12290 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87050-12291 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD |
1 | ||
| 87050-12430 |
CE140,ZZE14#..LHD AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12480 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87103-12080 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-12170 |
NZE141,ZZE14#..GLI,LX AIR CONDITIONER-AUTO |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-42100 |
NZE141,ZZE14#..GLI,LX AIR CONDITIONER-AUTO |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106-42130 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87106-42130 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87106-42140 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87107-42170 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87107-42170 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12410 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12550 |
ZZE14#..LHD |
1 | ||
| 87130-12411 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501-26210 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26210 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=13.4,OD=18.2,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14121 |
CE140,NZE141,ZZE14#..SED ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=13.4,OD=18.2,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=10.8,OD=15.6,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 90099-14120 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=10.8,OD=15.6,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14120 |
CE140,NZE141,ZZE14#..SED ID=10.8,OD=15.6 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-42090 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-42090 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-42090 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88625-26090 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88625-26090 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD AIR CONDITIONER-WITH OUT |
1 | ||
| 88650-12B40 |
ZZE141..GLI,LX;ZZE142..GLI..GCC;ZZE142..RHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 88650-12C60 |
ZZE141..GEN;ZZE142..RHD AIR CONDITIONER-COOLER |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||

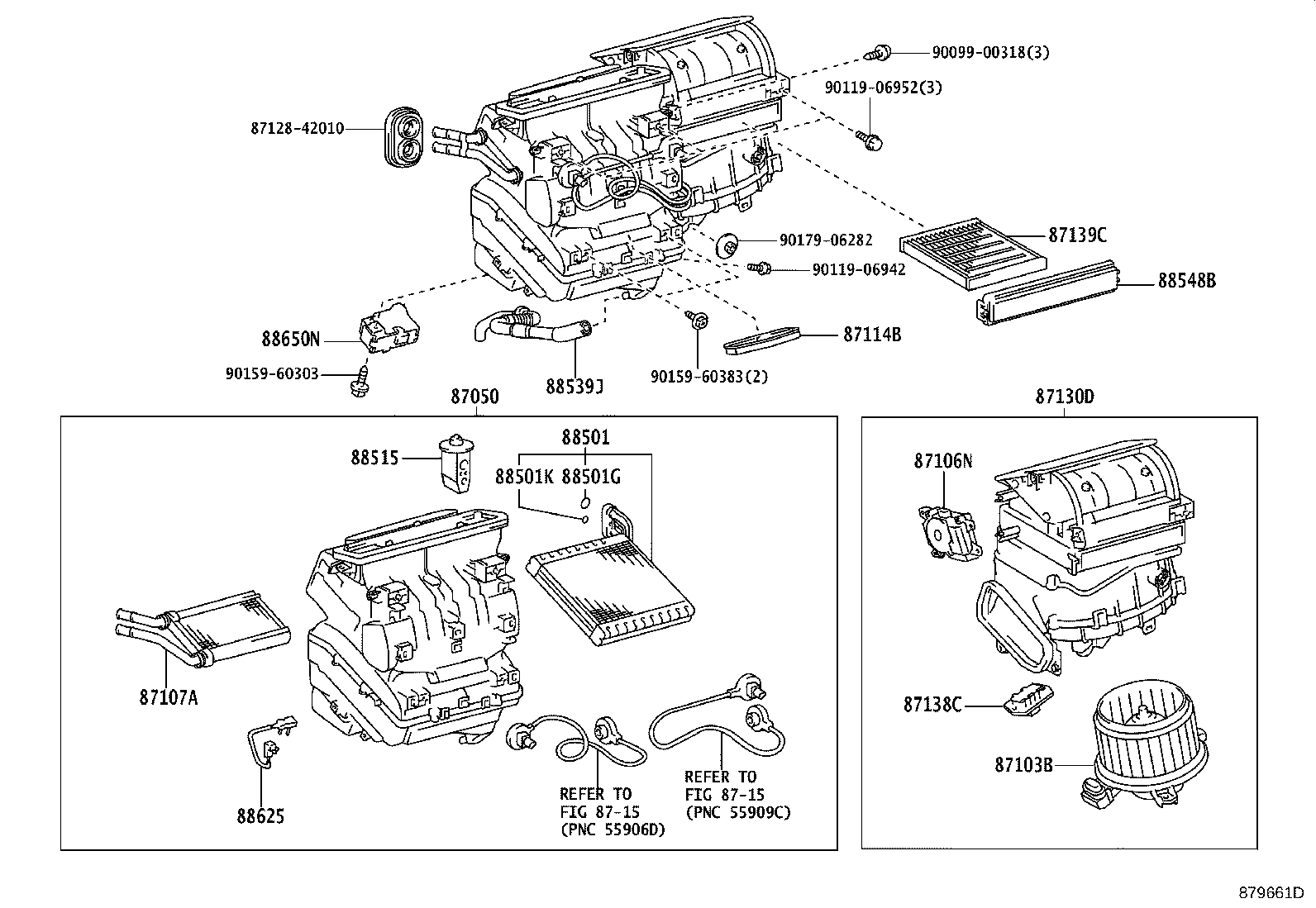

(0708- )LHD
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12290 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87050-12291 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD |
1 | ||
| 87050-12430 |
CE140,ZZE14#..LHD AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12480 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87103-12080 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106-42130 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87106-42130 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87106-42140 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87107-42170 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87107-42170 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12410 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12550 |
ZZE14#..LHD |
1 | ||
| 87130-12411 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138-26160 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87138-26160 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501-26210 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26210 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=13.4,OD=18.2,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14121 |
CE140,NZE141,ZZE14#..SED ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=13.4,OD=18.2,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=10.8,OD=15.6,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 90099-14120 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=10.8,OD=15.6,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14120 |
CE140,NZE141,ZZE14#..SED ID=10.8,OD=15.6 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-42090 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-42090 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-42090 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88625-26090 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88625-26090 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD AIR CONDITIONER-WITH OUT |
1 | ||
| 88650-12B40 |
ZZE141..GLI,LX;ZZE142..GLI..GCC;ZZE142..RHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 88650-12C60 |
ZZE141..GEN;ZZE142..RHD AIR CONDITIONER-COOLER |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||

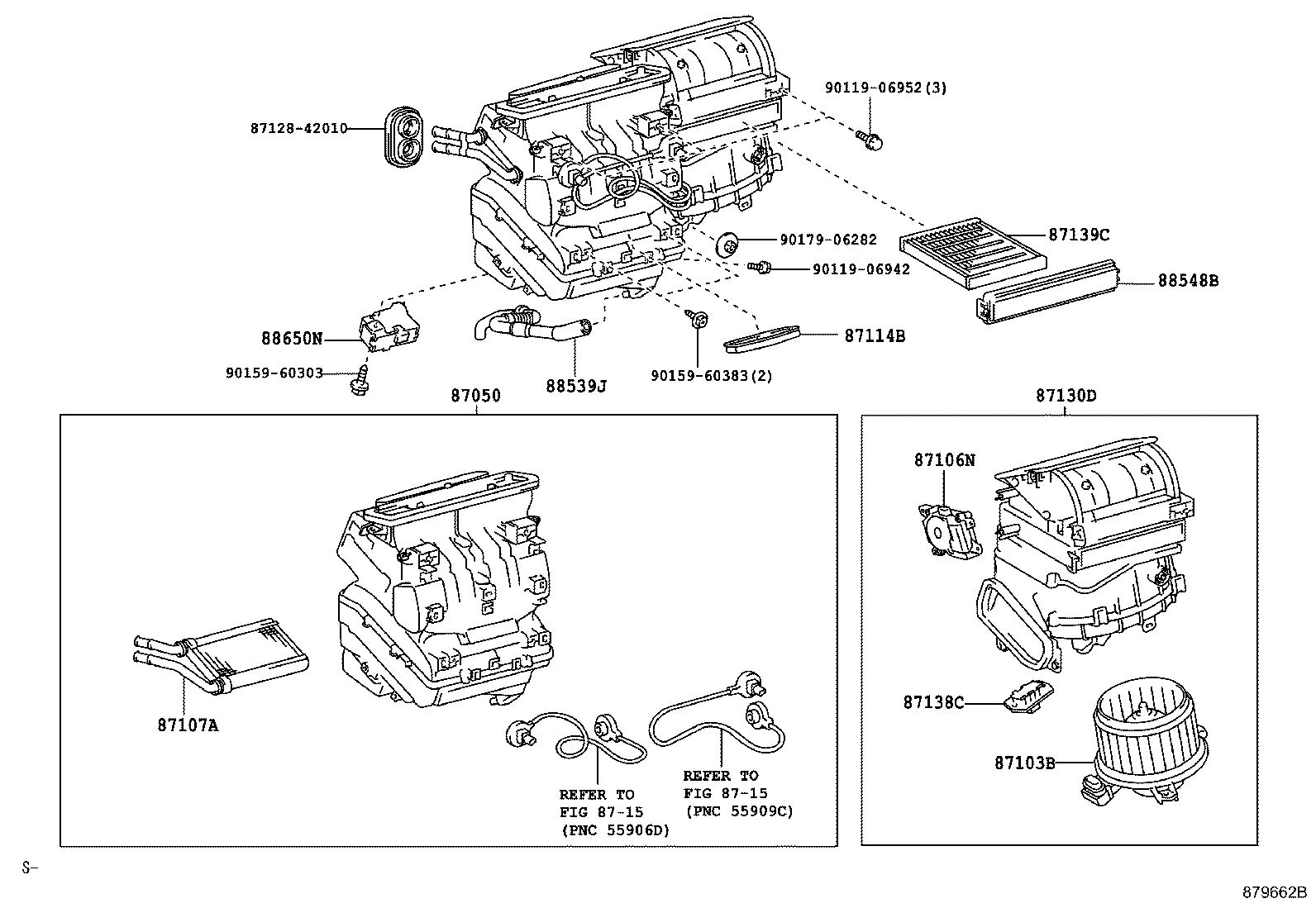

(0708- )LHD
MANUAL W/O(COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12290 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87050-12291 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD |
1 | ||
| 87050-12430 |
CE140,ZZE14#..LHD AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12480 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87103-12080 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106-42130 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87106-42130 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87106-42140 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87107-42170 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87107-42170 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12410 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12550 |
ZZE14#..LHD |
1 | ||
| 87130-12411 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138-26160 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87138-26160 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD AIR CONDITIONER-WITH OUT |
1 | ||
| 88650-12B40 |
ZZE141..GLI,LX;ZZE142..GLI..GCC;ZZE142..RHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 88650-12C60 |
ZZE141..GEN;ZZE142..RHD AIR CONDITIONER-COOLER |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||

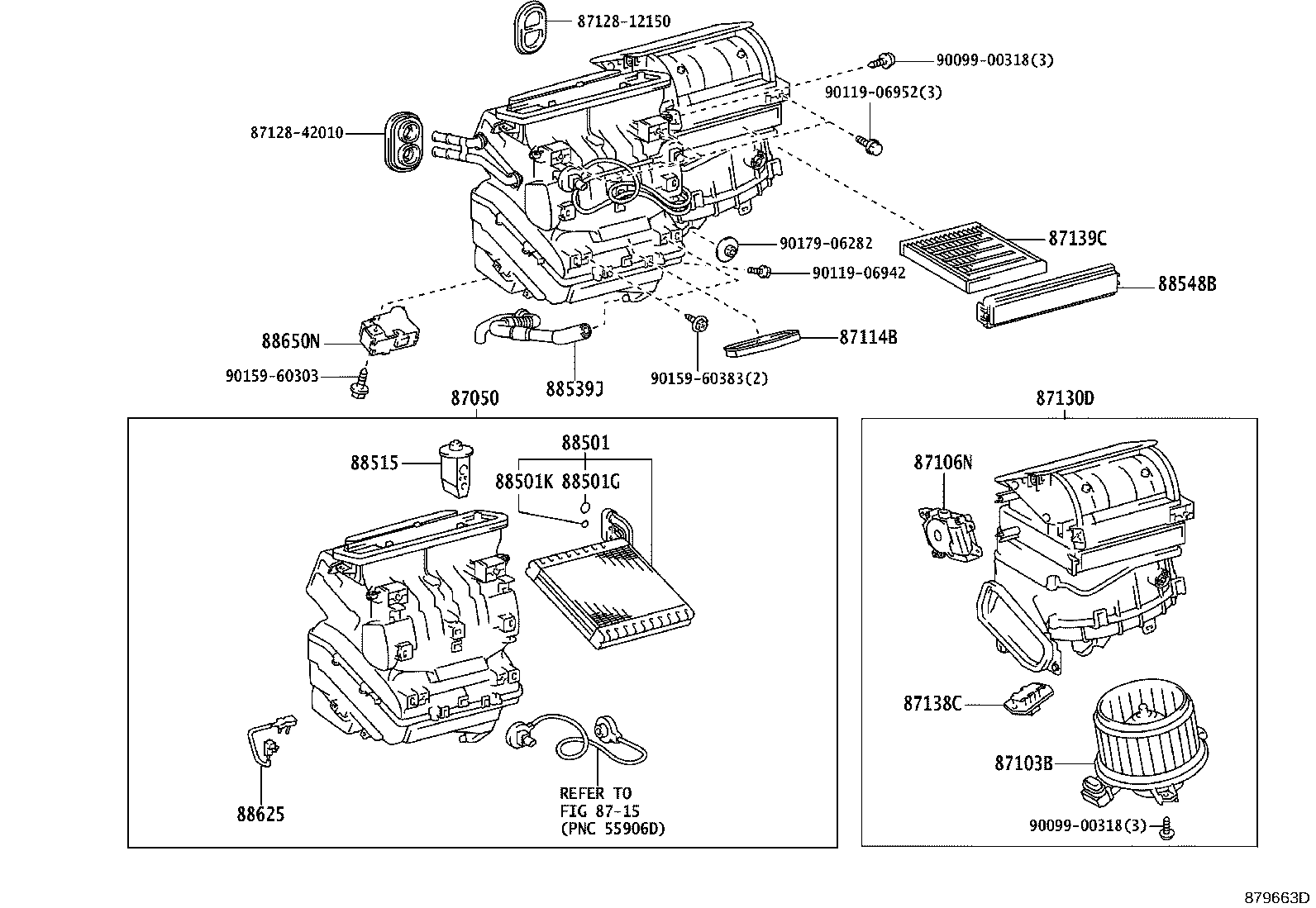

(0708- )LHD
MANUAL W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12290 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87050-12291 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87050-12390 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD |
1 | ||
| 87050-12430 |
CE140,ZZE14#..LHD AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12480 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87050-12391 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87103-12080 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87103-42090 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87106-42130 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87106-42130 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87106-42140 |
ZZE141..GLI;ZZE142..GLI..GCC AIR CONDITIONER-AUTO |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-12080 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12410 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12550 |
ZZE14#..LHD |
1 | ||
| 87130-12411 |
ZZE14#..LHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD |
1 | ||
| 87130-12551 |
CE140,ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87130-12550 |
ZZE14#..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
ZZE141..LHD..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 87138-26160 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 87138-26160 |
ZZE141..LHD..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26210 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501-26210 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26210 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88501-26211 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=13.4,OD=18.2,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14121 |
CE140,NZE141,ZZE14#..SED ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=13.4,OD=18.2,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID) | ||||
| 90099-14120 |
CE140..LHD;NZE141,ZZE14#..SED..GEN ID=10.8,OD=15.6,AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 90099-14120 |
CE140..LHD;NZE141..LX;ZZE14#..GEN ID=10.8,OD=15.6,HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 90099-14120 |
CE140,NZE141,ZZE14#..SED ID=10.8,OD=15.6 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-42090 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-42090 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-42090 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88515-26070 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-COOLER |
1 | ||
| 88515-26070 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88515-12100 |
NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
ZZE141..LHD;ZZE142..GCC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
1 | ||
| 88625-26090 |
CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT |
1 | ||
| 88625-26090 |
CE140,NZE141,ZZE14#..SED |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD AIR CONDITIONER-WITH OUT |
1 | ||
| 88650-12B40 |
ZZE141..GLI,LX;ZZE142..GLI..GCC;ZZE142..RHD..GLI AIR CONDITIONER-AUTO |
1 | ||
| 88650-12A80 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 88650-12C60 |
ZZE141..GEN;ZZE142..RHD AIR CONDITIONER-COOLER |
1 | ||
| Common parts | ||||
| 87128-12150 | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
