ZZE141L-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )SED

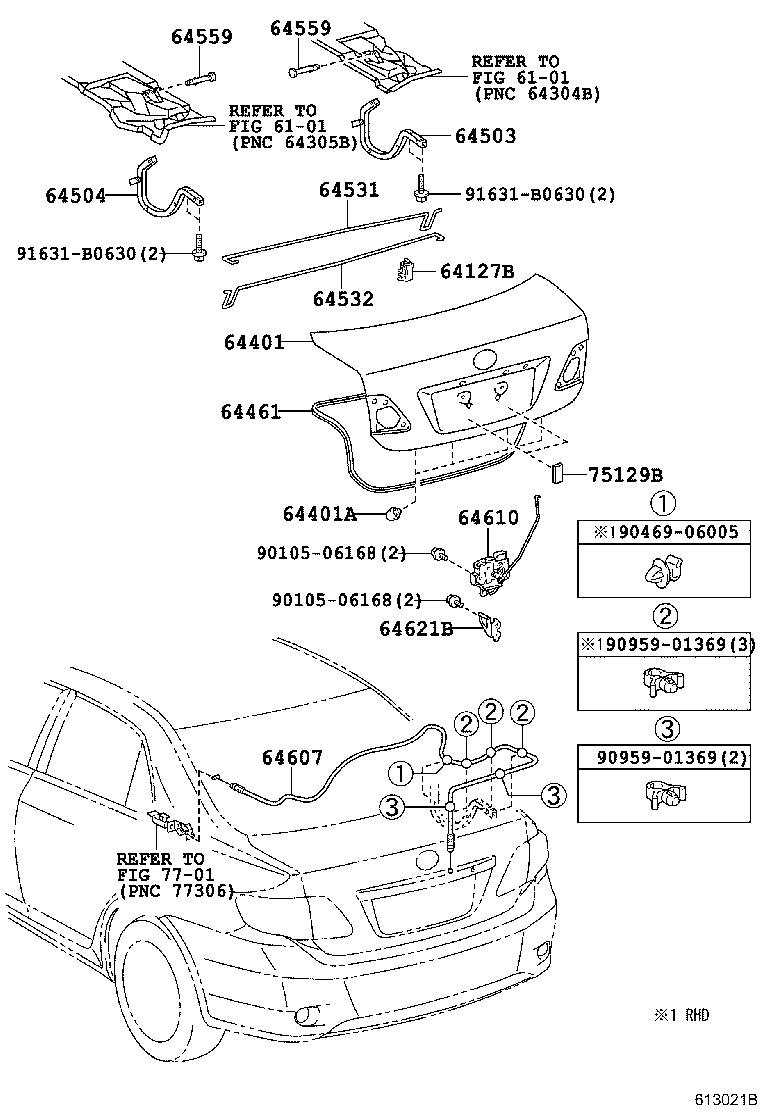

Click highlighted areas on diagram

diagram 6101 6101 64127B 64401 64401A 64461 64503 64504 64531 64532 64559 64559 64607 64610 64621B 75129B 7701 9010506168 9010506168 9046906005 9095901369 9095901369 91631B0630 91631B0630
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33041

CE140,NZE141,ZZE14#..SED

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12C10

CE140,NZE141,ZZE14#..SED

REAR SPOILER-WITH

 1
64401-12C20

CE140,NZE141,ZZE14#..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09116

ZZE141;ZZE142..GCC;ZZE142..RHD

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12570

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12170

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12170

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12840

CE140,NZE141,ZZE14#..SED

REAR SPOILER-WITH

 1
64531-12830

CE140,NZE141,ZZE14#..SED

 1
64531-12831

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64531-12841

ZZE141;ZZE142..GCC;ZZE142..RHD

REAR SPOILER-WITH

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12810

CE140,NZE141,ZZE14#..SED

 1
64532-12820

CE140,NZE141,ZZE14#..SED

REAR SPOILER-WITH

 1
64532-12811

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64532-12821

ZZE141;ZZE142..GCC;ZZE142..RHD

REAR SPOILER-WITH

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12860

ZZE141..LHD;ZZE142..GCC

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12390

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33010

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-21010

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
Common parts
90105-06168
90469-06005
90959-01369
91631-B0630
Linked diagrams
6101
7701
