ZZE141L-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N

Click highlighted areas on diagram

diagram 52161K 52161K 53101 53101 53119B 53119B 53395H 7501 7501
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

CE140,NZE141,ZZE14#..SED

 1
52161K - PIECE, FRONT BUMPER
52161-16010

CE140,NZE141,ZZE14#..SED

 1
Linked diagrams
7501

(0704-1007)SED ; (1007- )CVFC

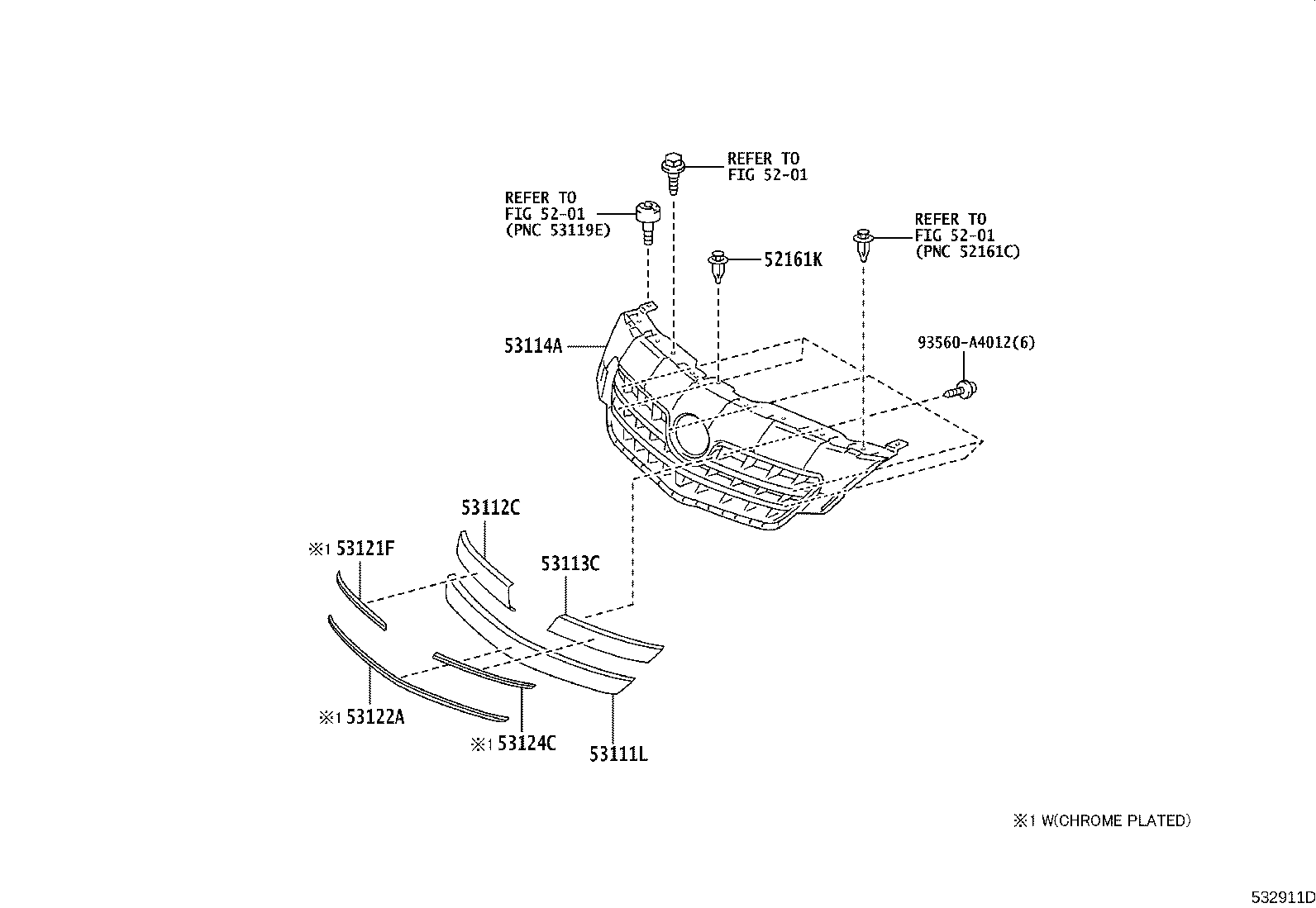

Click highlighted areas on diagram

diagram 5201 5201 5201 52161K 53111L 53112C 53113C 53114A 53121F 53122A 53124C 93560A4012
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

CE140,NZE141,ZZE14#..SED

 1
53111L - GRILLE SUB-ASSY, RADIATOR, CENTER
53111-12B50

CE140,NZE141,ZZE14#..SED

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
53111-12B40

CE140,NZE141,ZZE14#..SED

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-12150

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
53112-12160

ZZE141;ZZE142..GCC;ZZE142..RHD

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-12110

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
53113-12120

ZZE141;ZZE142..GCC;ZZE142..RHD

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
53114A - GRILLE, RADIATOR, INNER
53114-12110

ZZE141;ZZE142..GCC;ZZE142..RHD

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-12180

ZZE141;ZZE142..GCC;ZZE142..RHD

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-12170

ZZE141;ZZE142..GCC;ZZE142..RHD

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53124-12030

ZZE141;ZZE142..GCC;ZZE142..RHD

RADIATOR GRILLE-BAR TYPE,WITH(CHROME PLATED)

 1
Common parts
93560-A4012
Linked diagrams
5201
