ZZE141L-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0704- )N ; (0708- )ZRE14#,ZZE142..GCC ; (0708- )CE140,ZZE141..LHD..XLI

Click highlighted areas on diagram

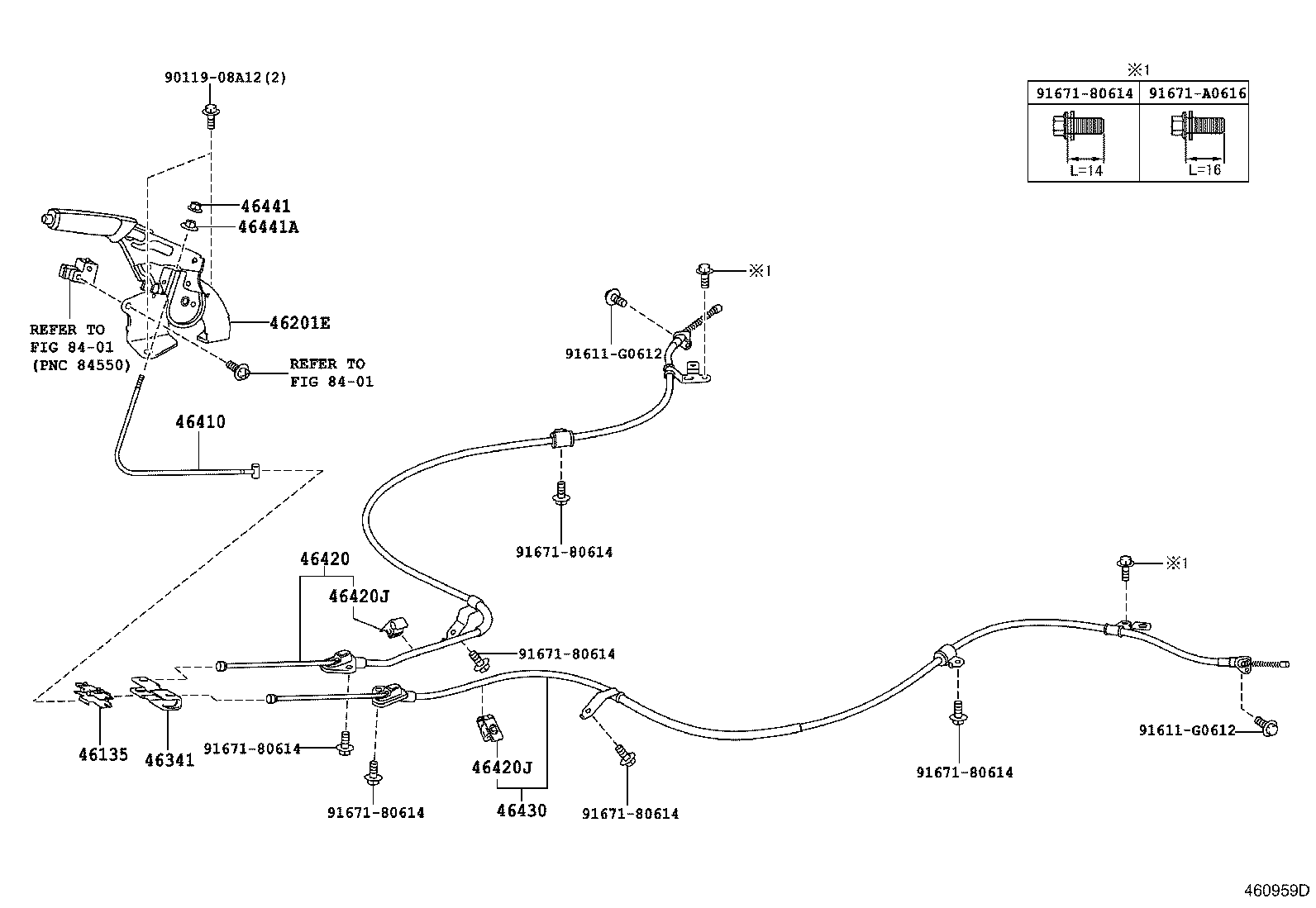

DRUM BRAKE

diagram 46135 46201E 46341 46410 46420 46420J 46420J 46430 46441 46441A 8401 8401 9011908A12 91611G0612 91611G0612 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 91671A0616
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010

CE140,NZE141,ZZE14#..SED

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12370E0

CE140,ZZE14#..LHD..GEN

PARKING BRAKE-CHROME PLATED KNOB,ASH BROWN,TRIM4#

 1
46201-12370B0

CE140,ZZE14#..LHD..GEN

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#

 1
46201-12450E0

CE140,ZZE14#..LHD..GEN

ASH BROWN,TRIM4#

 1
46201-12450B0

CE140,ZZE14#..LHD..GEN

DK.GRAY,TRIM1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12040

CE140,NZE141,ZZE14#..SED

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12320

CE140,NZE141,ZZE14#..SED

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12680

CE140,NZE141,ZZE14#..SED

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12570

CE140,NZE141,ZZE14#..SED

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

CE140,NZE141,ZZE14#..SED

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010

CE140,NZE141,ZZE14#..SED

 1
Common parts
90119-08A12
91611-G0612
91671-80614
91671-A0616
Linked diagrams
8401

(0708- )SED

Click highlighted areas on diagram

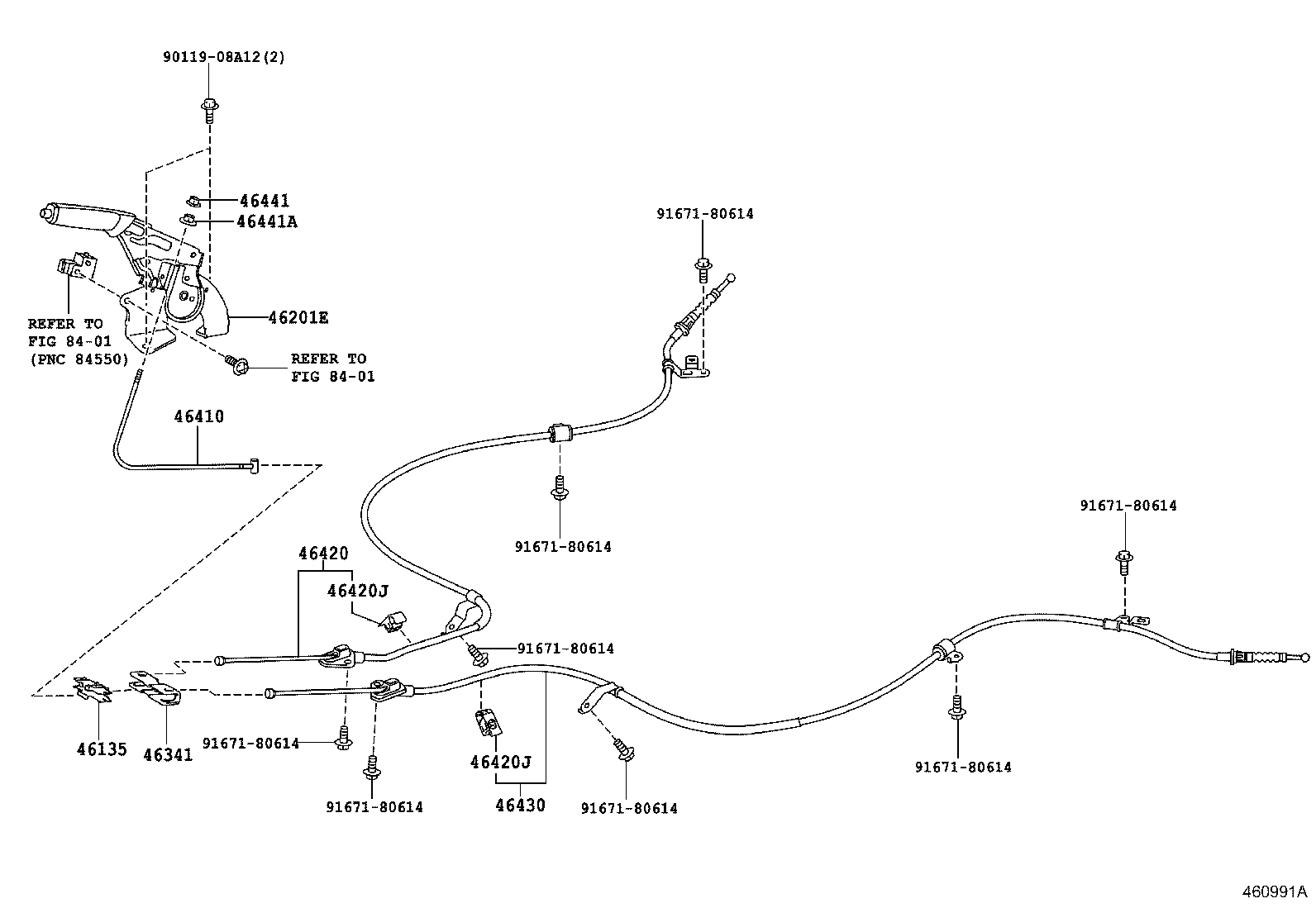

DISC BRAKE

diagram 46135 46201E 46341 46410 46420 46420J 46420J 46430 46441 46441A 8401 8401 9011908A12 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010

CE140,NZE141,ZZE14#..SED

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12370E0

CE140,ZZE14#..LHD..GEN

PARKING BRAKE-CHROME PLATED KNOB,ASH BROWN,TRIM4#

 1
46201-12370B0

CE140,ZZE14#..LHD..GEN

PARKING BRAKE-CHROME PLATED KNOB,DK.GRAY,TRIM1#

 1
46201-12450E0

CE140,ZZE14#..LHD..GEN

ASH BROWN,TRIM4#

 1
46201-12450B0

CE140,ZZE14#..LHD..GEN

DK.GRAY,TRIM1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12040

CE140,NZE141,ZZE14#..SED

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12320

CE140,NZE141,ZZE14#..SED

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12680

CE140,NZE141,ZZE14#..SED

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46402-12020

ZZE141;ZZE142..GCC;ZZE142..RHD

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12570

CE140,NZE141,ZZE14#..SED

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

CE140,NZE141,ZZE14#..SED

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010

CE140,NZE141,ZZE14#..SED

 1
Common parts
90119-08A12
91671-80614
Linked diagrams
8401
