ZZE141L-AEPNK (2007)
Toyota Corolla Sed/Wg
(0704- )ZZE14#..GLI,XLI..GEN ; (0704- )CE140,NZE141..LX,N,XLI

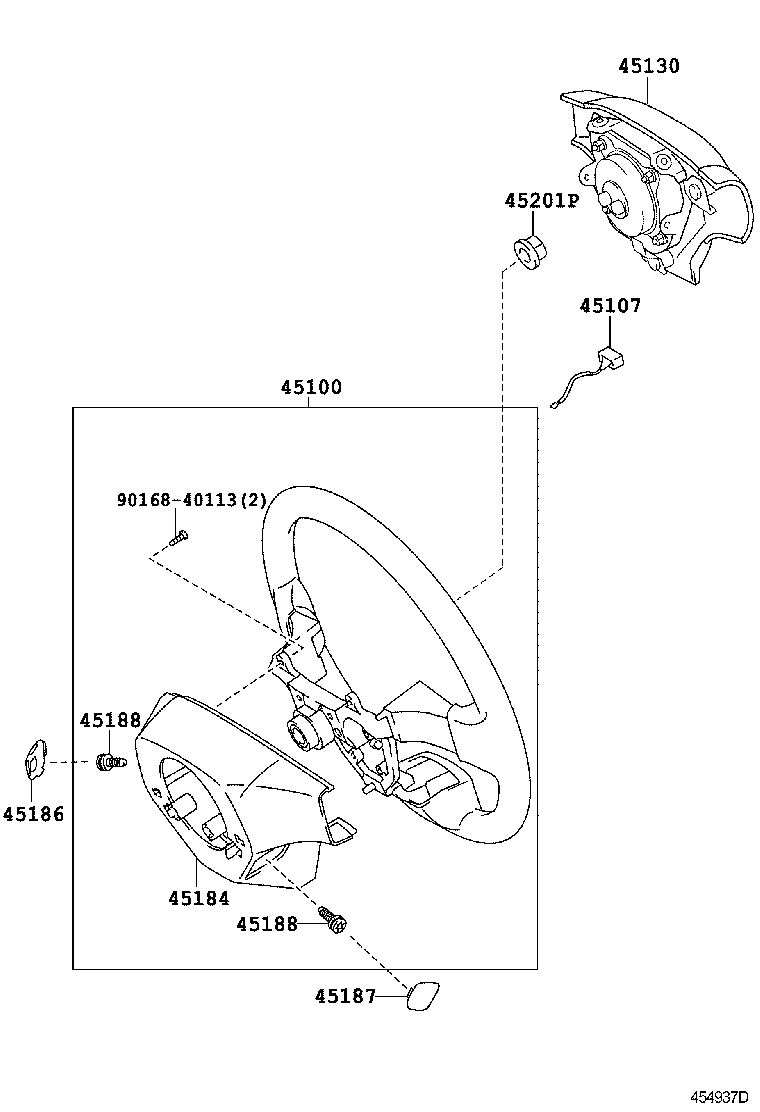

3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12A70B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN 3-SPOKE,URETHANE,MD.GRAY,TRIM1# |
1 | ||
| 45100-12A70E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN 3-SPOKE,URETHANE,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-52010 |
ZZE142..RHD;ZZE141..LHD..GEN |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-W(*DRP & SIDE & *CUSA) |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-WITH(DRIVER) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12A80B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45130-12A80E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12340B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45184-12340E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12020B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45186-33080B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45186-33080E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45186-33080E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-33050B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45187-12020E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45187-33050B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45187-12020B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45187-33050B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45187-33050E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45187-33050E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45187-33050E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| Common parts | ||||
| 90168-40113 | ||||
(0708- )SED
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12A70B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN 3-SPOKE,URETHANE,MD.GRAY,TRIM1# |
1 | ||
| 45100-12A70E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN 3-SPOKE,URETHANE,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00B1 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45100-12D00E0 |
ZZE14#..GLI..GEN 4-SPOKE,LEATHER,SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-52010 |
ZZE142..RHD;ZZE141..LHD..GEN |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-W(*DRP & SIDE & *CUSA) |
1 | ||
| 45107-52010 |
ZZE141..GLI;ZZE142..RHD..GLI SRS AIR BAG-WITH(DRIVER) |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-33010 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER) |
1 | ||
| 45116-33010 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 45116-33010 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12A80B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45130-12A80E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45130-12B60E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45130-12B60E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-12340B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45184-33100B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45184-12340E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45184-33100E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12020B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45186-33080B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45186-33080E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45186-33080E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45186-33080E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-33050B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),MD.GRAY,TRIM1# |
1 | ||
| 45187-12020E0 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN ASH BROWN,TRIM4# |
1 | ||
| 45187-33050B1 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),MD.GRAY,TRIM1# |
1 | ||
| 45187-12020B1 |
CE140,NZE141..LX,XLI;ZZE14#..(GLI,XLI)..GEN MD.GRAY,TRIM1# |
1 | ||
| 45187-33050B1 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),MD.GRAY,TRIM1# |
1 | ||
| 45187-33050E0 |
ZZE14#..GLI..GEN SRS AIR BAG-W(*DRP & SIDE & *CUSA),ASH BROWN,TRIM4# |
1 | ||
| 45187-33050E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4# |
1 | ||
| 45187-33050E0 |
ZZE14#..(GLI,XLI)..GEN;CE140,NZE141..RHD..(LX,XLI) SRS AIR BAG-WITH(DRIVER),ASH BROWN,TRIM4# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
ZZE141;ZZE142..GCC;ZZE142..RHD L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ZZE141;ZZE142..GCC;ZZE142..RHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||
