ZZE141L-AEPNK (2007)
Toyota Corolla Sed/Wg

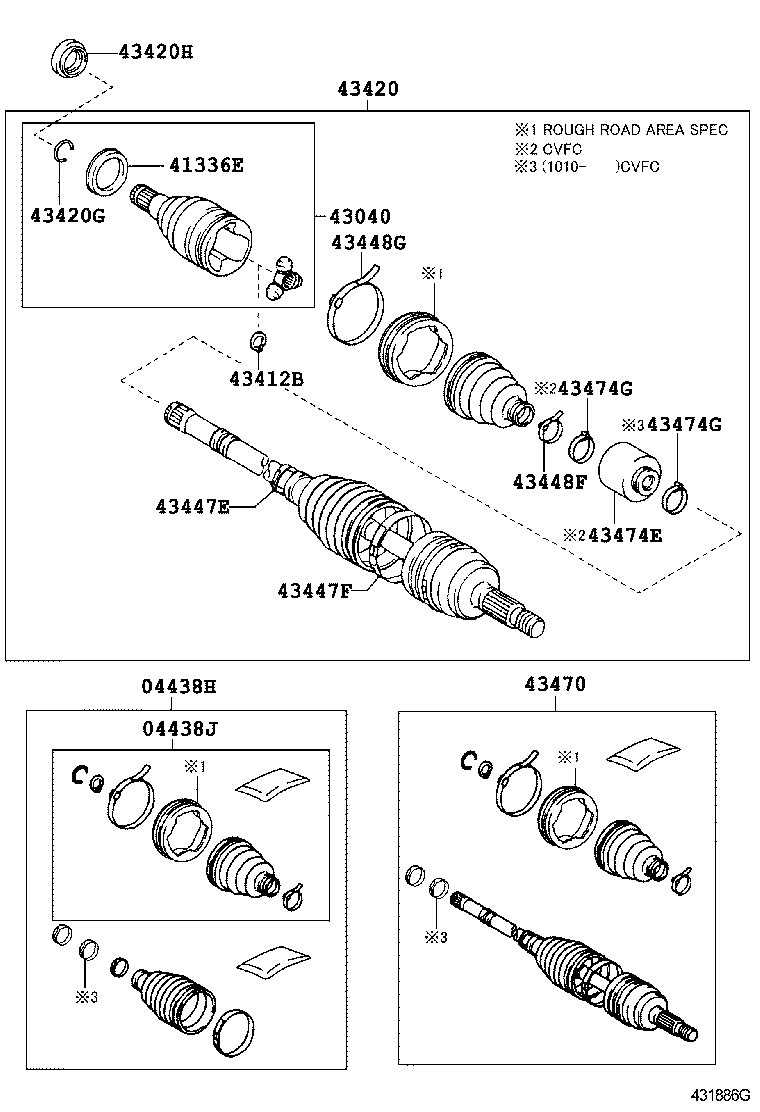

ILLUST NO. 2 OF 3(0704- )NZE141,ZRE14#,ZZE14#
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-12470 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04427-12470 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04428-42100 |
ZZE142;ZZE141..4FC |
1 | ||
| 04428-12650 |
ZZE142;ZZE141..4FC |
1 | ||
| 04428-12740 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04428-12740 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04428-42101 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42200 |
ZZE142;ZZE141..4FC |
1 | ||
| 04438-42200 |
ZZE142;ZZE141..4FC |
1 | ||
| 04437-52330 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04437-52330 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04438-12A00 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04438-42201 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 04438-12A00 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12060 |
ZZE142;ZZE141..4FC |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-12120 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43040-12120 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43040-32040 |
ZZE142;ZZE141..4FC |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-12070 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43425-12070 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 90520-22005 |
NZE141,ZZE14#..SED |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-12860 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43420-12860 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43420-42091 |
ZZE142;ZZE141..4FC |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
ZZE142;ZZE141..4FC |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35054 |
ZZE14#..4FC |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12230 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 42345-12230 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12190 |
NZE141,ZZE14#..SED |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-12180 |
NZE141,ZZE14#..SED |
1 | ||
| 42345-12240 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 42345-12240 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12230 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12230 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 90949-01078 |
NZE141,ZZE14#..SED |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12140 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 42345-12160 |
NZE141,ZZE14#..SED |
1 | ||
| 42345-12140 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-49585 |
ZZE142;ZZE141..4FC |
1 | ||
| 43470-80196 |
ZZE142;ZZE141..4FC |
1 | ||
| 43470-80313 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43470-80199 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43470-49586 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 43470-80199 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43470-80313 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
ILLUST NO. 3 OF 3(0704- )NZE141,ZRE14#,ZZE14#
| Part # | Description | Qty | Price |
|---|

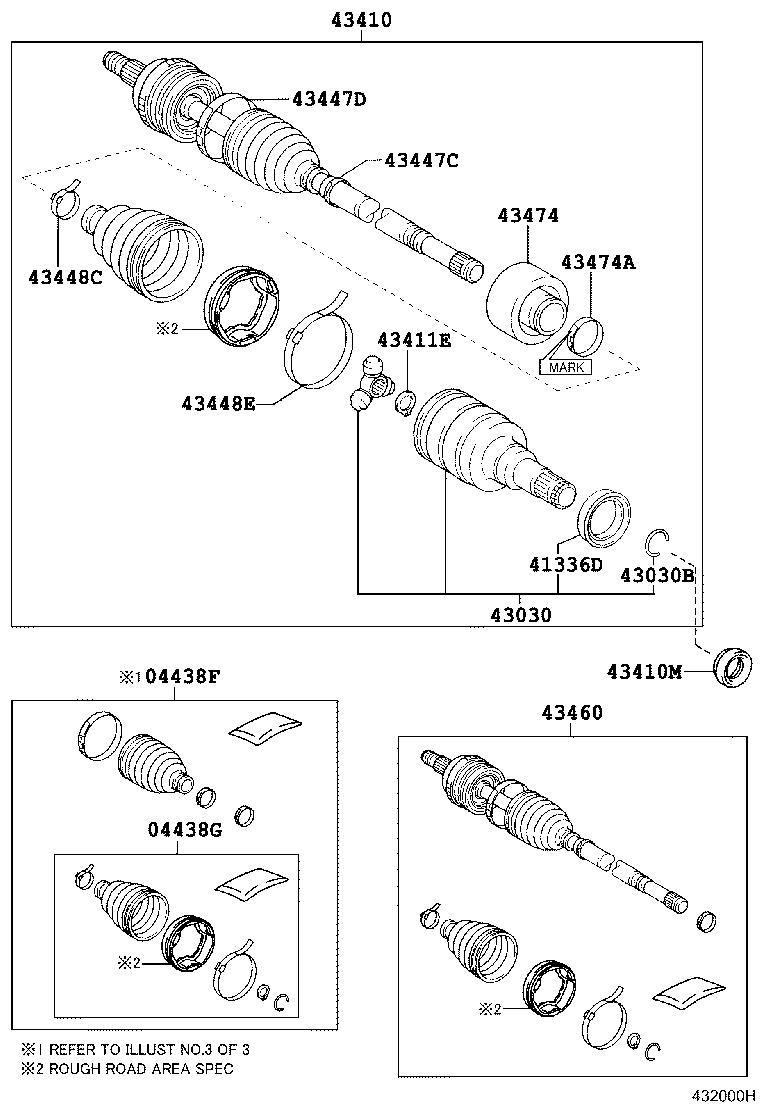

ILLUST NO. 1 OF 3(0704- )NZE141,ZRE14#,ZZE14#
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-12470 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04427-12470 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04428-12740 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04427-12470 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04428-12740 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04427-12470 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-52330 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04437-52330 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04438-42200 |
ZZE142;ZZE141..4FC |
1 | ||
| 04437-52330 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04438-12A00 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 04438-12A00 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 04438-42201 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 04437-52330 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12060 |
ZZE142;ZZE141..4FC |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-32040 |
ZZE142;ZZE141..4FC |
1 | ||
| 43040-12120 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43040-12120 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-27005 |
ZZE142;ZZE141..4FC |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12A30 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43410-12B00 |
ZZE142;ZZE141..4FC |
1 | ||
| 43410-12A30 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35055 |
ZZE14#..4FC |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-12070 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43425-12070 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 90520-22005 |
NZE141,ZZE14#..SED |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12230 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12230 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 42345-12190 |
NZE141,ZZE14#..SED |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12180 |
NZE141,ZZE14#..SED |
1 | ||
| 42345-12240 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12240 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12230 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12230 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 90949-01078 |
NZE141,ZZE14#..SED |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
ZZE14# ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 42345-12160 |
NZE141,ZZE14#..SED |
1 | ||
| 42345-12140 |
ZZE14#..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-80117 |
ZZE142..GEN;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43460-80150 |
ZZE142..RHD;ZZE141..4FC..GEN ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
1 | ||
| 43460-80117 |
ZZE142;ZZE141..4FC ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43460-80127 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD |
1 | ||
| 43460-80115 |
ZZE142;ZZE141..4FC |
1 | ||
| 43460-80150 |
ZZE141..4FC;ZZE142..GCC;ZZE142..RHD ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP) |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12120 |
NZE141,ZZE14#..SED |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
CE140,NZE141,ZZE14#..SED |
1 | ||
