ZZE141L-AEPNK (2007)

Toyota Corolla Sed/Wg

Production Aug 2007 - Jul 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )4FC

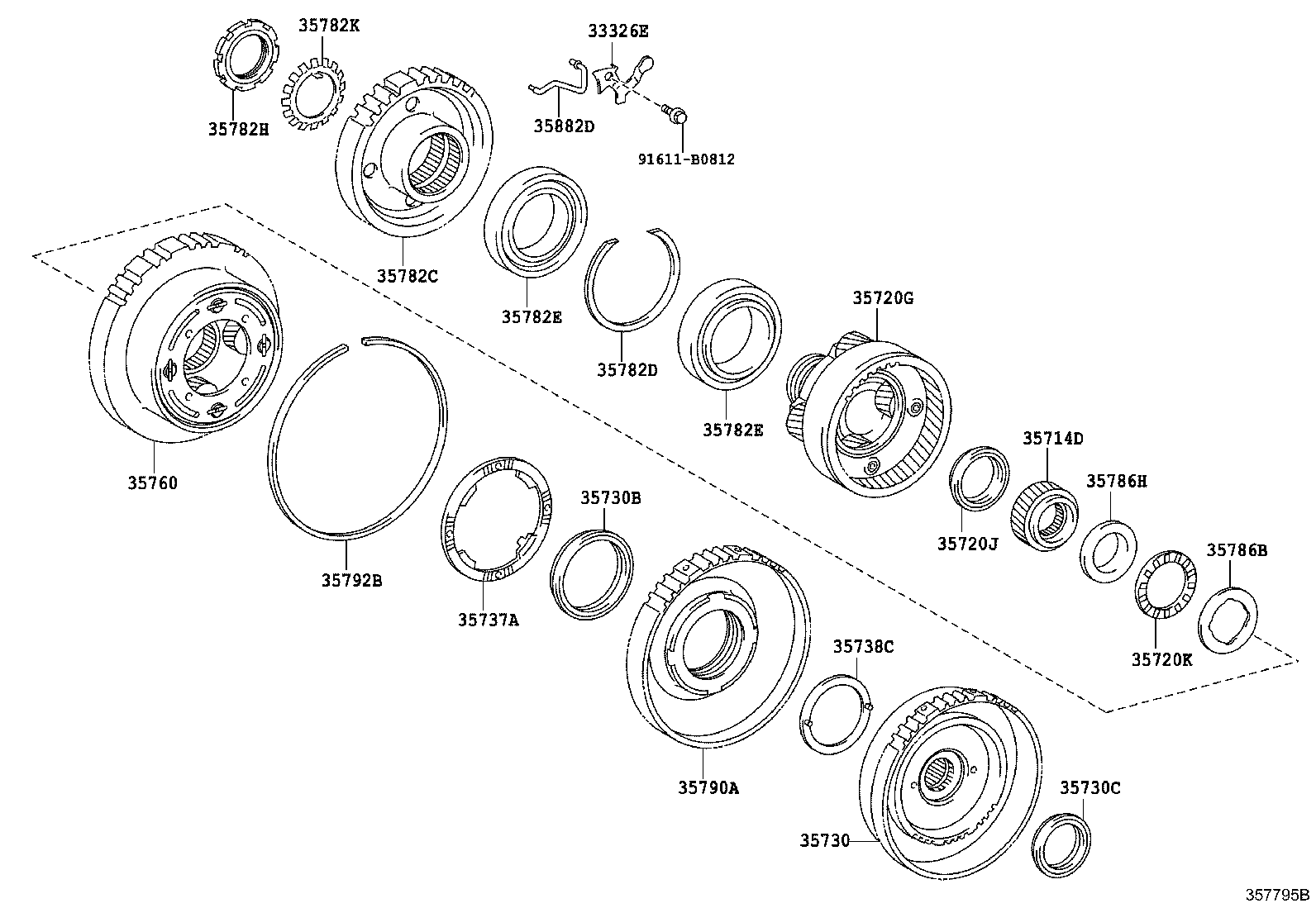

Click highlighted areas on diagram

U340E,U341E

diagram 33326E 35714D 35720G 35720J 35720K 35730 35730B 35730C 35737A 35738C 35760 35782C 35782D 35782E 35782E 35782H 35782K 35786B 35786H 35790A 35792B 35882D 91611B0812
Part # Description Qty Price
33326E - PLATE, BEARING LOCK
33326-20010

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35714D - GEAR, FR PLANETARY SUN
35714-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35720G - GEAR ASSY, PLANETARY
35720-52021

NZE141,ZZE14#..4FC

 1
35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
90374-33006

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
90374-33007

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-43003

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.
90374-29002

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35738C - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-52010

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-52011

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35782C - GEAR, COUNTER DRIVE
35782-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-83001

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90363-52005

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90363-52005

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 2
35782H - NUT(FOR COUNTER DRIVE GEAR)
90179-40009

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35782K - WASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT)
90215-40002

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35786B - RACE, THRUST BEARING, NO.2
35787-52010

NZE141,ZZE14#..4FC

 1
35786H - RACE, THRUST BEARING, NO.1
35786-52010

NZE141,ZZE14#..4FC

 1
35790A - CLUTCH ASSY, 1 WAY
35790-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90520-99053

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
35882D - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-52020

ZZE141..4FC;ZZE142..4FC..GCC;ZZE142..RHD..4FC

 1
Common parts
91611-B0812
