ZRE141L-AEPDK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Mar 2014
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )ZRE14#

Click highlighted areas on diagram

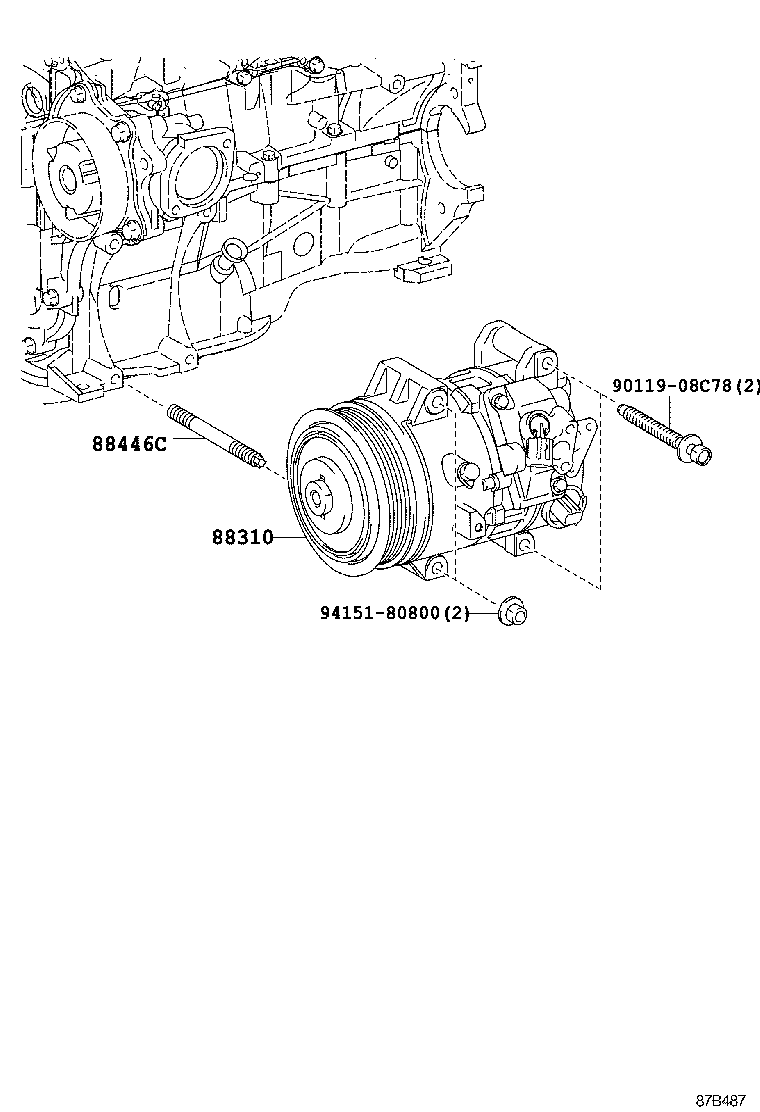

diagram 88310 88446C 9011908C78 9415180800
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-68032

ZRE14#

 1
88310-68031

ZRE14#

 1
88446C - BOLT, MAGNET CLUTCH SETTING
88446-42030

ZRE14#

 2
Common parts
90119-08C78
94151-80800
