ZRE141L-AEPDK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Mar 2014
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )1ZRFE,2ZRFE

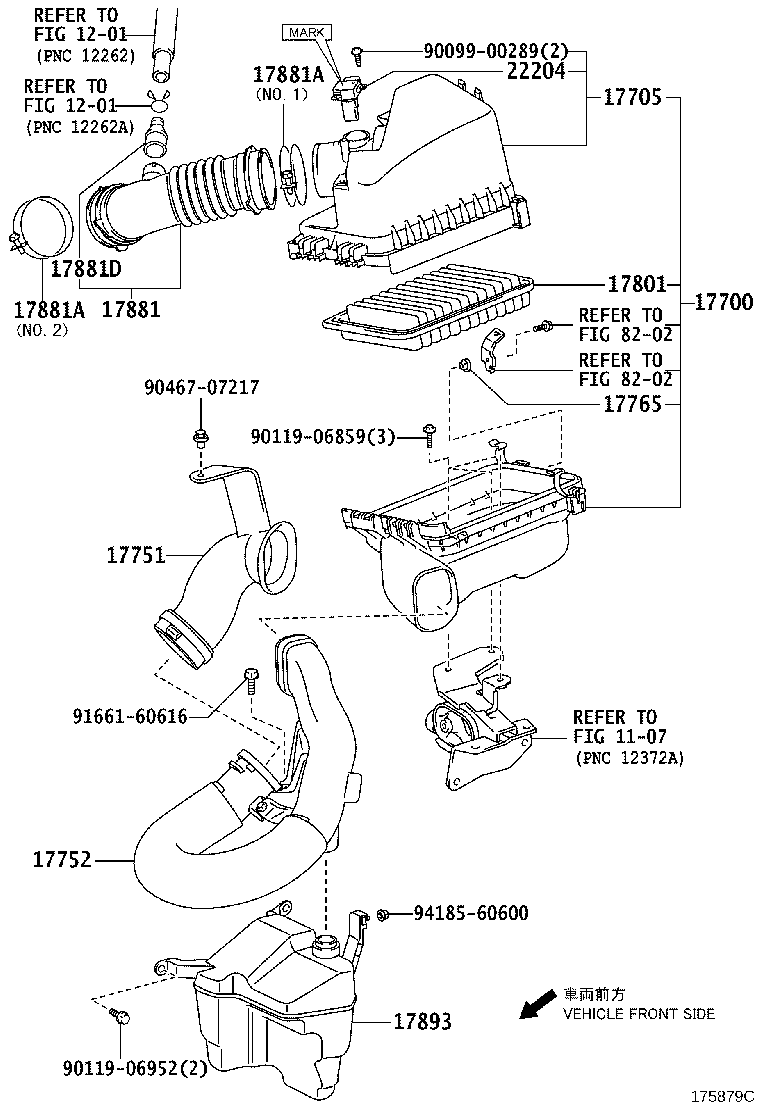

Click highlighted areas on diagram

diagram 1107 1201 1201 17700 17705 17751 17752 17765 17801 17881 17881A 17881A 17881D 17893 22204 8202 8202 9009900289 9011906859 9011906952 9046707217 9166160616 9418560600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-37211

1ZRFE,2ZRFE..ZRE14#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-37081

1ZRFE,2ZRFE..ZRE14#

 1
17705-37082

1ZRFE,2ZRFE..ZRE14#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37060

1Z#,2ZRFE..ZRE14#,ZZE142

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37070

1Z#,2ZRFE..ZRE14#,ZZE142

 1
17765 - STAY, AIR CLEANER, NO.1
17706-21010

1Z#,2ZRFE..ZRE14#,ZZE142

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

1Z#,2ZRFE..ZRE14#,ZZE142

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-37080

1ZRFE,2ZRFE..ZRE14#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZRFE..ZRE14#

NO.1

 1
96111-10780

1Z#,2ZRFE..ZRE14#,ZZE142

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZRFE..ZRE14#

NO.1

 1
96111-10780

1Z#,2ZRFE..ZRE14#,ZZE142

NO.2

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

1ZRFE,2ZRFE..ZRE14#

 1
17893 - RESONATOR, INTAKE AIR
17893-22030

1Z#,2ZRFE..ZRE14#,ZZE142

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-37010

1ZRFE,2ZRFE..ZRE14#

 1
22204-0V010

1ZRFE,2ZRFE..ZRE14#

MARK 22204-0V010

 1
22204-0T040

1ZRFE,2ZRFE..ZRE14#

MARK 22204-0T040

 1
22204-0V020

1ZRFE,2ZRFE..ZRE14#

MARK 22204-0V020

 1
22204-28010

1ZRFE,2ZRFE..ZRE14#

MARK 22204-28010

 1
Common parts
90099-00289
90119-06859
90119-06952
90467-07217
91661-60616
94185-60600
