ZRE141L-AEPDK (2010)

Toyota Corolla Sed/Wg

Production Jul 2010 - Mar 2014
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1007- )1ZRFE,2ZRFE..4FC

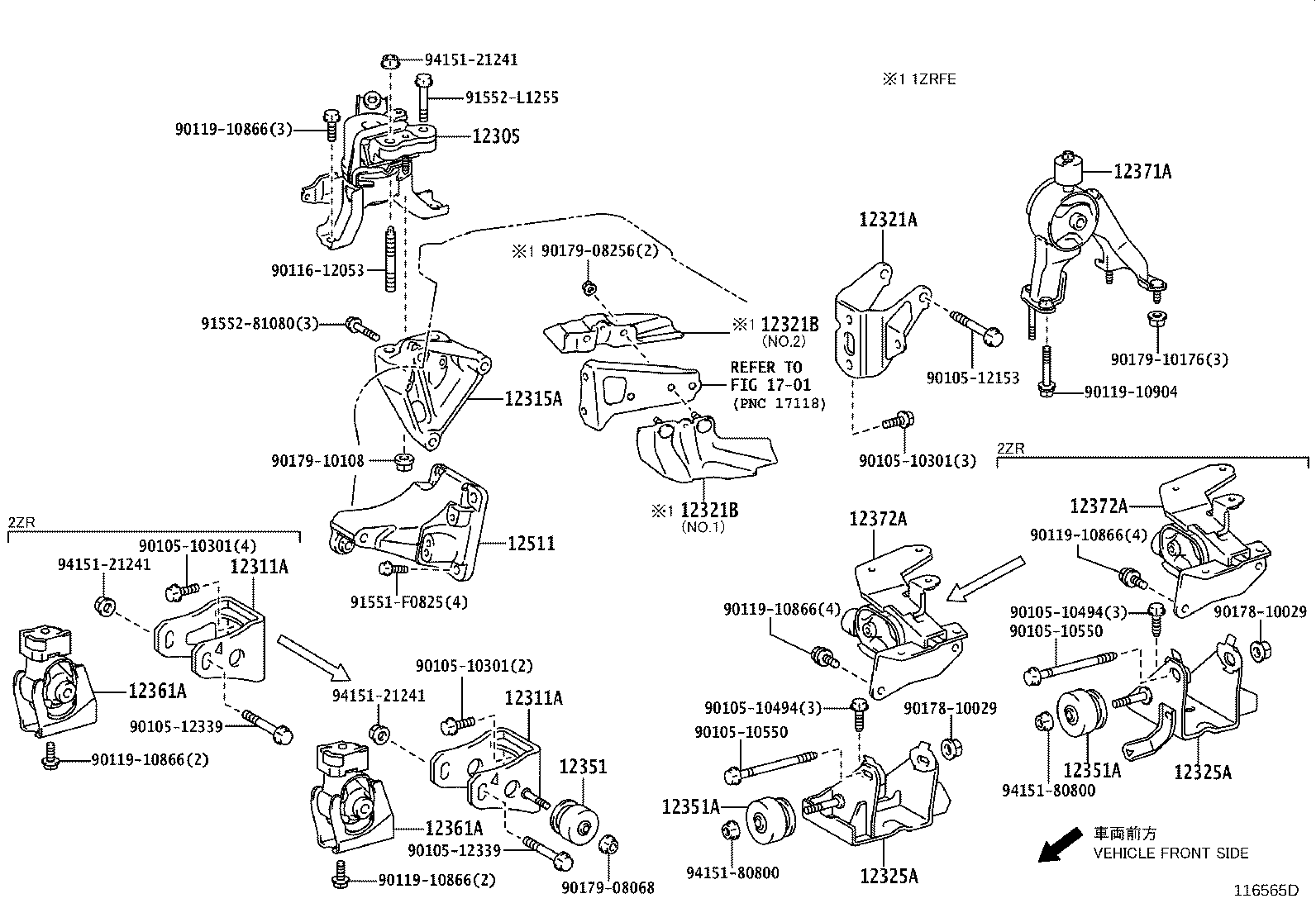

Click highlighted areas on diagram

diagram 12305 12311A 12311A 12315A 12321A 12321B 12321B 12325A 12325A 12351 12351A 12351A 12361A 12361A 12371A 12372A 12372A 12511 1701 9010510301 9010510301 9010510301 9010510494 9010510494 9010510550 9010510550 9010512153 9010512339 9010512339 9011612053 9011910866 9011910866 9011910866 9011910866 9011910866 9011910904 9017810029 9017810029 9017908068 9017908256 9017910108 9017910176 91551F0825 9155281080 91552L1255 9415121241 9415121241 9415121241 9415180800 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37070

1ZRFE,2ZRFE..ZRE14#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37150

1ZRFE..ZRE141..4FC

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37150

1ZRFE..ZRE141..4FC

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37030

1ZRFE,2ZRFE..ZRE14#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37160

1ZRFE..ZRE141..4FC

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE..ZRE141

NO.1

 1
43498-12051

1ZRFE..ZRE141

NO.2

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43409-12060

1ZRFE..ZRE141

NO.1

 1
43498-12051

1ZRFE..ZRE141

NO.2

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37150

1ZRFE..ZRE141..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37150

1ZRFE..ZRE141..4FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-22080

1ZRFE..ZRE141..4FC

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-11023

1ZRFE..ZRE141..4FC

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-11023

1ZRFE..ZRE141..4FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37050

1ZRFE,2ZRFE..ZRE14#..4FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37050

1ZRFE,2ZRFE..ZRE14#..4FC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37060

1ZRFE,2ZRFE..ZRE14#..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-22200

1Z#,2ZRFE..ZRE14#,ZZE142..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-22200

1Z#,2ZRFE..ZRE14#,ZZE142..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-37010

1ZRFE,2ZRFE..ZRE14#

(J)

 1
Common parts
90105-10301
90105-10494
90105-10550
90105-12153
90105-12339
90116-12053
90119-10866
90119-10904
90178-10029
90179-08068
90179-08256
90179-10108
90179-10176
91551-F0825
91552-81080
91552-L1255
94151-21241
94151-80800
Linked diagrams
1701
