Toyota Corolla sed/wg EE111 BRAKE TUBE & CLAMP

EE111R-AEMDK (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Aug 2000

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9605-9704)AE111 ; (9605-9704)AE110..GLI ; (9704- )AE110,112,EE111..GCC,GEN,IDN,

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44510-12190	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)	04/1997 - 12/2999	1
44510-12190	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)	04/1997 - 12/2999	1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-12050	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)	04/1997 - 12/2999	1
44591-12050	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN)	04/1997 - 12/2999	1
Common parts
90119-08C24
90179-08189
91631-40612

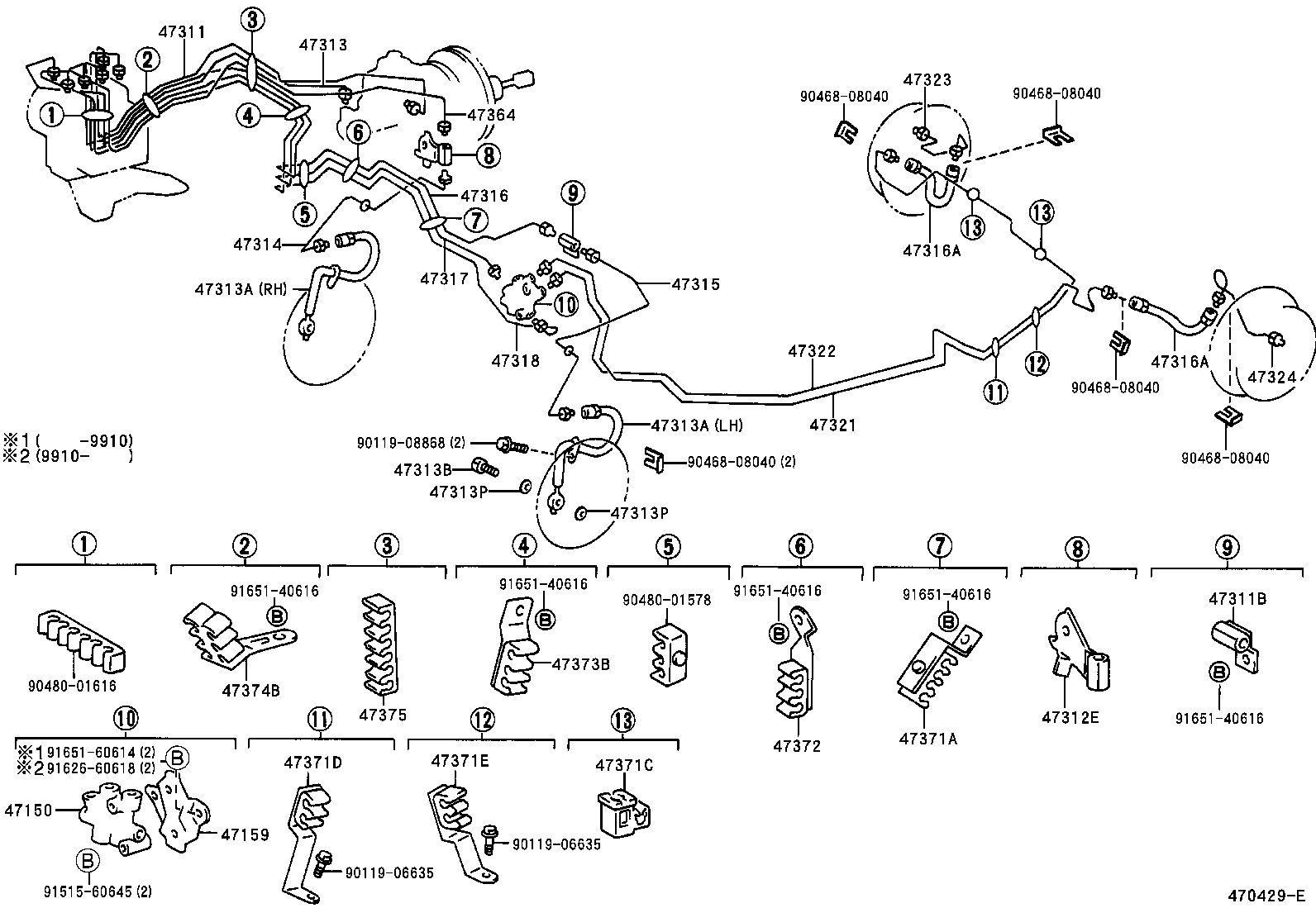

ILLUST NO. 1 OF 2(9605-9704)AE111 ; (9605- )AE110..GLI ; (9704- )AE110,112..IDN,NZ,TH ; (9704-

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-12060	AE11#,EE11#	05/1995 - 04/1997	1
47150-12270	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 09/1998	1
47150-16060	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) W(ABS)	04/1997 - 12/2999	1
47150-12270	EE110..LHD..3FC;AE110,111,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(GCC,GEN)	09/1998 - 12/2999	1
47150-12270	AE110,EE110;AE111..WG..5F;AE112..GCC,GEN,IDN,PHL;AE111,EE111..SED..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN)	09/1998 - 12/2999	1
47150-12270	AE110,EE110..GL,GLI,STD,XL;AE112,EE111..GCC,GEN,IDN,MA;AE110,111..(SEG,XLI)..(MA,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN)	04/1997 - 09/1998	1
47159 - BRACKET, PROPORTIONING VALVE
47159-12070	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12560	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47311-12580	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47311-12560	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47311-12560	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-12010	AE11#,EE11#	05/1995 - 04/1997	1
90412-10116	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47391-12010	AE11#,CE110,EE11#..RHD..(ARL,GEN)	10/1999 - 12/2999	1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12007	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN	04/1997 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12370	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47313-12370	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47313-12390	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47313-12370	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02799	AE11#,EE11# LH	05/1995 - 04/1997	1
90947-02913	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) LH	04/1997 - 12/2999	1
90947-02798	AE11#,EE11# RH	05/1995 - 04/1997	1
90947-02910	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) RH	04/1997 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02799	AE11#,EE11# LH	05/1995 - 04/1997	1
90947-02913	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) LH	04/1997 - 12/2999	1
90947-02798	AE11#,EE11# RH	05/1995 - 04/1997	1
90947-02910	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) RH	04/1997 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90401-10015	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	2
90401-10015	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	2
90401-10058	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12290	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 10/1999	1
47314-12290	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..(GL,GLI,XL,XLI)	04/1997 - 10/1999	1
47314-12500	AE11#,CE110,EE11#..RHD..(ARL,GEN)	10/1999 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12450	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47315-12460	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47315-12460	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47315-12460	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-12270	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN	04/1997 - 12/2999	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02921	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	2
90947-02783	AE11#,EE11#	05/1995 - 04/1997	2
90947-02921	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	2
90947-02921	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	2
90947-02921	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	04/1997 - 10/1999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02921	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	2
90947-02783	AE11#,EE11#	05/1995 - 04/1997	2
90947-02921	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	2
90947-02921	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	2
90947-02921	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	04/1997 - 10/1999	2
47317 - TUBE, FRONT BRAKE, NO.7
47317-12140	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN	04/1997 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-12280	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN	04/1997 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-12130	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-12280	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-12250	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	1
47323-12250	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
47323-12250	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	1
47323-12250	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	05/1995 - 10/1999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-12210	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	05/1995 - 10/1999	1
47324-12210	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	1
47324-12210	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	1
47324-12210	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
47364 - TUBE, FRONT BRAKE, NO.13
47364-12110	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN	04/1997 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12090	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47371-12100	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47371-12100	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47371-12100	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-12150	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	2
90949-01B45	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	2
47371-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	2
47371D - CLAMP, BRAKE TUBE, NO.8
47375-12040	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
47371E - CLAMP, BRAKE TUBE, NO.9
47375-12060	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-12060	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
90461-06119	EE111..GEN,VEN;EE110..LHD..3FC;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN)	09/1998 - 12/2999	1
90461-06119	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..ARL,GCC,GEN	05/1995 - 09/1998	1
90461-06119	AE110,111..(SEG,XLI)..(MA,TH);AE110,CE110,EE110..GL,GLI,STD,XL;AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,TUR;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN)	04/1997 - 09/1998	1
90461-06119	CE110..XL;AE111..SED;AE110,EE11#;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL)	09/1998 - 12/2999	1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-12010	AE110,112..GLI..(ARL,GEN);AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 10/1999	1
47374-12030	AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 08/2000	1
47374-12030	AE110,112,EE111..ARL,GCC,GEN,VEN;AE111..(GLI,XLI)..(GCC,GEN,TUR,VEN)	10/1999 - 02/2000	1
47373-12010	AE110..TH;AE111..MA;AE110..GLI;AE112,EE111..RHD;AE111..RHD..(GLI,XLI)..(ARL,GEN,TH) W(ABS)	04/1997 - 10/1999	1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-12030	AE110,112..GLI..(ARL,GEN);AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 10/1999	1
47373-12010	AE11#,EE111..RHD..(GLI,XLI)..(ARL,GEN)	10/1999 - 08/2000	1
47374-12030	AE110..TH;AE111..MA;AE110..GLI;AE112,EE111..RHD;AE111..RHD..(GLI,XLI)..(ARL,GEN,TH) W(ABS)	04/1997 - 10/1999	1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01856	AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GLI,STD,XLI)..(ARL,GCC,GEN,MA,PHL,TH,TUR,VEN)	04/1997 - 02/2000	1
90949-01856	AE111,ZZE11#..(GLI,XLI)..(GCC,GEN,TUR,VEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 12/2999	1
90949-01856	AE110..GLI;AE112,EE111..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 02/2000	1
Common parts
90119-06635
90119-08868
90468-08040
90480-01578
90480-01616
91515-60645
91626-60618
91651-40616
91651-60614

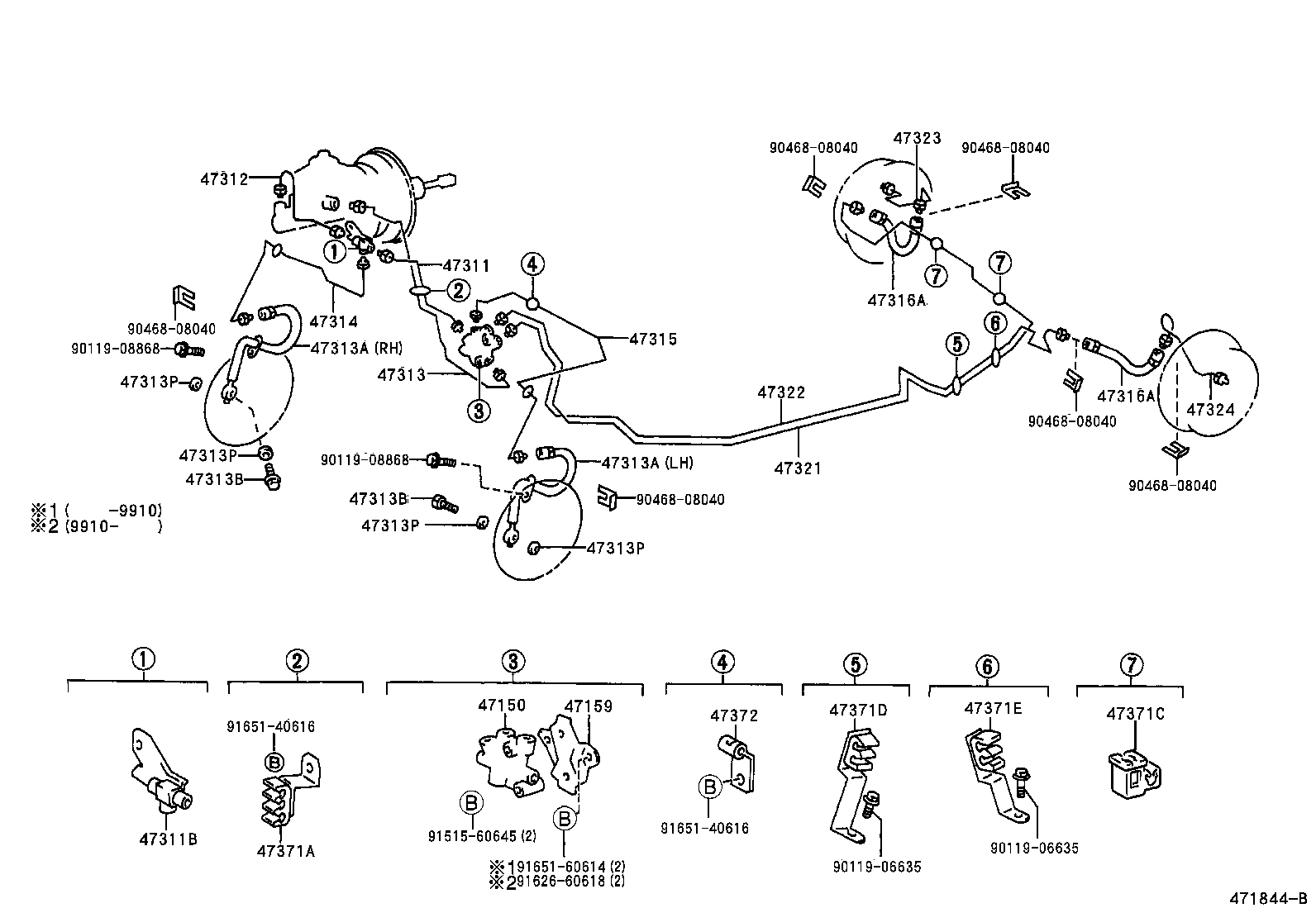

(9505- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-12060	AE11#,EE11#	05/1995 - 04/1997	1
47150-12270	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 09/1998	1
47150-16060	AE110..GLI;AE111..RHD..(GLI,SEG,XLI)..GEN;AE112,EE111..(GLI,XLI)..(GCC,GEN,VEN);AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) W(ABS)	04/1997 - 12/2999	1
47150-12270	EE110..LHD..3FC;AE110,111,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(GCC,GEN)	09/1998 - 12/2999	1
47150-12270	AE110,EE110;AE111..WG..5F;AE112..GCC,GEN,IDN,PHL;AE111,EE111..SED..(GCC,GEN,GENKD,MA,NZ,PHL,TH,VEN)	09/1998 - 12/2999	1
47150-12270	AE110,EE110..GL,GLI,STD,XL;AE112,EE111..GCC,GEN,IDN,MA;AE110,111..(SEG,XLI)..(MA,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,VEN)	04/1997 - 09/1998	1
47159 - BRACKET, PROPORTIONING VALVE
47159-12070	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-12560	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47311-12580	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47311-12560	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47311-12560	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-12010	AE11#,EE11#	05/1995 - 04/1997	1
90412-10116	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47391-12010	AE11#,CE110,EE11#..RHD..(ARL,GEN)	10/1999 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12330	AE11#,EE11#	05/1995 - 04/1997	1
47312-12330	AE11#,CE110,EE11#..RHD..(ARL,GEN)	10/1999 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-12370	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47313-12370	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47313-12390	AE110..GLI;AE111,EE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47313-12370	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02799	AE11#,EE11# LH	05/1995 - 04/1997	1
90947-02913	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) LH	04/1997 - 12/2999	1
90947-02798	AE11#,EE11# RH	05/1995 - 04/1997	1
90947-02910	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) RH	04/1997 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02799	AE11#,EE11# LH	05/1995 - 04/1997	1
90947-02913	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) LH	04/1997 - 12/2999	1
90947-02798	AE11#,EE11# RH	05/1995 - 04/1997	1
90947-02910	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) RH	04/1997 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90401-10015	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	2
90401-10015	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	2
90401-10058	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90401-10015	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	2
90401-10015	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	2
90401-10058	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	08/1999 - 12/2999	2
90430-10074	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/1999	4
47389-50020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1999 - 12/2999	2
90430-10074	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 08/1999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-12290	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 10/1999	1
47314-12290	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..(GL,GLI,XL,XLI)	04/1997 - 10/1999	1
47314-12500	AE11#,CE110,EE11#..RHD..(ARL,GEN)	10/1999 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-12450	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47315-12460	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47315-12460	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47315-12460	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02921	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	2
90947-02783	AE11#,EE11#	05/1995 - 04/1997	2
90947-02921	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	2
90947-02921	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	2
90947-02921	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	04/1997 - 10/1999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02921	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	2
90947-02783	AE11#,EE11#	05/1995 - 04/1997	2
90947-02921	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	2
90947-02921	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	2
90947-02921	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	04/1997 - 10/1999	2
47321 - TUBE, REAR BRAKE, NO.1
47321-12130	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-12280	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-12250	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	1
47323-12250	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
47323-12250	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	1
47323-12250	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	05/1995 - 10/1999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-12210	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	05/1995 - 10/1999	1
47324-12210	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	1
47324-12210	AE110..TH;AE111..MA;AE110..GLI;AE111..GL,GLI,XL,XLI;AE112,CE110,EE11#..BZ,GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH,TUR,VEN	04/1997 - 10/1999	1
47324-12210	EE111..GEN,VEN;AE112,EE110..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-12090	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
47371-12100	AE111..RHD..GEN;AE110,112,CE110,EE11#..RHD..(ARL,GEN)	05/1995 - 09/1998	1
47371-12100	AE110,CE110..RHD..(GLI,XL);AE110,111..(SEG,XLI)..(MA,TH);AE112,EE11#..RHD..(ARL,GEN,IDN,MA);AE111..RHD..(GL,GLI,XL,XLI)..(ARL,GEN,NZ)	04/1997 - 09/1998	1
47371-12100	AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN)	09/1998 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
47371-12150	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	2
90949-01B45	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	2
47371-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	2
47371D - CLAMP, BRAKE TUBE, NO.8
47375-12040	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
47371E - CLAMP, BRAKE TUBE, NO.9
47375-12060	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-12060	AE110..GLI;AE112,EE111..SED..(ARL,GEN);AE111..RHD..(GLI,SEG,XLI)..GEN W(ABS)	04/1997 - 12/2999	1
90461-06119	EE111..GEN,VEN;EE110..LHD..3FC;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN)	09/1998 - 12/2999	1
90461-06119	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..ARL,GCC,GEN	05/1995 - 09/1998	1
90461-06119	AE110,111..(SEG,XLI)..(MA,TH);AE110,CE110,EE110..GL,GLI,STD,XL;AE112,EE111..ARL,BZ,GCC,GEN,IDN,MA,TUR;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TUR,VEN)	04/1997 - 09/1998	1
90461-06119	CE110..XL;AE111..SED;AE110,EE11#;AE111..WG..5F;AE112..XLI..(BZ,GCC,GEN,IDN);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL)	09/1998 - 12/2999	1
Common parts
90119-06635
90119-08868
90468-08040
91515-60645
91626-60618
91651-40616
91651-60614

EE111R-AEMDK (1995)

ILLUST NO. 2 OF 2(9605-9704)AE111 ; (9605-9704)AE110..GLI ; (9704- )AE110,112,EE111..GCC,GEN,IDN,

ILLUST NO. 1 OF 2(9605-9704)AE111 ; (9605- )AE110..GLI ; (9704- )AE110,112..IDN,NZ,TH ; (9704-

(9505- )RHD

Part Price Details
