EE111R-AEMDK (1995)
Toyota Corolla Sed/Wg
(9505- )AE11#,EE11#,ZZE11#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 33557-33010 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| 33557-33010 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180B5 |
AE110..5F..GLI;EE111..5F..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 33504-12180P0 |
AE11#,EE11#..5F SHADOW GRAY,TRIM1# |
1 | ||
| 33504-12180B5 |
AE111,EE111..SED..5F..GEN;AE110,CE110,EE110..5F..(GL,GLI,XL)..GEN MD.CHARCOAL,TRIM9# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-12011 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33524-12011 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12630 |
AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-16051 |
AE11#,EE11#..5F |
1 | ||
| 33534-16051 |
AE111..RHD..WG;AE112..LHD..5F;AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,CE110,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
2 | ||
| 90386-12022 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN) |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,CE110,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
2 | ||
| 90386-12022 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN) |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,CE110,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| 90201-08028 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111,CE110..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33557-32010 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,CE110,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33558-10030 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-12060 |
AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33574-12060 |
AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL) |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12080 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 33574-12080 |
AE11#,EE11# |
1 | ||
| 33574-12080 |
EE11#..MTM..(GCC,GEN,VEN);AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN |
1 | ||
| 33574-12080 |
AE11#,CE110,EE11# |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10032 |
ZZE111;EE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN) |
1 | ||
| 33608-16021 |
AE111..RHD..WG;AE112..LHD..5F;AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12730 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) NIPPON CABLE |
1 | ||
| 33821-12720 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) CHUO HATSUJO |
1 | ||
| 33821-12720 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) CHUO HATSUJO |
1 | ||
| 33821-12730 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12730 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) NIPPON CABLE |
1 | ||
| 33821-12720 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) CHUO HATSUJO |
1 | ||
| 33821-12720 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) CHUO HATSUJO |
1 | ||
| 33821-12730 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) NIPPON CABLE |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-12730 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) NIPPON CABLE |
1 | ||
| 33821-12720 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) CHUO HATSUJO |
1 | ||
| 33821-12720 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) CHUO HATSUJO |
1 | ||
| 33821-12730 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) NIPPON CABLE |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01400 |
AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL) |
1 | ||
| 90480-01400 |
AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01398 |
AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 90480-01398 |
AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL) |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE111..RHD..WG..5F;AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN);AE112,CE110..5F..(GLI,XL)..(ARL,GCC,GEN,VEN);AE112,EE11#..MTM..(GL,STD,XL,XLI)..(GCC,GEN) SHIFT LEVER SIDE |
1 | ||
| 90201-08077 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) OD=30,TRANSAXLLE SIDE |
2 | ||
| 90201-10042 |
AE110..5F..TH;AE111..5F..MA;AE111,EE111..5F..(GL,GLI,XL,XLI);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..MTM..(GL,GLI,STD,XL);AE112..5F..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN) SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12290 |
AE111..RHD..WG;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111..SED..5F..(GCC,GEN,TUR,VEN) |
1 | ||
| 33822-12290 |
AE110..5F..TH;AE111..5F..MA;AE110..5F..GLI;AE112,EE11#..MTM;AE111..5F..(GL,GLI,XL,XLI) |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90468-14016 | ||||
| 90468-14032 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91612-B1020 | ||||
| 91631-60828 | ||||
| 91651-60614 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||

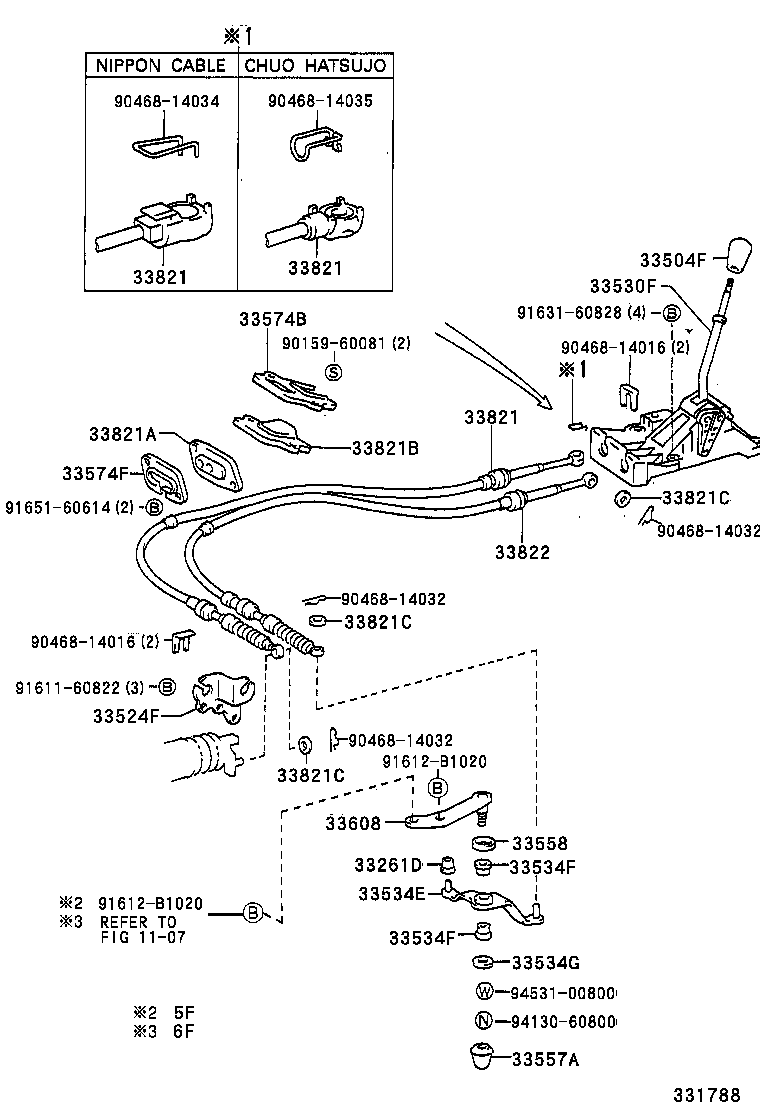

| Linked diagrams | ||||
| 1107 | ||||
