EE110R-AEMDS (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Sep 2001
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )EE110..RHD

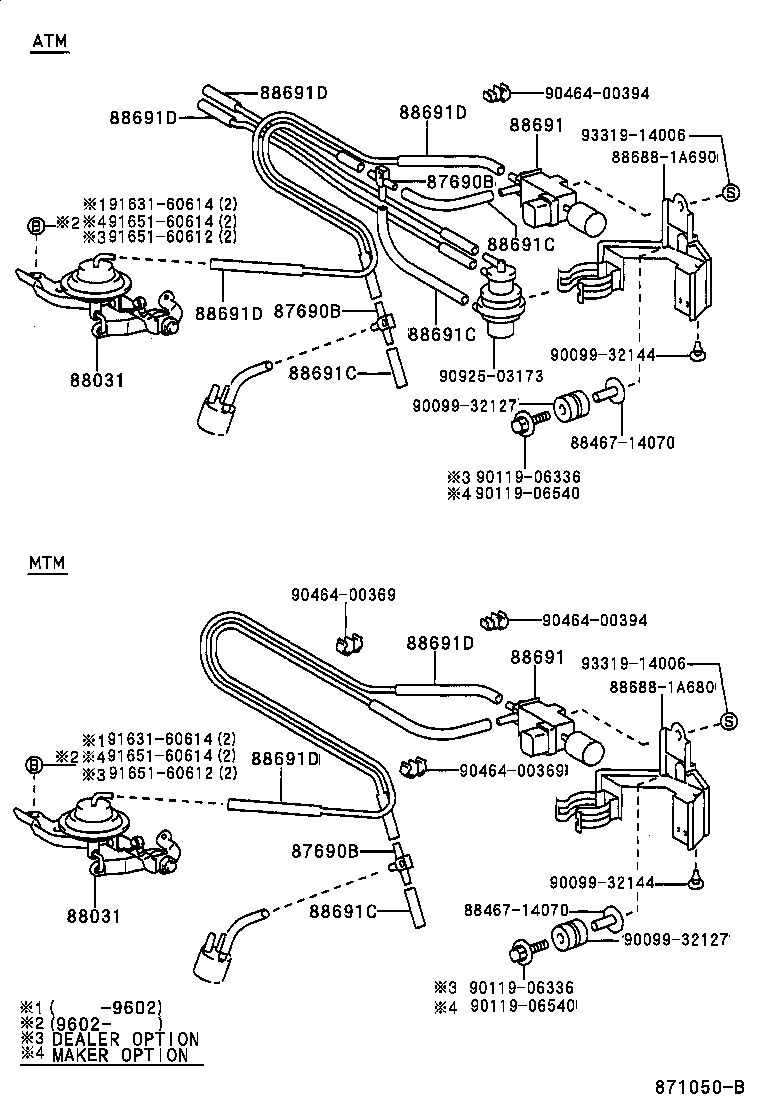

Click highlighted areas on diagram

diagram 87690B 87690B 87690B 88031 88031 8846714070 8846714070 886881A680 886881A690 88691 88691 88691C 88691C 88691C 88691C 88691D 88691D 88691D 88691D 88691D 88691D 9009932127 9009932127 9009932144 9009932144 9011906336 9011906336 9011906540 9011906540 9046400369 9046400369 9046400394 9046400394 9092503173 9163160614 9163160614 9165160612 9165160612 9165160614 9165160614 9331914006 9331914006
Part # Description Qty Price
87690B - WAY, 3
90413-04005

EE110..MTM..GEN

 1
90413-04005

EE110..MTM..(GEN,GENKD,PHL,TUR,VEN)

 1
87690B - WAY, 3
90413-04005

EE110..MTM..GEN

 1
90413-04005

EE110..MTM..(GEN,GENKD,PHL,TUR,VEN)

 1
87690B - WAY, 3
90413-04005

EE110..MTM..GEN

 1
90413-04005

EE110..MTM..(GEN,GENKD,PHL,TUR,VEN)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12200

EE110..GCC,GEN

 1
88031-12200

EE110

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12200

EE110..GCC,GEN

 1
88031-12200

EE110

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12210

AE111,EE110..(GL,STD,XL)..(GCC,GEN)

 1
88691-12210

AE111,EE110..GL,STD,XL

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12210

AE111,EE110..(GL,STD,XL)..(GCC,GEN)

 1
88691-12210

AE111,EE110..GL,STD,XL

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
90099-45003

EE110..RHD

L=460,MARK=#0

 1
90099-45005

EE110..RHD..5F

L=580,MARK=#*

 1
Common parts
88467-14070
88688-1A680
88688-1A690
90099-32127
90099-32144
90119-06336
90119-06540
90464-00369
90464-00394
90925-03173
91631-60614
91651-60612
91651-60614
93319-14006

(9704- )EE110..MTM..GEN,GENKD,PHL,TUR,VEN

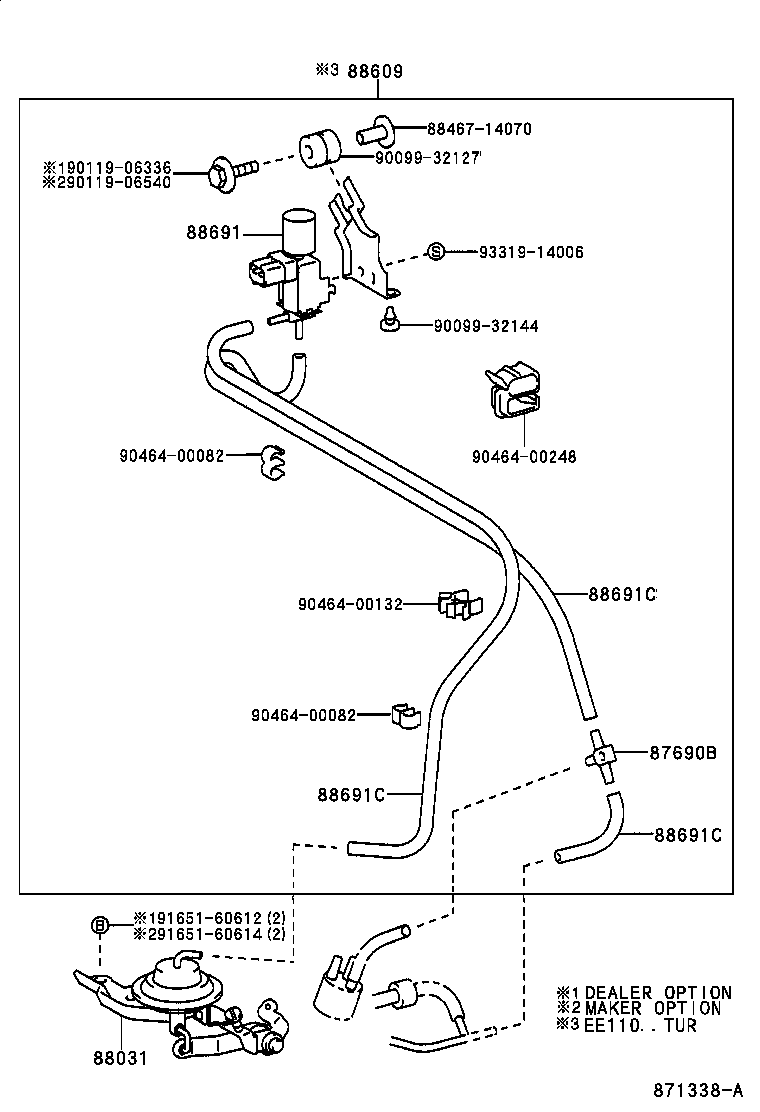

Click highlighted areas on diagram

diagram 87690B 88031 8846714070 88609 88691 88691C 88691C 88691C 9009932127 9009932144 9011906336 9011906540 9046400082 9046400082 9046400132 9046400248 9165160612 9165160614 9331914006
Part # Description Qty Price
87690B - WAY, 3
90413-04005

EE110..MTM..GEN

 1
90413-04005

EE110..MTM..(GEN,GENKD,PHL,TUR,VEN)

 1
88031 - ACTUATOR SET, IDLE-UP
88031-12200

EE110..GCC,GEN

 1
88031-12200

EE110

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12210

AE111,EE110..(GL,STD,XL)..(GCC,GEN)

 1
88691-12210

AE111,EE110..GL,STD,XL

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
90999-92002

EE110..RHD

*H,L=100,MARK=#0

 1
Common parts
88467-14070
90099-32127
90099-32144
90119-06336
90119-06540
90464-00082
90464-00132
90464-00248
91651-60612
91651-60614
93319-14006
