EE110R-AEMDS (1995)
Toyota Corolla Sed/Wg

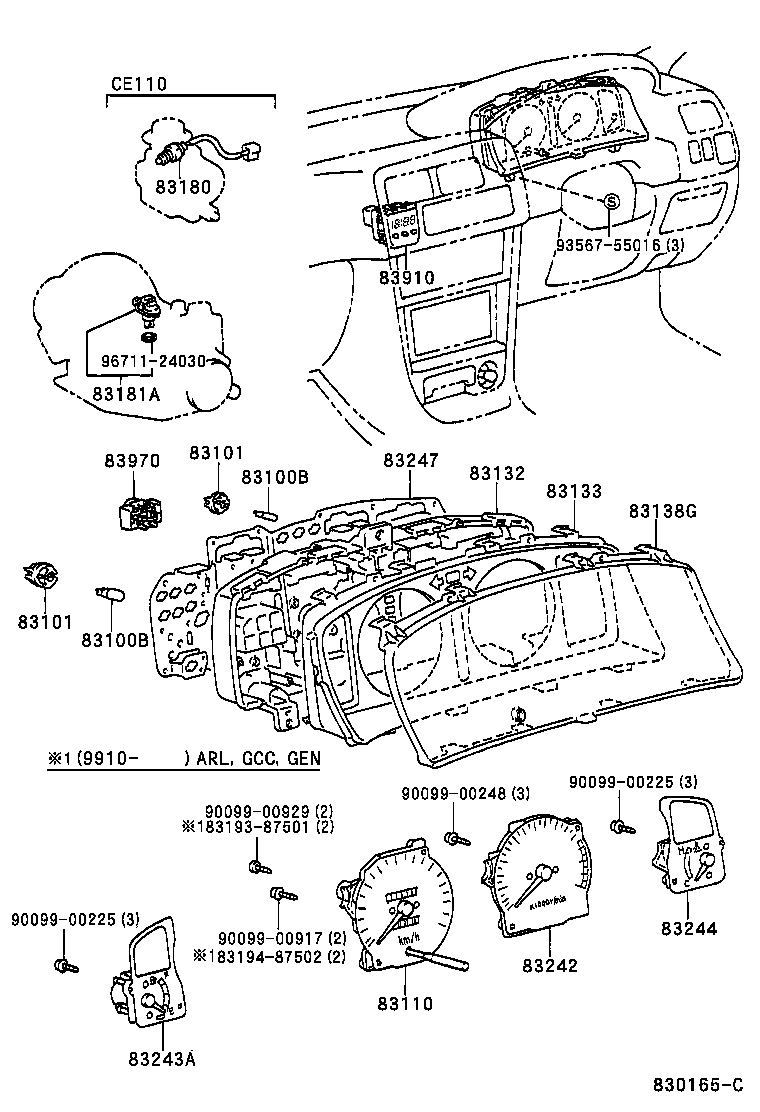

ILLUST NO. 1 OF 2(9505- )RHD
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
EE11# 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN,VEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN,VEN) 12V 1.2W W/O SOCKET |
1 | ||
| 83119-32010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
EE110..GEN,GENKD,VEN 12V 1.2W W/O SOCKET |
8 | ||
| 83119-32010 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-32010 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
EE11# 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN,VEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN,VEN) 12V 1.2W W/O SOCKET |
1 | ||
| 83119-32010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
EE110..GEN,GENKD,VEN 12V 1.2W W/O SOCKET |
8 | ||
| 83119-32010 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-32010 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 3.4W |
4 | ||
| 83101-14040 |
EE11# 12V 1.4W |
9 | ||
| 83101-14040 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.4W |
8 | ||
| 83101-32020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83101-32020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83101-14030 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V 3.4W |
4 | ||
| 83101-14030 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V 3.4W |
4 | ||
| 83101-32020 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 3.4W |
4 | ||
| 83101-14040 |
EE11# 12V 1.4W |
9 | ||
| 83101-14040 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.4W |
8 | ||
| 83101-32020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83101-32020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83101-14030 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V 3.4W |
4 | ||
| 83101-14030 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V 3.4W |
4 | ||
| 83101-32020 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-12221 |
EE110..LHD..3FC;CE110,EE110..MTM..(GL,STD,XL)..GEN |
1 | ||
| 83110-1H250 |
EE11# |
1 | ||
| 83220-12230 |
EE110..LHD..3FC;CE110,EE110..MTM..(GL,STD,XL)..GEN MPH & KM/H |
1 | ||
| 83220-12220 |
CE110,EE110..GEN,GENKD |
1 | ||
| 83220-12220 |
EE110..LHD..3FC;CE110,EE110..MTM..GEN |
1 | ||
| 83220-12230 |
CE110,EE110..GEN MPH & KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A870 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83132-1A710 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83132-1A710 |
AE11#,EE11#..XL,XLI W(TACHOMETER) |
1 | ||
| 83841-1A050 |
AE111..XL;EE110..LHD..3FC;CE110,EE111..GEN;AE111..RHD..XLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN) |
1 | ||
| 83841-12360 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83841-12610 |
EE110..LHD..3FC;CE110,EE111..GEN;EE110..5F..XL..GEN;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN W(TACHOMETER) |
1 | ||
| 83841-1A050 |
CE110,EE111..GEN;AE111..RHD..XLI..GEN;AE111,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| 83841-12610 |
AE112..ARL;AE111,112..LHD..4FC..GEN;AE111..(3FC,5F)..(GL,XL);AE111,EE111..RHD..(3FC,5F)..(GLI,XLI)..GEN;AE110,CE110,EE110..(3FC,5F)..(GL,GLI,XL)..GEN W(TACHOMETER) |
1 | ||
| 83841-12610 |
AE111..NZ;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN;CE110,EE11#..(XL,XLI)..(GEN,NZ) W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H290 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83133-1H330 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83811-12610 |
AE111,112..5F..VEN;AE11#,CE110,EE110..(3FC,4FC,5F)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83811-12720 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 83811-12610 |
AE111..GCC,GEN,TUR;AE111,112..5F..VEN;EE110..(GL,XL)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..RHD..WG;AE111..4FC..TUR;EE110..LHD..3FC;AE112,EE110..SED..(4FC,5F)..(ARL,GEN);AE111..SED..(3FC,5F)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(3FC,5F)..(GLI,XL,XLI)..(GCC,GEN,VEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..XL..GEN;AE112..5F..XLI..GCC;AE111,CE110,EE111..SED..(3FC,5F)..(XL,XLI)..(GCC,GEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE112..ARL,BZ,NZ;AE111..4FC..(ARL,NZ,TUR);AE112..5F..(GCC,GEN,VEN);AE110,CE110,EE11#..(3FC,5F)..(GEN,NZ);AE111..(3FC,5F)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..4FC..NZ;EE110..XL..GEN;AE111,112,CE110,EE111..(3FC,5F)..(XL,XLI)..(GCC,GEN,NZ) W(TACHOMETER) |
1 | ||
| 83811-12720 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-1A210 |
AE11#,EE11# |
1 | ||
| 83852-12700 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN |
1 | ||
| 83852-12700 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 83852-12700 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1H400 |
AE111,EE110 |
1 | ||
| 83881-12620 |
AE112..GLI;AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;EE110..(GL,XL)..GEN;AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,VEN) |
1 | ||
| 83881-12620 |
AE111..RHD..WG;EE110..5F..GEN;EE110..LHD..3FC;AE112..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1A790 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83882-12840 |
AE111..RHD..WG;EE110..5F..GEN;EE110..LHD..3FC;AE112..XLI..(GCC,GEN);AE112..GLI..(ARL,GCC,VEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(TACHOMETER) |
1 | ||
| 83882-12840 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112,CE110..GLI,XL;EE110..(GL,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,VEN) W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E310 |
AE111..GLI,SEG;AE110,EE11#..XL,XLI |
1 | ||
| 83883-12840 |
EE110..LHD..3FC;EE110..5F..XL..GEN;AE111..RHD..WG..5F;AE111,CE110..XL..GEN;AE111,EE111..RHD..SED..XLI..GEN W(TACHOMETER) |
1 | ||
| 83244-1E310 |
AE111;AE110,EE11#..XL,XLI |
1 | ||
| 83883-12840 |
AE111..XL;AE111..RHD..XLI..GEN;CE110,EE11#..(XL,XLI)..GEN W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1K170 |
EE11# |
1 | ||
| 83247-1K090 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83861-12360 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83861-12230 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83861-1A110 |
AE111..XL;EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,EE111..RHD..XLI..GEN W(TACHOMETER) |
1 | ||
| 83861-1E580 |
AE111,EE111..RHD..XLI..GEN;AE111,EE110..(STD,XL)..(GCC,GEN) |
1 | ||
| 83861-1E410 |
AE111..(3FC,5F)..(GL,XL);AE111..RHD..5F..(GLI,XLI)..GEN;AE112,EE11#..SED..(3FC,4FC,5F)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83861-1A300 |
AE111..XL;EE110..LHD..3FC;AE111..RHD..XLI..GEN;CE110,EE111..GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN) |
1 | ||
| 83861-1A110 |
AE111,EE110..XL..GEN;AE111,EE111..RHD..XLI..(GEN,NZ) W(TACHOMETER) |
1 | ||
| 83861-1A300 |
AE111..XL;AE111..RHD..XLI..GEN;CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,GENKD,VEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12520 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
1 | ||
| 83910-12520 |
EE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 83194-87502 | ||||
| 90099-00225 | ||||
| 90099-00248 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93567-55016 | ||||
| 96711-24030 | ||||

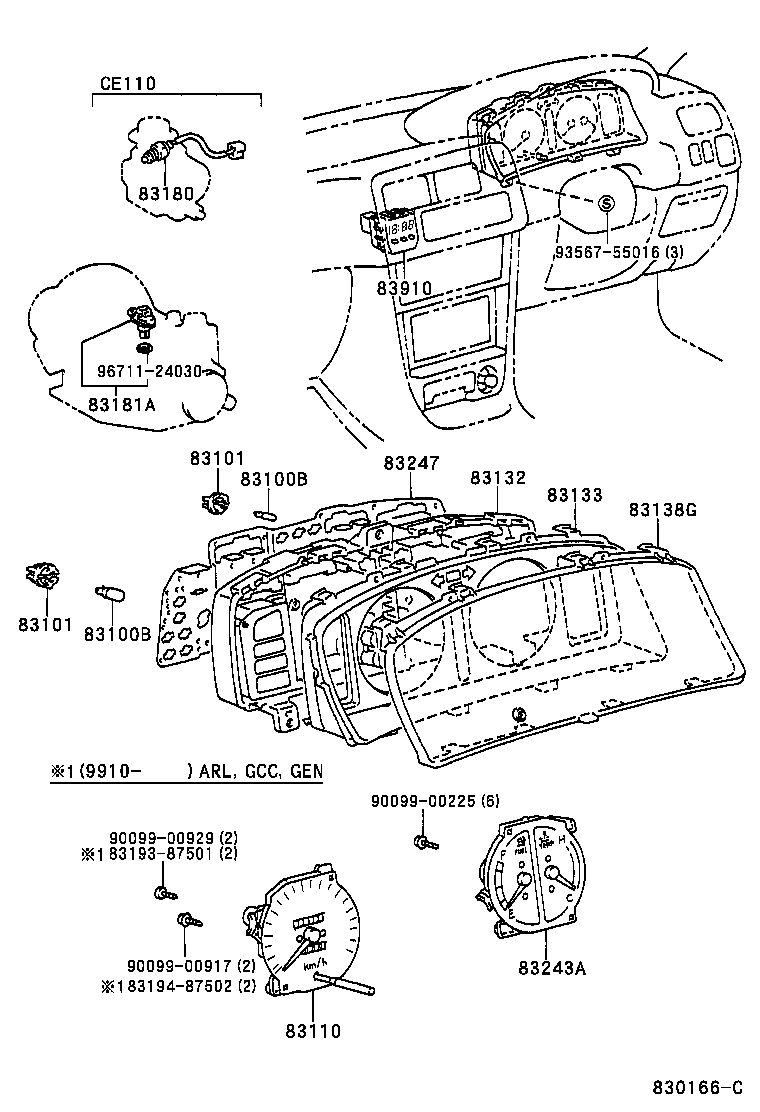

ILLUST NO. 1 OF 2(9505- )RHD
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
EE11# 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN,VEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN,VEN) 12V 1.2W W/O SOCKET |
1 | ||
| 83119-32010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
EE110..GEN,GENKD,VEN 12V 1.2W W/O SOCKET |
8 | ||
| 83119-32010 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-32010 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.2W W/O SOCKET |
8 | ||
| 90981-11018 |
EE11# 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN,VEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN,VEN) 12V 1.2W W/O SOCKET |
1 | ||
| 83119-32010 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 90981-11018 |
AE111,112..ARL,GCC,GEN;AE110,CE110,EE11#..(3FC,4F,5F)..(GCC,GEN) 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
EE110..GEN,GENKD,VEN 12V 1.2W W/O SOCKET |
8 | ||
| 83119-32010 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83109-24020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V3.4W W(GREEN CAP) |
4 | ||
| 83109-24020 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-32010 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 3.4W |
4 | ||
| 83101-14040 |
EE11# 12V 1.4W |
9 | ||
| 83101-14040 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.4W |
8 | ||
| 83101-32020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83101-32020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83101-14030 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V 3.4W |
4 | ||
| 83101-14030 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V 3.4W |
4 | ||
| 83101-32020 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 3.4W |
4 | ||
| 83101-14040 |
EE11# 12V 1.4W |
9 | ||
| 83101-14040 |
EE110..MTM..GEN;EE110..LHD..3FC 12V 1.4W |
8 | ||
| 83101-32020 |
EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 3.0W |
1 | ||
| 83101-32020 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 14V 3.0W |
1 | ||
| 83101-14030 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN 12V 3.4W |
4 | ||
| 83101-14030 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 12V 3.4W |
4 | ||
| 83101-32020 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) 14V 3.0W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-12221 |
EE110..LHD..3FC;CE110,EE110..MTM..(GL,STD,XL)..GEN |
1 | ||
| 83110-1H250 |
EE11# |
1 | ||
| 83220-12230 |
EE110..LHD..3FC;CE110,EE110..MTM..(GL,STD,XL)..GEN MPH & KM/H |
1 | ||
| 83220-12220 |
CE110,EE110..GEN,GENKD |
1 | ||
| 83220-12220 |
EE110..LHD..3FC;CE110,EE110..MTM..GEN |
1 | ||
| 83220-12230 |
CE110,EE110..GEN MPH & KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A870 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83132-1A710 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83132-1A710 |
AE11#,EE11#..XL,XLI W(TACHOMETER) |
1 | ||
| 83841-1A050 |
AE111..XL;EE110..LHD..3FC;CE110,EE111..GEN;AE111..RHD..XLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN) |
1 | ||
| 83841-12360 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83841-12610 |
EE110..LHD..3FC;CE110,EE111..GEN;EE110..5F..XL..GEN;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN W(TACHOMETER) |
1 | ||
| 83841-1A050 |
CE110,EE111..GEN;AE111..RHD..XLI..GEN;AE111,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| 83841-12610 |
AE112..ARL;AE111,112..LHD..4FC..GEN;AE111..(3FC,5F)..(GL,XL);AE111,EE111..RHD..(3FC,5F)..(GLI,XLI)..GEN;AE110,CE110,EE110..(3FC,5F)..(GL,GLI,XL)..GEN W(TACHOMETER) |
1 | ||
| 83841-12610 |
AE111..NZ;AE111..(3FC,5F)..XL;AE111..RHD..5F..XLI..GEN;CE110,EE11#..(XL,XLI)..(GEN,NZ) W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H290 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83133-1H330 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83811-12610 |
AE111,112..5F..VEN;AE11#,CE110,EE110..(3FC,4FC,5F)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83811-12720 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 83811-12610 |
AE111..GCC,GEN,TUR;AE111,112..5F..VEN;EE110..(GL,XL)..GEN;AE110,112,CE110,EE111..ARL,GCC,GEN W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..RHD..WG;AE111..4FC..TUR;EE110..LHD..3FC;AE112,EE110..SED..(4FC,5F)..(ARL,GEN);AE111..SED..(3FC,5F)..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(3FC,5F)..(GLI,XL,XLI)..(GCC,GEN,VEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..XL..GEN;AE112..5F..XLI..GCC;AE111,CE110,EE111..SED..(3FC,5F)..(XL,XLI)..(GCC,GEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE112..ARL,BZ,NZ;AE111..4FC..(ARL,NZ,TUR);AE112..5F..(GCC,GEN,VEN);AE110,CE110,EE11#..(3FC,5F)..(GEN,NZ);AE111..(3FC,5F)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN) W(TACHOMETER) |
1 | ||
| 83811-12610 |
AE111..4FC..NZ;EE110..XL..GEN;AE111,112,CE110,EE111..(3FC,5F)..(XL,XLI)..(GCC,GEN,NZ) W(TACHOMETER) |
1 | ||
| 83811-12720 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-1A210 |
AE11#,EE11# |
1 | ||
| 83852-12700 |
AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN |
1 | ||
| 83852-12700 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) |
1 | ||
| 83852-12700 |
AE111..WG..5F;AE111..LHD..WG..4FC;AE112..LHD..5F..XLI;AE112..LHD..4FC..(SEG,XLI);AE111,EE111..SED..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,TUR,VEN) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1A790 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83882-12840 |
AE111..RHD..WG;EE110..5F..GEN;EE110..LHD..3FC;AE112..XLI..(GCC,GEN);AE112..GLI..(ARL,GCC,VEN);AE111,CE110,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(TACHOMETER) |
1 | ||
| 83882-12840 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112,CE110..GLI,XL;EE110..(GL,XL)..GEN;AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,VEN) W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1K170 |
EE11# |
1 | ||
| 83247-1K090 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83861-12360 |
AE11#,EE11#..XL,XLI |
1 | ||
| 83861-12230 |
AE11#,EE11#..(3FC,5F)..(XL,XLI) W(TACHOMETER) |
1 | ||
| 83861-1A110 |
AE111..XL;EE110..LHD..3FC;EE110..5F..XL..GEN;AE111,EE111..RHD..XLI..GEN W(TACHOMETER) |
1 | ||
| 83861-1E580 |
AE111,EE111..RHD..XLI..GEN;AE111,EE110..(STD,XL)..(GCC,GEN) |
1 | ||
| 83861-1E410 |
AE111..(3FC,5F)..(GL,XL);AE111..RHD..5F..(GLI,XLI)..GEN;AE112,EE11#..SED..(3FC,4FC,5F)..(ARL,GEN) W(TACHOMETER) |
1 | ||
| 83861-1A300 |
AE111..XL;EE110..LHD..3FC;AE111..RHD..XLI..GEN;CE110,EE111..GEN,VEN;EE110..MTM..(STD,XL)..(GCC,GEN) |
1 | ||
| 83861-1A110 |
AE111,EE110..XL..GEN;AE111,EE111..RHD..XLI..(GEN,NZ) W(TACHOMETER) |
1 | ||
| 83861-1A300 |
AE111..XL;AE111..RHD..XLI..GEN;CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,GENKD,VEN) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12520 |
AE111..RHD..(GLI,SEG);AE111..RHD..SED..5F..XLI;AE110,EE11#..RHD..(GLI,XL,XLI) |
1 | ||
| 83910-12520 |
EE110..RHD..XL;AE110,111..RHD..GLI;AE111,EE111..RHD..SED..(3FC,5F)..XLI |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 83194-87502 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93567-55016 | ||||
| 96711-24030 | ||||
ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12461 |
AE11#,EE11# |
1 | ||
| 83710-12770 |
AE111,EE110..RHD..(4FC,5F)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) |
1 | ||
| 83710-12770 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#..RHD;AE111..RHD..(GL,GLI,XL,XLI) |
1 | ||
| 83710-12770 |
AE111,EE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,112,CE110,EE110..RHD..(4FC,5F)..(GL,GLI,XL)..(ARL,GEN) |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12660 |
EE11#..RHD..5F..GEN |
1 | ||
| Common parts | ||||
| 83791-12070 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
