Toyota Corolla sed/wg EE110 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110R-AEMDS (1995)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

EE110R-AEMDS (1995)

Toyota Corolla Sed/Wg

Production May 1995 - Sep 2001

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12420	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14063	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	2
90386-13015	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	2
90386-13015	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
90101-10369	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
94120-41000	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-12040	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
31321-12040	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
31324 - SHAFT, CLUTCH PEDAL
90101-10015	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
90101-10015	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
90387-10003	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-12030	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN) L=30.0	05/1995 - 08/2002	1
47148-12030	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL) L=30.0	04/1997 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	AE110..5F..TH;AE111..5F..MA;AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..5F..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..MTM..(GL,GLI,SEG,STD,XL)	04/1997 - 12/2999	1
90386-08002	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,CE110,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12170	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12170	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
Common parts
90119-06421
90468-16142
91651-60816
94110-51000
94512-01000

ILLUST NO. 2 OF 2(9505-9704)EE11#..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12210	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31481A - HOSE, CLUTCH, NO.1
90931-01061	AE112..5F..ARL;AE110,111,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-12070	EE11#..MTM L=512.5	04/1997 - 12/2999	1
31482-12070	EE111..5F..(GEN,VEN);EE110..MTM..(GCC,GEN) L=512.5	05/1995 - 08/2002	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12160	AE112..5F..ARL;AE110,111,CE110,EE11#..RHD..5F..GEN	05/1995 - 09/2001	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12180	AE111..RHD..WG..5F;EE110..MTM..(GCC,GEN);AE112,EE111..5F..(ARL,GCC,GEN,VEN);AE110,111,ZZE11#..SED..5F..(GCC,GEN,TUR,VEN)	05/1995 - 08/2002	1
31484-12180	AE110..5F..TH;AE111..5F..MA;AE110,112..5F..(GLI,SEG);AE112..5F..XLI..(BZ,GCC,GEN,IDN);AE111,EE11#..MTM..(GL,GLI,STD,XL,XLI)	04/1997 - 12/2999	1
Common parts
90461-07039
90468-08032
91611-60816
91651-41016
Linked diagrams
4708

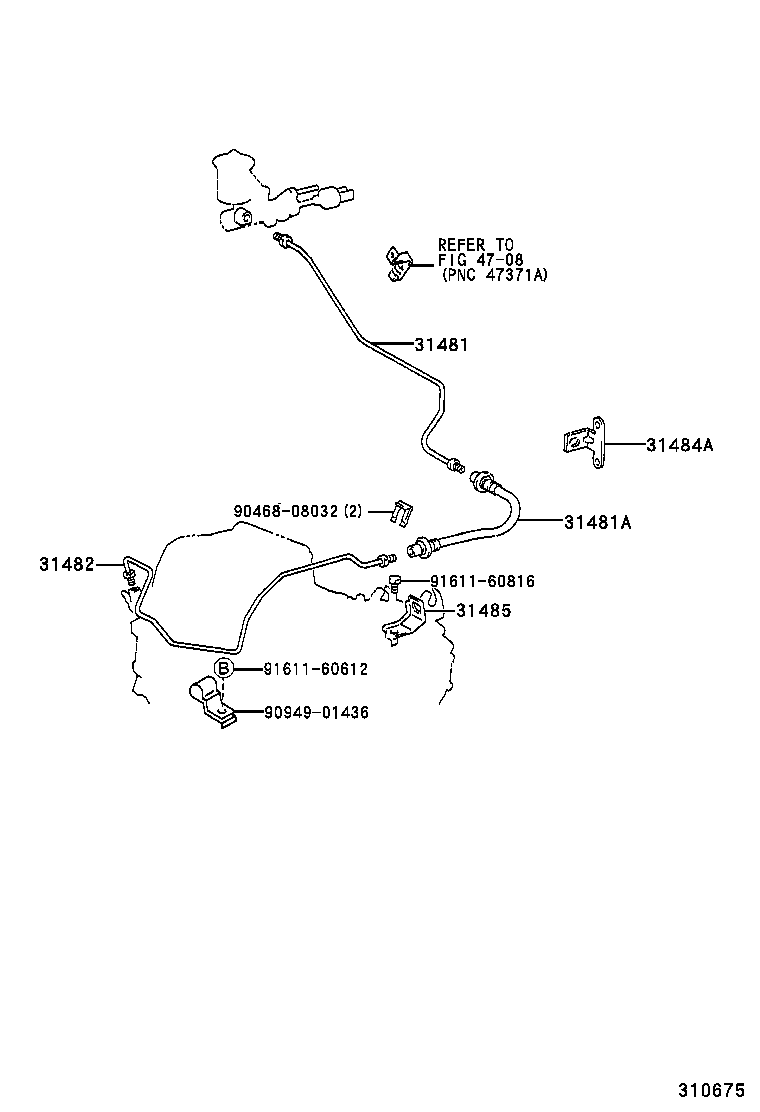

ILLUST NO. 2 OF 2(9704- )EE11#..MTM
