EE110R-AEHDS (1995)
Toyota Corolla Sed/Wg
(9505-9704)2E
12V 0.8KW

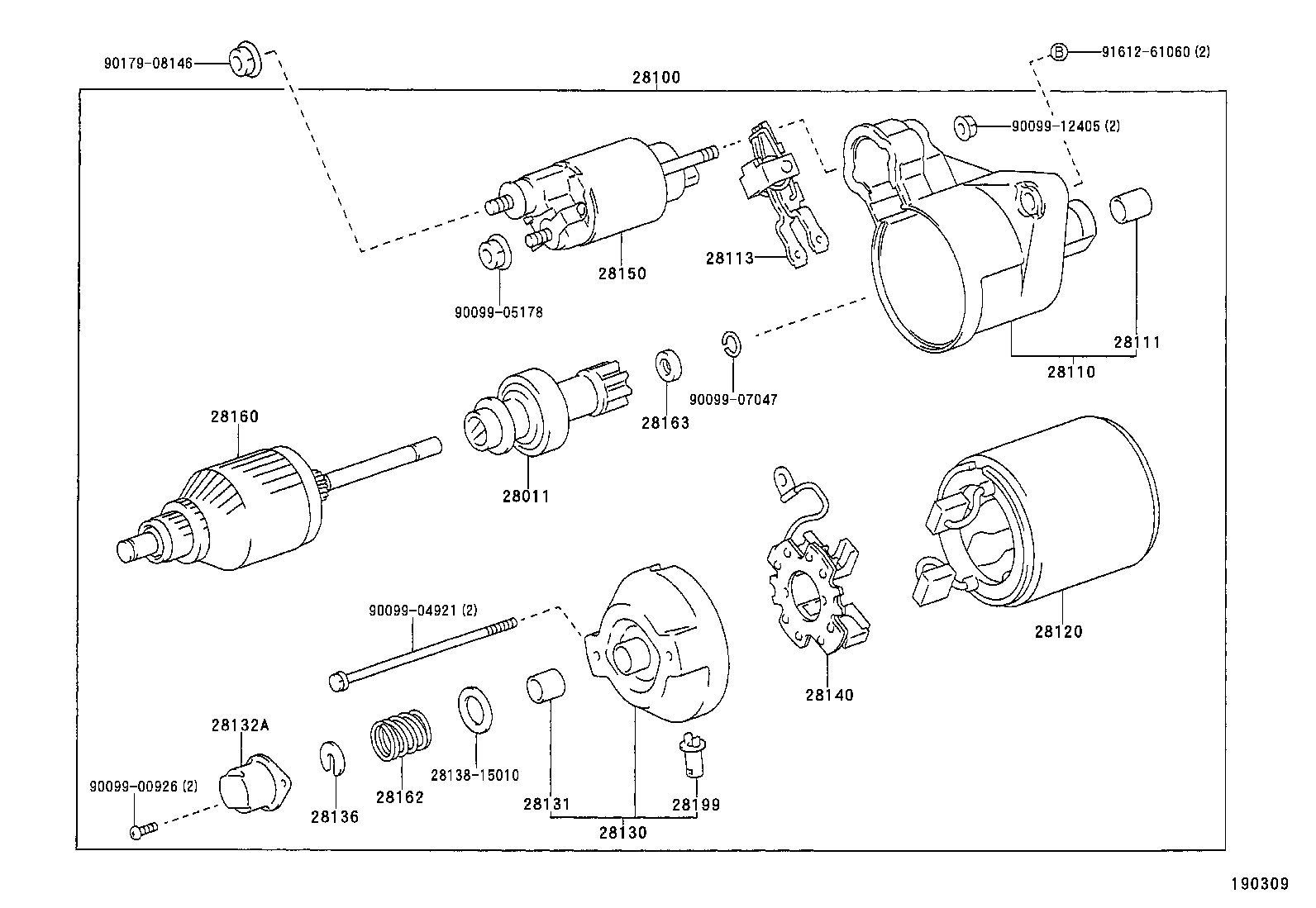

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-10030 |
2E..EE110 |
1 | ||
| 28011-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28011-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-11140 |
2E,4EFE..EE11# 12V 0.8KW,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 28100-11060 |
2E..EE110 12V 0.8KW |
1 | ||
| 28100-11140 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN 12V 0.8KW,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10030 |
2E..EE110 |
1 | ||
| 28110-11010 |
2E,4EFE..EE11# |
1 | ||
| 28110-11010 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 90099-10200 |
2E..EE110..RHD..XL |
1 | ||
| 90099-10200 |
2E..EE110..RHD..XL |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
2E..EE110 |
1 | ||
| 28113-16070 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28113-16070 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28120-15010 |
2E..EE110 |
1 | ||
| 28120-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10050 |
2E..EE110 |
1 | ||
| 28130-11010 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN |
1 | ||
| 28130-11010 |
2E,4EFE..EE11# |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
2E..EE110..RHD..XL |
1 | ||
| 90099-10134 |
2E..EE110..RHD..XL |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-15011 |
2E..EE110..RHD..XL |
1 | ||
| 28132-15011 |
2E..EE110..RHD..XL |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
2E..EE110..RHD..XL |
1 | ||
| 28136-15010 |
2E..EE110..RHD..XL |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
2E..EE110 |
1 | ||
| 28140-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28140-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-11060 |
2E..EE110 |
1 | ||
| 28150-16160 |
4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110;5AFE,4EFE..AE110,EE111..MA,TH,TUR |
1 | ||
| 28150-16160 |
4EFE..EE111..MA,TUR;4AF#,5AFE,7AFE,2E..AE11#,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
2E..EE110 |
1 | ||
| 28160-70021 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28160-70021 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
2E..EE110..RHD..XL |
1 | ||
| 28162-15010 |
2E..EE110..RHD..XL |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
2E..EE110 |
1 | ||
| 28163-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28163-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
2E,4EFE..EE11#..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,MA,PHL,VEN) |
2 | ||
| 28199-64150 |
2E..EE110 |
1 | ||
| 28199-46080 |
2E..EE110;4EFE..EE111..MA,TUR |
2 | ||
| Common parts | ||||
| 28138-15010 | ||||
| 90099-00926 | ||||
| 90099-04921 | ||||
| 90099-05178 | ||||
| 90099-07047 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91612-61060 | ||||
(9704- )2E,4EFE
12V 0.8KW,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-10030 |
2E..EE110 |
1 | ||
| 28011-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28011-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28013-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 90099-10181 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28014-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 90099-10180 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-11140 |
2E,4EFE..EE11# 12V 0.8KW,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 28100-11060 |
2E..EE110 12V 0.8KW |
1 | ||
| 28100-11140 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN 12V 0.8KW,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10030 |
2E..EE110 |
1 | ||
| 28110-11010 |
2E,4EFE..EE11# |
1 | ||
| 28110-11010 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 90099-10171 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
2E..EE110 |
1 | ||
| 28113-16070 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28113-16070 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28120-15010 |
2E..EE110 |
1 | ||
| 28120-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10050 |
2E..EE110 |
1 | ||
| 28130-11010 |
2E,4EFE..EE11#..GCC,GEN,GENKD,MA,PHL,VEN |
1 | ||
| 28130-11010 |
2E,4EFE..EE11# |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 90099-10183 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
2E..EE110 |
1 | ||
| 28140-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28140-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
2 | ||
| 28142-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
4 | ||
| 28143-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-11060 |
2E..EE110 |
1 | ||
| 28150-16160 |
4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E..AE111,112,EE110;5AFE,4EFE..AE110,EE111..MA,TH,TUR |
1 | ||
| 28150-16160 |
4EFE..EE111..MA,TUR;4AF#,5AFE,7AFE,2E..AE11#,EE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15010 |
2E..EE110 |
1 | ||
| 28160-70021 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28160-70021 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
2E..EE110 |
1 | ||
| 28163-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28163-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00270 |
2E..EE110;4EFE..EE111..MA,TUR |
1 | ||
| 90099-00270 |
2E,4EFE..EE11#..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,MA,PHL,VEN) |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| 28177-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-46080 |
2E,4EFE..EE11#..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,MA,PHL,VEN) |
2 | ||
| 28199-64150 |
2E..EE110 |
1 | ||
| 28199-46080 |
2E..EE110;4EFE..EE111..MA,TUR |
2 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
3 | ||
| 28255-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
4AF#,5AFE,7AFE,2E,4EFE..AE11#,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR,VEN |
1 | ||
| 28256-70020 |
5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE..AE111..GLI,XLI;4AF,7AFE,2E,4EFE..AE111,112,EE11# |
1 | ||
| Common parts | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90099-14092 | ||||
| 90179-08146 | ||||
| 91612-61060 | ||||
