8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

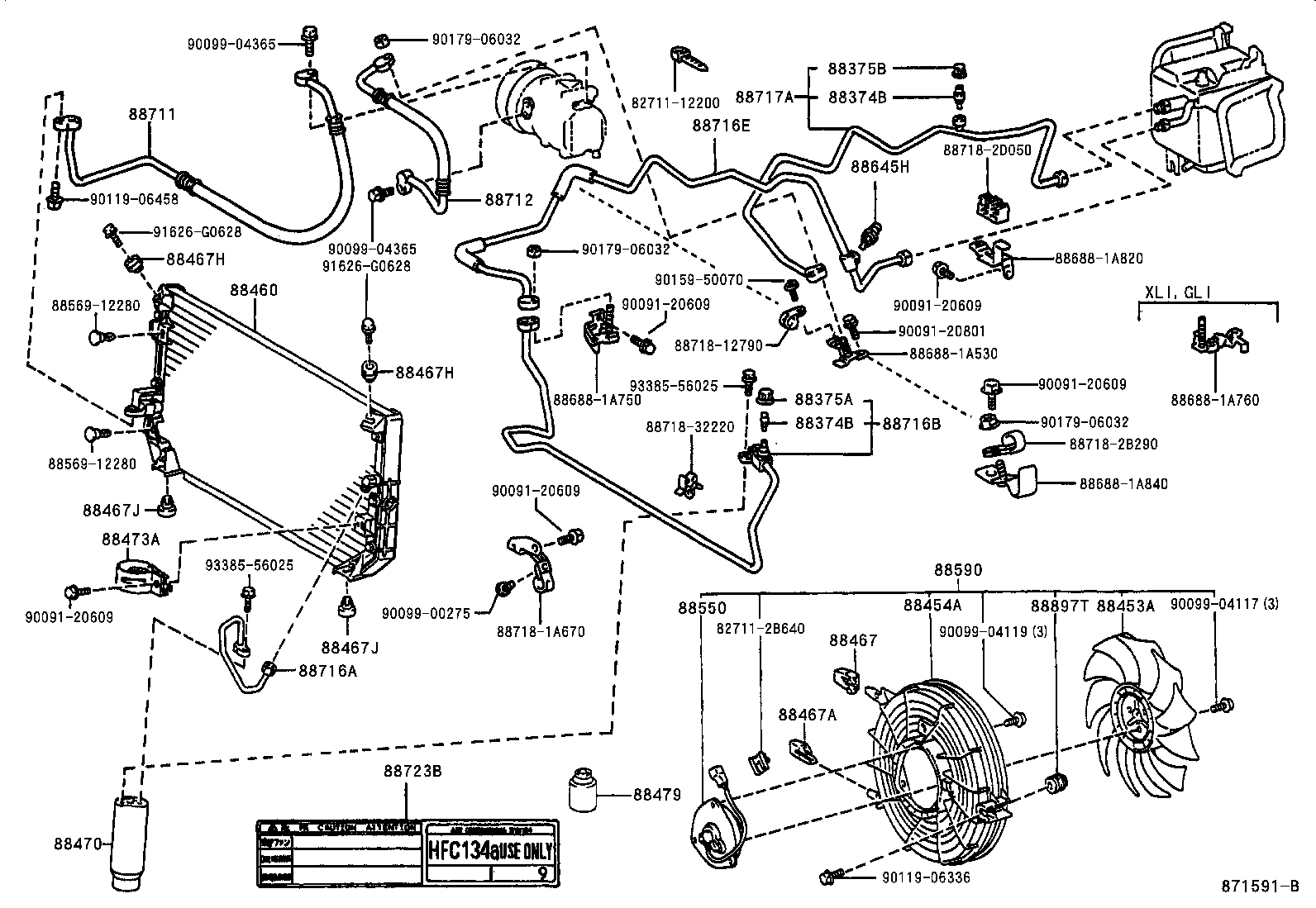

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

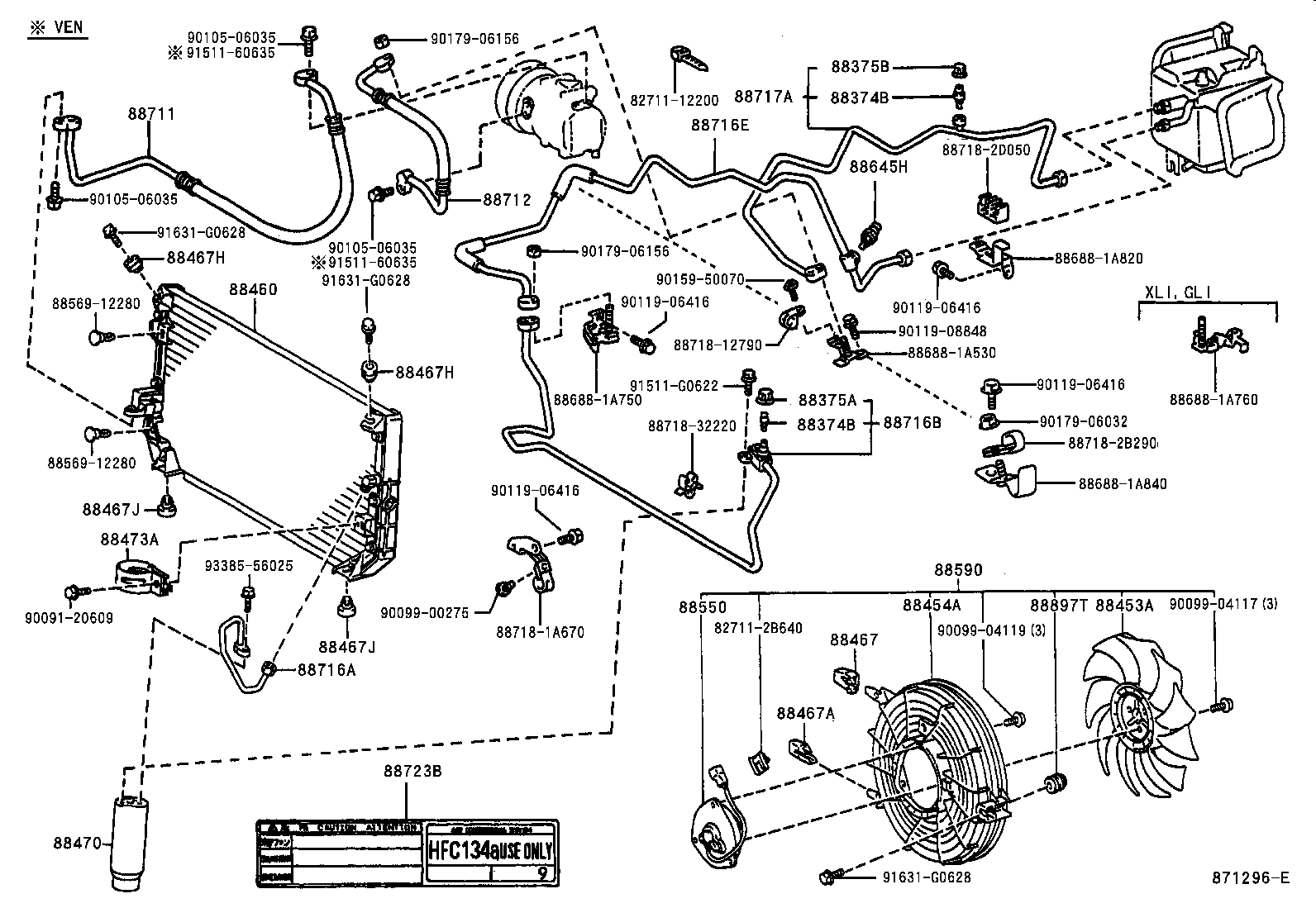

ILLUST NO. 1 OF 2(9704- )AE111,112,EE11#..LHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111..GCC;AE112,EE110;AE111..GL,SEG,XL;AE111..RHD..(GLI,XLI);AE110,CE110,EE111..RHD..(XL,XLI) DEALER OPTION	05/1995 - 05/1997	2
88374-30010	AE110..4FC;AE111..WG..5F;CE110..RHD..XL;AE112..GLI..(ARL,GCC);AE111..SED..(GCC,GEN);AE112,EE11#..(GL,STD,XL,XLI)..(GCC,GEN) DEALER OPTION	10/1999 - 02/2000	2
88374-30010	AE111..GCC;AE111..GL,XL;AE112..ARL,GCC;CE110..RHD..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,EE111..RHD..(GLI,XLI)..GEN DEALER OPTION	07/1998 - 10/1999	2
88374-30010	AE111..GCC;CE110..RHD..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..(GL,SEG,XL)..GEN;AE110,112,EE111..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN DEALER OPTION	05/1997 - 07/1998	2
88374-30010	CE110..RHD;AE111..GCC;AE112,EE11#;AE111..GL,XL;AE111..RHD..(GLI,XLI) DEALER OPTION	04/1997 - 05/1997	2
88374-30010	CE110..RHD..GEN;AE111..GL,SEG,XL;AE111,112..XLI..(GCC,IDN);AE111,EE111..RHD..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,TH,TUR;AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,TH) DEALER OPTION	07/1998 - 10/1999	2
88374-30010	AE110..4FC;AE111..WG..5F;CE110..RHD..XL;AE112..GLI..(ARL,GCC,VEN);AE111..SED..(GCC,GEN,VEN);AE112,EE11#..(GL,STD,XL,XLI)..(GCC,GEN) DEALER OPTION	02/2000 - 12/2999	2
88374-30010	AE111..GCC;AE111..GL,XL;CE110..RHD..GEN;AE112,EE111..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) DEALER OPTION	05/1997 - 07/1998	2
88374B - VALVE, SERVICE, NO.1
88374-30010	AE111..GCC;AE112,EE110;AE111..GL,SEG,XL;AE111..RHD..(GLI,XLI);AE110,CE110,EE111..RHD..(XL,XLI) DEALER OPTION	05/1995 - 05/1997	2
88374-30010	AE110..4FC;AE111..WG..5F;CE110..RHD..XL;AE112..GLI..(ARL,GCC);AE111..SED..(GCC,GEN);AE112,EE11#..(GL,STD,XL,XLI)..(GCC,GEN) DEALER OPTION	10/1999 - 02/2000	2
88374-30010	AE111..GCC;AE111..GL,XL;AE112..ARL,GCC;CE110..RHD..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,EE111..RHD..(GLI,XLI)..GEN DEALER OPTION	07/1998 - 10/1999	2
88374-30010	AE111..GCC;CE110..RHD..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..(GL,SEG,XL)..GEN;AE110,112,EE111..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN DEALER OPTION	05/1997 - 07/1998	2
88374-30010	CE110..RHD;AE111..GCC;AE112,EE11#;AE111..GL,XL;AE111..RHD..(GLI,XLI) DEALER OPTION	04/1997 - 05/1997	2
88374-30010	CE110..RHD..GEN;AE111..GL,SEG,XL;AE111,112..XLI..(GCC,IDN);AE111,EE111..RHD..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,TH,TUR;AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,TH) DEALER OPTION	07/1998 - 10/1999	2
88374-30010	AE110..4FC;AE111..WG..5F;CE110..RHD..XL;AE112..GLI..(ARL,GCC,VEN);AE111..SED..(GCC,GEN,VEN);AE112,EE11#..(GL,STD,XL,XLI)..(GCC,GEN) DEALER OPTION	02/2000 - 12/2999	2
88374-30010	AE111..GCC;AE111..GL,XL;CE110..RHD..GEN;AE112,EE111..GCC,GEN;AE111..RHD..(GLI,XLI)..GEN;AE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) DEALER OPTION	05/1997 - 07/1998	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EE11#..GCC,GEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
88375-30280	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 02/2000	1
88375-30280	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 02/2000	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EE11#..GCC,GEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
88375-30290	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 02/2000	1
88375-30290	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 02/2000	1
88453A - FAN, COOLING
88453-12090	AE11#,EE11# MATSUSHITA	05/1995 - 04/1997	1
88453-10021	AE11#,EE11# NIPPONDENSO	05/1995 - 01/1996	1
88453-10022	AE110..GLI;EE111..GEN;AE112..GCC,VEN;AE111..RHD..WG..5F;EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) MAKER OPTION	04/1997 - 12/2999	1
88453-10022	AE110..GLI;EE111..GLI,XLI;AE111..MA,NZ,TH;AE111,EE110..LHD;AE111..RHD..WG..5F;AE110,112..GCC,IDN,NZ,TH,VEN MAKER OPTION	04/1997 - 12/2999	1
88454A - SHROUD, FAN
88454-12170	AE11#,EE11# MATSUSHITA	05/1995 - 04/1997	1
88454-12160	AE11#,EE11# NIPPONDENSO	05/1995 - 04/1997	1
88454-12160	AE112;AE110..GLI;AE111..RHD..WG;AE111,EE110..LHD;AE111..ARL,MA,NZ,TH;AE110,EE111..MA,TH,TUR,VEN	04/1997 - 10/1999	1
88454-12160	EE11#..GCC,GEN,VEN;AE11#..ARL,GCC,GEN,TUR,VEN	10/1999 - 12/2999	1
88454-12160	EE111..VEN;AE111..RHD..WG;EE110..LHD..(GCC,GEN);AE110,112..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 10/1999	1
88460 - CONDENSER ASSY, COOLER
88460-12480	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88460-12480	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12130	AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
88467-12130	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12140	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88467-12140	EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)	04/1997 - 12/2999	1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
88897-12250	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
88897-12250	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
88467-12100	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	2
88467-12100	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88471-60010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88473A - HOLDER, RECEIVER
88473-20070	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88473-20070	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160	AE11#,EE11# NIPPONDENSO	05/1995 - 04/1997	1
88550-12170	AE11#,EE11# MATSUSHITA	05/1995 - 04/1997	1
88550-12160	EE11#..GCC,GEN,VEN;AE11#..ARL,GCC,GEN,TUR,VEN	10/1999 - 12/2999	1
88550-12160	AE112;AE110..GLI;AE111..RHD..WG;AE111,EE110..LHD;AE111..ARL,MA,NZ,TH;AE110,EE111..MA,TH,TUR,VEN	04/1997 - 10/1999	1
88550-12160	EE111..VEN;AE111..RHD..WG;EE110..LHD..(GCC,GEN);AE110,112..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 10/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-12250	EE11#..GCC,GEN,VEN;AE11#..ARL,GCC,GEN,TUR,VEN	10/1999 - 12/2999	1
88590-12250	EE111..VEN;AE111..RHD..WG;EE110..LHD..(GCC,GEN);AE110,112..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 10/1999	1
88590-12250	AE112;AE110..GLI;AE111..RHD..WG;AE111,EE110..LHD;AE111..ARL,MA,NZ,TH;AE110,EE111..MA,TH,TUR,VEN	04/1997 - 10/1999	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	10/1999 - 02/2000	1
88645-20050	EE11#..GCC,GEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A430	EE11#	05/1995 - 04/1997	1
88711-1A431	EE111..GEN,VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	04/1997 - 02/2000	1
88711-1A431	EE11#	04/1997 - 02/2000	1
88711-1A431	EE11#..GCC,GEN	02/2000 - 09/2001	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1A580	EE111..VEN;EE110..LHD..(GCC,GEN)	04/1997 - 02/2000	1
88712-1A580	EE110..LHD..(GCC,GEN)	02/2000 - 09/2001	1
88712-1A580	EE11#..LHD..(GL,STD,XL)	04/1997 - 02/2000	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88726-12470	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12330	AE111;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
88716-1A410	EE110..LHD..(GCC,GEN);AE112,EE111..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 02/2000	1
88716-1A410	AE111,112,EE11#..LHD	04/1997 - 02/2000	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12290	AE111;AE110,EE11#..XL,XLI DEALER OPTION	05/1995 - 04/1997	1
88716-12230	AE11#,EE11#	05/1995 - 04/1997	1
88716-1A420	AE111,EE110..LHD..(GL,STD,XL)..(GCC,GEN)	04/1997 - 09/2001	1
88716-1A420	AE111,EE110..LHD..(GL,STD,XL)	04/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A060	AE111,EE110..LHD..(GL,STD,XL)..(GCC,GEN)	04/1997 - 09/2001	1
88717-1A020	AE11#,EE11#	05/1995 - 04/1997	1
88717-1A060	AE111,EE110..LHD..(GL,STD,XL)	04/1997 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12120	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88723-12120	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88897T - GROMMET, COOLER
88897-12250	AE11#,EE11# NIPPONDENSO	05/1995 - 04/1997	1
88897-12250	EE111..GEN;AE111..RHD..WG;EE110..MTM..GEN;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GEN,TUR)	04/1997 - 08/1998	1
88897-12250	AE111..GEN,TUR;EE110..MTM..GEN;EE110..LHD..3FC;AE112,EE111..ARL,GEN	08/1998 - 10/1999	1
88897-12250	EE11#..GCC,GEN;AE11#..ARL,GCC,GEN,TUR	10/1999 - 02/2000	1
88897-12250	EE11#..GCC,GEN,VEN;AE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
88467-12170	AE11#,EE11# MATSUSHITA	05/1995 - 04/1997	1
88897-12250	AE111,112,EE11#..(GL,GLI,STD,XL,XLI)..(GEN,GENKD,NZ,TUR)	04/1997 - 08/1998	1
88897-12250	AE112..ARL,GEN;AE112..XLI..BZ;AE111,EE11#..ARL,GEN,GENKD,NZ,TUR	08/1998 - 10/1999	1
Common parts
82711-12200
82711-2B640
88569-12280
88688-1A530
88688-1A750
88688-1A760
88688-1A820
88688-1A840
88718-12790
88718-1A670
88718-2B290
88718-2D050
88718-32220
90091-20609
90099-00275
90099-04117
90099-04119
90105-06035
90119-06416
90119-08848
90159-50070
90179-06032
90179-06156
91511-60635
91511-G0622
91631-G0628
93385-56025
