EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )EE11#..LHD

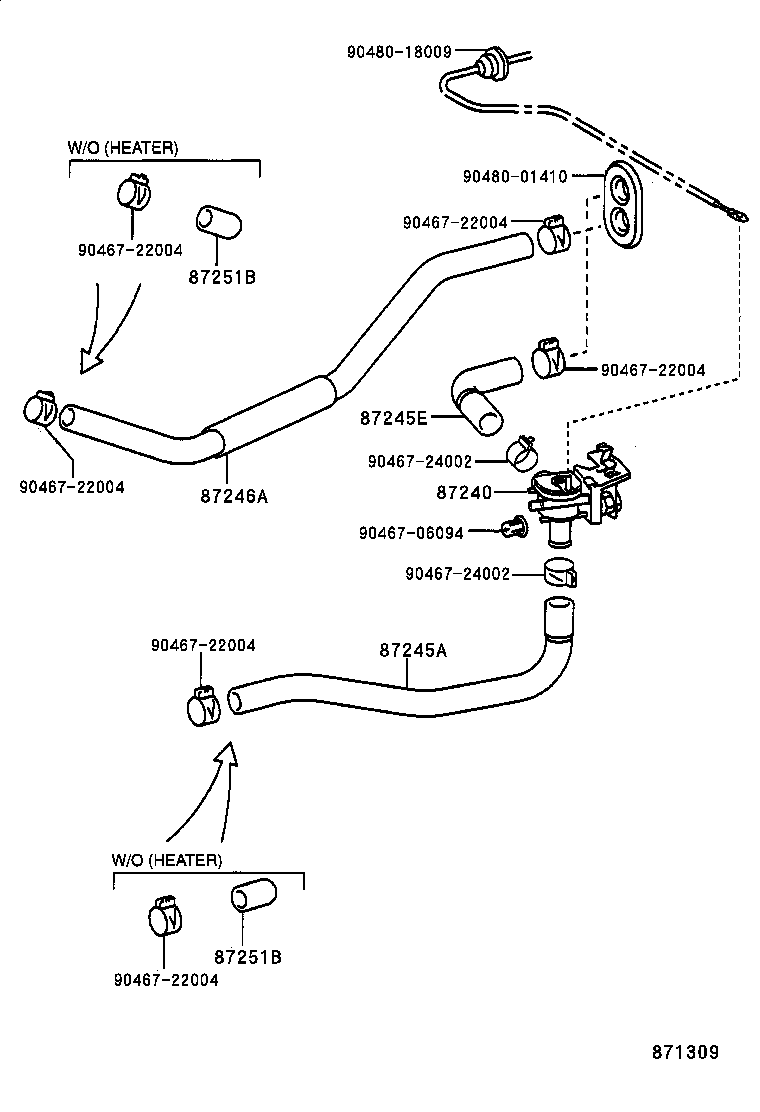

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 87251B 87251B 9046706094 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046724002 9046724002 9048001410 9048018009
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12260

AE111,112,CE110,EE11#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A542

EE11#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A530

AE111,112,CE110,EE11#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A273

EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,VEN)

 1
87251B - PLUG, HEATER WATER
90339-16001

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..GCC,GEN;AE110,EE111..(STD,XLI)..(GEN,VEN)

 2
90339-16001

AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112..GCC,GEN,IDN,PHL;EE11#..GCC,GEN,GENKD,MA,PHL,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN)

 2
87251B - PLUG, HEATER WATER
90339-16001

AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE112,CE110,EE110..GCC,GEN;AE110,EE111..(STD,XLI)..(GEN,VEN)

 2
90339-16001

AE110..TH;AE111..MA;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE112..GCC,GEN,IDN,PHL;EE11#..GCC,GEN,GENKD,MA,PHL,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN)

 2
Common parts
90467-06094
90467-22004
90467-24002
90480-01410
90480-18009
