EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg

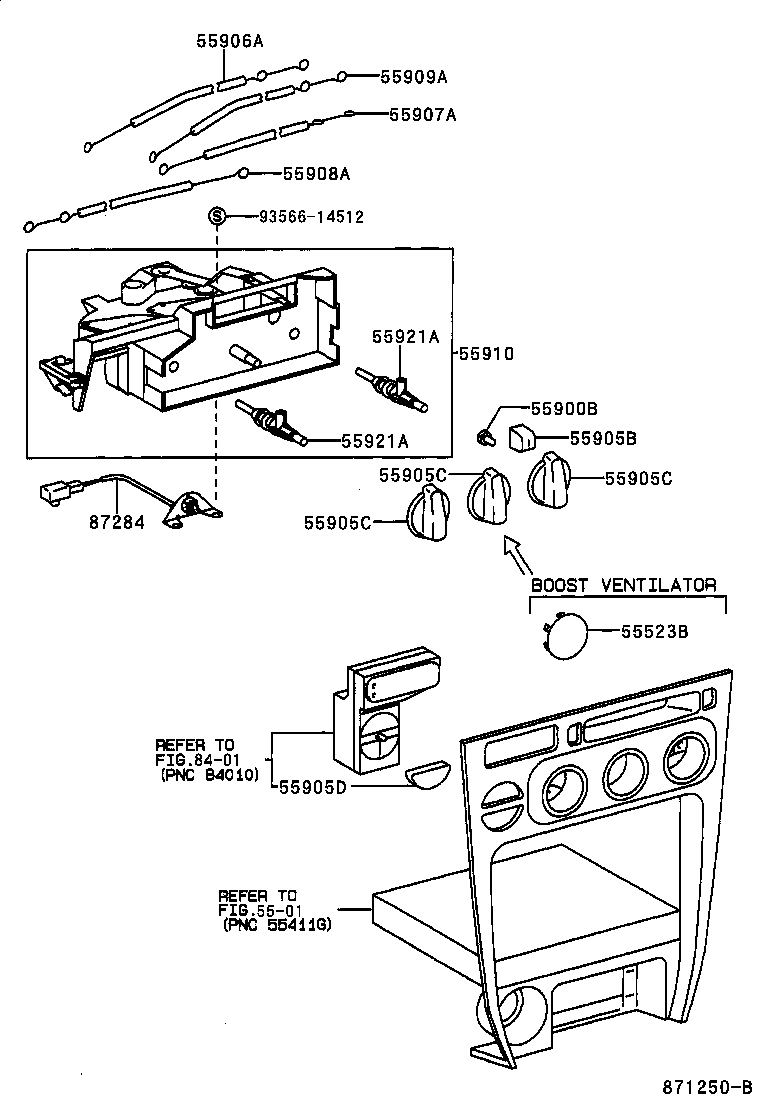

ILLUST NO. 1 OF 3(9704- )
LEVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523B - COVER, HEATER CONTROL OPENING | ||||
| 55523-12100B0 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
1 | ||
| 55523-12100B0 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55523-12100B0 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55523-12100B0 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-12450B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12450B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12450B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12500B1 |
AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12500B1 |
EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12360 |
AE111;AE110,EE11#..XL,XLI |
1 | ||
| 55906-12380 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12420 |
AE11#,EE11# |
1 | ||
| 55907-12450 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12310 |
AE111;AE110,EE11#..XL,XLI |
1 | ||
| 55908-12290 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12290 |
AE11#,EE11# |
1 | ||
| 55909-12280 |
AE110..TH;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12620 |
AE111;AE110,EE11#..XL,XLI W(COOLER) |
1 | ||
| 55910-12710 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 55910-12690 |
AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(HEATER) |
1 | ||
| 55910-12630 |
AE11#,EE11# |
1 | ||
| 55910-12690 |
AE112..GCC;AE111,CE110,EE110..LHD W(HEATER) |
1 | ||
| 55910-12700 |
AE112,CE110..LHD..(GCC,GEN);AE111,EE110..LHD..(GCC,GEN,GENKD,PHL,VEN) W(COOLER) |
1 | ||
| 55910-12700 |
AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(COOLER) |
1 | ||
| 55910-12690 |
AE111,112,CE110,EE11#..LHD W(HEATER) |
1 | ||
| 55910-12700 |
AE111..LHD..(GEN,GENKD,PHL,VEN);AE112,CE110,EE11#..LHD..(GL,SEG,STD,XL,XLI)..(GEN,GENKD,PHL,VEN) W(COOLER) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12160 |
AE111;AE110,EE11#..XL,XLI |
1 | ||
| 88032-12170 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 88032-12170 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 88032-12170 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(9704- )AE11#,CE110,EE11#
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-12240 |
AE11#,EE11# |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-0502022 |
EE111..VEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..GCC,GEN,TUR,VEN GRAPHITE,TRIM1# |
1 | ||
| 90467-05020B7 |
EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 90467-0502022 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI GRAPHITE,TRIM1# |
1 | ||
| 90467-0502022 |
AE111..RHD..WG;AE110..XLI..GEN;EE110..LHD..3FC;AE112,CE110,EE110..(4F,4FC,5F)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) GRAPHITE,TRIM1# |
1 | ||
| 90467-05020B7 |
AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
1 | ||
| 90467-0502022 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) GRAPHITE,TRIM1# |
1 | ||
| 90467-05020B7 |
AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
1 | ||
| 90467-0502001 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN BLACK,TRIM1#,9# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-12400 |
AE11#,EE11# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55870-12010 |
AE11#,EE11# |
1 | ||
| 55870-12030 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-12270 |
AE111,112,CE110,EE11#..LHD |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-12140 |
AE111..RHD..WG;AE110..XLI..GEN;AE111..SED..(GCC,GEN);AE112,CE110,EE11#..ARL,GCC,GEN |
1 | ||
| 87138-12140 |
AE112..XLI..BZ;AE112,CE110,EE110..ARL,GCC,GEN,GENKD,NZ,TUR;AE111,EE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ) |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-12430 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-12110 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..ARL,GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90480-26022 | ||||
| 93568-15014 | ||||

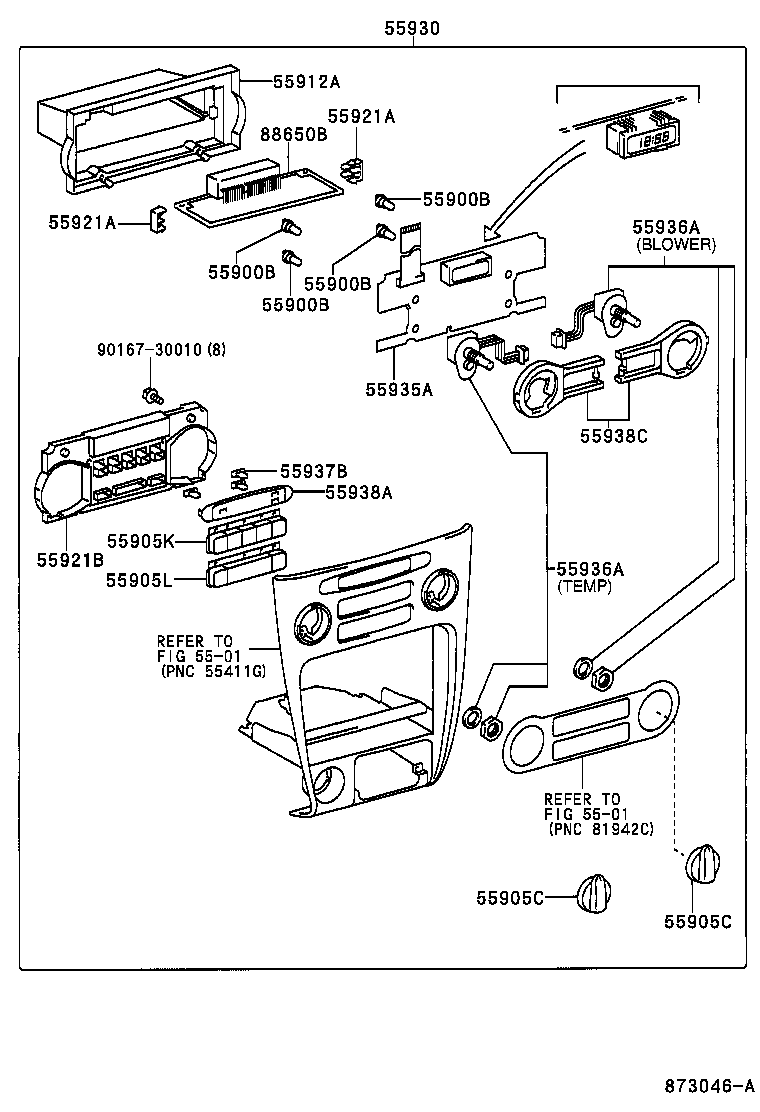

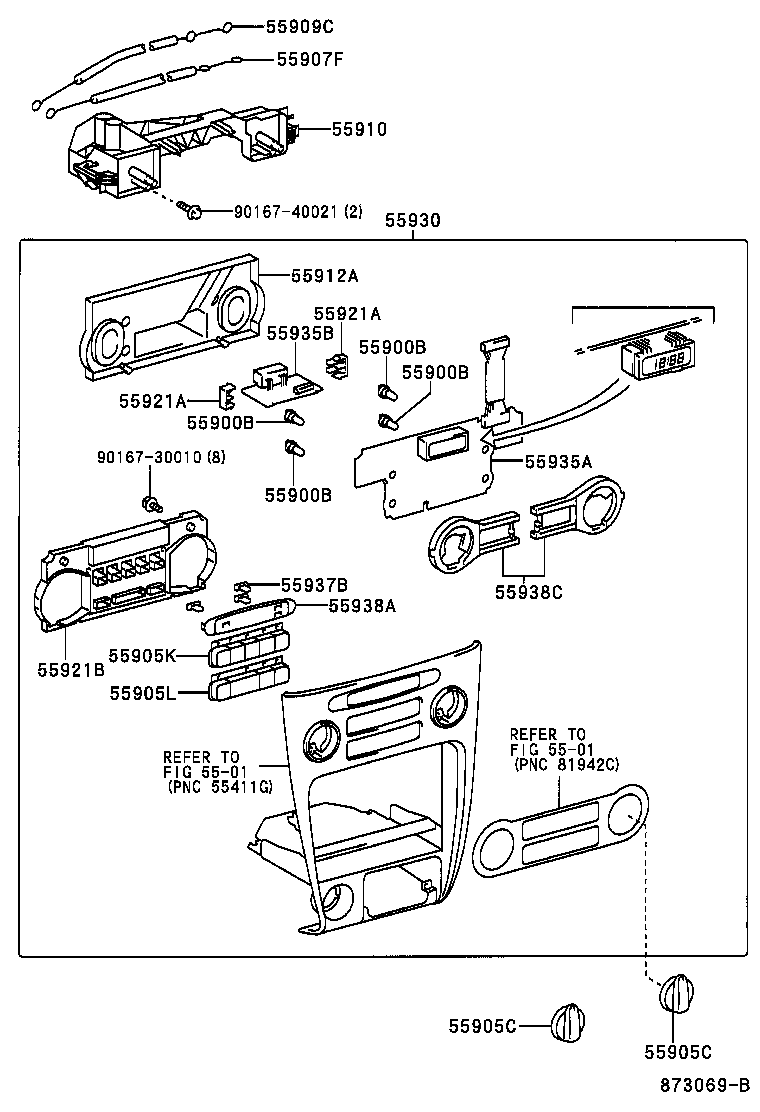

ILLUST NO. 1 OF 3(9704- )AE11#,CE110,EE11#
PUSH TYPE,W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(9704- )AE11#,CE110,EE11#
PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) 14V 1.4W |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55905-12440B1 |
EE110..LHD..3FC;AE111..LHD..SED..GEN;CE110,EE110..5F..XL..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9# |
2 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM1#,9# |
3 | ||
| 55905-12440B1 |
AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DEALER OPTION,DK.CHARCOAL,TRIM1#,9# |
1 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DK.CHARCOAL,TRIM1# |
2 | ||
| 55905-12440B1 |
AE111,112,CE110,EE110..GEN DEALER OPTION,DK.CHARCOAL,TRIM1# |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DEALER OPTION,DK.CHARCOAL,TRIM10,14 |
1 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14 |
2 | ||
| 55905-12440B1 |
CE110,EE110..XL..GEN;AE111..LHD..SED..GEN;AE111..RHD..SED..(XL,XLI)..GEN W(HEATER) OR W(COOLER),DK.CHARCOAL,TRIM10,14 |
3 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12620 |
AE111;AE110,EE11#..XL,XLI W(COOLER) |
1 | ||
| 55910-12710 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 55910-12690 |
AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(HEATER) |
1 | ||
| 55910-12630 |
AE11#,EE11# |
1 | ||
| 55910-12690 |
AE112..GCC;AE111,CE110,EE110..LHD W(HEATER) |
1 | ||
| 55910-12700 |
AE112,CE110..LHD..(GCC,GEN);AE111,EE110..LHD..(GCC,GEN,GENKD,PHL,VEN) W(COOLER) |
1 | ||
| 55910-12700 |
AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(COOLER) |
1 | ||
| 55910-12690 |
AE111,112,CE110,EE11#..LHD W(HEATER) |
1 | ||
| 55910-12700 |
AE111..LHD..(GEN,GENKD,PHL,VEN);AE112,CE110,EE11#..LHD..(GL,SEG,STD,XL,XLI)..(GEN,GENKD,PHL,VEN) W(COOLER) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-12090 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 55921-12090 |
AE110..TH;AE111..MA;AE112..(GLI,XLI)..(GCC,GEN,IDN);AE111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH,VEN) |
1 | ||
| 55921-12090 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,PHL);AE111,EE111..SED..(GEN,GENKD,MA,PHL,TH,VEN);AE110,112,EE110..(GL,STD,XL,XLI)..(GEN,GENKD,IDN,PHL,TH,VEN) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| 90167-40021 | ||||
| Linked diagrams | ||||
| 5501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
