Toyota Corolla sed/wg EE110 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110L-AEHDS (1997)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

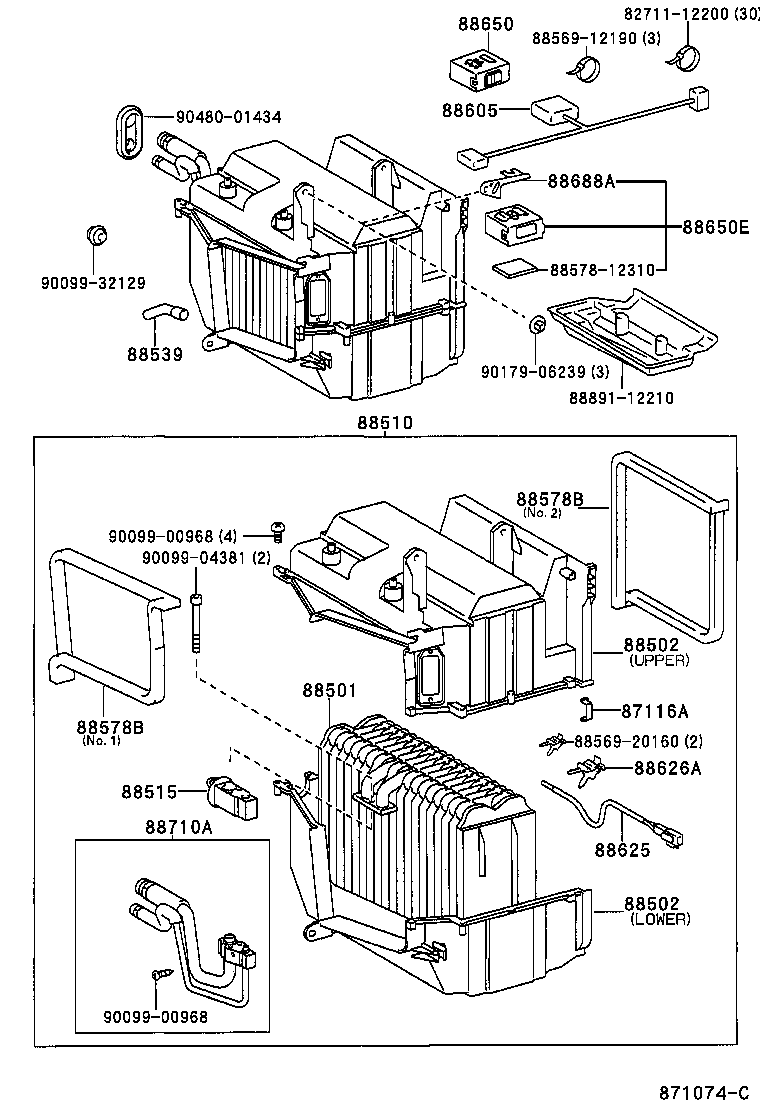

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	3
87116-14010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12401	AE111,112,CE110,EE11#..LHD	04/1997 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210	AE112,CE110,EE11#..LHD;AE111..LHD..(GCC,GEN,GENKD,PHL,VEN) UPPER	04/1997 - 12/2999	1
88502-12220	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN) LOWER	04/1997 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210	AE112,CE110,EE11#..LHD;AE111..LHD..(GCC,GEN,GENKD,PHL,VEN) UPPER	04/1997 - 12/2999	1
88502-12220	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN) LOWER	04/1997 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-1A310	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN)	04/1997 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88515-20100	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12160	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88539-16040	AE111;AE110,EE11#..XL,XLI DEALER OPTION	05/1995 - 04/1997	1
88539-12160	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12490	AE111,112,CE110,EE11#..LHD NO.1	04/1997 - 12/2999	1
88578-20470	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.2	04/1997 - 10/1999	1
88578-20470	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	05/1995 - 10/1999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12490	AE111,112,CE110,EE11#..LHD NO.1	04/1997 - 12/2999	1
88578-20470	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.2	04/1997 - 10/1999	1
88578-20470	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	05/1995 - 10/1999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1E800	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN MAKER OPTION	04/1997 - 09/2001	1
88605-1E810	EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING)	04/1997 - 09/2001	1
88605-1E820	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN MAKER OPTION,W/O(HEATER)	04/1997 - 09/2001	1
88605-1H140	EE110..LHD..XL..GEN DEALER OPTION,W(POWER STEERING)	04/1997 - 09/2001	1
88605-1H120	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN DEALER OPTION	04/1997 - 09/2001	1
88605-1H150	EE110..LHD..(GL,XL)..GEN DEALER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 09/2001	1
88605-1H130	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN DEALER OPTION,W/O(HEATER)	04/1997 - 09/2001	1
88605-1E830	EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 09/2001	1
88605-1E800	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..(GEN,GENKD,PHL,TUR) MAKER OPTION	04/1997 - 12/2999	1
88605-1E830	EE110..GENKD,PHL;EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 12/2999	1
88605-1E820	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..(GEN,GENKD,PHL) MAKER OPTION,W/O(HEATER)	04/1997 - 12/2999	1
88605-1E810	EE110..GENKD,PHL;EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING)	04/1997 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-12280	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
88625-12280	AE11#,CE110,EE11#..GEN DEALER OPTION	10/1999 - 12/2999	1
88625-12240	AE111,112,CE110,EE110..LHD..(GCC,GEN) MAKER OPTION	10/1999 - 09/2001	1
88625-12280	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
88626A - HOLDER, THERMISTOR
88626-28010	AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL	04/1997 - 05/1997	1
88626-28010	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	05/1997 - 12/2999	1
88626-28010	AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11#	05/1995 - 05/1997	1
88626-28010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	05/1997 - 12/2999	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 09/2001	1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 10/1999	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-1A280	AE111,CE110,EE110..LHD..(GL,STD,XL)..GEN	04/1997 - 09/2001	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12340	AE111,112,CE110,EE11#..LHD	04/1997 - 12/2999	1
Common parts
82711-12200
88569-12190
88569-20160
88578-12310
88891-12210
90099-00968
90099-04381
90099-32129
90179-06239
90480-01434

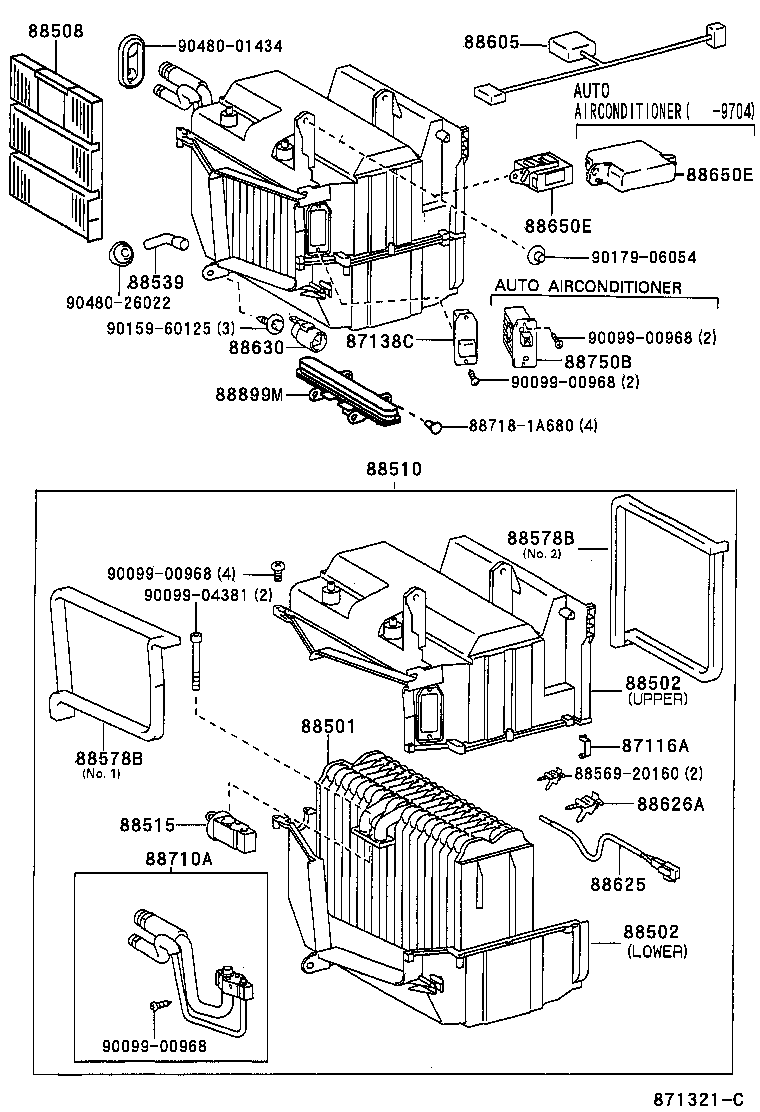

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	3
87116-14010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	3
87138C - RESISTOR, BLOWER
87138-12140	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
87138-12140	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12401	AE111,112,CE110,EE11#..LHD	04/1997 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210	AE112,CE110,EE11#..LHD;AE111..LHD..(GCC,GEN,GENKD,PHL,VEN) UPPER	04/1997 - 12/2999	1
88502-12220	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN) LOWER	04/1997 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12210	AE112,CE110,EE11#..LHD;AE111..LHD..(GCC,GEN,GENKD,PHL,VEN) UPPER	04/1997 - 12/2999	1
88502-12220	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN) LOWER	04/1997 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-1A310	AE112,CE110,EE110..LHD;AE111,EE111..LHD..(GCC,GEN,GENKD,PHL,VEN)	04/1997 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-20100	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88515-20100	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12160	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
88539-16040	AE111;AE110,EE11#..XL,XLI DEALER OPTION	05/1995 - 04/1997	1
88539-12160	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12490	AE111,112,CE110,EE11#..LHD NO.1	04/1997 - 12/2999	1
88578-20470	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.2	04/1997 - 10/1999	1
88578-20470	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	05/1995 - 10/1999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12490	AE111,112,CE110,EE11#..LHD NO.1	04/1997 - 12/2999	1
88578-20470	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.2	04/1997 - 10/1999	1
88578-20470	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	05/1995 - 10/1999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1E800	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN MAKER OPTION	04/1997 - 09/2001	1
88605-1E810	EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING)	04/1997 - 09/2001	1
88605-1E820	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN MAKER OPTION,W/O(HEATER)	04/1997 - 09/2001	1
88605-1H140	EE110..LHD..XL..GEN DEALER OPTION,W(POWER STEERING)	04/1997 - 09/2001	1
88605-1H120	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN DEALER OPTION	04/1997 - 09/2001	1
88605-1H150	EE110..LHD..(GL,XL)..GEN DEALER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 09/2001	1
88605-1H130	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..GEN DEALER OPTION,W/O(HEATER)	04/1997 - 09/2001	1
88605-1E830	EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 09/2001	1
88605-1E800	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..(GEN,GENKD,PHL,TUR) MAKER OPTION	04/1997 - 12/2999	1
88605-1E830	EE110..GENKD,PHL;EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING) & W/O(HEATER)	04/1997 - 12/2999	1
88605-1E820	AE111..LHD..(GL,XL);EE110..LHD..(STD,XL)..(GEN,GENKD,PHL) MAKER OPTION,W/O(HEATER)	04/1997 - 12/2999	1
88605-1E810	EE110..GENKD,PHL;EE110..LHD..XL..GEN MAKER OPTION,W(POWER STEERING)	04/1997 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-12280	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
88625-12280	AE11#,CE110,EE11#..GEN DEALER OPTION	10/1999 - 12/2999	1
88625-12240	AE111,112,CE110,EE110..LHD..(GCC,GEN) MAKER OPTION	10/1999 - 09/2001	1
88625-12280	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
88626A - HOLDER, THERMISTOR
88626-28010	AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..GL,GLI,STD,XL	04/1997 - 05/1997	1
88626-28010	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	05/1997 - 12/2999	1
88626-28010	AE111..SED;AE111..RHD..WG;AE110,112,CE110,EE11#	05/1995 - 05/1997	1
88626-28010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	05/1997 - 12/2999	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 09/2001	1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 10/1999	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 09/2001	1
88650-1A500	AE111..GL,XL;EE110..(GL,STD)..GEN;EE110..LHD..XL..(GCC,GEN) W/O(HEATER)	04/1997 - 10/1999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12340	AE111,112,CE110,EE11#..LHD	04/1997 - 12/2999	1
Common parts
88569-20160
88718-1A680
90099-00968
90099-04381
90159-60125
90179-06054
90480-01434
90480-26022
