EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

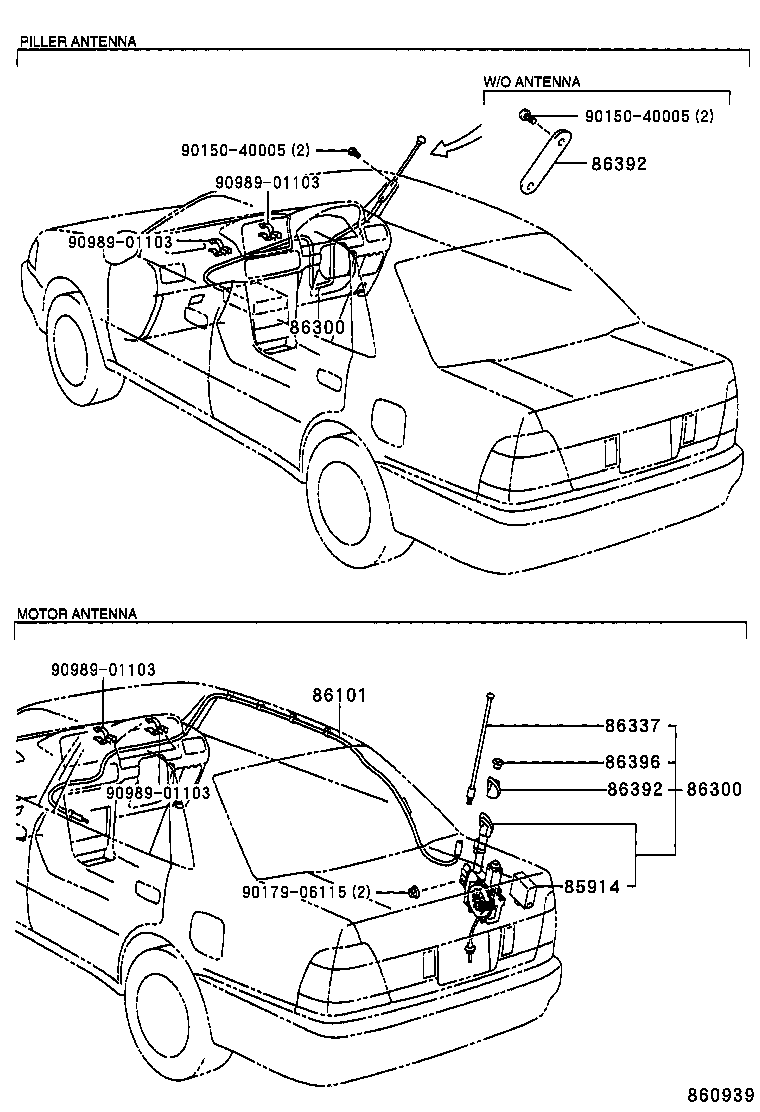

Click highlighted areas on diagram

diagram 85914 86101 86300 86300 86337 86392 86392 86396 9015040005 9015040005 9017906115 9098901103 9098901103 9098901103 9098901103
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-12410

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

PILLAR ANTENNA

 1
86300-12410

EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN

 1
86300-12410

AE111..WG..5F;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110..(GLI,XL)..(ARL,GCC,GEN,VEN)

PILLAR ANTENNA

 1
86300-12410

AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI

 1
86300-12410

AE110,EE110;AE111..WG..5F;AE112,CE110..GLI,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)

PILLAR ANTENNA

 1
86300-12410

AE11#,CE110,EE11#

PILLAR ANTENNA

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-12410

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN

PILLAR ANTENNA

 1
86300-12410

EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN

 1
86300-12410

AE111..WG..5F;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110..(GLI,XL)..(ARL,GCC,GEN,VEN)

PILLAR ANTENNA

 1
86300-12410

AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI

 1
86300-12410

AE110,EE110;AE111..WG..5F;AE112,CE110..GLI,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI)

PILLAR ANTENNA

 1
86300-12410

AE11#,CE110,EE11#

PILLAR ANTENNA

 1
86392 - ORNAMENT, ANTENNA
86392-10010

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN

 1
86392-10010

AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL)

 1
86392-10010

AE111;AE110,EE11#..XL,XLI

 1
86392 - ORNAMENT, ANTENNA
86392-10010

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN

 1
86392-10010

AE111..WG..5F;AE111..LHD..WG..4FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL)

 1
86392-10010

AE111;AE110,EE11#..XL,XLI

 1
Common parts
90150-40005
90179-06115
90989-01103
