Toyota Corolla sed/wg EE110 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110L-AEHDS (1997)
8401 - SWITCH & RELAY & COMPUTER

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 6(9505- )SED

Click highlighted areas on diagram

ROOF,FLOOR,DOOR & LUGGAGE

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80269	AE11#,EE11#	05/1995 - 11/1996	1
83320-12512	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111..GCC,GEN,TUR,VEN;AE112,EE111..ARL,GCC,GEN,VEN	09/1998 - 12/2999	1
83320-12511	AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 09/1998	1
83320 - GAGE ASSY, FUEL SENDER
83320-80269	AE11#,EE11#	05/1995 - 11/1996	1
83320-12512	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111..GCC,GEN,TUR,VEN;AE112,EE111..ARL,GCC,GEN,VEN	09/1998 - 12/2999	1
83320-12511	AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 09/1998	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12160	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12160	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-12170	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-12170	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-12130	AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	1
84810-12080	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 03/2001	1
84810-12080	AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 03/2001	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-10020P0	AE110,EE11#..XL,XLI;AE111..5F..(GLI,XLI) GRAY,TRIM1#	05/1995 - 04/1997	2
84810-12080	AE111..GLI..TUR;EE110..LHD..3FC;AE111..RHD..WG..5F;AE112..ARL,GCC,GEN,VEN;AE111..(GL,SEG,XL)..GEN;AE111..RHD..4FC..XLI..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN)	04/1997 - 02/2000	2
84810-12080	AE111..WG..5F;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..GLI..(GEN,TUR);AE111..LHD..5F..XLI..(GCC,GEN);AE110,112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE111,CE110,EE110..(GL,XL)..(GCC,GEN)	03/2000 - 03/2001	2
84810-12080	AE111..GL,XL;AE111..WG..5F;AE111..4FC..XLI..GEN;AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE110,112,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	2
84810-12080	AE111..GL,XL;AE111..WG..5F;AE111..5F..ARL;AE111..LHD..WG..4FC;AE112..XLI..(GCC,GEN,IDN);AE111..LHD..GLI..(GEN,TUR);AE110,111..GENKD,MA,PHL,TH;AE111..SED..4FC..XLI..(ARL,GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,112,CE110,EE11#..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,MA,PHL,TH,VEN)	04/1997 - 02/2000	2
84810-12080	AE111..WG..5F;AE111,CE110..GL,XL;AE111..LHD..GLI..(GEN,TUR);AE111..4FC..XLI..(GCC,GEN,VEN);AE111..LHD..5F..XLI..(GCC,GEN,VEN);AE110,112,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2000	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-10020P0	AE110,EE11#..XL,XLI;AE111..5F..(GLI,XLI) GRAY,TRIM1#	05/1995 - 04/1997	2
84810-12080	AE111..GLI..TUR;EE110..LHD..3FC;AE111..RHD..WG..5F;AE112..ARL,GCC,GEN,VEN;AE111..(GL,SEG,XL)..GEN;AE111..RHD..4FC..XLI..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN)	04/1997 - 02/2000	2
84810-12080	AE111..WG..5F;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..GLI..(GEN,TUR);AE111..LHD..5F..XLI..(GCC,GEN);AE110,112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE111,CE110,EE110..(GL,XL)..(GCC,GEN)	03/2000 - 03/2001	2
84810-12080	AE111..GL,XL;AE111..WG..5F;AE111..4FC..XLI..GEN;AE111..LHD..GLI..GEN;AE111..LHD..5F..XLI..GEN;AE110,112,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	2
84810-12080	AE111..GL,XL;AE111..WG..5F;AE111..5F..ARL;AE111..LHD..WG..4FC;AE112..XLI..(GCC,GEN,IDN);AE111..LHD..GLI..(GEN,TUR);AE110,111..GENKD,MA,PHL,TH;AE111..SED..4FC..XLI..(ARL,GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE110,112,CE110,EE11#..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,MA,PHL,TH,VEN)	04/1997 - 02/2000	2
84810-12080	AE111..WG..5F;AE111,CE110..GL,XL;AE111..LHD..GLI..(GEN,TUR);AE111..4FC..XLI..(GCC,GEN,VEN);AE111..LHD..5F..XLI..(GCC,GEN,VEN);AE110,112,EE110..(3FC,4FC,5F)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2000	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-10040	AE11#,EE11#	05/1995 - 04/1997	1
84820-12340	AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);EE110..LHD..(GL,XL)..(GCC,GEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN)	04/1997 - 03/2001	1
84820-12340	AE111..GLI..TUR;AE112..LHD..(GLI,SEG);AE112..XLI..(GCC,GEN);AE111,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN)	04/1997 - 03/2001	1
84930 - SWITCH ASSY, DOOR CONTROL
84930-12160	AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 03/2001	1
84930-12160	AE110..TH;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE110..(XL,XLI)..(BZ,GCC,GEN,PHL,TUR) W(POWER DOOR LOCK)	04/1997 - 03/2001	1
84930-12160	AE111,112,CE110,EE110..(XL,XLI)..GEN W(POWER DOOR LOCK)	03/2001 - 09/2001	1
84931B - SWITCH, DOOR CONTROL
84931-16030	AE11#,EE11#	05/1995 - 05/1996	1
85921 - RELAY, SLIDING ROOF CONTROL
85921-12061	EE110..LHD..3FC;AE112..SED..(ARL,GCC);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4FC,5F)..(GL,GLI,XL)..GEN	04/1997 - 10/1999	1
85921-12061	AE110,CE110,EE110..(GL,GLI,XL)..GEN;AE111,112,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN)	04/1997 - 10/1999	1
85921-12061	AE11#,CE110,EE11#..SED..(3FC,4FC,5F)..(ARL,GCC,GEN)	10/1999 - 12/2999	1
Common parts
90119-06072
90164-40103
90167-70002
90430-08252
91651-60610
93269-15008
93319-14008
Linked diagrams
7401

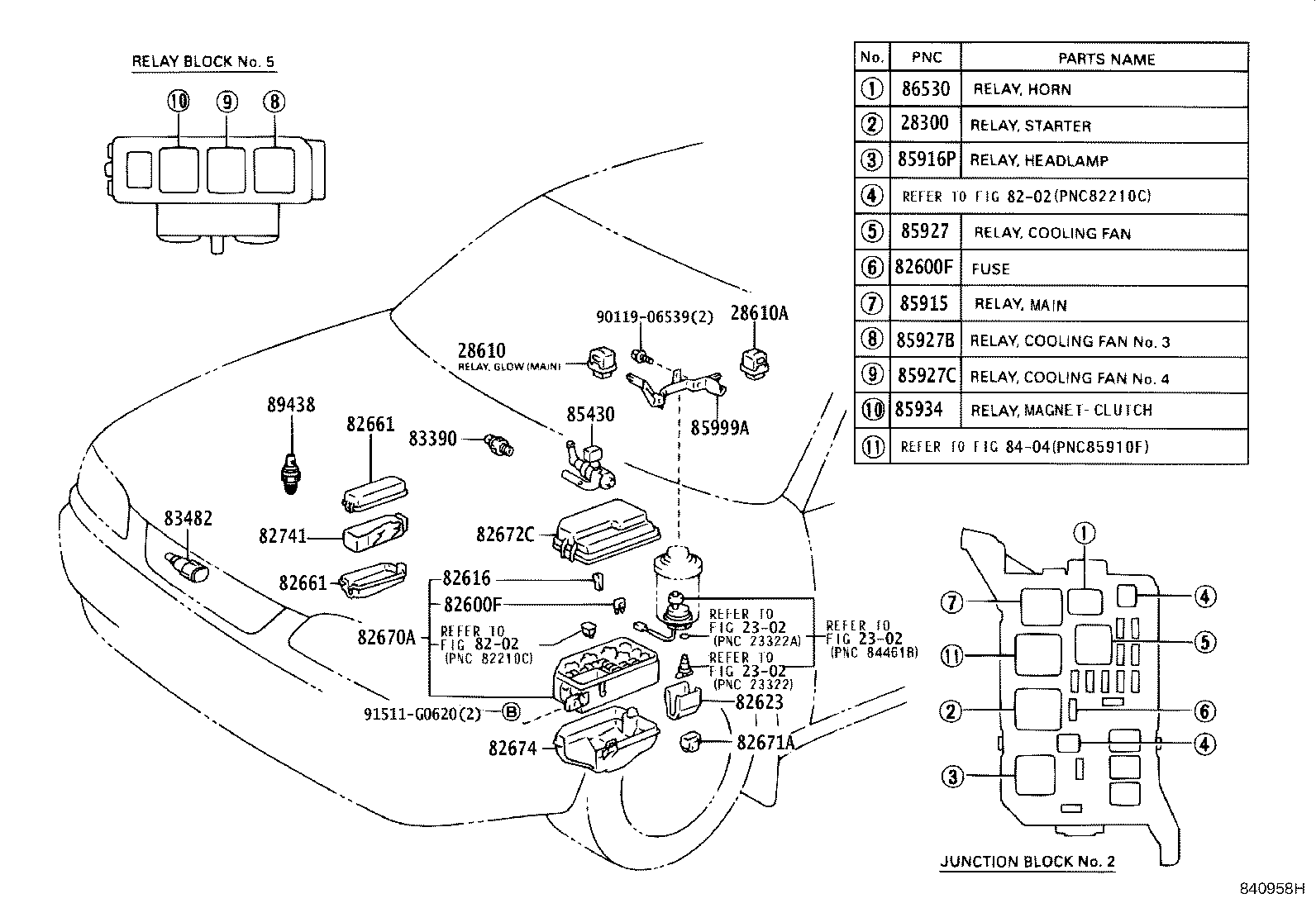

ILLUST NO. 2 OF 6(9505- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	2E..EE110..LHD..3FC;2E..EE110..MTM..(GCC,GEN);7AFE,4EFE..AE112,EE111..ARL,GCC,GEN,VEN;4AF#,5AFE,2C#,3ZZFE,4ZZFE..AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	08/1998 - 12/2999	1
28300-10020	2E..EE110..GCC,GEN;4AFE..AE111..RHD..GEN;4AFE..AE111..LHD..SED..(GCC,GEN,TUR,VEN);4AF,5AFE,7AFE,2C,4EFE..AE11#,CE110,EE111..GCC,GEN,VEN	05/1995 - 08/1998	1
28300-10020	5AFE..AE110..TH;4AFE..AE111..MA;5AFE..AE110..GLI;4AFE,4EFE..AE111,EE111..GLI,XLI;4AF,7AFE,2C#,2E..AE111,112,CE110,EE110..GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN	04/1997 - 08/1998	1
28300-10020	4AFE..AE111..WG..5F;7AFE..AE112..XLI..(BZ,GCC,GEN,IDN);7AFE..AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,PHL,TH,VEN);4AF,5AFE,2C,2E..AE110,111,CE110,EE110..GCC,GEN,GENKD,PHL,TH,VEN;4AFE,4EFE..AE111,EE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,TUR,VEN)	08/1998 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09008	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 7.5A,MINI FUSE,BRN	05/1995 - 12/2999	1
90982-09003	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A	05/1995 - 12/2999	1
90982-09009	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 10A,MINI FUSE,RED	05/1995 - 12/2999	1
90982-09003	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A	04/1997 - 12/2999	1
90982-09013	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 30A,MINI FUSE,GRN	05/1995 - 12/2999	1
90982-09009	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 10A,MINI FUSE,RED	04/1997 - 12/2999	1
90982-09007	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 5A,MINI FUSE,TAN	05/1995 - 12/2999	1
90982-09007	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 5A,MINI FUSE,TAN	04/1997 - 12/2999	1
90982-09011	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 20A,MINI FUSE,YELLOW	05/1995 - 12/2999	1
90982-09008	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 7.5A,MINI FUSE,BRN	04/1997 - 12/2999	1
90982-09013	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 30A,MINI FUSE,GRN	04/1997 - 12/2999	1
90982-09011	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 20A,MINI FUSE,YELLOW	04/1997 - 12/2999	1
90982-09010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A,MINI FUSE,BLUE,(J)	05/1995 - 12/2999	1
90982-09010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A,MINI FUSE,BLUE,(J)	04/1997 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09008	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 7.5A,MINI FUSE,BRN	05/1995 - 12/2999	1
90982-09003	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A	05/1995 - 12/2999	1
90982-09009	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 10A,MINI FUSE,RED	05/1995 - 12/2999	1
90982-09003	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A	04/1997 - 12/2999	1
90982-09013	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 30A,MINI FUSE,GRN	05/1995 - 12/2999	1
90982-09009	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 10A,MINI FUSE,RED	04/1997 - 12/2999	1
90982-09007	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 5A,MINI FUSE,TAN	05/1995 - 12/2999	1
90982-09007	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 5A,MINI FUSE,TAN	04/1997 - 12/2999	1
90982-09011	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 20A,MINI FUSE,YELLOW	05/1995 - 12/2999	1
90982-09008	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 7.5A,MINI FUSE,BRN	04/1997 - 12/2999	1
90982-09013	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 30A,MINI FUSE,GRN	04/1997 - 12/2999	1
90982-09011	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 20A,MINI FUSE,YELLOW	04/1997 - 12/2999	1
90982-09010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A,MINI FUSE,BLUE,(J)	05/1995 - 12/2999	1
90982-09010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A,MINI FUSE,BLUE,(J)	04/1997 - 12/2999	1
82616 - PULLER, FUSE
82616-20010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	1
82616-20010	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	1
82616-20010	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82616-20010	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR	11/1998 - 12/2999	1
82623 - COVER, FUSIBLE LINK, LOWER
82623-13010	AE111,EE110..GL,STD,XL	04/1998 - 11/1998	1
82623-13010	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	04/1998 - 11/1998	1
82623-13010	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	11/1998 - 09/2001	1
82623-13010	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 04/1998	1
82623-12010	AE11#,EE11#	05/1995 - 04/1997	1
82623-13010	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 04/1998	1
82623-13010	AE111,EE110..(GL,STD,XL)..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 12/2999	1
82661 - COVER, RELAY BLOCK, NO.1
82661-12200	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN UPPER	11/1998 - 08/2000	1
82661-12220	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI LOWER	04/1997 - 11/1998	1
82661-12200	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR UPPER	11/1998 - 08/2000	1
82661-12220	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR LOWER	11/1998 - 08/2000	1
82661-12220	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN LOWER	05/1995 - 11/1998	1
82661-12220	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN LOWER	11/1998 - 08/2000	1
82661-12200	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN UPPER	05/1995 - 11/1998	1
82661-12200	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI UPPER	04/1997 - 11/1998	1
82661 - COVER, RELAY BLOCK, NO.1
82661-12200	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN UPPER	11/1998 - 08/2000	1
82661-12220	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI LOWER	04/1997 - 11/1998	1
82661-12200	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR UPPER	11/1998 - 08/2000	1
82661-12220	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR LOWER	11/1998 - 08/2000	1
82661-12220	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN LOWER	05/1995 - 11/1998	1
82661-12220	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN LOWER	11/1998 - 08/2000	1
82661-12200	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN UPPER	05/1995 - 11/1998	1
82661-12200	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI UPPER	04/1997 - 11/1998	1
82670A - BLOCK ASSY, JUNCTION, NO.1
82720-12010	EE110	05/1995 - 03/1997	1
82721-12040	AE111,EE110..GL,STD,XL	04/1997 - 11/1998	1
82721-12040	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	04/1997 - 11/1998	1
82721-12040	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	11/1998 - 09/2001	1
82721-12040	AE111,EE110..(GL,STD,XL)..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 12/2999	1
82672C - COVER, JUNCTION BLOCK
82672-12360	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82672-12361	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN	02/2000 - 12/2999	1
82672-12361	AE11#,CE110,EE11#..ARL,GCC,GEN	10/1999 - 02/2000	1
82672-12310	AE11#,EE11#	05/1995 - 05/1996	1
82672-12360	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN	11/1998 - 10/1999	1
82672-12360	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82672-12360	AE11#,CE110,EE111;EE110..GCC,GEN,GENKD,PHL,TUR	11/1998 - 10/1999	1
82674 - COVER, JUNCTION BLOCK LOWER
82674-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	1
82674-12010	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR	11/1998 - 12/2999	1
82674-12010	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82674-12010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-12010	AE11#,EE11#	05/1995 - 04/1997	1
82741-12010	EE111..GEN,VEN;AE11#,CE110,EE110..ARL,GCC,GEN	10/1999 - 02/2000	1
82741-12010	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN	02/2000 - 08/2000	1
85430 - VALVE, OUTER VENT CONTROL
90925-09043	EE110..LHD..(GL,XL)	04/1997 - 07/1997	1
85915 - RELAY, MAIN
85925-17010	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	06/1998 - 12/2999	1
90987-04002	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 06/1998	1
90987-04002	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN	05/1995 - 06/1998	1
85916P - RELAY, HEADLAMP
90987-02006	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85927 - RELAY, COOLING FAN
90987-03003	AE11#,EE11#	05/1995 - 04/1997	1
90987-03003	AE11#,CE110,EE11#..ARL,GCC,GEN	10/1999 - 02/2000	1
90084-98011	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) BOSCH	04/1997 - 10/1999	1
90987-03003	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) DENSO	04/1997 - 10/1999	1
90084-98011	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI BOSCH	04/1997 - 10/1999	1
90987-03003	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI DENSO	04/1997 - 10/1999	1
90987-03003	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN	02/2000 - 12/2999	1
85927B - RELAY, COOLING FAN, NO.3
90987-04004	AE111,112,CE110,EE11#..ARL,GEN	10/1999 - 09/2001	1
90080-87009	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) PART NUMBER LABEL=90080-87009	04/1997 - 12/2999	1
90987-04004	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) PART NUMBER LABEL=90987-04004	04/1997 - 12/2999	1
90987-04004	AE11#,EE11#	05/1995 - 04/1997	1
85927C - RELAY, COOLING FAN, NO.4
90987-02012	EE11#..GEN;AE111,112,CE110..ARL,GEN,TUR	02/2000 - 09/2001	1
90987-02012	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90987-02012	10/1999 - 02/2000	1
90080-87008	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90080-87008	10/1999 - 02/2000	1
90987-02012	EE11#..GEN,VEN;AE111,112,CE110..ARL,GEN,TUR,VEN	10/1999 - 02/2000	1
90987-02012	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
90987-02012	AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90987-02012	02/2000 - 12/2999	1
90080-87008	AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90080-87008	02/2000 - 12/2999	1
90987-02012	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02012	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
90987-02012	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90987-02012	10/1999 - 02/2000	1
90080-87008	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90080-87008	10/1999 - 02/2000	1
90987-02012	EE11#..GEN;AE111,112,CE110..ARL,GEN,TUR	02/2000 - 09/2001	1
90987-02012	EE11#..GEN,VEN;AE111,112,CE110..ARL,GEN,TUR,VEN	10/1999 - 02/2000	1
90987-02012	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90987-02012	02/2000 - 12/2999	1
90080-87008	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90080-87008	02/2000 - 12/2999	1
90987-02012	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
86530 - RELAY ASSY, HORN
90987-02012	AE111..RHD..WG;EE110..MTM..GEN;EE110..LHD..3FC;AE110,112,CE110..(GLI,XL)..(GEN,VEN);AE111,EE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN) PART NUMBER LABEL=90987-02012	10/1997 - 07/1998	1
90987-02012	EE110..WG;AE112,EE111;AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN	04/1997 - 10/1997	1
90080-87008	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN PART NUMBER LABEL=90080-87008	10/1997 - 12/2999	1
86530-20070	AE11#,EE11#	05/1995 - 04/1997	1
90987-02012	EE110..WG;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..GEN;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	07/1998 - 10/1999	1
90987-02012	EE11#..GEN,VEN;AE11#,CE110..ARL,GEN,TUR,VEN PART NUMBER LABEL=90987-02012	10/1999 - 12/2999	1
90987-02012	AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GEN,GENKD,NZ,PHL,TH,VEN);AE112,CE110,EE11#..GEN,GENKD,IDN,MA,NZ,PHL,TH,VEN PART NUMBER LABEL=90987-02012	10/1997 - 07/1998	1
90987-02012	EE110..WG;AE111,112,EE111..GL,GLI,XL,XLI;AE110,CE110,EE110..(GL,GLI,STD,XL)..(GEN,GENKD)	04/1997 - 10/1997	1
90987-02012	EE110..WG;AE11#,CE110,EE111;EE110..GEN,GENKD,PHL,TUR,VEN	07/1998 - 10/1999	1
Common parts
90119-06539
91511-G0620
Linked diagrams
2302
8202
8404

ILLUST NO. 3 OF 6(9704- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

Part #	Description	Period	Qty
55905G - KNOB SUB-ASSY, CONTROL
55905-12560B1	AE111,CE110,EE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
55905-12560B1	AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION
84010-12110B0	AE111,CE110,EE110..LHD..GEN DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84010-12180B0	AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W/O(CLOCK),DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84010-12090B0	AE111,CE110,EE110..LHD..GEN W(AIR CONDITIONER),DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84010-12180B0	AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W/O(CLOCK),DK.CHARCOAL,TRIM1#	08/2000 - 09/2001	1
84010-12200B0	AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W/O(REAR WINDOW DEFOGGER),DK.CHARCOAL,TRIM10,14	04/1997 - 12/1998	1
84010-12090B0	AE111,CE110,EE110..LHD..SED..GEN W(AIR CONDITIONER),DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84010-12220B0	AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W/O(REAR WINDOW DEFOGGER & CLOCK),DK.CHARCOAL,TRIM10,14	04/1997 - 12/1998	1
84010-12110B0	AE111,CE110,EE110..LHD..SED..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84010-12180B0	AE111,CE110,EE110..LHD..SED..(STD,XL,XLI)..GEN W/O(CLOCK),DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-20030	AE111..RHD..WG;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	04/1997 - 12/2999	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12180	AE111..RHD..WG;EE110..LHD..3FC;AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 12/2999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12370	AE11#,EE11#	05/1995 - 05/1996	1
84332-12400	AE110,111,CE110..GCC,GEN,TUR;AE112,EE11#..ARL,GCC,GEN,VEN	02/2000 - 12/2999	1
84332-12400	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 02/2000	1
84332-12400	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 02/2000	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	AE112,EE11#..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR 14V 0.91W	02/2000 - 12/2999	1
84999-10860	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) 14V 0.91W	04/1997 - 02/2000	1
84999-10860	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 14V 0.91W	04/1997 - 02/2000	1
84656A - BEZEL, SWITCH
84656-12040B1	EE110..5F..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN W(ELECTRIC REMOTE CONTOROL MIRROR),DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84656-12060B1	EE110..LHD..3FC;EE110..MTM..(STD,XL)..GEN;AE111,CE110..SED..(XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84656-12060B1	AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84656-12040B1	AE111..SED..GEN;CE110,EE110..(GL,XL)..GEN W(ELECTRIC REMOTE CONTOROL MIRROR),DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84656-12040B1	AE111,CE110,EE110..SED..(GL,GLI,XL,XLI)..GEN W(ELECTRIC REMOTE CONTOROL MIRROR),DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84656-12060B1	AE111,CE110,EE110..SED..(STD,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84763 - PLATE, SWITCH
84763-12110B1	EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84763-12110B1	AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84763-12110B1	AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84763D - PLATE, SWITCH
84763-12110B1	AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84763-12110B1	AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN DK.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	1
84763-12110B1	EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN DK.CHARCOAL,TRIM10,14	04/1997 - 10/1999	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-12130	AE112..XLI..GCC;AE111,CE110,EE110..(XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTROL DOOR MIRROR)	04/1997 - 10/1999	1
84870-12130	AE112..XLI..GCC;EE110..LHD..3FC;AE111..RHD..WG..5F;CE110,EE110..5F..XL..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN) W(ELECTRIC REMOTE CONTROL DOOR MIRROR)	04/1997 - 09/2001	1
84930 - SWITCH ASSY, DOOR CONTROL
84930-12160	AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK)	04/1997 - 03/2001	1
84930-12160	AE110..TH;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE110..(XL,XLI)..(BZ,GCC,GEN,PHL,TUR) W(POWER DOOR LOCK)	04/1997 - 03/2001	1
84930-12160	AE111,112,CE110,EE110..(XL,XLI)..GEN W(POWER DOOR LOCK)	03/2001 - 09/2001	1
84930C - BULB(FOR DOOR CONTROL SWITCH)
84999-10310	AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4FC,5F)..(XL,XLI)..(ARL,GCC,GEN) 14V 0.91W	04/1997 - 03/2001	1
84999-10310	AE110..TH;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE110..(XL,XLI)..(BZ,GCC,GEN,PHL,TUR) 14V 0.91W	04/1997 - 03/2001	1
84999-10310	AE111,112,CE110,EE110..(XL,XLI)..(ARL,GEN) 14V 0.91W	03/2001 - 09/2001	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85500B - BULB, CIGARETTE LIGHTER
90010-01015	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 14V 1.4W,W(CAP)	05/1995 - 12/2999	1
90010-01015	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN) 14V 1.4W,W(CAP)	04/1997 - 12/2999	1
85513 - COVER, CIGARETTE LIGHTER
85513-12020	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12100	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 08/2000	1
85520-28010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,STD,XL)..(ARL,BZ,GCC,GEN,GENKD,IDN,NZ,PHL,TH,VEN)	04/1997 - 08/2000	1
Common parts
90170-09002
Linked diagrams
8715

ILLUST NO. 4 OF 6(9704- )LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-12110	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) DENSO	04/1997 - 06/1999	1
81980-12070	AE11#,EE11#	05/1995 - 04/1997	1
81980-0W010	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN TRIDON	03/1998 - 12/2999	1
81980-32010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN DENSO	06/1999 - 12/2999	1
81981-02010	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=81981-02010,DENSO	10/1999 - 12/2999	1
81980-12110	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI DENSO	04/1997 - 06/1999	1
82600F - FUSE, FUSE BLOCK
90982-09008	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 7.5A,MINI FUSE,BRN	05/1995 - 12/2999	1
90982-09003	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A	05/1995 - 12/2999	1
90982-09009	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 10A,MINI FUSE,RED	05/1995 - 12/2999	1
90982-09003	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A	04/1997 - 12/2999	1
90982-09013	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 30A,MINI FUSE,GRN	05/1995 - 12/2999	1
90982-09009	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 10A,MINI FUSE,RED	04/1997 - 12/2999	1
90982-09007	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 5A,MINI FUSE,TAN	05/1995 - 12/2999	1
90982-09007	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 5A,MINI FUSE,TAN	04/1997 - 12/2999	1
90982-09011	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 20A,MINI FUSE,YELLOW	05/1995 - 12/2999	1
90982-09008	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 7.5A,MINI FUSE,BRN	04/1997 - 12/2999	1
90982-09013	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 30A,MINI FUSE,GRN	04/1997 - 12/2999	1
90982-09011	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 20A,MINI FUSE,YELLOW	04/1997 - 12/2999	1
90982-09010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A,MINI FUSE,BLUE,(J)	05/1995 - 12/2999	1
90982-09010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A,MINI FUSE,BLUE,(J)	04/1997 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09008	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 7.5A,MINI FUSE,BRN	05/1995 - 12/2999	1
90982-09003	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A	05/1995 - 12/2999	1
90982-09009	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 10A,MINI FUSE,RED	05/1995 - 12/2999	1
90982-09003	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A	04/1997 - 12/2999	1
90982-09013	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 30A,MINI FUSE,GRN	05/1995 - 12/2999	1
90982-09009	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 10A,MINI FUSE,RED	04/1997 - 12/2999	1
90982-09007	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 5A,MINI FUSE,TAN	05/1995 - 12/2999	1
90982-09007	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 5A,MINI FUSE,TAN	04/1997 - 12/2999	1
90982-09011	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 20A,MINI FUSE,YELLOW	05/1995 - 12/2999	1
90982-09008	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 7.5A,MINI FUSE,BRN	04/1997 - 12/2999	1
90982-09013	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 30A,MINI FUSE,GRN	04/1997 - 12/2999	1
90982-09011	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 20A,MINI FUSE,YELLOW	04/1997 - 12/2999	1
90982-09010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 15A,MINI FUSE,BLUE,(J)	05/1995 - 12/2999	1
90982-09010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL 15A,MINI FUSE,BLUE,(J)	04/1997 - 12/2999	1
82600M - FUSE, MEDIUM CURRENT
90982-10001	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 30A,PINK	04/1997 - 11/1998	1
90982-10001	EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 30A,PINK	11/1998 - 12/2999	1
90982-10002	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,GREEN	05/1995 - 11/1998	1
90982-10002	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 40A,GREEN	11/1998 - 12/2999	1
90982-10001	AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 30A,PINK	04/1997 - 11/1998	1
90982-10002	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 40A,GREEN	11/1998 - 12/2999	1
90982-10001	AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 30A,PINK	11/1998 - 12/2999	1
90982-10002	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 40A,GREEN	04/1997 - 11/1998	1
82641 - RELAY, INTEGRATION NO.1
82641-12160	AE111..LHD..SED..(GEN,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GEN,VEN)	04/1997 - 07/2000	1
82641-12160	EE110..LHD..(GL,XL)..(GEN,TUR);AE111,112,CE110..LHD..(BZ,GEN,GENKD,VEN)	04/1997 - 07/2000	1
82671B - BLOCK, JUNCTION
82671-30360	AE111..GL,XL;AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.2	04/1997 - 07/1998	1
82671-30360	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	07/1998 - 11/1998	1
82671-30350	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.3	11/1998 - 02/2000	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.3	07/1998 - 11/1998	1
82671-30370	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.1,6	11/1998 - 12/2999	2
82671-30350	AE111..GL,XL;AE111..RHD..WG;AE111..LHD..GLI..GEN;EE110..(GL,STD)..GEN;AE111..LHD..SED..5F..XLI;AE112,CE110..GCC,GEN,VEN;EE110..LHD..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.3	04/1997 - 07/1998	1
82671-30370	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) NO.1,6	04/1997 - 11/1998	2
82671-30350	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.3	02/2000 - 12/2999	1
82671-30360	AE11#,CE110,EE11# NO.2	07/1998 - 11/1998	1
82671-30370	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.1,6	11/1998 - 12/2999	2
82671-30350	EE110..LHD;AE111..WG..5F;EE110..RHD..GL;AE111..4FC..XLI;AE111,CE110..GL,XL;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.3	04/1997 - 07/1998	1
82671-30350	AE11#,CE110,EE11# NO.3	07/1998 - 11/1998	1
82671-30360	AE111..WG..5F;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111,CE110,EE110..GL,STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.2	04/1997 - 07/1998	1
82671-30350	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.3	11/1998 - 02/2000	1
82671-30360	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.2	11/1998 - 02/2000	1
82671-30370	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.1,6	04/1997 - 11/1998	2
82671-30360	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.2	11/1998 - 02/2000	1
82671-30360	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.2	02/2000 - 12/2999	1
82671B - BLOCK, JUNCTION
82671-30360	AE111..GL,XL;AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.2	04/1997 - 07/1998	1
82671-30360	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	07/1998 - 11/1998	1
82671-30350	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.3	11/1998 - 02/2000	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.3	07/1998 - 11/1998	1
82671-30370	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.1,6	11/1998 - 12/2999	2
82671-30350	AE111..GL,XL;AE111..RHD..WG;AE111..LHD..GLI..GEN;EE110..(GL,STD)..GEN;AE111..LHD..SED..5F..XLI;AE112,CE110..GCC,GEN,VEN;EE110..LHD..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.3	04/1997 - 07/1998	1
82671-30370	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) NO.1,6	04/1997 - 11/1998	2
82671-30350	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.3	02/2000 - 12/2999	1
82671-30360	AE11#,CE110,EE11# NO.2	07/1998 - 11/1998	1
82671-30370	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.1,6	11/1998 - 12/2999	2
82671-30350	EE110..LHD;AE111..WG..5F;EE110..RHD..GL;AE111..4FC..XLI;AE111,CE110..GL,XL;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.3	04/1997 - 07/1998	1
82671-30350	AE11#,CE110,EE11# NO.3	07/1998 - 11/1998	1
82671-30360	AE111..WG..5F;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111,CE110,EE110..GL,STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.2	04/1997 - 07/1998	1
82671-30350	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.3	11/1998 - 02/2000	1
82671-30360	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.2	11/1998 - 02/2000	1
82671-30370	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.1,6	04/1997 - 11/1998	2
82671-30360	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.2	11/1998 - 02/2000	1
82671-30360	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.2	02/2000 - 12/2999	1
82671B - BLOCK, JUNCTION
82671-30360	AE111..GL,XL;AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.2	04/1997 - 07/1998	1
82671-30360	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	07/1998 - 11/1998	1
82671-30350	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.3	11/1998 - 02/2000	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.3	07/1998 - 11/1998	1
82671-30370	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.1,6	11/1998 - 12/2999	2
82671-30350	AE111..GL,XL;AE111..RHD..WG;AE111..LHD..GLI..GEN;EE110..(GL,STD)..GEN;AE111..LHD..SED..5F..XLI;AE112,CE110..GCC,GEN,VEN;EE110..LHD..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.3	04/1997 - 07/1998	1
82671-30370	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) NO.1,6	04/1997 - 11/1998	2
82671-30350	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.3	02/2000 - 12/2999	1
82671-30360	AE11#,CE110,EE11# NO.2	07/1998 - 11/1998	1
82671-30370	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.1,6	11/1998 - 12/2999	2
82671-30350	EE110..LHD;AE111..WG..5F;EE110..RHD..GL;AE111..4FC..XLI;AE111,CE110..GL,XL;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.3	04/1997 - 07/1998	1
82671-30350	AE11#,CE110,EE11# NO.3	07/1998 - 11/1998	1
82671-30360	AE111..WG..5F;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111,CE110,EE110..GL,STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.2	04/1997 - 07/1998	1
82671-30350	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.3	11/1998 - 02/2000	1
82671-30360	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.2	11/1998 - 02/2000	1
82671-30370	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.1,6	04/1997 - 11/1998	2
82671-30360	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.2	11/1998 - 02/2000	1
82671-30360	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.2	02/2000 - 12/2999	1
82671B - BLOCK, JUNCTION
82671-30360	AE111..GL,XL;AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..LHD..SED..5F..XLI;AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.2	04/1997 - 07/1998	1
82671-30360	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.2	07/1998 - 11/1998	1
82671-30350	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.3	11/1998 - 02/2000	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN NO.3	07/1998 - 11/1998	1
82671-30370	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.1,6	11/1998 - 12/2999	2
82671-30350	AE111..GL,XL;AE111..RHD..WG;AE111..LHD..GLI..GEN;EE110..(GL,STD)..GEN;AE111..LHD..SED..5F..XLI;AE112,CE110..GCC,GEN,VEN;EE110..LHD..XL..(GCC,GEN);AE111..SED..4FC..XLI..(GCC,GEN,VEN) NO.3	04/1997 - 07/1998	1
82671-30370	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) NO.1,6	04/1997 - 11/1998	2
82671-30350	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.3	02/2000 - 12/2999	1
82671-30360	AE11#,CE110,EE11# NO.2	07/1998 - 11/1998	1
82671-30370	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.1,6	11/1998 - 12/2999	2
82671-30350	EE110..LHD;AE111..WG..5F;EE110..RHD..GL;AE111..4FC..XLI;AE111,CE110..GL,XL;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.3	04/1997 - 07/1998	1
82671-30350	AE11#,CE110,EE11# NO.3	07/1998 - 11/1998	1
82671-30360	AE111..WG..5F;AE111..4FC..XLI;AE111..LHD..GLI..GEN;AE111..GENKD,MA,PHL,TH;AE111..5F..(GCC,NZ,VEN);AE111,CE110,EE110..GL,STD,XL;AE111..LHD..SED..5F..XLI..GEN;AE110,112,EE111..GCC,IDN,MA,NZ,TH,VEN NO.2	04/1997 - 07/1998	1
82671-30350	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.3	11/1998 - 02/2000	1
82671-30360	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) NO.2	11/1998 - 02/2000	1
82671-30370	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI NO.1,6	04/1997 - 11/1998	2
82671-30360	AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR NO.2	11/1998 - 02/2000	1
82671-30360	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN NO.2	02/2000 - 12/2999	1
82671C - BLOCK, JUNCTION
82671-12200	AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN)	11/1998 - 10/1999	1
82671-12200	AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 10/1999	1
82671-12200	AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD	04/1997 - 11/1998	1
82671-12200	AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82671D - BLOCK, JUNCTION
82671-30360	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 12/2999	1
82671D - BLOCK, JUNCTION
82671-30360	AE111,EE111;AE110,EE110..GLI,XL	05/1995 - 04/1997	1
82671-30350	AE111..RHD..WG;EE110..LHD..3FC;AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 12/2999	1
82672B - COVER, JUNCTION BLOCK
82672-12370	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	1
82672-12210	AE11#,EE11#	05/1995 - 04/1997	1
82672-12370	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN)	04/1997 - 11/1998	1
82672-12370	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR	11/1998 - 12/2999	1
82672-12370	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82683 - PLATE, FUSE BLOCK CAUTION
82683-12200	AE11#,EE11#	05/1995 - 05/1996	1
82683-12210	EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82683-12210	EE110..LHD..(GCC,GEN);AE111..LHD..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN)	11/1998 - 02/2000	1
82683-12210	AE111,112,CE110,EE11#..LHD	04/1997 - 11/1998	1
82683-12210	AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 02/2000	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12010	AE111;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
82732-02010	AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 12/2999	1
82732-02010	AE111,112,CE110,EE11#..LHD	04/1997 - 11/1998	1
82732-02010	EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-12020	AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN)	04/1997 - 11/1998	1
82731-12020	AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR)	11/1998 - 10/1999	1
82731-12020	AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN)	11/1998 - 10/1999	1
82731-12020	AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD	04/1997 - 11/1998	1
82734A - BLOCK, CENTER JUNCTION
82734-12010	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	11/1998 - 12/2999	1
82734-12010	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 11/1998	1
82734-12010	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 11/1998	1
82734-12010	AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR	11/1998 - 12/2999	1
82751 - BLOCK, DRIVER SIDE RELAY
82751-13010	EE11#..GCC,GEN,VEN;AE11#,CE110..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
82751-12020	AE11#,EE11#	05/1995 - 04/1997	1
82751-13010	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	04/1997 - 02/2000	1
82751-13010	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,CE110,EE110..GL,GLI,STD,XL;AE111,EE111..SED..(GL,GLI,XL,XLI);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,TH,VEN)	04/1997 - 02/2000	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 03/2000	1
84340-32050	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	03/2000 - 04/2001	1
84340-32050	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	04/1997 - 03/2000	1
84340-32050	AE11#,CE110,EE11#,ZZE11#..ARL,GEN,TUR,VEN	04/2001 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-33010	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	EE110..GCC,GEN;AE111..RHD..WG;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
85912 - RELAY, DEFOGGER
90080-87008	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) PART NUMBER LABEL=90080-87008	04/1997 - 12/2999	1
90987-02012	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) PART NUMBER LABEL=90987-02012	04/1997 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-02012	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN	05/1995 - 10/1999	1
90080-87008	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90080-87008	10/1999 - 02/2000	1
90987-02012	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 10/1999	1
90987-02012	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90987-02012	02/2000 - 12/2999	1
90080-87008	ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN PART NUMBER LABEL=90080-87008	02/2000 - 12/2999	1
90987-02012	AE11#,CE110,EE11#..ARL,GCC,GEN PART NUMBER LABEL=90987-02012	10/1999 - 02/2000	1
85930 - RELAY ASSY, POWER WINDOW
90987-02012	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 10/1999	1
90987-02012	ZZE11#;AE11#,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) PART NUMBER LABEL=90987-02012	02/2000 - 12/2999	1
90080-87008	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) PART NUMBER LABEL=90080-87008	10/1999 - 02/2000	1
90987-02012	AE11#,CE110,EE11#..(3FC,4FC,5F)..(ARL,GCC,GEN) PART NUMBER LABEL=90987-02012	10/1999 - 02/2000	1
90080-87008	ZZE11#;AE11#,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) PART NUMBER LABEL=90080-87008	02/2000 - 12/2999	1
90987-02012	AE110..TH;AE111..MA;AE112..XLI..(GCC,GEN,IDN);AE111,CE110,EE111..GL,GLI,XL,XLI;AE110,112,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 10/1999	1
Common parts
90099-00910
90099-00929
90159-70003
90159-70004
90179-06178
93315-14012
93568-15014
Linked diagrams
8404

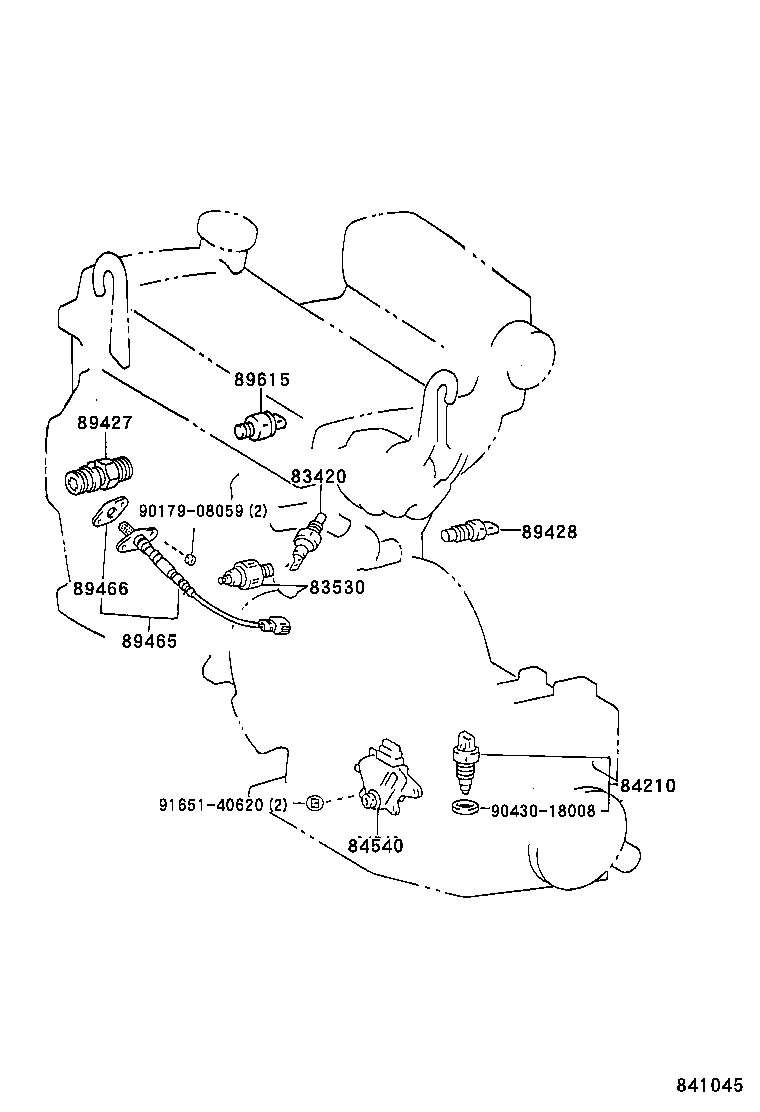

ILLUST NO. 1 OF 6(9505- )EE11#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020	EE111;AE111,EE110..GL,STD,XL	05/1995 - 05/1997	1
83420-16020	EE111;AE111,EE110..GL,STD,XL	04/1997 - 05/1997	1
83420-16020	AE111,EE110..(GL,STD,XL)..(GCC,GEN)	10/1999 - 09/2001	1
83420-16020	AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	05/1997 - 12/1997	1
83420-16020	EE111..GEN;AE111,EE110..GL,STD,XL	12/1997 - 10/1999	1
83420-16020	EE111..GEN;AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN)	12/1997 - 10/1999	1
83420-16020	AE111,EE110..GL,STD,XL	05/1997 - 12/1997	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090	AE110,112,EE11#..GCC,GEN;AE111..RHD..(GLI,SEG,XLI)..GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN)	05/1995 - 03/1998	1
83530-30090	AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GLI,XLI	04/1997 - 03/1998	1
83530-28020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN) DENSO	03/1998 - 12/2999	1
83530-60020	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..LHD..SED..(GLI,XLI)..(GCC,GEN,TUR,VEN) YAZAKI	03/1998 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-16050	EE110..LHD..3FC;AE110,111..ATM..(GCC,GEN,TUR,VEN);AE112,EE111..ATM..(ARL,GCC,GEN,VEN)	12/1998 - 12/2999	1
84540-16050	AE110..4FC..GLI;AE112,EE11#..ATM;AE111..ATM..(GL,GLI,XL,XLI);AE110,111..4FC..(SEG,XLI)..(MA,TH)	04/1997 - 12/1998	1
84540-16050	AE112,EE111..ATM..(ARL,GCC,GEN,VEN);AE110,111,EE110..SED..ATM..(GCC,GEN,TUR,VEN)	05/1995 - 12/1998	1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-12160	EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN	05/1995 - 12/2999	1
Common parts
90179-08059
90430-18008
91651-40620

ILLUST NO. 5 OF 6(9704- )

Click highlighted areas on diagram

COMBINATION SWITCH

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH)	04/1997 - 02/2000	1
84052-12070	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN;AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 02/2000	1
84052-12070	EE11#..(3FC,5F)..(GCC,GEN);AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12070	AE111,CE110,EE110..LHD..GEN W(*80)	10/1999 - 09/2001	1
84306-12070	AE110..GLI;EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,VEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 11/1998	1
84306-12070	EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,VEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	11/1998 - 10/1999	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-1A820	AE11#,EE11#..XL,XLI W(*IW)	05/1995 - 11/1995	1
84310-1A810	AE11#,EE11#..XL,XLI	05/1995 - 11/1995	1
84310-1E230	AE111,EE110..LHD..SED..(STD,XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..SED..(STD,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 10/1999	1
84310-1E230	AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN)	10/1999 - 03/2001	1
84310-1E650	AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(*80 & INTERMITTENT WIPER)	10/1999 - 09/2001	1
84310-1E240	AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(*80)	10/1999 - 09/2001	1
84310-1E640	AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(*IW)	10/1999 - 09/2001	1
84310-1E260	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER)	04/1997 - 10/1999	1
84310-1E240	AE111,112,CE110,EE110..LHD..SED..(STD,XL,XLI)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
84310-1E250	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*IW)	04/1997 - 10/1999	1
84310-1E230	AE111..LHD..SED..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..LHD..SED..(STD,XL,XLI)..(GCC,GEN,GENKD,VEN)	04/1997 - 10/1999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
84450-12200	EE111..GEN,VEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN	05/1995 - 02/2000	1
84450-12200	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN)	04/1997 - 02/2000	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-1A380	AE11#,EE11#..XL,XLI	05/1995 - 11/1995	1
84652-1A400	AE11#,EE11#..XL,XLI W(*IW)	05/1995 - 11/1995	1
84652-1A740	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*IW)	10/1999 - 09/2001	1
84652-1A620	AE112..SED..GCC;AE111,CE110,EE110..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(*IW)	04/1997 - 10/1999	1
84652-1A620	AE112..SED..(BZ,GCC);AE111,CE110,EE110..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,VEN) W(*IW)	04/1997 - 10/1999	1
Common parts
93319-14012
93319-15012

ILLUST NO. 5 OF 6(9505- )AE11#,CE110,EE11#

Click highlighted areas on diagram

COMBINATION SWITCH

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH)	04/1997 - 02/2000	1
84052-12070	AE111..RHD..WG;EE110..LHD..3FC;AE112,CE110,EE111..ARL,GCC,GEN;AE110,EE110..(4FC,5F)..(GL,GLI,XL)..(GCC,GEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)	04/1997 - 02/2000	1
84052-12070	EE11#..(3FC,5F)..(GCC,GEN);AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-1A820	AE11#,EE11#..XL,XLI W(*IW)	05/1995 - 11/1995	1
84310-1A810	AE11#,EE11#..XL,XLI	05/1995 - 11/1995	1
84310-1E230	AE111,EE110..LHD..SED..(STD,XL,XLI)..(GCC,GEN);AE112,CE110,EE111..LHD..SED..(STD,XL,XLI)..(GCC,GEN,VEN)	04/1997 - 10/1999	1
84310-1E230	AE111..LHD..(XL,XLI)..GEN;CE110,EE11#..LHD..(STD,XL)..(GEN,VEN)	10/1999 - 03/2001	1
84310-1E650	AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(*80 & INTERMITTENT WIPER)	10/1999 - 09/2001	1
84310-1E240	AE111,CE110,EE110..LHD..(STD,XL,XLI)..GEN W(*80)	10/1999 - 09/2001	1
84310-1E640	AE111,CE110,EE110..LHD..(XL,XLI)..GEN W(*IW)	10/1999 - 09/2001	1
84310-1E260	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE & INTERMITTENT WIPER)	04/1997 - 10/1999	1
84310-1E240	AE111,112,CE110,EE110..LHD..SED..(STD,XL,XLI)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE)	04/1997 - 10/1999	1
84310-1E250	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*IW)	04/1997 - 10/1999	1
84310-1E230	AE111..LHD..SED..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..LHD..SED..(STD,XL,XLI)..(GCC,GEN,GENKD,VEN)	04/1997 - 10/1999	1
84312 - PLATE, HORN CONTACT
84312-26010	AE110..GLI;AE111,112,CE110,EE110..LHD..SED	04/1997 - 05/1997	1
84312-26010	EE110..LHD..SED..(GCC,GEN);AE111,112,CE110,EE111..LHD..SED..(GCC,GEN,VEN)	11/1998 - 10/1999	1
84312-26010	AE110..GLI;AE111..SEG;AE111,112,CE110,EE110..LHD..SED	05/1995 - 05/1997	1
84312-26010	AE111,112,CE110,EE11#..LHD..SED..(GEN,VEN)	10/1999 - 03/2001	1
84312-26010	EE110..LHD..SED..(GCC,GEN,GENKD,TUR,VEN);AE111,112,CE110,EE111..LHD..SED..(GCC,GEN,GENKD,VEN)	11/1998 - 10/1999	1
84312-26010	AE110..GLI;EE110..LHD..SED..(GCC,GEN,GENKD,TUR,VEN);AE111,112,CE110..LHD..SED..(GCC,GEN,GENKD,VEN)	05/1997 - 11/1998	1
84312-26010	AE110..GLI;EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,VEN)	05/1997 - 11/1998	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN	02/2000 - 12/2999	1
84450-12200	EE111..GEN,VEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..ARL,GCC,GEN	05/1995 - 02/2000	1
84450-12200	AE110..TH;AE111..MA;AE111..WG..5F;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,STD,XL,XLI);AE112..(GLI,SEG)..(ARL,BZ,GCC,IDN,NZ,PHL,TH);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,NZ,PHL,VEN)	04/1997 - 02/2000	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-1A380	AE11#,EE11#..XL,XLI	05/1995 - 11/1995	1
84652-1A400	AE11#,EE11#..XL,XLI W(*IW)	05/1995 - 11/1995	1
84652-1A740	AE111,112,CE110,EE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(*IW)	10/1999 - 09/2001	1
84652-1A620	AE112..SED..GCC;AE111,CE110,EE110..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(*IW)	04/1997 - 10/1999	1
84652-1A620	AE112..SED..(BZ,GCC);AE111,CE110,EE110..LHD..SED..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,VEN) W(*IW)	04/1997 - 10/1999	1
Common parts
93319-14012
93319-15012

EE110L-AEHDS (1997)

ILLUST NO. 6 OF 6(9505- )SED

ILLUST NO. 2 OF 6(9505- )

ILLUST NO. 3 OF 6(9704- )LHD

ILLUST NO. 4 OF 6(9704- )LHD

ILLUST NO. 1 OF 6(9505- )EE11#

ILLUST NO. 5 OF 6(9704- )

ILLUST NO. 5 OF 6(9505- )AE11#,CE110,EE11#

Part Price Details
