EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
ILLUST NO. 7 OF 8(9505- )

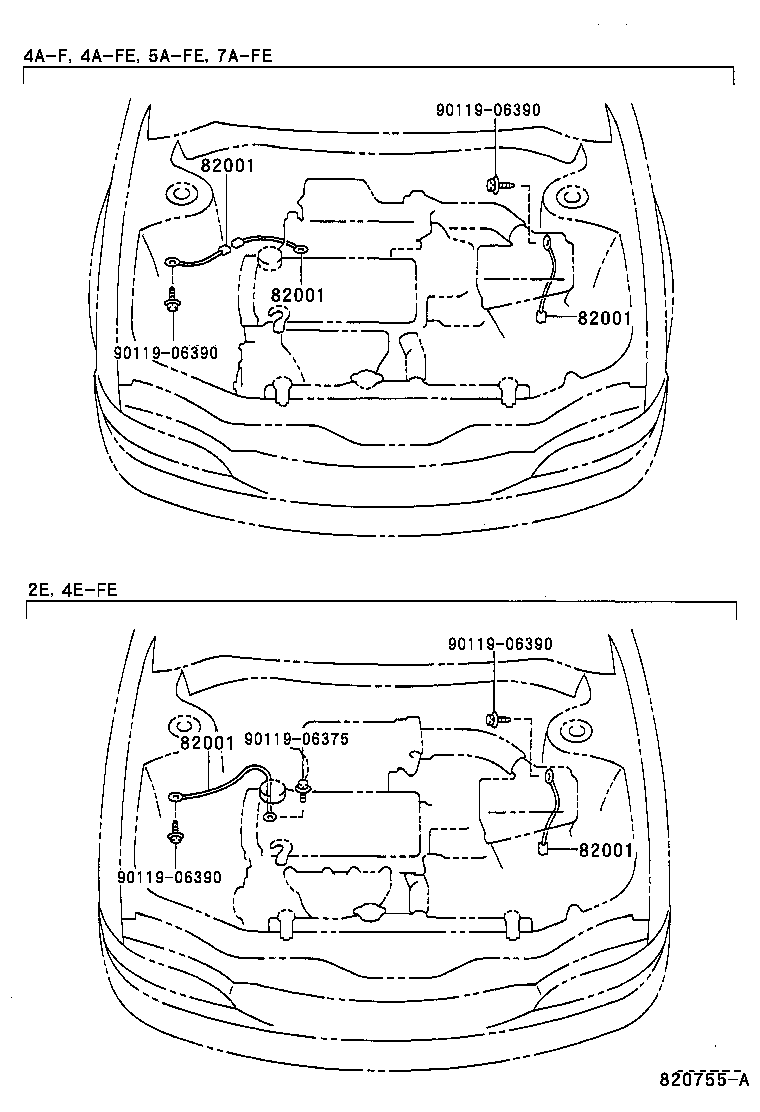

FUSIBLE LINK REPAIR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 82991-12070 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 82991-12070 |
AE111..WG..5F;AE112..GLI,SEG;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR |
1 | ||
| 82991-12070 |
AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||

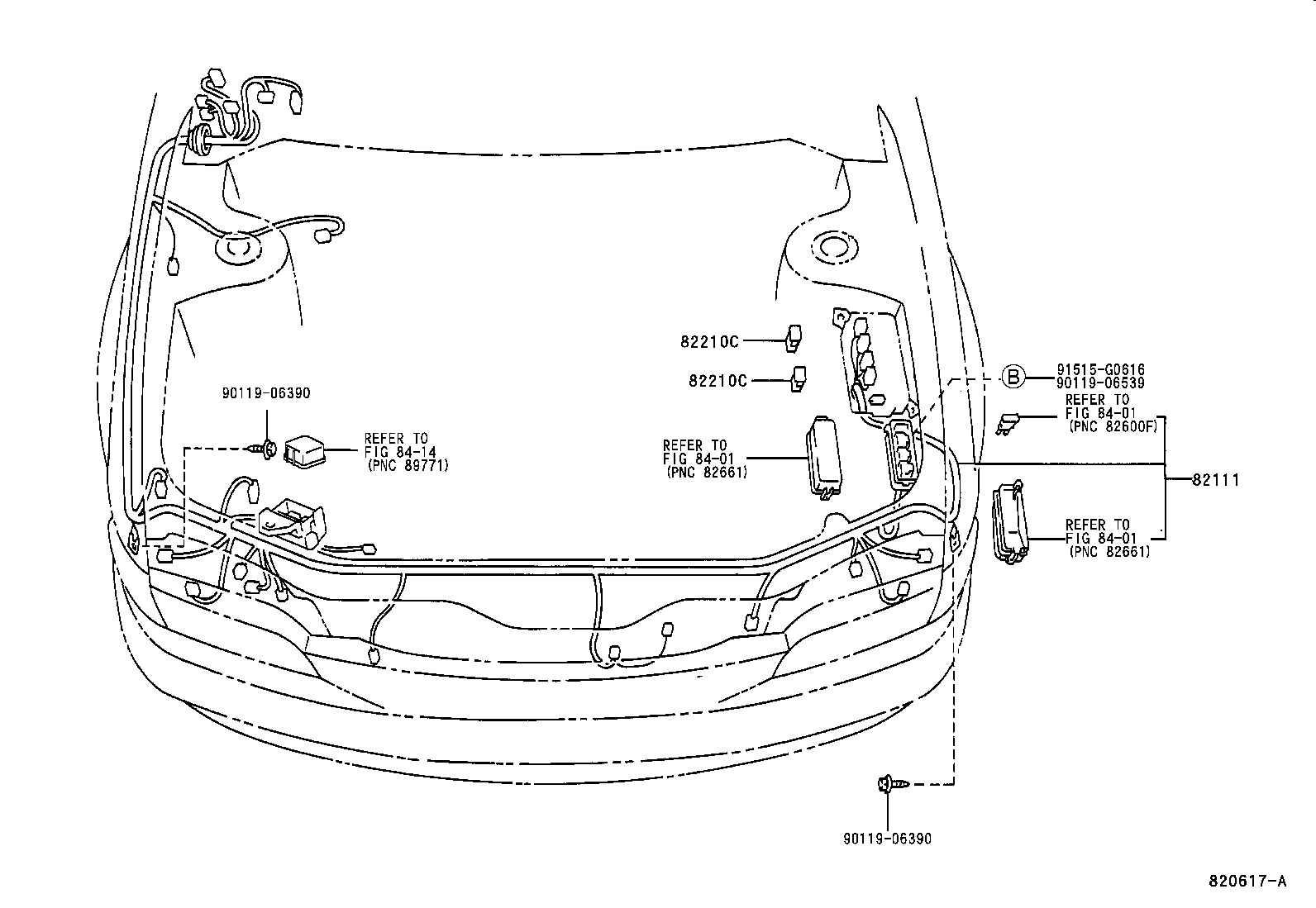

ILLUST NO. 2 OF 8(9505- )AE11#,CE110,EE11#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1H240 |
EE11# |
1 | ||
| 82111-1K040 |
AE112,EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 82115-12300 |
AE111,112,EE110..LHD..(GCC,GEN) |
1 | ||
| 82111-1K040 |
AE112,EE110..LHD..(GCC,GEN);AE111,EE111..LHD..(GCC,GEN,VEN) |
1 | ||
| 82111-1K041 |
AE111,EE110..LHD..GEN W(MULTI HEAD LAMP) |
1 | ||
| 82111-1K040 |
AE112..BZ,GCC,GEN;AE111..LHD..(GCC,GEN,GENKD,VEN);EE110..LHD..(GCC,GEN,GENKD,PHL,VEN) |
1 | ||
| 82111-1K040 |
AE111,EE111..LHD..(GCC,GEN,GENKD,VEN);AE112,EE110..LHD..(BZ,GCC,GEN,GENKD,PHL) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
EE110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
AE11#,EE11# 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
EE110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
AE11#,EE11# 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 91515-G0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||

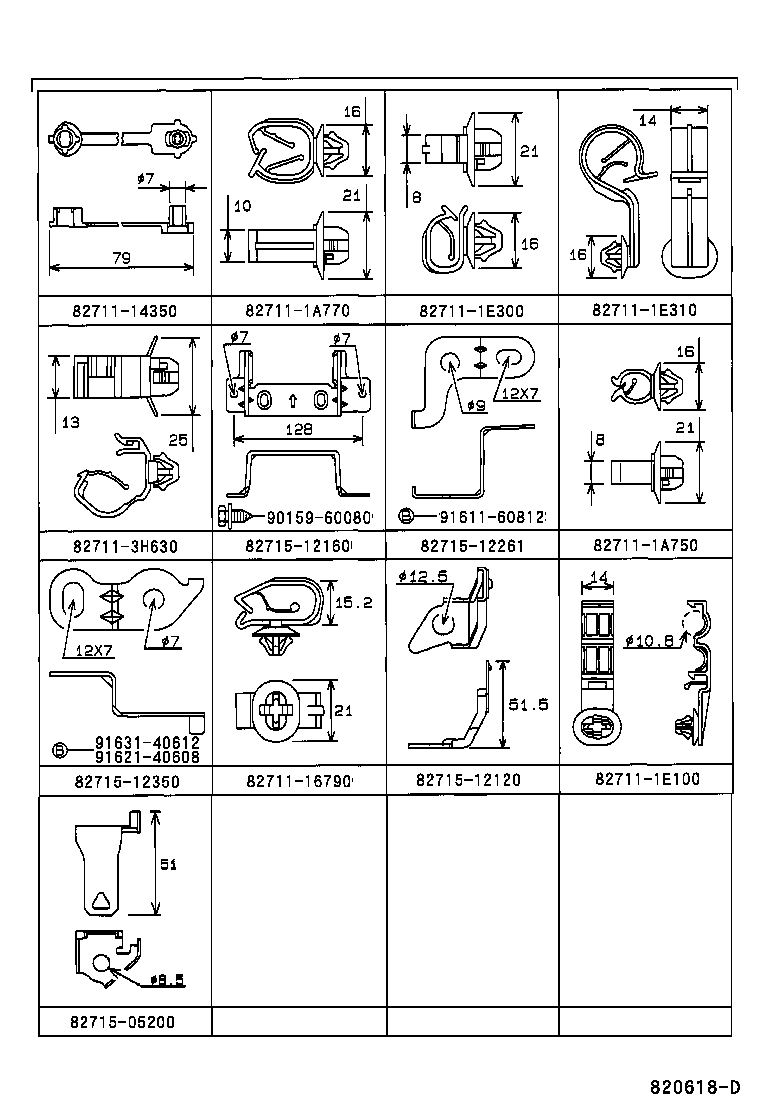

ILLUST NO. 5 OF 8(9505- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14350 | ||||
| 82711-16790 | ||||
| 82711-1A750 | ||||
| 82711-1A770 | ||||
| 82711-1E100 | ||||
| 82711-1E300 | ||||
| 82711-1E310 | ||||
| 82711-3H630 | ||||
| 82715-05200 | ||||
| 82715-12120 | ||||
| 82715-12160 | ||||
| 82715-12261 | ||||
| 82715-12350 | ||||
| 90159-60080 | ||||
| 91611-60812 | ||||
| 91621-40608 | ||||
| 91631-40612 | ||||

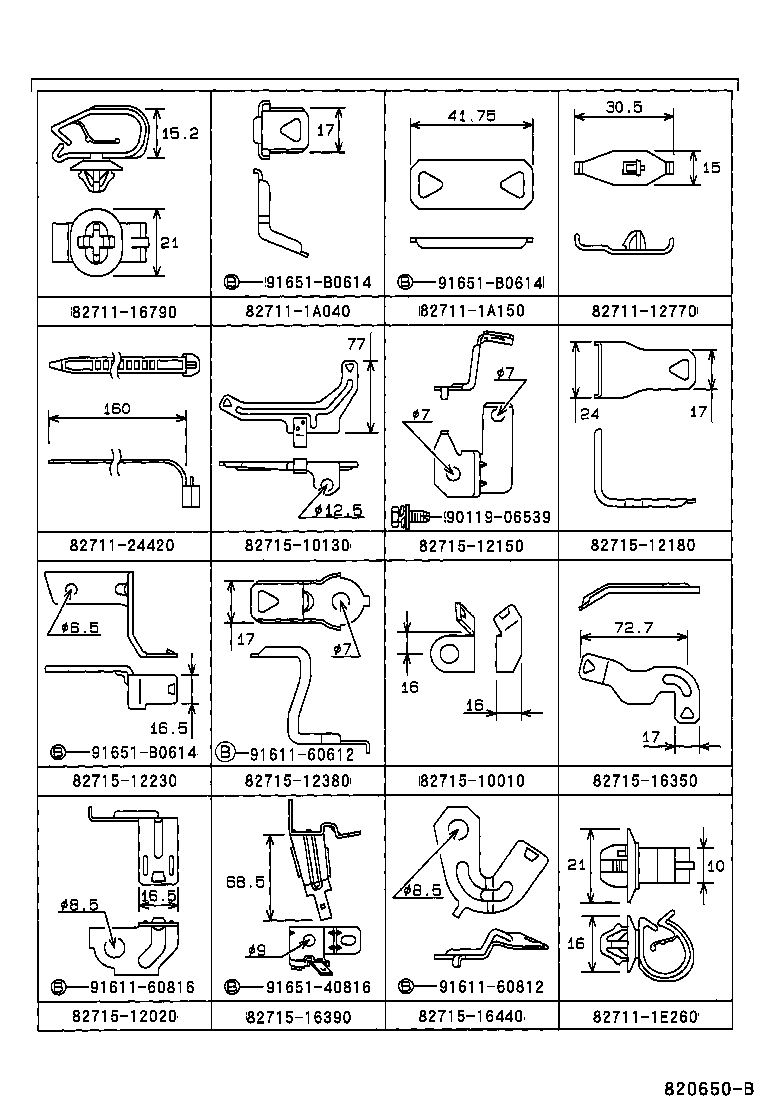

ILLUST NO. 5 OF 8(9505- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-16790 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1E260 | ||||
| 82711-24420 | ||||
| 82715-10010 | ||||
| 82715-10130 | ||||
| 82715-12020 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12230 | ||||
| 82715-12380 | ||||
| 82715-16350 | ||||
| 82715-16390 | ||||
| 82715-16440 | ||||
| 90119-06539 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91651-B0614 | ||||

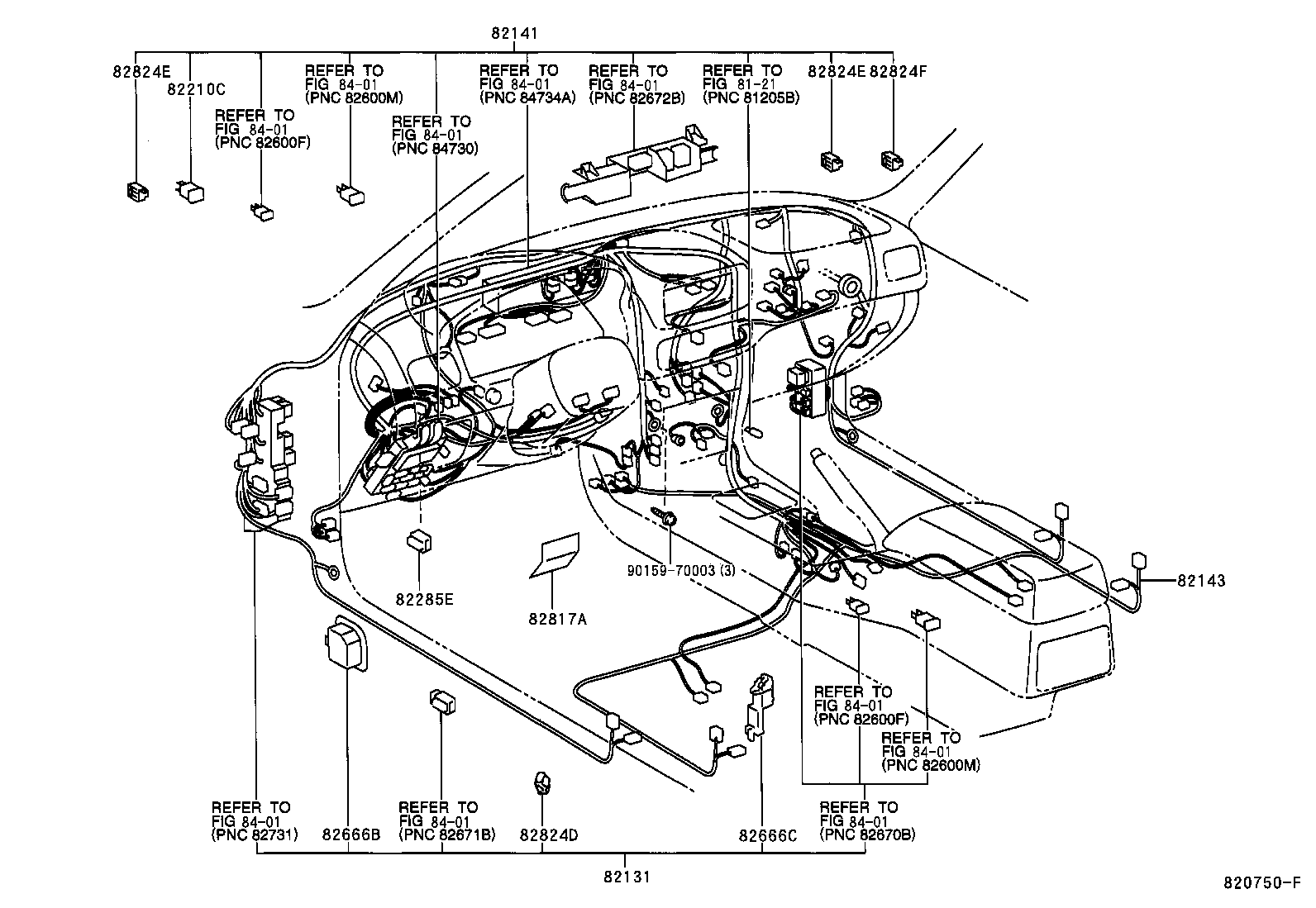

ILLUST NO. 3 OF 8(9704- )LHD
COWL,INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1L380 |
EE110 |
1 | ||
| 82131-1L390 |
EE110 W(*EL) |
1 | ||
| 82131-1L580 |
AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 82131-1L580 |
AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 82131-1L580 |
AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN,GENKD,PHL,VEN) |
1 | ||
| 82131-1L581 |
AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 82131-1L580 |
AE111,CE110,EE110..LHD..(GL,STD,XL)..(GCC,GEN,GENKD,PHL) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1H840 |
EE11#..3FC |
1 | ||
| 82141-1N520 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82141-1N500 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82141-1N500 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82141-1N521 |
AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82141-1N501 |
AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP) |
1 | ||
| 82145-12540 |
AE111,CE110,EE110..LHD..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE) |
1 | ||
| 82145-12530 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82145-12510 |
AE111,112,CE110,EE110..LHD..GEN |
1 | ||
| 82145-12520 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE) |
1 | ||
| 82141-1N500 |
EE110..LHD..(GCC,GEN,GENKD,VEN);AE111,112,CE110..LHD..(GCC,GEN,GENKD) |
1 | ||
| 82141-1N520 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82141-1N500 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN,GENKD) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12010 |
AE11#,CE110,EE11#..ARL,GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-12010 |
AE111..WG..5F;AE112..LHD..XLI;AE111..LHD..WG..4FC;AE112..(GLI,SEG)..(ARL,BZ,GCC,PHL,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,PHL);AE111,EE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,PHL,VEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-12010 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82143-12100 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) W(*80,DRIVER SIDE) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
EE110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
AE11#,EE11# 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE |
1 | ||
| 82285E - WIRE, ILLUMINATION | ||||
| 82285-12020 |
AE110..TH;AE110,112..(GLI,SEG)..(GEN,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,TH,VEN);AE112,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,IDN,PHL,VEN) |
1 | ||
| 82285-12020 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82285-12020 |
AE111..WG..5F;AE112,CE110..(SEG,XL)..(GEN,TH);AE110,EE110..GCC,GEN,GENKD,PHL,TH;AE111,EE111..SED..(GCC,GEN,TH,VEN);AE112..(GLI,XLI)..(GCC,GEN,IDN,VEN) |
1 | ||
| 82285-12020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE11#,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 82285-12020 |
EE111..GEN;AE11#,CE110,EE110..GCC,GEN,VEN |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12220 |
AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12220 |
AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD |
1 | ||
| 82666-12220 |
AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12220 |
AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12170 |
AE112,EE111..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12170 |
AE112..GCC,VEN;EE110..LHD..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82666-12170 |
AE112..BZ,GCC,VEN;AE111,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82666-12170 |
AE112..BZ,GCC,VEN;AE111,CE110,EE11#..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-1A620 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82817-1A620 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82817-1A620 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 82817-1A620 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE111..RHD..WG;AE110..XLI..GEN;AE112,CE110,EE11#..ARL,GCC,GEN;AE111,ZZE11#..SED..(GCC,GEN,TUR) NO.2 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,EE111;AE110,EE110..GLI,XL |
1 | ||
| 82824-12210 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12220 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12210 |
AE111,EE11#;AE110..5F..GLI BLACK |
2 | ||
| 82824-12200 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE111..RHD..(GLI,XLI)..GEN;AE111,CE110,EE110..LHD..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
2 | ||
| 82824-12200 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2 |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL |
3 | ||
| 82824-12210 |
AE111,112,CE110,EE11#..LHD..(GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE111,CE110,EE110..LHD..SED..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
2 | ||
| 82824-12200 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82824-12210 |
AE111,112,CE110,EE110..LHD..GEN BLACK |
2 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12200 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2 |
1 | ||
| 82824-12210 |
AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,EE111;AE110,EE110..GLI,XL |
1 | ||
| 82824-12210 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12220 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN);AE110,112,CE110,EE111..GCC,GEN NATURAL |
3 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12210 |
AE111,EE11#;AE110..5F..GLI BLACK |
2 | ||
| 82824-12200 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE111..SEG..GEN;EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110..LHD..SED..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE112..GCC;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110,EE111..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12220 |
AE111..RHD..(GLI,XLI)..GEN;AE111,CE110,EE110..LHD..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
2 | ||
| 82824-12200 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN NO.2 |
1 | ||
| 82824-12210 |
EE110..LHD..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE111..LHD..(GCC,GEN,VEN) BLACK |
2 | ||
| 82824-12220 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH NATURAL |
3 | ||
| 82824-12210 |
AE111,112,CE110,EE11#..LHD..(GEN,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824-12220 |
AE111,CE110,EE110..LHD..SED..GEN W(HEATER CONTROL--PUSH TYPE & *80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
2 | ||
| 82824-12200 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82824-12210 |
AE111,112,CE110,EE110..LHD..GEN BLACK |
2 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;EE110..LHD..(GCC,GEN,GENKD);AE111,CE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,NZ,PHL,TH);AE112,CE110,EE11#..GCC,GEN,GENKD,IDN,MA,NZ,PHL,TH W(AUTO AIR CONDITIONER),BLACK |
3 | ||
| 82824-12210 |
AE111..ARL;AE112..ARL,GCC,GEN,VEN;AE111,CE110,EE110..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12220 |
AE112..GCC,IDN,NZ,TH;AE110,111,CE110,EE11#..GCC,GEN,GENKD,MA,NZ,PHL,TH W(*80,DRIVER SIDE & PASSENGER SIDE),NATURAL |
3 | ||
| 82824-12200 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR NO.2 |
1 | ||
| 82824-12210 |
AE111..5F..ARL;AE112..ARL,GCC,GEN,VEN;AE111..4FC..(ARL,MA,TH);EE110..LHD..(GCC,GEN,GENKD);AE111..5F..(GLI,SEG)..(MA,TH);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) BLACK |
2 | ||
| 82824-12210 |
AE112..GCC,IDN,TH;AE110,111,CE110,EE11#..(GL,GLI,STD,XL,XLI)..(GCC,GEN,GENKD,MA,PHL,TH) W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK |
3 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82824-12200 |
EE111..VEN;AE111,112,CE110,EE110..LHD..(GCC,GEN) |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82824-12200 |
ZZE11#;AE111,112,CE110,EE11#..LHD..(GCC,GEN,VEN) |
1 | ||
| 82824-12200 |
AE111,CE110,EE110..LHD..(GEN,VEN);AE110,112,EE111,ZZE11#..GEN,TUR,VEN |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN,GENKD,TUR);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI) NATURAL |
1 | ||
| 82824-12200 |
EE110..LHD..(GCC,GEN);AE111,112,CE110..LHD..(GCC,GEN,TUR,VEN) NATURAL |
1 | ||
| 82824-12200 |
AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR) |
1 | ||
| 82824-12200 |
AE111,112,CE110,EE111..LHD;EE110..LHD..(GCC,GEN,GENKD,TUR,VEN) |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO. 6 OF 8(9505- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M |
1 | ||
| 90980-07341 |
ZZE11#;EE111..GEN,VEN;EE110..GCC,GEN RH FENDER-E/G |
1 | ||
| 90980-07341 |
EE11# RH FENDER-E/G |
1 | ||
| 90980-07351 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M |
1 | ||
| 90980-07341 |
ZZE11#;EE111..GEN,VEN;EE110..GCC,GEN RH FENDER-E/G |
1 | ||
| 90980-07341 |
EE11# RH FENDER-E/G |
1 | ||
| 90980-07351 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M |
1 | ||
| 90980-07341 |
ZZE11#;EE111..GEN,VEN;EE110..GCC,GEN RH FENDER-E/G |
1 | ||
| 90980-07341 |
EE11# RH FENDER-E/G |
1 | ||
| 90980-07351 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M |
1 | ||
| 90980-07341 |
ZZE11#;EE111..GEN,VEN;EE110..GCC,GEN RH FENDER-E/G |
1 | ||
| 90980-07341 |
EE11# RH FENDER-E/G |
1 | ||
| 90980-07351 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07351 |
EE110..GCC,GEN;AE111..RHD..WG;AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN) LH FENDER-T/M |
1 | ||
| 90980-07341 |
ZZE11#;EE111..GEN,VEN;EE110..GCC,GEN RH FENDER-E/G |
1 | ||
| 90980-07341 |
EE11# RH FENDER-E/G |
1 | ||
| 90980-07351 |
EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN) LH FENDER-T/M |
1 | ||
| Common parts | ||||
| 90119-06375 | ||||
| 90119-06390 | ||||

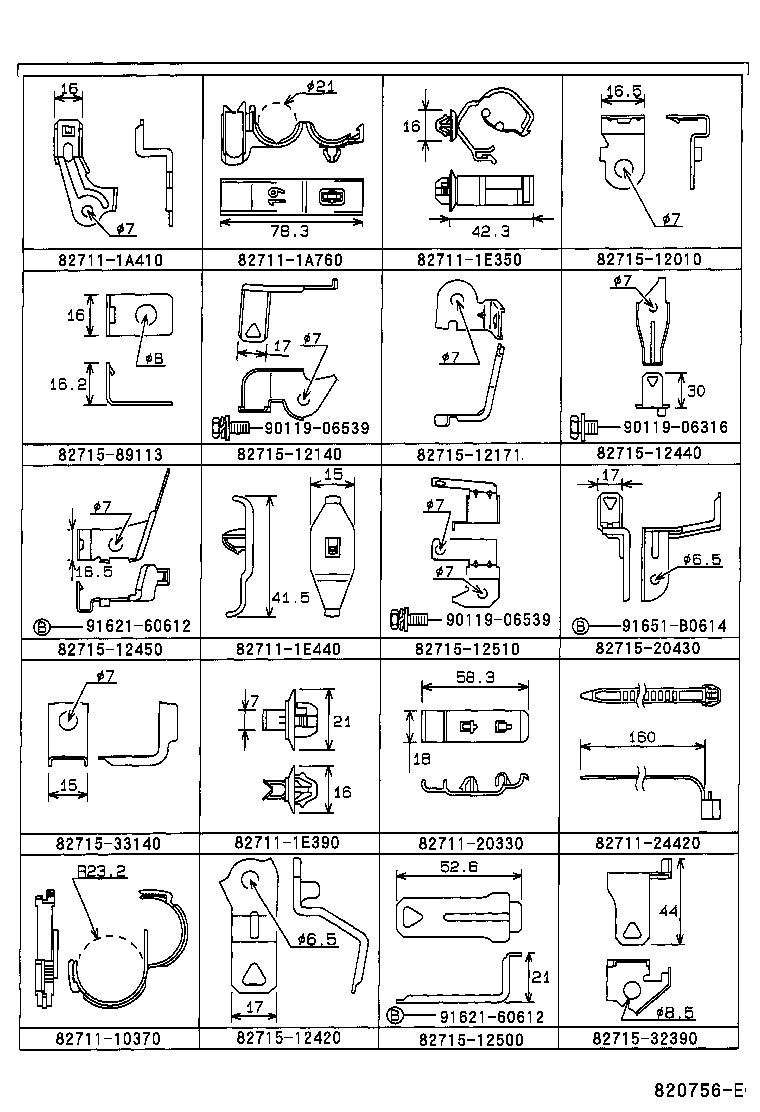

ILLUST NO. 5 OF 8(9505- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10370 | ||||
| 82711-1A410 | ||||
| 82711-1A760 | ||||
| 82711-1E350 | ||||
| 82711-1E390 | ||||
| 82711-1E440 | ||||
| 82711-20330 | ||||
| 82711-24420 | ||||
| 82715-12010 | ||||
| 82715-12140 | ||||
| 82715-12171 | ||||
| 82715-12420 | ||||
| 82715-12440 | ||||
| 82715-12450 | ||||
| 82715-12500 | ||||
| 82715-12510 | ||||
| 82715-20430 | ||||
| 82715-32390 | ||||
| 82715-33140 | ||||
| 82715-89113 | ||||
| 90119-06316 | ||||
| 90119-06539 | ||||
| 91621-60612 | ||||
| 91651-B0614 | ||||

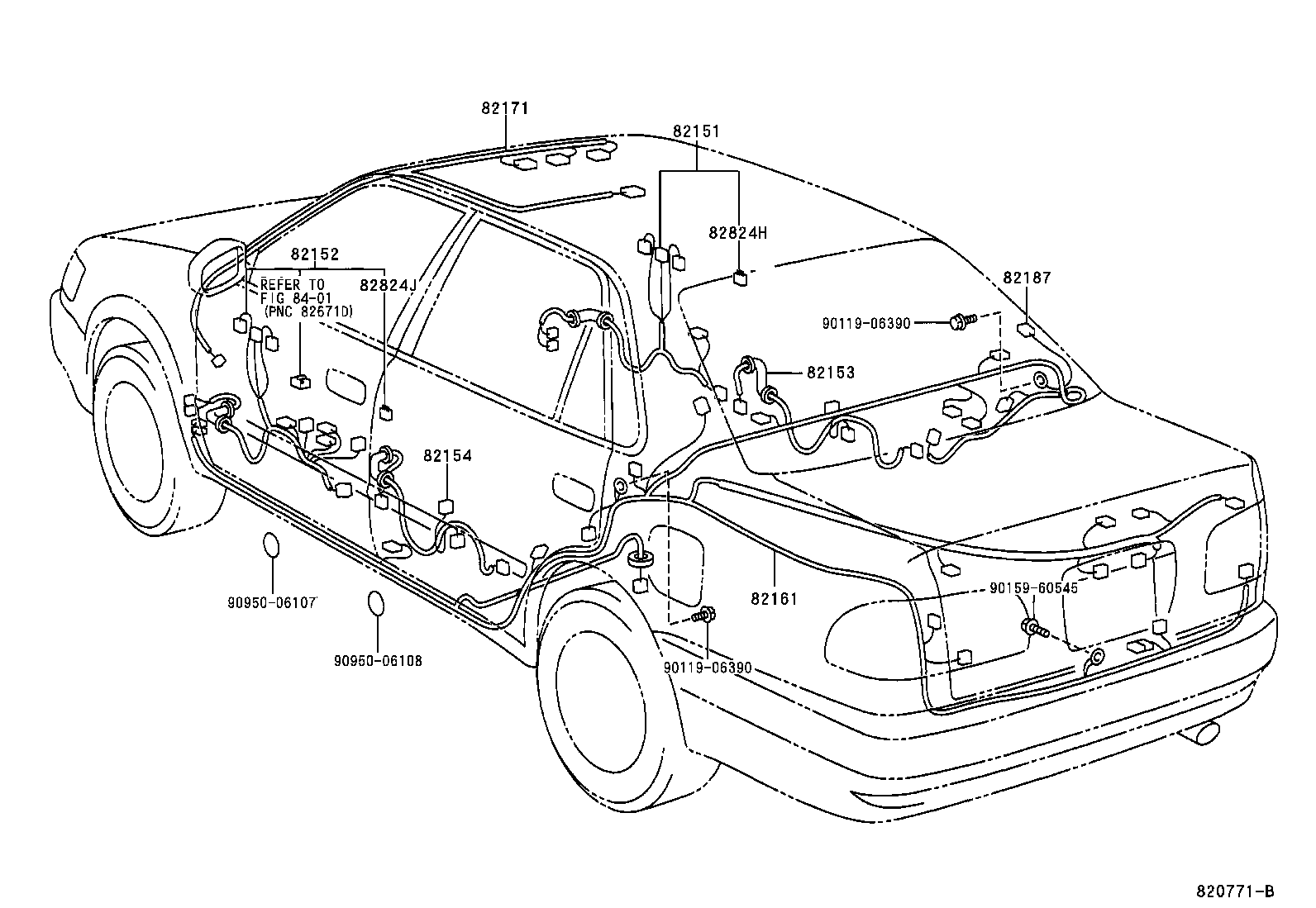

ILLUST NO. 4 OF 8(9704- )LHD..SED
ROOF,DOOR,FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A440 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL) |
1 | ||
| 82151-1A480 |
AE111,EE11#..GLI,XL,XLI W(*PW & *EL) |
1 | ||
| 82151-1A400 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(DOOR SPEAKER) |
1 | ||
| 82151-1A710 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A710 |
AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 82151-1A890 |
AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(GCC,GEN,VEN) W(RADIO) |
1 | ||
| 82151-1A890 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 82151-1E010 |
CE110,EE110..XL..(GCC,GEN);AE111,112,EE111..(XL,XLI)..(ARL,GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82151-1A890 |
AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH) |
1 | ||
| 82151-1A700 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN W(POWER DOOR LOCK) |
1 | ||
| 82151-1A890 |
AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN) W(RADIO) |
1 | ||
| 82151-1E170 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A710 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A700 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK) |
1 | ||
| 82151-1E010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82151-1A700 |
EE110..LHD..XL;AE111,112,CE110..LHD..(XL,XLI)..(BZ,GCC,GEN) W(POWER DOOR LOCK) |
1 | ||
| 82151-1A890 |
AE111,EE110..(STD,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE110,112,CE110,EE111..(STD,XL,XLI)..(BZ,GCC,GEN,TH,VEN) |
1 | ||
| 82151-1A710 |
AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1E010 |
AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1A210 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL) |
1 | ||
| 82151-1A400 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(DOOR SPEAKER) |
1 | ||
| 82152-1A220 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*PW & *EL) |
1 | ||
| 82151-1A890 |
AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN) |
1 | ||
| 82151-1E010 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE110..(4FC,5F)..(XL,XLI)..(GCC,GEN);AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82152-1A420 |
AE111..LHD..SED..(GCC,GEN);AE112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82152-1A420 |
AE111..GLI..TUR;AE111..LHD..SED..(GCC,GEN,VEN);AE112,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(GCC,GEN,VEN) |
1 | ||
| 82152-1A730 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82151-1A890 |
EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 82152-1A420 |
AE111,112,CE110,EE110..LHD..(3FC,4FC,5F)..(GCC,GEN,GENKD,PHL) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82152-1A410 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) W(POWER DOOR LOCK) |
1 | ||
| 82151-1E010 |
CE110,EE110..XL..(GCC,GEN);AE111,112,EE111..(XL,XLI)..(ARL,GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82152-1A410 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN W(POWER DOOR LOCK) |
1 | ||
| 82151-1A890 |
AE110..TH;EE110..(STD,XL)..(GCC,GEN,GENKD,PHL,VEN);AE111,112,CE110,EE111..(XL,XLI)..(BZ,GCC,GEN,TH) |
1 | ||
| 82151-1E010 |
AE111,112,CE110,EE11#..(XL,XLI)..(GCC,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL) |
1 | ||
| 82151-1A890 |
AE111..WG..5F;AE111..SED..(XL,XLI)..(GCC,GEN,TH);CE110,EE110..(STD,XL)..(GCC,GEN,GENKD,PHL);AE110,112,EE111..(STD,XLI)..(BZ,GCC,GEN,TH,VEN) |
1 | ||
| 82152-1A410 |
EE110..LHD..XL;AE111,112,CE110..LHD..(XL,XLI)..(BZ,GCC,GEN) W(POWER DOOR LOCK) |
1 | ||
| 82152-1A420 |
AE112..XLI..(GCC,GEN);AE111,112..GLI..(BZ,GCC,TUR,VEN);AE111,CE110,EE110..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,VEN) W(POWER DOOR LOCK & POWER WINDOW---DOWN ONE-TOUCH) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12320 |
AE11#,EE110..XL,XLI W(*PW & *EL) |
1 | ||
| 82153-12310 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL) |
1 | ||
| 82153-12310 |
AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE111..WG..5F;AE112..XLI..GCC;CE110,EE110..XL..(GCC,GEN);AE111,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12310 |
AE11#,EE110..XL,XLI W(*PW & *EL) |
1 | ||
| 82153-12310 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI W(*EL) |
1 | ||
| 82154-12320 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..LHD..GLI..GEN;AE111..(GL,SEG,XL)..GEN;AE111..SED..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82153-12310 |
AE111..WG..5F;AE112..XLI..GCC;CE110,EE110..XL..(GCC,GEN);AE111,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE111..RHD..WG;AE112..XLI..GCC;EE110..LHD..3FC;EE110..5F..XL..(GCC,GEN);AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN) W(*EL) |
1 | ||
| 82153-12310 |
AE110,112..XLI..(GCC,TH);AE111..RHD..5F..GLI..GEN;AE111,CE110,EE11#..(XL,XLI)..(GCC,GEN,NZ,PHL,TH) W(*EL) |
1 | ||
| 82154-12320 |
AE111..GL,XL;AE111..WG..5F;AE111..LHD..GLI..GEN;AE111..4FC..XLI..(GCC,GEN);AE111..LHD..SED..5F..XLI..(GCC,GEN);AE112,CE110,EE110..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1L330 |
AE111,EE11#..XL,XLI |
1 | ||
| 82161-1L790 |
AE112,EE110..LHD..SED..(GCC,GEN);AE111,CE110,EE111..LHD..(GCC,GEN,VEN) |
1 | ||
| 82161-1L790 |
AE112,EE110..LHD..SED..(GCC,GEN);AE111,CE110..LHD..SED..(GCC,GEN,VEN) |
1 | ||
| 82161-1L340 |
AE111,EE11#..XL,XLI W(*RWD) OR W(BULB TYPE CENTER STOP LAMP) |
1 | ||
| 82161-1L790 |
AE112..SED..GCC;AE111,CE110,EE110..LHD..SED..(GCC,GEN,GENKD,VEN) |
1 | ||
| 82161-1L790 |
AE112,EE110..LHD..SED..(GCC,GEN,GENKD);AE111,CE110,EE111..LHD..(GCC,GEN,GENKD,VEN) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12620 |
AE111,EE111;AE110,EE110..GLI,XL |
1 | ||
| 82171-12740 |
AE111,112,CE110,EE110..LHD..SED..(3FC,4FC,5F)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82171-12730 |
EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 82171-12730 |
AE111,112,CE110,EE11#..LHD..SED |
1 | ||
| 82171-12740 |
AE111,112,CE110,EE110..LHD..SED..(3FC,4FC,5F)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82171-12730 |
AE111,112,CE110,EE111..LHD..SED;EE110..LHD..SED..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12160 |
AE111,112,CE110,EE111..LHD..SED;EE110..LHD..SED..(GCC,GEN,GENKD,PHL,TUR) |
1 | ||
| 82187-12160 |
AE111,112,CE110,EE11#..LHD..SED |
1 | ||
| 82187-12160 |
EE110..LHD..SED..(GCC,GEN);AE111,112,CE110..LHD..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60545 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 8401 | ||||

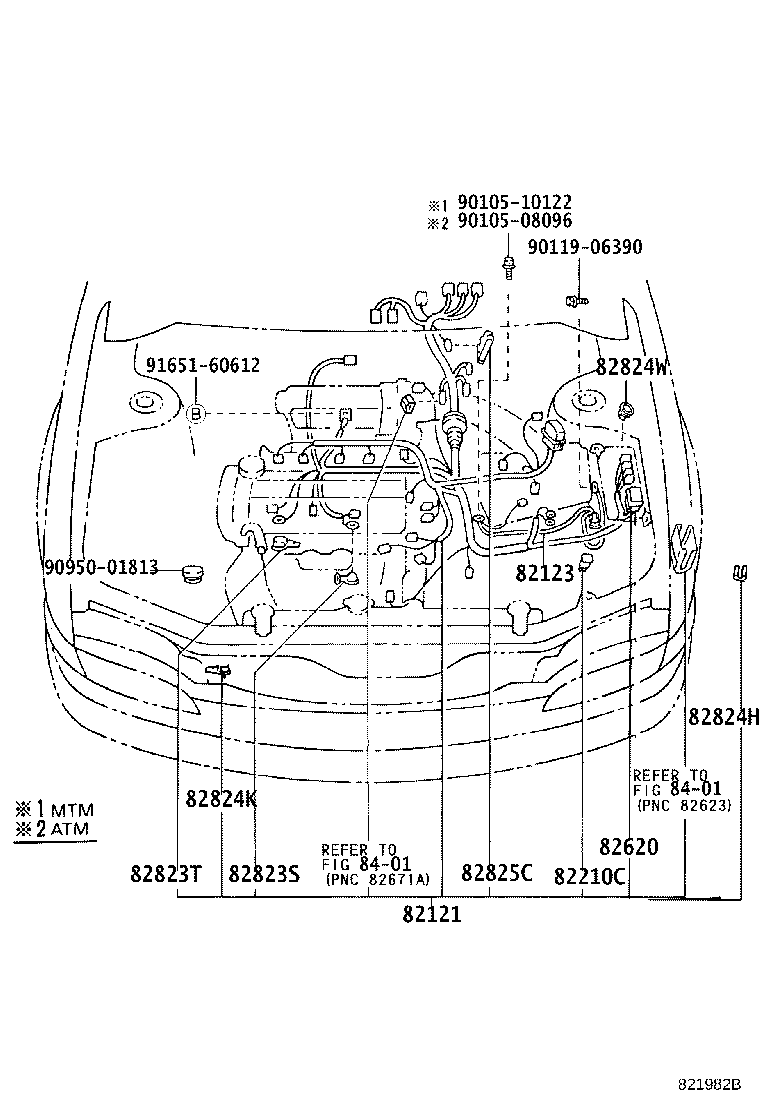

ILLUST NO. 1 OF 8(9505- )EE11#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1L530 |
EE110..3FC |
1 | ||
| 82121-1N880 |
EE110..LHD..3FC |
1 | ||
| 82121-1N880 |
EE110..LHD..3FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12320 |
AE111,EE110..LHD..3FC W(BATTERY=32B24L OR 34B19L) |
1 | ||
| 82123-12300 |
AE111,EE11#..3FC..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
EE110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08257 |
AE11#,EE11# 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE111..GL,XL;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL,SEG,STD,XL)..(GCC,GEN) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08281 |
EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE111,ZZE11#..LHD..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,ZZE11#..ARL,GCC,GEN,TUR,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08246 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111..RHD..(GLI,XLI) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
AE110..TH;AE111..MA;AE111..GL,XL;AE111..RHD..(GLI,XLI);AE112,CE110,EE111..RHD;AE110,EE110..GL,GLI,STD,XL 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08282 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08246 |
EE111;AE111..WG..5F;AE112..GLI,SEG;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..SED..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN,GENKD,PHL,TUR) 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
AE111..WG..5F;AE112..XLI..IDN;AE111..GL,SEG,XL;AE112,CE110..RHD..(GLI,SEG,XL);AE111,EE111..RHD..SED..(GLI,XLI);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
AE111..WG..5F;AE111,EE111..SED;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE110..GCC,GEN,GENKD,PHL,TH,TUR 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08281 |
AE111..LHD;AE110,EE111;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE111..RHD..SED..(GLI,SEG,XLI);EE110..LHD..(GCC,GEN,GENKD,PHL,TUR) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR 100A,TERM.:MALE,BLUE |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-13020 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112..ARL,GCC,GEN,VEN;AE110,111,CE110,EE111..GCC,GEN,VEN |
1 | ||
| 82620-12250 |
EE110 |
1 | ||
| 82620-13020 |
AE111,112,EE111..VEN;AE111,EE110..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 82620-13020 |
AE111,EE110..(GL,STD,XL)..(GCC,GEN) |
1 | ||
| 82620-13020 |
AE110,111,CE110..ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN;AE112,EE11#..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,TUR |
1 | ||
| 82620-13020 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82620-13020 |
EE110..LHD..3FC;AE110,111,CE110,EE111..GCC,GEN,VEN;AE112,EE110..(4F,4FC,5F)..(ARL,GCC,GEN) |
1 | ||
| 82620-13020 |
EE111;EE110..GCC,GEN,GENKD,PHL,TUR;AE11#,CE110..ARL,BZ,GCC,GEN,GENKD,IDN,MA,PHL,TH,VEN |
1 | ||
| 82620-13020 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,NZ,PHL,TH,VEN) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
AE111,EE111;AE110,EE110..GLI,XL |
1 | ||
| 82823-22060 |
EE111..GEN;AE110..4FC..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..(GL,XL)..GEN |
1 | ||
| 82823-22060 |
AE111..GL,XL;AE110..4FC..GEN;EE110..LHD..3FC;CE110,EE111..GEN,VEN;EE110..MTM..(GCC,GEN) |
1 | ||
| 82823-22060 |
EE111..GEN;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111,CE110..(GL,XL)..GEN |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) |
1 | ||
| 82824-12210 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,111,CE110..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 82824-12210 |
AE112,EE11#..ARL,GCC,GEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 82824-12210 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 82824-12210 |
AE111..SED;AE111..WG..5F;AE112,CE110..GLI,SEG,XL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,EE11#..GCC,GEN,GENKD,MA,PHL,TH,TUR |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 82824-30130 |
AE111..RHD..WG;CE110..XL..GEN;EE110..LHD..3FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4FC,5F)..(XL,XLI)..(ARL,GCC,GEN) ELECTORIC DOOR LOCK |
2 | ||
| 82824-30130 |
AE111,112,CE110,EE110..(XL,XLI)..(ARL,GEN) ELECTORIC DOOR LOCK |
2 | ||
| 82824-30130 |
AE110..TH;AE111..WG..5F;CE110..XL..GEN;AE111..LHD..WG..4FC;AE111,EE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE110..(XL,XLI)..(BZ,GCC,GEN,PHL,TUR) ELECTORIC DOOR LOCK |
2 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
EE110..LHD..(GL,XL)..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,ZZE11#..LHD..(GCC,GEN,TUR,VEN) |
1 | ||
| 82824-30130 |
AE112..XLI..(GCC,GEN);AE111,CE110,EE111..LHD..(GL,GLI,XL,XLI);AE112,EE110..LHD..(GL,GLI,XL)..(BZ,GCC,GEN,PHL,VEN) |
1 | ||
| 82824-30130 |
AE112,EE110..LHD..(XL,XLI)..(GCC,GEN);AE111,CE110..LHD..SED..(XL,XLI)..(GCC,GEN) ELECTORIC DOOR LOCK |
2 | ||
| 82824-30130 |
AE111,112,CE110,EE110..LHD..(XL,XLI)..GEN ELECTORIC DOOR LOCK |
2 | ||
| 82824-30130 |
EE110..LHD..XL;AE112..5F..XLI..BZ;AE112..4FC..GLI..BZ;AE111,112,CE110..LHD..(XL,XLI)..(GCC,GEN) ELECTORIC DOOR LOCK |
2 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90950-01813 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

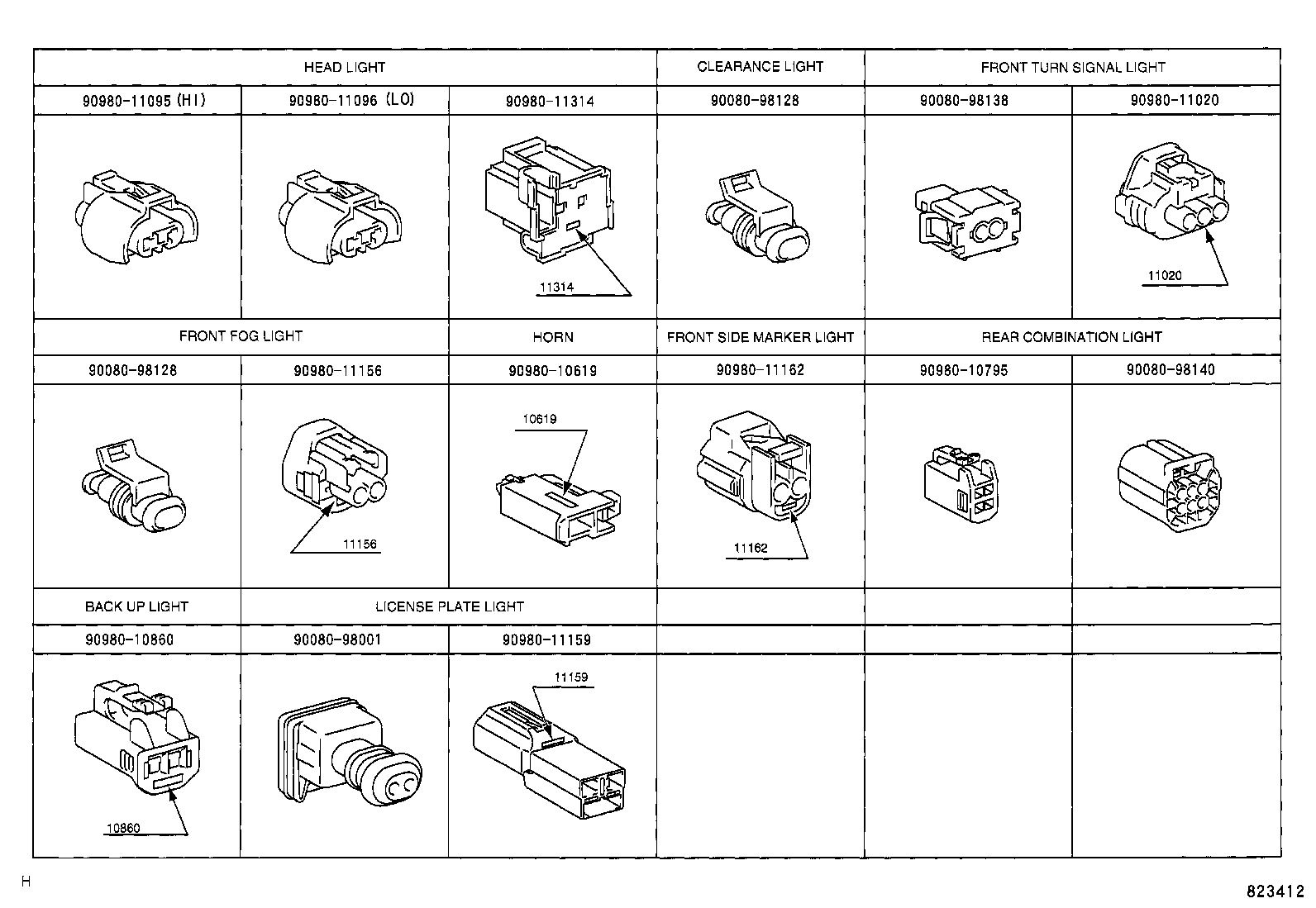

ILLUST NO. 8 OF 8(9505- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-98001 | ||||
| 90080-98128 | ||||
| 90080-98138 | ||||
| 90080-98140 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11020 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
