Toyota Corolla sed/wg EE110 FRONT TURN SIGNAL LAMP

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

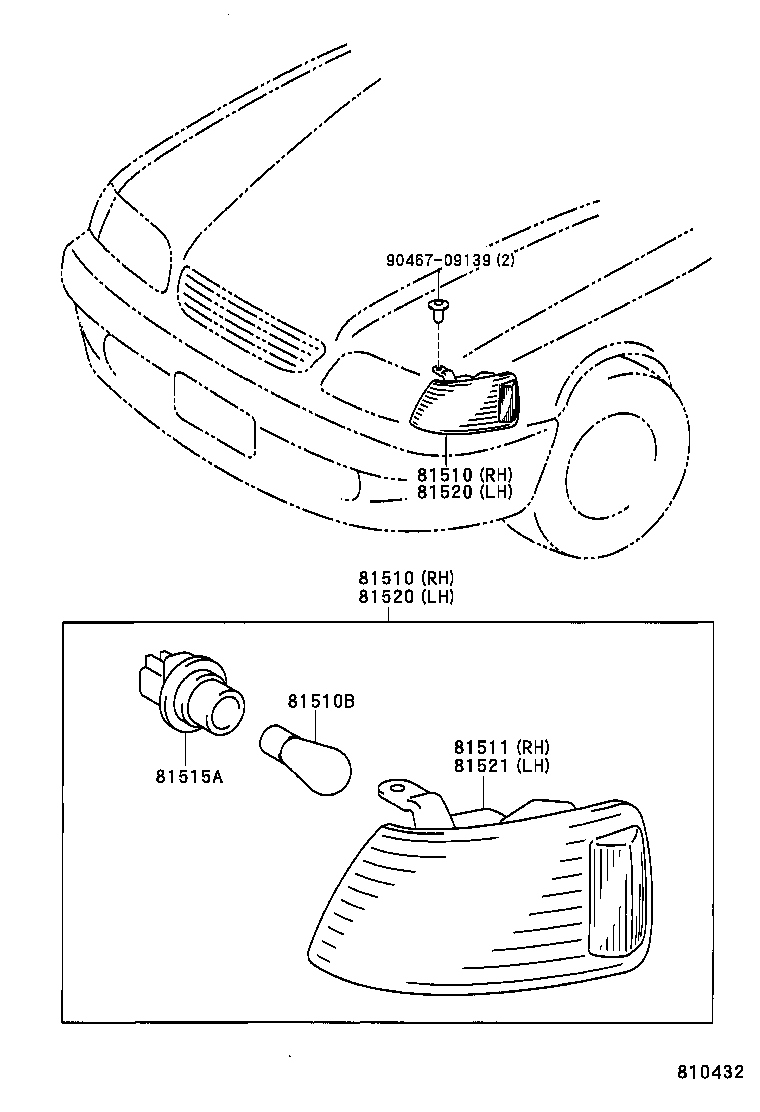

TYPE C

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
90981-15009	AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
90981-15009	EE111..GLI,XLI;AE11#,CE110,EE110 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81511-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81511-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81511-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60006	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..GL,GLI,XL,XLI TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81521-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81521-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
Common parts
90467-09139

(9704- )

Click highlighted areas on diagram

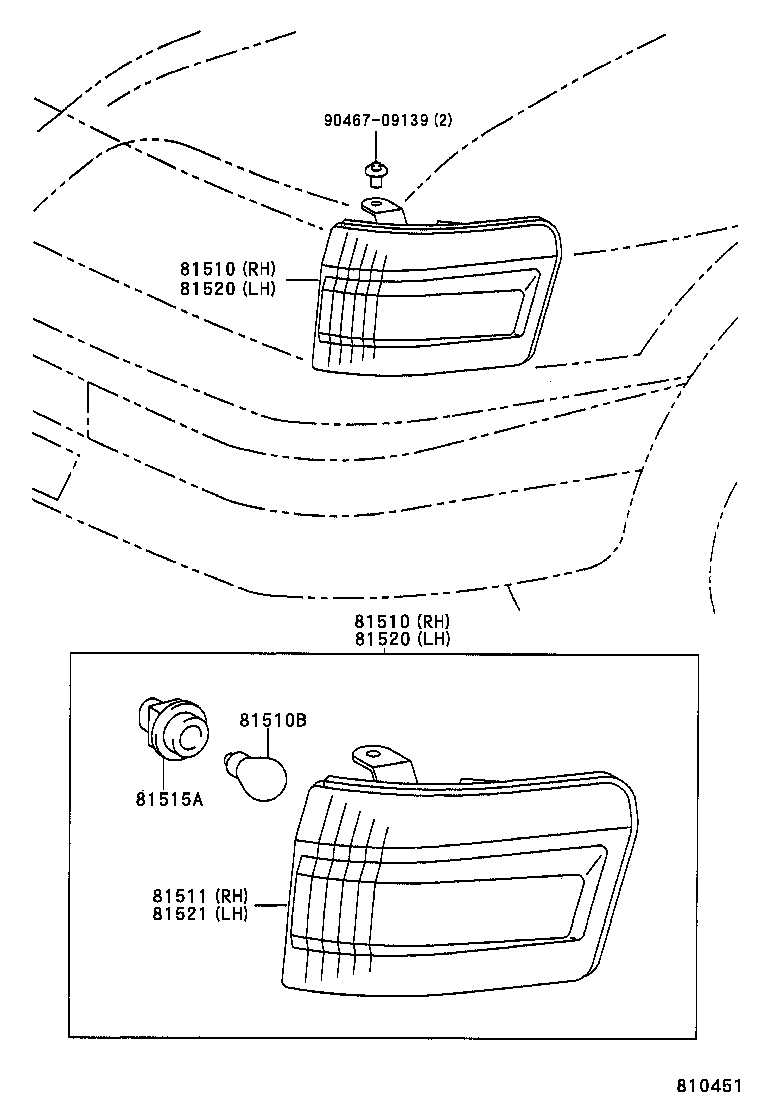

TYPE B

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
90981-15009	AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
90981-15009	EE111..GLI,XLI;AE11#,CE110,EE110 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81511-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81511-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81511-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60006	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..GL,GLI,XL,XLI TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81521-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81521-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
Common parts
90168-50057

(9505- )

Click highlighted areas on diagram

TYPE A

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81510-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81510-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81510-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81510-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
90981-15009	AE111,112,EE111..(GL,GLI,XL,XLI)..(GCC,GEN);AE110,CE110,EE110..(GL,GLI,STD,XL)..(GCC,GEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 07/1998	2
90981-15009	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
90981-15009	EE111..GLI,XLI;AE11#,CE110,EE110 12V 21W,AMBER,TYPE B OR TYPE C:REFER TO ILLUSTRATION	07/1998 - 10/1999	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12810	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81511-12870	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-12830	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-12870	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81511-1A010	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81511-12890	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81511-12830	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81511-1A010	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60006	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE110;AE111,EE111..GL,GLI,XL,XLI TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN);AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1999	2
90075-60006	AE111..WG..5F;AE112,EE111..XLI..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(ARL,GCC,GEN,VEN) TYPE B OR TYPE C:REFER TO ILLUSTRATION	10/1999 - 08/2000	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81520-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81520-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81520-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81520-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81520-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12850	EE110..LHD..3FC;AE111,EE111..SED..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12820	EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
81521-12870	AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION	10/1999 - 02/2000	1
81521-12880	EE110..LHD..3FC;AE111,EE111..SED..GEN;AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..GEN TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12850	AE110..TH;AE111..MA;AE110..GLI;AE111..SED..(GL,GLI,XL,XLI)..(GEN,GENKD,PHL,TH);AE112,CE110,EE11#..SED..(BZ,GEN,GENKD,IDN,MA,PHL,TH) TYPE C:REFER TO ILLUSTRATION	04/1997 - 04/1999	1
81521-12880	CE110..XL;AE11#,EE11#..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION	04/1999 - 08/2000	1
81521-12790	AE11#,EE11# TYPE A:REFER TO ILLUSTRATION	05/1995 - 05/1996	1
81521-12820	EE111..LHD;AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(ARL,GCC,GEN,NZ,TUR,VEN) TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
Common parts
90467-09139

EE110L-AEHDS (1997)

(9704- )

(9704- )

(9505- )

Part Price Details
