EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9704- )

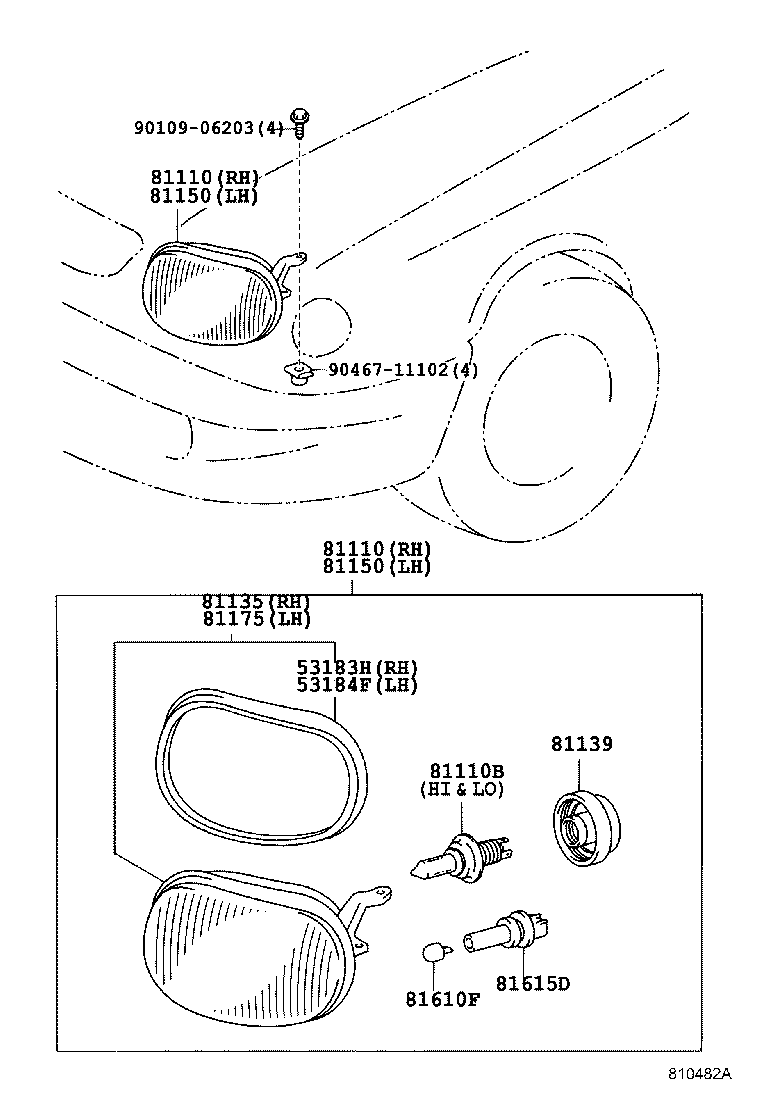

TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E380 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E420 |
AE111..LHD..SED..GEN;AE112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E420 |
AE111,112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E380 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E420 |
AE111..LHD..SED..GEN;AE112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E420 |
AE111,112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13016 |
AE111,CE110,EE110..LHD..SED..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90080-81040 |
AE111,112,CE110,EE110..ARL,GCC,GEN 12V 51W |
2 | ||
| 90981-22004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13016 |
AE111,CE110,EE110..LHD..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90981-22004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1E420 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E250 |
AE11#,EE11# |
1 | ||
| 81130-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E380 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E580 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E420 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90075-65002 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 90075-65002 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 90075-65002 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 90075-65002 |
AE11#,CE110,EE11# |
2 | ||
| 90075-65002 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 90075-65002 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN |
2 | ||
| 90075-65002 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1E270 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E270 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN,TUR,VEN);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1E270 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E270 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN,TUR,VEN);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1E250 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1A520 |
AE11#,EE11# |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E250 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..4FC;EE11#..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-11050 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 5W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 99132-12050 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 5W |
2 | ||
| 99132-12050 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 90075-60004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 90075-60004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90075-60004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 90075-60020 |
AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 90075-60004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 90075-60004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90467-11102 | ||||
(9704- )

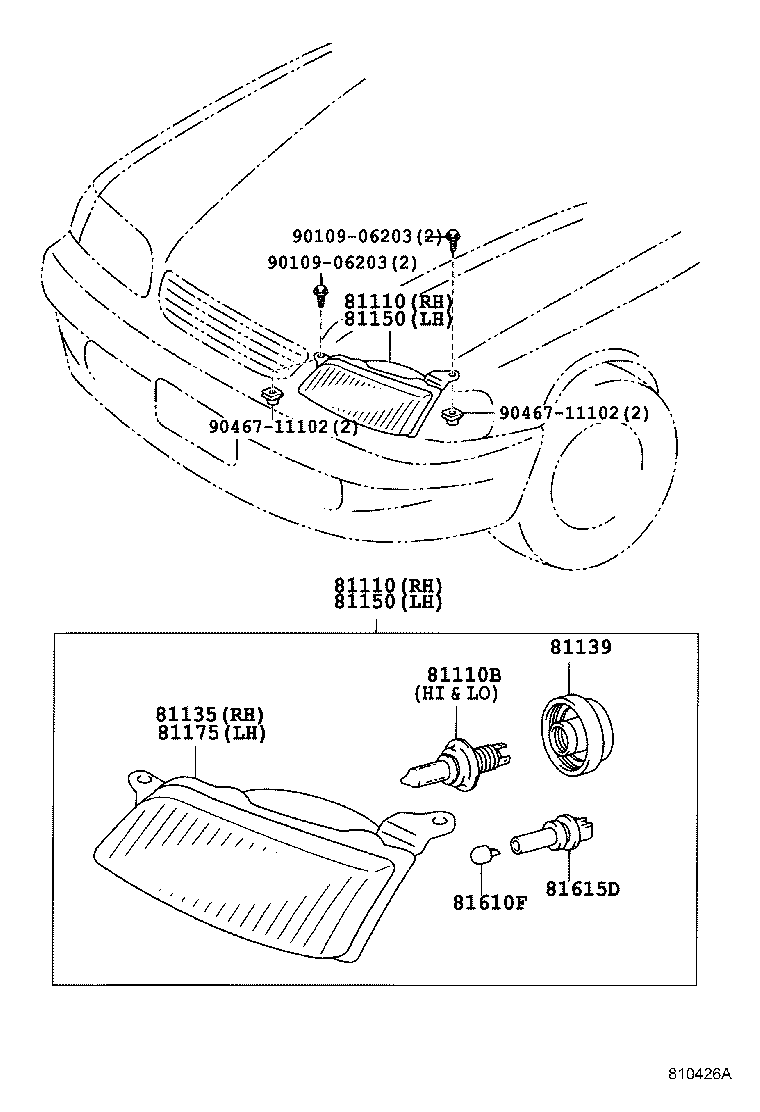

TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183H - SEAL, HEADLAMP COVER, RH | ||||
| 53183-12190 |
AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ,VEN) |
1 | ||
| 53183-12190 |
EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 53183-12190 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 53183-12190 |
EE111..LHD;AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN |
1 | ||
| 53184F - SEAL, HEADLAMP COVER, LH | ||||
| 53184-12110 |
AE111,112,CE110,EE110..(GL,GLI,STD,XL,XLI)..(GCC,GEN,NZ,VEN) |
1 | ||
| 53184-12110 |
EE111..VEN;AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..ARL,GCC,GEN,VEN;AE111..SED..(GCC,GEN,TUR,VEN) |
1 | ||
| 53184-12110 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,CE110..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 53184-12110 |
EE111..LHD;AE111,112,CE110,EE110..ARL,GCC,GEN,NZ,TUR,VEN |
1 | ||

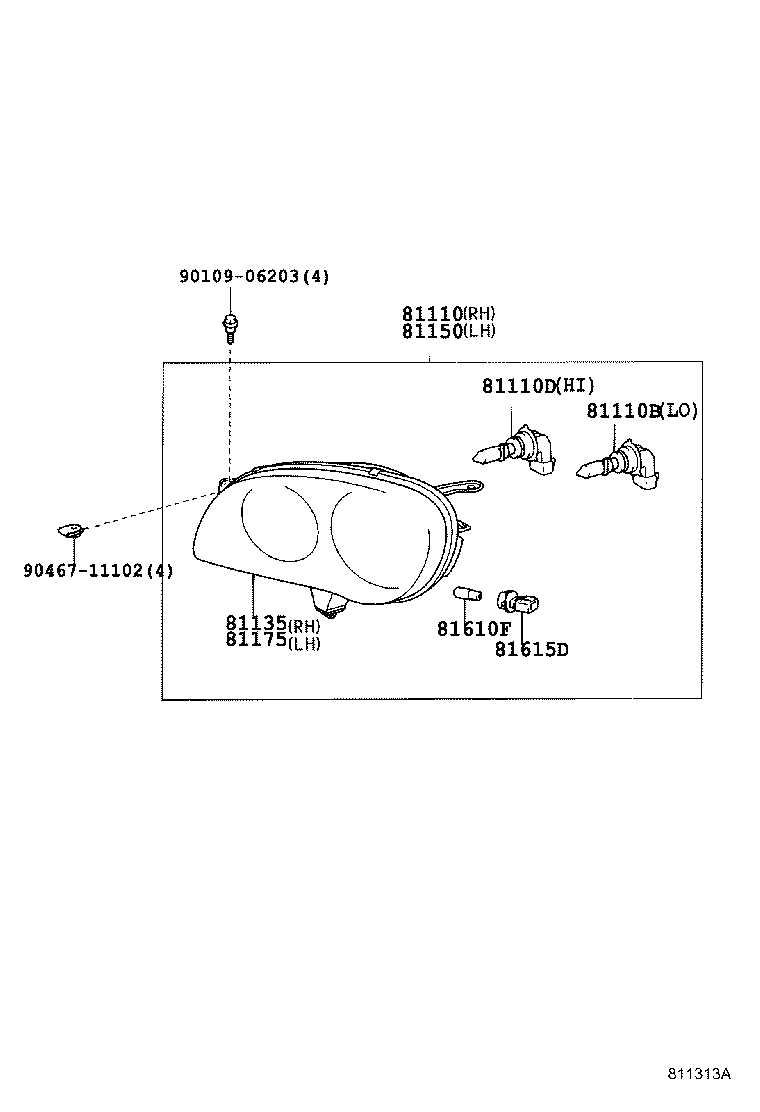

| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E380 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E420 |
AE111..LHD..SED..GEN;AE112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E420 |
AE111,112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E380 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E420 |
AE111..LHD..SED..GEN;AE112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E420 |
AE111,112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13016 |
AE111,CE110,EE110..LHD..SED..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90080-81040 |
AE111,112,CE110,EE110..ARL,GCC,GEN 12V 51W |
2 | ||
| 90981-22004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13016 |
AE111,CE110,EE110..LHD..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90981-22004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1E420 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E250 |
AE11#,EE11# |
1 | ||
| 81130-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E380 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E580 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E420 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90075-65002 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 90075-65002 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 90075-65002 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 90075-65002 |
AE11#,CE110,EE11# |
2 | ||
| 90075-65002 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 90075-65002 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..GCC,GEN,VEN |
2 | ||
| 90075-65002 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1E270 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E270 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN,TUR,VEN);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1E270 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E270 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN,TUR,VEN);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1E250 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1A520 |
AE11#,EE11# |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E250 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..4FC;EE11#..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-11050 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 5W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 99132-12050 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 5W |
2 | ||
| 99132-12050 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 90075-60004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 90075-60004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90075-60004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 90075-60020 |
AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 90075-60004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 90075-60004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90467-11102 | ||||
(9910- )
TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E380 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81110-1E400 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81110-1E420 |
AE111..LHD..SED..GEN;AE112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E420 |
AE111,112,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81110-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13016 |
AE111,CE110,EE110..LHD..SED..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90080-81040 |
AE111,112,CE110,EE110..ARL,GCC,GEN 12V 51W |
2 | ||
| 90981-22004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13016 |
AE111,CE110,EE110..LHD..GEN 12V 60/55W,*HAL *YE |
2 | ||
| 90981-22004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) 12V 60/55W,*HAL *WH |
2 | ||
| 90981-22004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 60/55W,*HAL *WH |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90080-81041 |
AE111,112,CE110,EE110..ARL,GCC,GEN 12V 65W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1E420 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E250 |
AE11#,EE11# |
1 | ||
| 81130-1E550 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E570 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81130-1E380 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E540 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E580 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E380 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E460 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81130-1E420 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E450 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81130-1E580 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-1E270 |
AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN);AE112,CE110..LHD..(GCC,GEN,VEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E270 |
AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,HALOGEN,YELLOW |
1 | ||
| 81150-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81150-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81150-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E250 |
EE110..LHD..(GCC,GEN,TUR,VEN);AE111,112,CE110,EE111..LHD..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81150-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-1E250 |
EE110..LHD..(GCC,GEN);AE111..LHD..SED..(GCC,GEN,TUR,VEN);AE112,CE110,EE111..LHD..(GCC,GEN,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E290 |
AE112..ARL,GEN;AE111,CE110,EE110..LHD..SED..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1A520 |
AE11#,EE11# |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E450 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E460 |
AE111,CE110,EE110..LHD..GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E420 |
AE111,112,CE110,EE110..LHD..(GCC,GEN) TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E330 |
AE111,CE110,EE110..LHD..SED..(GEN,GENKD,PHL) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E460 |
AE111,112,CE110,EE110..LHD..SED..(BZ,GEN,GENKD) TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 81170-1E320 |
AE111,CE110,EE110..LHD..SED..GEN TYPE C:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E290 |
AE111..ARL;AE112..ARL,GEN;AE111,CE110,EE110..LHD..GEN TYPE B:REFER TO ILLUSTRATION,LEFT AIMING |
1 | ||
| 81170-1E430 |
AE111,112,CE110,EE110..LHD..GEN TYPE D:REFER TO ILLUSTRATION, LH TRAFFIC SPEC |
1 | ||
| 81170-1E250 |
AE111,112,CE110,EE11#..LHD..(GCC,GEN,TUR,VEN) TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..4FC;EE11#..(GL,STD,XL)..(GCC,GEN,VEN);AE111,112,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-11050 |
AE111,EE111..SED..GEN;AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN 12V 5W,TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 99132-12050 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN 12V 5W |
2 | ||
| 99132-12050 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN 12V 5W |
2 | ||
| 99132-12050 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60004 |
EE111..GEN,VEN;AE111..SED..(GEN,TUR,VEN);AE110,112,CE110,EE110..(GL,GLI,STD,XL)..(GEN,VEN) |
2 | ||
| 90075-60004 |
EE111..GEN;AE111..SED..(GEN,TUR);AE110,CE110,EE110..(GL,GLI,STD,XL)..GEN |
2 | ||
| 90075-60004 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
2 | ||
| 90075-60004 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110..GCC,GEN,TUR,VEN |
2 | ||
| 90075-60020 |
AE111,112,CE110,EE110..ARL,GCC,GEN TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 90075-60004 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
2 | ||
| 90075-60004 |
AE11#,CE110,EE11#..ARL,BZ,GCC,GEN,GENKD,PHL,TUR,VEN |
2 | ||
| Common parts | ||||
| 90109-06203 | ||||
| 90467-11102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
