EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

Click highlighted areas on diagram

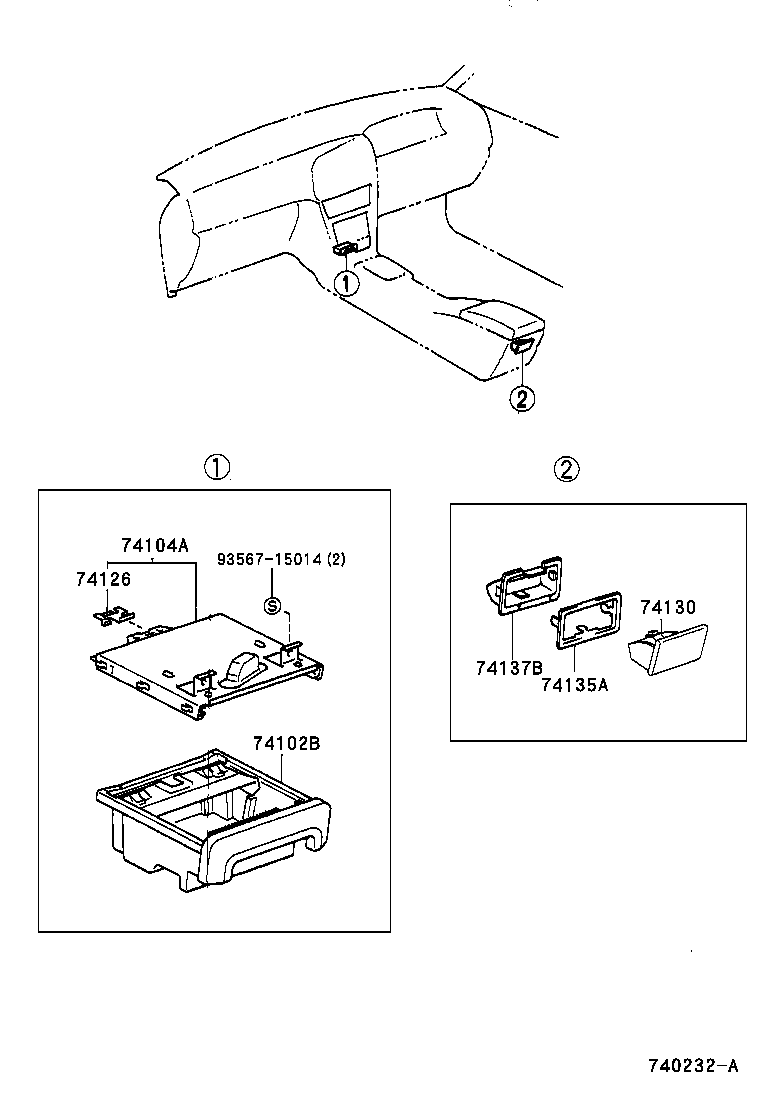

diagram 74102B 74104A 74126 74130 74135A 74137B 9356715014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12220

AE11#,EE11#

 1
74102-12250B1

AE111,CE110,EE110..LHD..GEN

DK.CHARCOAL,TRIM1#,9#

 1
74102-12250B1

EE110..LHD..XL..GEN;AE111,CE110..LHD..SED..GEN

DK.CHARCOAL,TRIM10,14

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-12020P0

AE11#,EE11#

SHADOW GRAY,TRIM1#

 1
74109-12020B3

AE111..SED..GEN;CE110,EE110..(GL,STD,XL)..GEN

MD.CHARCOAL,TRIM1#,9#

 1
74109-12020B3

AE111,CE110,EE110..SED..(GL,GLI,STD,XL,XLI)..GEN

MD.CHARCOAL,TRIM10,14

 1
74109-12020B3

EE110..MTM..GEN;EE110..LHD..3FC;AE111,CE110..SED..(GL,GLI,XL,XLI)..GEN

MD.CHARCOAL,TRIM10,14

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-12040

ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN

 1
74135-12040

AE11#,CE110,EE11#..ARL,GCC,GEN

 1
74137B - RETAINER, REAR ASH RECEPTACLE, INNER
74137-12010

AE11#,CE110,EE11#..ARL,GCC,GEN

 1
74137-12010

ZZE11#;AE11#,CE110,EE11#..ARL,GCC,GEN,VEN

 1
Common parts
93567-15014
