EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

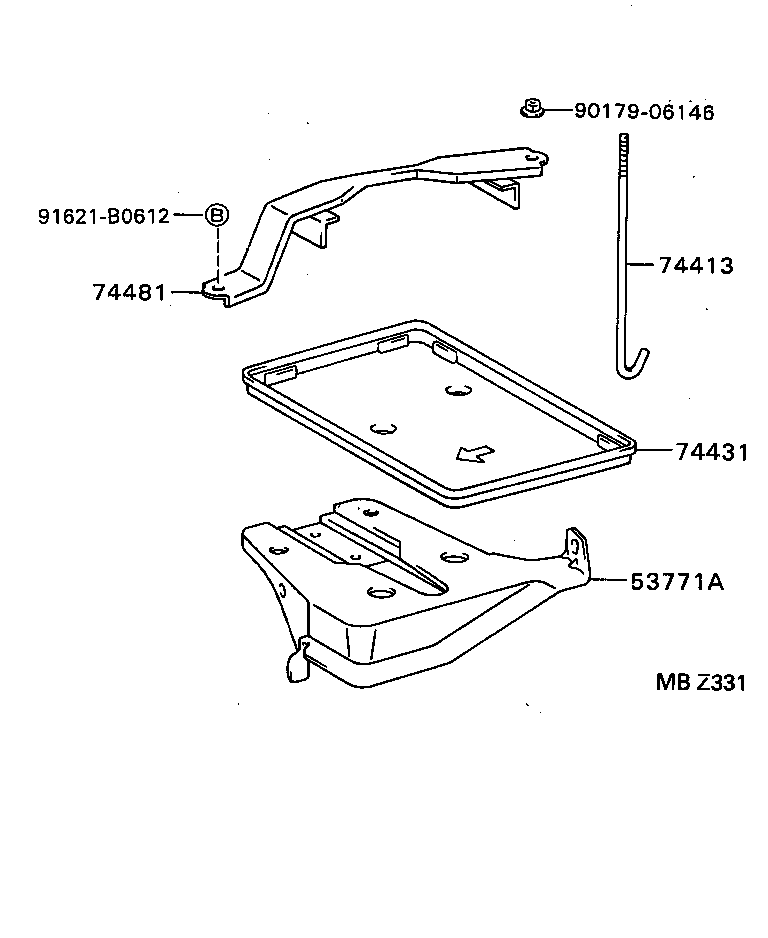

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9017906146 91621B0612
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-12120

AE11#,EE11#

 1
53771-13010

EE11#;AE110..TH;AE111..MA;AE111..WG..5F;AE110,112..GLI,SEG;AE111..LHD..WG..4FC;AE111..SED..(GL,GLI,XL,XLI);AE112..XLI..(BZ,GCC,GEN,IDN)

 1
53771-13010

AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN);AE111,ZZE11#..SED..(GL,GLI,XL,XLI)..(GCC,GEN,TUR,VEN)

 1
74413 - BOLT, BATTERY CLAMP
74451-12061

AE110..TH;AE111..MA;AE110..GLI;AE112,EE11#;AE111..5F..NZ;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH,VEN)

 1
74451-12061

EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,VEN);AE110,112,EE111..GCC,GEN,VEN

 1
74451-12061

AE111..RHD..WG;EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE110,112,EE111..ARL,GCC,GEN,VEN;AE111,ZZE11#..SED..(GCC,GEN,TUR,VEN)

 1
74451-12061

AE111..SED;AE110,EE11#;AE111..WG..5F;AE112..GLI,SEG;AE111..LHD..WG..4FC;AE112..XLI..(BZ,GCC,GEN,IDN)

 1
74451-12130

AE111,112,EE11#,ZZE11#..ARL,GEN,TUR,VEN

 1
74431 - TRAY, BATTERY
74431-12020

AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,EE11#..ARL,GCC,GEN

 1
74431-12060

AE111..RHD..WG..5F;EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..(GL,SEG,XL,XLI)..GEN

W(32B24L OR NS40ZL BATTERY)

 1
74431-12060

AE111..WG..5F;AE111..5F..NZ;EE110..RHD..GL;AE111..LHD..WG..4FC;AE111..LHD..GLI..GEN;AE110,112,EE111..IDN,MA,TH;EE110..LHD..(GEN,GENKD,PHL);AE111..SED..(GL,XL,XLI)..(GEN,TH);AE111..(GLI,SEG)..(GENKD,MA,PHL,TH)

W(32B24L OR NS40ZL BATTERY)

 1
74431-12020

AE110..TH;AE111..MA;AE111..WG..5F;AE111..5F..NZ;AE111..LHD..WG..4FC;EE11#..GCC,GEN,GENKD,MA,PHL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112..(GLI,SEG)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH)

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12330

AE111..RHD..WG..5F;EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..SED..(GL,SEG,XL,XLI)..GEN

W(32B24L OR NS40ZL BATTERY)

 1
74404-12290

AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,EE11#..ARL,GCC,GEN

 1
74404-12330

EE110..LHD..XL..GEN;EE110..(GL,STD)..GEN;AE111..LHD..GLI..GEN;AE111..(GL,XL,XLI)..GEN

W(32B24L OR NS40ZL BATTERY)

 1
74404-12290

AE110..TH;AE111..MA;AE111..WG..5F;AE111..5F..NZ;AE111..LHD..WG..4FC;EE11#..GCC,GEN,GENKD,MA,PHL;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112..(GLI,SEG)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH);AE111..SED..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,PHL,TH)

 1
Common parts
90179-06146
91621-B0612
