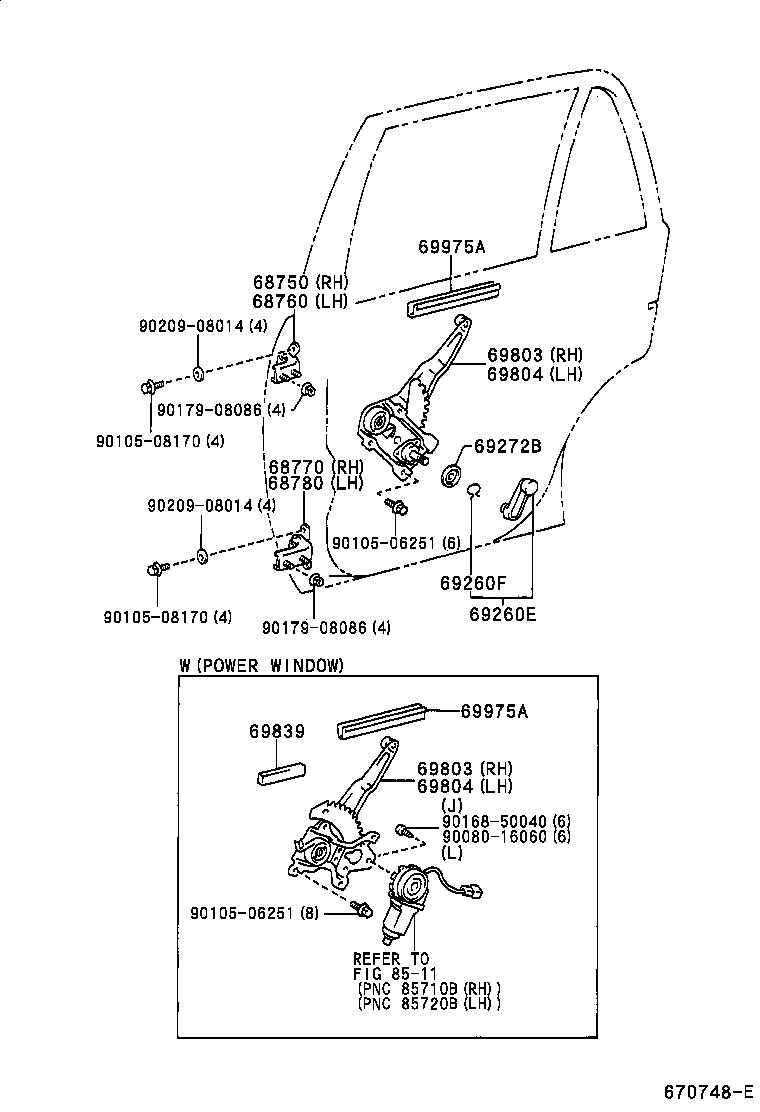

EE110L-AEHDS (1997)
Toyota Corolla Sed/Wg
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-32060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68750-32060 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 68750-32060 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 68750-32060 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-32060 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68760-32060 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 68760-32060 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 68760-32060 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-12100 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 68770-12100 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 68770-12100 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68770-12100 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-12090 |
EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN |
1 | ||
| 68780-12090 |
AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI |
1 | ||
| 68780-12090 |
AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL |
1 | ||
| 68780-12090 |
EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-22030P0 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1# |
2 | ||
| 69260-22030B2 |
AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9# |
2 | ||
| 69260-22030B2 |
EE110..LHD..3FC;EE110..MTM..(STD,XL)..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69260-22030B2 |
AE111,CE110,EE110..SED..(STD,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14 |
2 | ||
| 69260-22030B2 |
AE111..(XL,XLI)..GEN;AE112,CE110,EE11#,ZZE11#..(STD,XL,XLI)..(ARL,GEN,TUR,VEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01274 |
AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI |
2 | ||
| 90520-01274 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
2 | ||
| 90520-01274 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
2 | ||
| 90520-01274 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
2 | ||
| 90520-01274 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
2 | ||
| 90520-01274 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
2 | ||
| 90520-01274 |
AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-20020 |
AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI |
2 | ||
| 69268-20020 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
2 | ||
| 69268-20020 |
AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI |
2 | ||
| 69268-20020 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
2 | ||
| 69268-20020 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
2 | ||
| 69268-20020 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
2 | ||
| 69268-20020 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-12290 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 69803-12130 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 69830-12310 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
1 | ||
| 69803-12130 |
AE111..RHD..WG;AE111..GLI..TUR;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN W(POWER WINDOW) |
1 | ||
| 69830-12310 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 69803-12130 |
ZZE11#;AE111..GLI..TUR;EE110..LHD..3FC;AE111..GCC,GEN,VEN;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(POWER WINDOW) |
1 | ||
| 69803-12130 |
AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,EE11#..(3FC,4FC,5F)..(GCC,GEN,IDN,MA,NZ,PHL,TH) W(POWER WINDOW) |
1 | ||
| 69803-12130 |
AE112..GLI,SEG;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,111,CE110,EE11#..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69830-12310 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 69830-12310 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 69830-12310 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
1 | ||
| 69803-12130 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-12290 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 69803-12130 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 69830-12310 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
1 | ||
| 69803-12130 |
AE111..RHD..WG;AE111..GLI..TUR;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN W(POWER WINDOW) |
1 | ||
| 69830-12310 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 69803-12130 |
ZZE11#;AE111..GLI..TUR;EE110..LHD..3FC;AE111..GCC,GEN,VEN;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(POWER WINDOW) |
1 | ||
| 69803-12130 |
AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,EE11#..(3FC,4FC,5F)..(GCC,GEN,IDN,MA,NZ,PHL,TH) W(POWER WINDOW) |
1 | ||
| 69803-12130 |
AE112..GLI,SEG;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,111,CE110,EE11#..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69830-12310 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 69830-12310 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 69830-12310 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
1 | ||
| 69803-12130 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12290 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 69840-12310 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
1 | ||
| 69804-12130 |
AE111..RHD..WG;AE111..GLI..TUR;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 69804-12130 |
ZZE11#;AE111..GLI..TUR;EE110..LHD..3FC;AE111..GCC,GEN,VEN;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 69804-12130 |
AE112..GLI,SEG;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,111,CE110,EE11#..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 69804-12130 |
AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,EE11#..(3FC,4FC,5F)..(GCC,GEN,IDN,MA,NZ,PHL,TH) W(POWER WINDOW) |
1 | ||
| 69804-12130 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 69804-12130 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12290 |
AE111..GLI,XLI;AE110,EE11#..XL,XLI |
1 | ||
| 69840-12310 |
AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;EE110..MTM..(STD,XL)..(GCC,GEN);AE111..SED..(XL,XLI)..(GCC,GEN,TUR);AE110,112,CE110,EE111..(XL,XLI)..(GCC,GEN) |
1 | ||
| 69804-12130 |
AE111..RHD..WG;AE111..GLI..TUR;EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE111..ARL,GCC,GEN,VEN W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE111,ZZE11#..(XL,XLI)..(GCC,GEN,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN) |
1 | ||
| 69804-12130 |
ZZE11#;AE111..GLI..TUR;EE110..LHD..3FC;AE111..GCC,GEN,VEN;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TUR);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN) |
1 | ||
| 69804-12130 |
AE112..GLI,SEG;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,111,CE110,EE11#..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE110..TH;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,NZ,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,NZ,PHL,TUR,VEN) |
1 | ||
| 69804-12130 |
AE110..TH;AE111..MA;AE110,CE110..(GLI,XL)..GEN;AE111..(GL,GLI,XL,XLI)..(GCC,GEN,GENKD,PHL,TH);AE112,EE11#..(3FC,4FC,5F)..(GCC,GEN,IDN,MA,NZ,PHL,TH) W(POWER WINDOW) |
1 | ||
| 69804-12130 |
AE111..RHD..WG;AE111..SED..(GCC,GEN);AE110,112,CE110,EE11#..(3FC,4FC,5F)..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 69804-12130 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) W(POWER WINDOW) |
1 | ||
| 69840-12310 |
AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(ARL,GCC,GEN,TH,TUR);AE112,CE110,EE11#..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN) |
1 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-12020 |
ZZE11#;AE111..GLI..TUR;EE110..LHD..3FC;AE111..GCC,GEN,VEN;CE110,EE110..5F..(GL,XL)..(GCC,GEN);AE110,112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN) |
4 | ||
| 69839-12020 |
AE110..TH;AE110,112..GLI,SEG;AE112..XLI..(GCC,GEN,IDN);AE111..(GLI,SEG)..(MA,TUR);AE111,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
4 | ||
| 69839-12020 |
AE111..RHD..WG;AE111..GLI..TUR;AE111..SED..(GCC,GEN,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN) |
4 | ||
| 69839-12020 |
AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN) |
4 | ||
| 69839-12020 |
AE111..WG..5F;AE111..GLI..TUR;AE112..XLI..(GCC,GEN,IDN);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI)..(ARL,GCC,GEN,GENKD,MA,PHL,TH,VEN) |
4 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-12010 |
EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN |
2 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-12010 |
EE11#..GCC,GEN,VEN;AE11#,CE110,ZZE11#..ARL,GCC,GEN,TUR,VEN |
2 | ||
| Common parts | ||||
| 90080-16060 | ||||
| 90105-06251 | ||||
| 90105-08170 | ||||
| 90168-50040 | ||||
| 90179-08086 | ||||
| 90209-08014 | ||||
| Linked diagrams | ||||
| 8511 | ||||
