Toyota Corolla sed/wg EE110 FRONT DOOR WINDOW REGULATOR & HINGE

Manufacturers Home
Toyota
GR
COROLLA SED/WG
EE110L-AEHDS (1997)
6704 - FRONT DOOR WINDOW REGULATOR & HINGE

EE110L-AEHDS (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Sep 2001

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9505-0008)

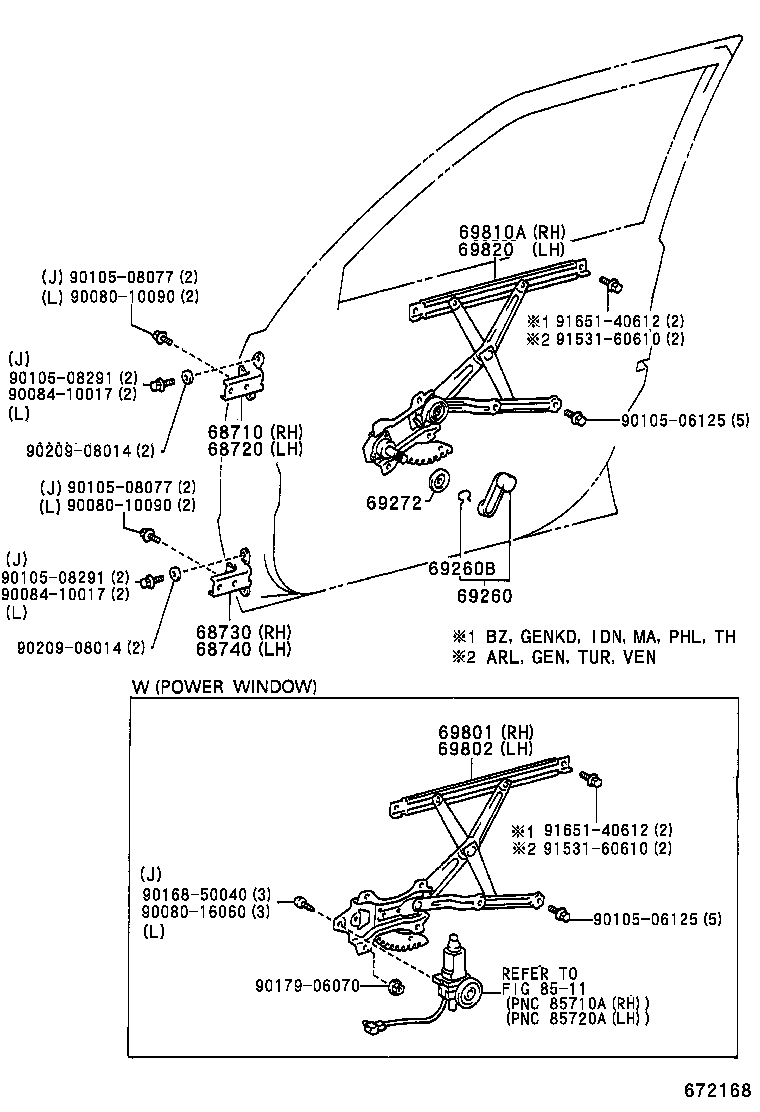

Click highlighted areas on diagram

Part #	Description	Period	Qty
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12130	AE11#,EE11#	05/1995 - 08/1995	1
68710-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68710-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68710-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68720-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68720-12130	AE11#,EE11#	05/1995 - 08/1995	1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68720-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68720-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720-12130	AE11#,EE11#	05/1995 - 08/1995	1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12130	AE11#,EE11#	05/1995 - 08/1995	1
68710-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68710-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68710-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-22030B2	EE110..LHD..3FC;EE110..MTM..(STD,XL)..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14	04/1997 - 10/1999	2
69260-22030P0	AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1#	05/1995 - 04/1997	2
69260-22030B2	AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	2
69260-22030B2	AE111,CE110,EE110..SED..(STD,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14	04/1997 - 10/1999	2
69260-22030B2	AE111,112..(XL,XLI)..(ARL,GEN);CE110,EE11#..(STD,XL)..(GEN,VEN) MD.CHARCOAL,TRIM1#	08/2000 - 03/2001	2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274	AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI	05/1995 - 05/1997	2
90520-01274	EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	12/1998 - 10/1999	2
90520-01274	EE111..GEN,VEN;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	12/1998 - 10/1999	2
90520-01274	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	2
90520-01274	AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI	04/1997 - 05/1997	2
90520-01274	AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	05/1997 - 12/1998	2
90520-01274	AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	10/1999 - 02/2000	2
90520-01274	AE110..TH;AE111..RHD..5F..GLI..GEN;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	05/1997 - 12/1998	2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020	EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	12/1998 - 10/1999	2
69268-20020	AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI	05/1995 - 05/1997	2
69268-20020	AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	05/1997 - 12/1998	2
69268-20020	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	2
69268-20020	EE111..GEN,VEN;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	12/1998 - 10/1999	2
69268-20020	AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI	04/1997 - 05/1997	2
69268-20020	AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	10/1999 - 02/2000	2
69268-20020	AE110..TH;AE111..RHD..5F..GLI..GEN;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	05/1997 - 12/1998	2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12170	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 03/2001	1
69801-12170	AE111..WG..5F;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN)	12/1998 - 03/2001	1
69801-12170	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 12/1998	1
69801-12170	AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	1
69801-12170	AE110..TH;AE111..MA;AE112..XLI..(GCC,GEN,IDN);AE111,CE110,EE111..GL,GLI,XL,XLI;AE110,112,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 12/1998	1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12170	AE110..TH;AE111..MA;AE112..XLI..(GCC,GEN,IDN);AE111,CE110,EE111..GL,GLI,XL,XLI;AE110,112,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 12/1998	1
69802-12170	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 03/2001	1
69802-12170	AE111..WG..5F;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN)	12/1998 - 03/2001	1
69802-12170	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 12/1998	1
69802-12170	AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12560	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 02/2000	1
69810-12560	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	1
69810-12470	AE111..GLI,XLI;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
69810-12560	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 12/1998	1
69810-12560	AE111..WG..5F;CE110,EE110..STD,XL;AE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN)	12/1998 - 02/2000	1
69810-12560	AE110..TH;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	04/1997 - 12/1998	1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12560	AE110..TH;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	04/1997 - 12/1998	1
69820-12560	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 02/2000	1
69820-12560	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	1
69820-12560	AE111..WG..5F;CE110,EE110..STD,XL;AE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN)	12/1998 - 02/2000	1
69820-12560	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 12/1998	1
69820-12470	AE111..GLI,XLI;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
Common parts
90080-10090
90080-10209
90080-16060
90084-10017
90105-06102
90105-08077
90105-08291
90168-50040
90179-06070
90209-08014
91651-40612
Linked diagrams
8511

(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12130	AE11#,EE11#	05/1995 - 08/1995	1
68710-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68710-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68710-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68720-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68720-12130	AE11#,EE11#	05/1995 - 08/1995	1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
68720-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68720-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68720-12130	AE11#,EE11#	05/1995 - 08/1995	1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-12130	AE11#,EE11#	05/1995 - 08/1995	1
68710-12150	EE110..LHD..3FC;EE110..MTM..(GCC,GEN);AE112,EE111..ARL,GCC,GEN,VEN;AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN	12/1998 - 12/2999	1
68710-12150	AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL,XLI	04/1997 - 12/1998	1
68710-12150	AE111..WG..5F;AE111,EE111..SED;AE112..XLI..(BZ,GCC,GEN,IDN);AE110,112,CE110,EE110..GL,GLI,SEG,STD,XL	12/1998 - 12/2999	1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-22030B2	EE110..LHD..3FC;EE110..MTM..(STD,XL)..GEN;AE111,CE110..SED..(XL,XLI)..GEN MD.CHARCOAL,TRIM10,14	04/1997 - 10/1999	2
69260-22030P0	AE111..GLI,XLI;AE110,EE11#..XL,XLI SHADOW GRAY,TRIM1#	05/1995 - 04/1997	2
69260-22030B2	AE111..SED..(XL,XLI)..GEN;CE110,EE110..(STD,XL)..GEN MD.CHARCOAL,TRIM1#,9#	10/1999 - 08/2000	2
69260-22030B2	AE111,CE110,EE110..SED..(STD,XL,XLI)..GEN MD.CHARCOAL,TRIM10,14	04/1997 - 10/1999	2
69260-22030B2	AE111,112..(XL,XLI)..(ARL,GEN);CE110,EE11#..(STD,XL)..(GEN,VEN) MD.CHARCOAL,TRIM1#	08/2000 - 03/2001	2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274	AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI	05/1995 - 05/1997	2
90520-01274	EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	12/1998 - 10/1999	2
90520-01274	EE111..GEN,VEN;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	12/1998 - 10/1999	2
90520-01274	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	2
90520-01274	AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI	04/1997 - 05/1997	2
90520-01274	AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	05/1997 - 12/1998	2
90520-01274	AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	10/1999 - 02/2000	2
90520-01274	AE110..TH;AE111..RHD..5F..GLI..GEN;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	05/1997 - 12/1998	2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020	EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(GCC,GEN,VEN)	12/1998 - 10/1999	2
69268-20020	AE111..RHD..WG;AE111..RHD..GLI;AE111..SED..(XL,XLI);AE110,112,CE110,EE11#..STD,XL,XLI	05/1995 - 05/1997	2
69268-20020	AE111..RHD..WG;EE110..LHD..3FC;AE111..RHD..5F..GLI..GEN;AE110,111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	05/1997 - 12/1998	2
69268-20020	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	2
69268-20020	EE111..GEN,VEN;AE111..RHD..5F..GLI..GEN;AE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	12/1998 - 10/1999	2
69268-20020	AE111..RHD..GLI;AE111,112,CE110,EE11#..STD,XL,XLI	04/1997 - 05/1997	2
69268-20020	AE111..(XL,XLI)..(GCC,GEN);AE112,CE110,EE11#..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	10/1999 - 02/2000	2
69268-20020	AE110..TH;AE111..RHD..5F..GLI..GEN;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	05/1997 - 12/1998	2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-12170	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 03/2001	1
69801-12170	AE111..WG..5F;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN)	12/1998 - 03/2001	1
69801-12170	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 12/1998	1
69801-12170	AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	1
69801-12170	AE110..TH;AE111..MA;AE112..XLI..(GCC,GEN,IDN);AE111,CE110,EE111..GL,GLI,XL,XLI;AE110,112,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 12/1998	1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-12170	AE110..TH;AE111..MA;AE112..XLI..(GCC,GEN,IDN);AE111,CE110,EE111..GL,GLI,XL,XLI;AE110,112,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,NZ,PHL,TH,VEN)	04/1997 - 12/1998	1
69802-12170	EE110..LHD..3FC;EE110..5F..(GCC,GEN);AE110,111,CE110,ZZE11#..GCC,GEN,TUR,VEN;AE112,EE111..(GLI,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 03/2001	1
69802-12170	AE111..WG..5F;AE112..XLI..(GCC,GEN,IDN);AE111,EE111..SED..(GL,GLI,SEG,XL,XLI);AE110,112,CE110,EE110..(GL,GLI,SEG,XL)..(ARL,BZ,GCC,GEN,IDN,PHL,TH,VEN)	12/1998 - 03/2001	1
69802-12170	AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE11#..(GL,GLI,XL,XLI)..(ARL,GCC,GEN,VEN)	05/1995 - 12/1998	1
69802-12170	AE11#,CE110,EE110,ZZE11#..(3FC,4FC,5F)..(ARL,GEN,TUR,VEN)	03/2001 - 12/2999	1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-12560	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 02/2000	1
69810-12560	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	1
69810-12470	AE111..GLI,XLI;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
69810-12560	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 12/1998	1
69810-12560	AE111..WG..5F;CE110,EE110..STD,XL;AE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN)	12/1998 - 02/2000	1
69810-12560	AE110..TH;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	04/1997 - 12/1998	1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-12560	AE110..TH;AE111,EE111..(XL,XLI)..(GCC,GEN,TH);AE112,CE110,EE110..(STD,XL,XLI)..(BZ,GCC,GEN,GENKD,PHL,TUR,VEN)	04/1997 - 12/1998	1
69820-12560	EE110..LHD..3FC;AE111..(XL,XLI)..(GCC,GEN);EE110..MTM..(STD,XL)..(GCC,GEN);AE112,CE110,EE111..(STD,XL,XLI)..(ARL,GCC,GEN,VEN)	12/1998 - 02/2000	1
69820-12560	AE111..(XL,XLI)..(GCC,GEN);CE110,EE110..(STD,XL)..(GCC,GEN);AE112,EE111..(STD,XLI)..(ARL,GCC,GEN,VEN)	02/2000 - 03/2001	1
69820-12560	AE111..WG..5F;CE110,EE110..STD,XL;AE111..SED..(XL,XLI)..(GCC,GEN,TH);AE112,EE111..(STD,XLI)..(BZ,GCC,GEN,VEN)	12/1998 - 02/2000	1
69820-12560	AE111..RHD..WG;EE110..LHD..3FC;AE111,CE110,EE111..SED..(XL,XLI)..(GCC,GEN);AE112,EE110..(4F,4FC,5F)..(STD,XL,XLI)..(GCC,GEN)	04/1997 - 12/1998	1
69820-12470	AE111..GLI,XLI;AE110,EE11#..XL,XLI	05/1995 - 04/1997	1
Common parts
90080-10090
90080-16060
90084-10017
90105-06125
90105-08077
90105-08291
90168-50040
90179-06070
90209-08014
91531-60610
91651-40612
Linked diagrams
8511

EE110L-AEHDS (1997)

(9505-0008)

(0008- )
